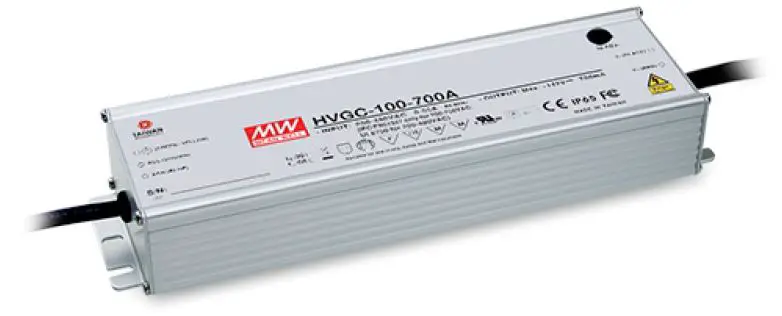

MEAN WELL HVGC-100 100W Constant Current Mode LED Driver

Features

Wide input range 180 528VAC
Constant Current mode output
Metal housing with Class I design
Built-in active PFC function
IP67/ IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer
3 in 1 dimming (dim-to-off); Timer dimming
Typical lifetime>50000 hours
5 years warranty

Applications

LED street lighting
LED high-bay lightin9
Parking space lighting
LED fishing lamp

GTIN CODE

MW Search: https://www.meanwell.com/serviceGTIN.aspx

Description

HVGC-100 series is a 100W LED AC/DC LED drive featuring the constant current mode and high voltage output. HVGC-100 operates from 180-528VAC and offers models with different rated current, 350mA and 700mA, respectively. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40’C ~ +90C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

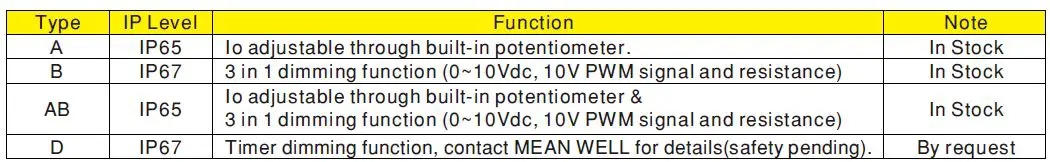

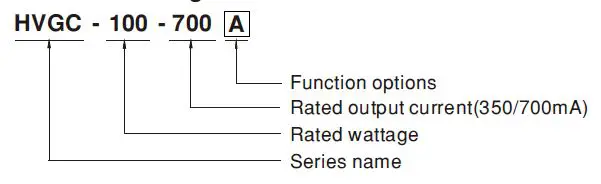

Model Encoding

SPECIFICATION

MODEL			HVGC-100-350			HVGC-100-700
OUTPUT	RATED CURRENT		350mA			700mA
	RATED POWER		99.75W			99.4W
	CONSTANT CURRENT REGION Note.2		29 ~ 285V			15 ~ 142V
	CURRENT ADJ. RANGE		Adjustable for A/AB-Type only (via built-in potentiometer)
			210 ~ 350mA			420 ~ 700mA
	CURRENT RIPPLE Note.5		5.0% max. @rated current
	CURRENT TOLERANCE		±5.0%
	SET UP TIME	Note.4	500ms, 80ms /230VAC, 347VAC, 480VAC
INPUT	VOLTAGE RANGE	Note.3	180 ~ 528VAC 254VDC ~ 747VDC (Please refer to “STATIC CHARACTERISTIC” section)
	FREQUENCY RANGE		47 ~ 63Hz

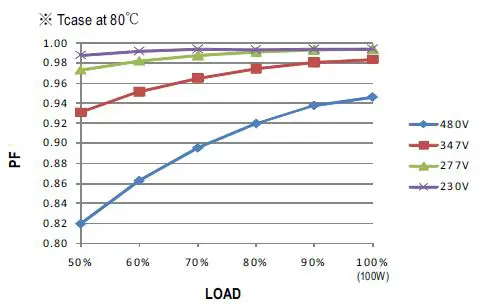

	POWER FACTOR (Typ.)		PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.93/480VAC @full load (Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section)

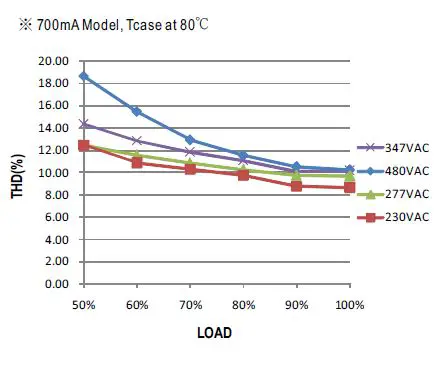

	TOTAL HARMONIC DISTORTION		THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)

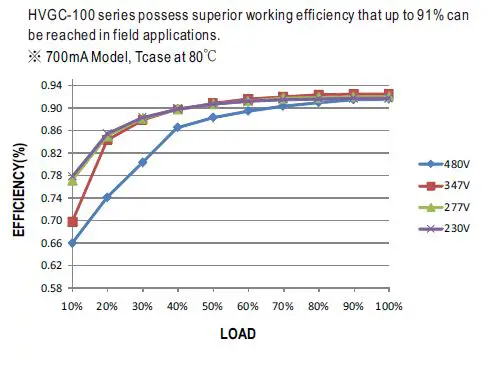

	EFFICIENCY (Typ.)		91%			91%
	AC CURRENT (Typ.)		0.38A / 347VAC	0.28A / 480VAC
	INRUSH CURRENT (Typ.)		COLD START 25A(twidth=900μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER		5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC
	LEAKAGE CURRENT		<0.75mA / 480VAC
PROTECTION	SHORT CIRCUIT		Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE		300 ~ 320V			150 ~ 160V
			Shut down o/p voltage with auto-recovery or re-power on to recovery
	OVER TEMPERATURE		Shut down o/p voltage, recovers automatically after temperature goes down

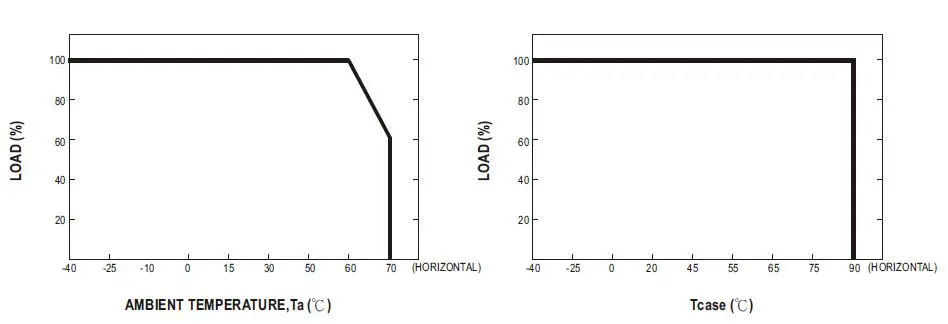

ENVIRONMENT	WORKING TEMP.		Tcase=-40 ~ +90℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section)
	MAX. CASE TEMP.		Tcase=+90℃
	WORKING HUMIDITY		20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 ~ +80℃, 10 ~ 95% RH
	TEMP. COEFFICIENT		±0.03%/℃ (0 ~ 60℃)
	VIBRATION		10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS		UL8750, CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP65 or IP67 approved; design refer to UL60950-1
	WITHSTAND VOLTAGE		I/P-O/P:3.75KVAC	I/P-FG:2KVAC	O/P-FG:1.5KVAC
	ISOLATION RESISTANCE		I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION		Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, FCC Part 15 Subpart, EAC TP TC 020
	EMC IMMUNITY		Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
OTHERS	MTBF		745.0K hrs min. Telcordia SR-332 (Bellcore) ; 186.1K hrs min. MIL-HDBK-217F (25℃)

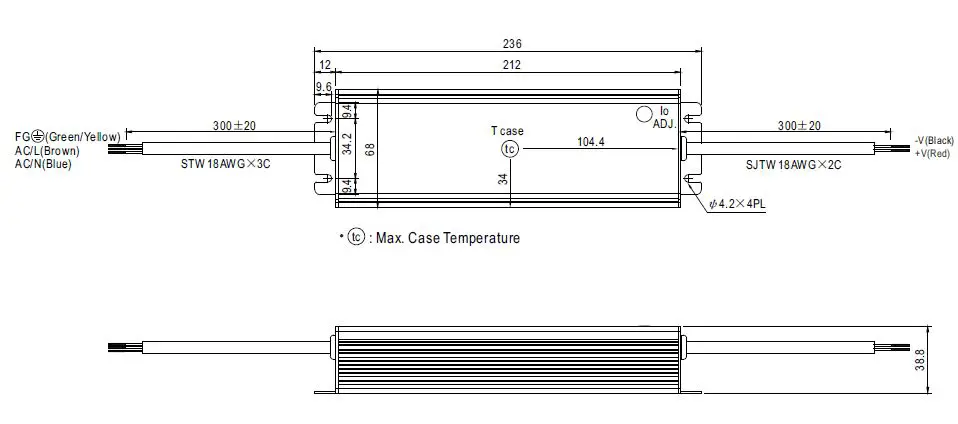

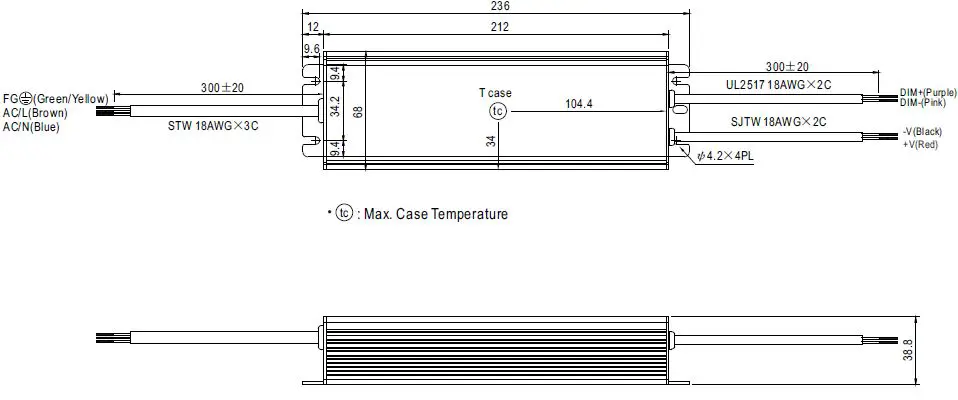

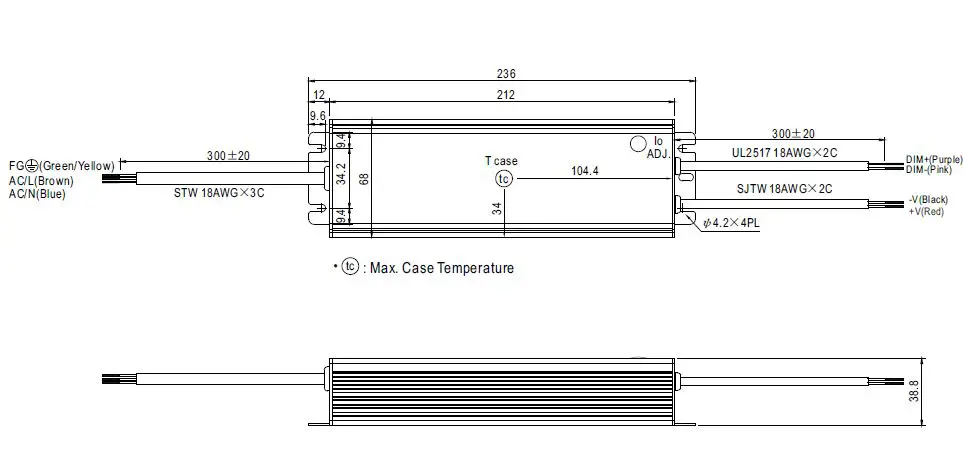

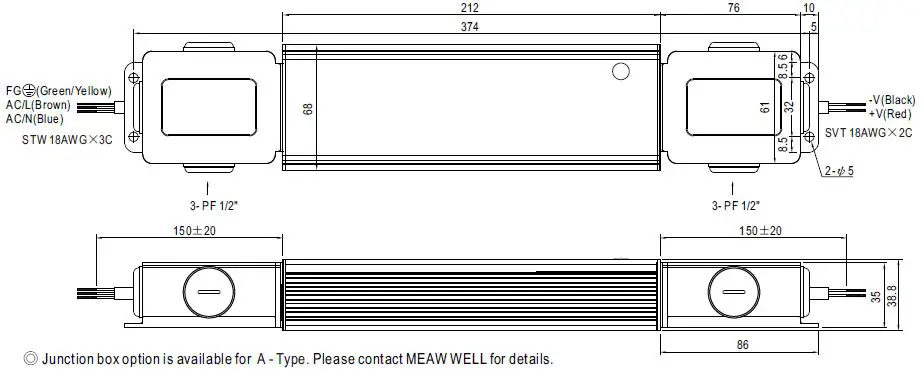

	DIMENSION		2366838.8mm (LWH)
	PACKING		1.18Kg; 12pcs/15.2Kg/0.74CUFT

NOTE

All parameters NOT spEcially mentioned are measured at 347VAC input, rated current and 25 of ambient temperature.
Please refer to “DRIVING METHODS OF LED MODULE”.

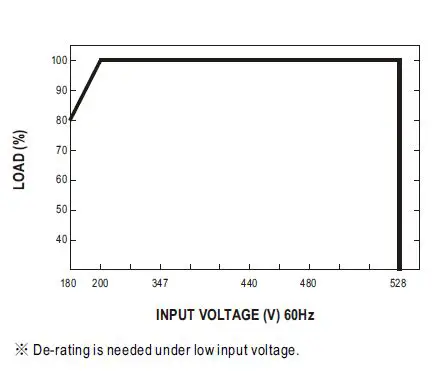

De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
Length of set up time is measured at first cold start. Turning ONOFF the driver may lead to increase of the set up time.
It is measured 50% ~ 100%% of maximum voltage under rated power delvery.
The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
To fulfill equirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.

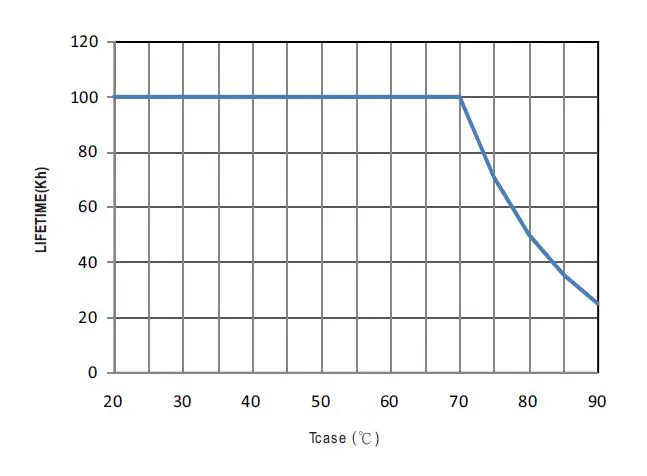

This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particu
Please refer to the warranty statement on MEAN WELL’S website at http://www.meanwell.com.
The ambient temperature derating of 3.5 C/1000m with fanless models and of 5C/1000m with fan models for operating altitude higher than 2000m(6500ft)

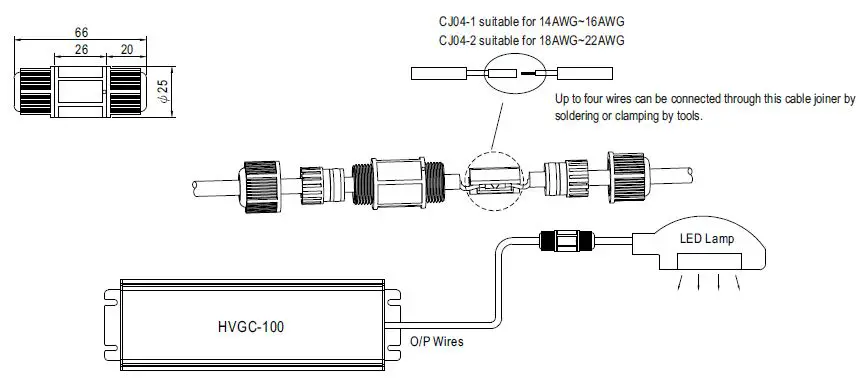

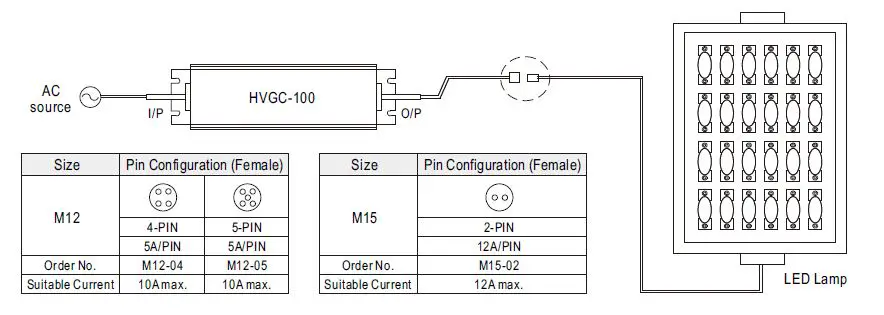

For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
x Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

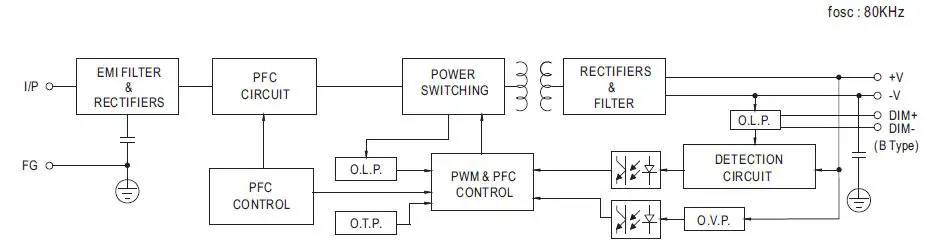

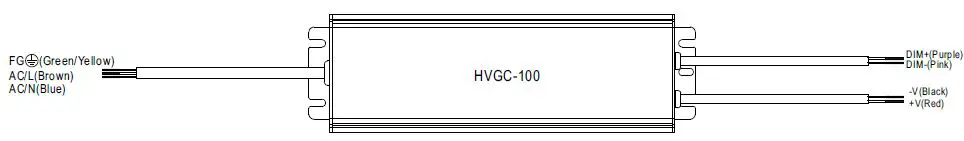

Block Diagram

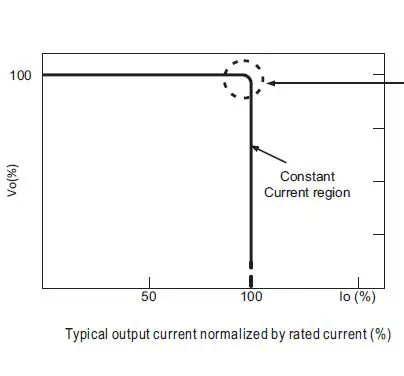

DRIVING METHODS OF LED MODULE

This series works in constant current mode to directly drive the LEDs.

In the constant current region, the highest voltage at the output of the driver depends on the configuration of the end systems. Should there be any compatibility issues, please contact MEAN WELL.

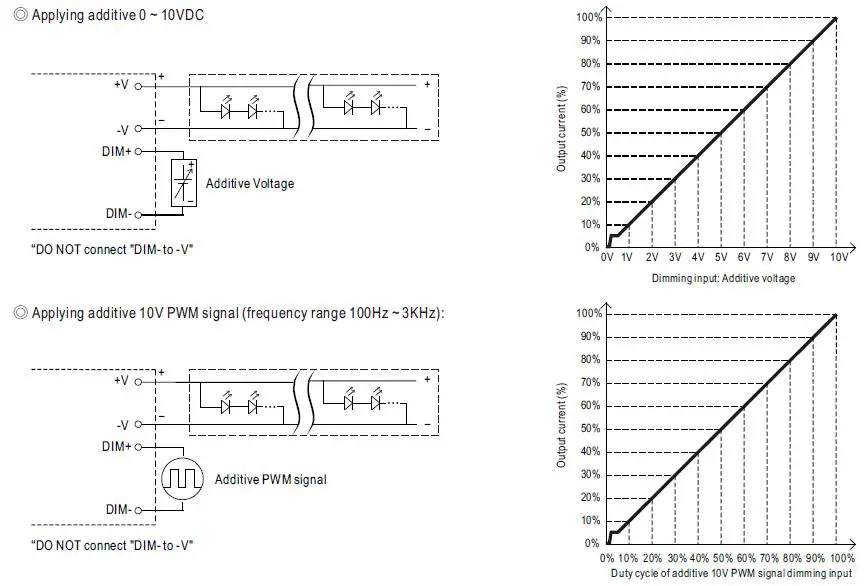

DIMMING OPERATION

3 in 1 dimming function (for B/AB-Type)

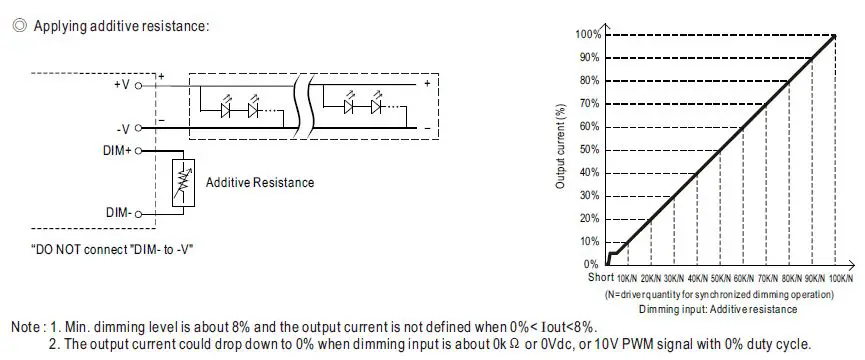

Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-: 0 ~ 10VDC, or 10V PWM signal or resistance.
Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
Dimming source current from power supply: 100μA (typ.)
