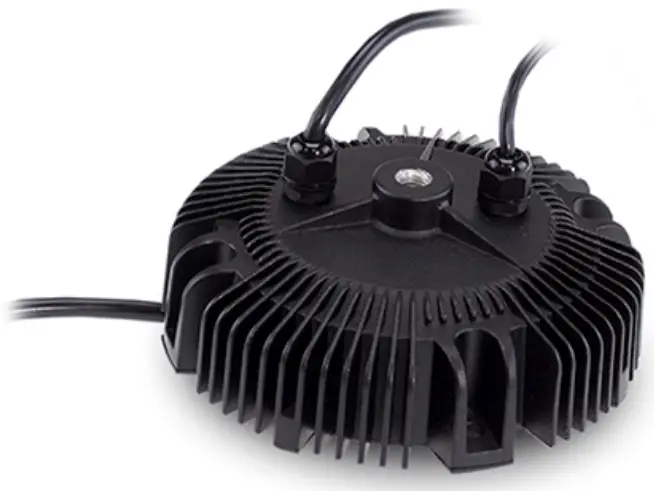

300W Constant Power Mode LED Driver
HBGC – 300 series

Contents hide

5 Documents / Resources

6 Related Posts

Features

Wide input range 90 – 305VAC
Full power at 60-100% max current (Constant Power )
Built-in active PFC function
Circular metal housing design with IP67
Function options: output adjustable via potentiometer; 3 in 1 dimming (Dim to off and Isolation) ; DALI-2 dimming
Typical lifetime>50000 hours 5 years warranty

■ Applications

Bay lighting
Stage lighting
Flood lighting
Stadium lighting
Type HL for use in class I,Division 2

■ GTIN CODE
MW Search. https://www.mearrol.comtseMceGTIN.aspx

Description

HBGC-300 series is a 300W LED AC/DC driver featuring the constant power mode and high voltage output. HBGC-300 operates from 90-305VAC and offers models with different rated current ranging between 1300mA and 8670mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40°C-+80°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. HBGC-300 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

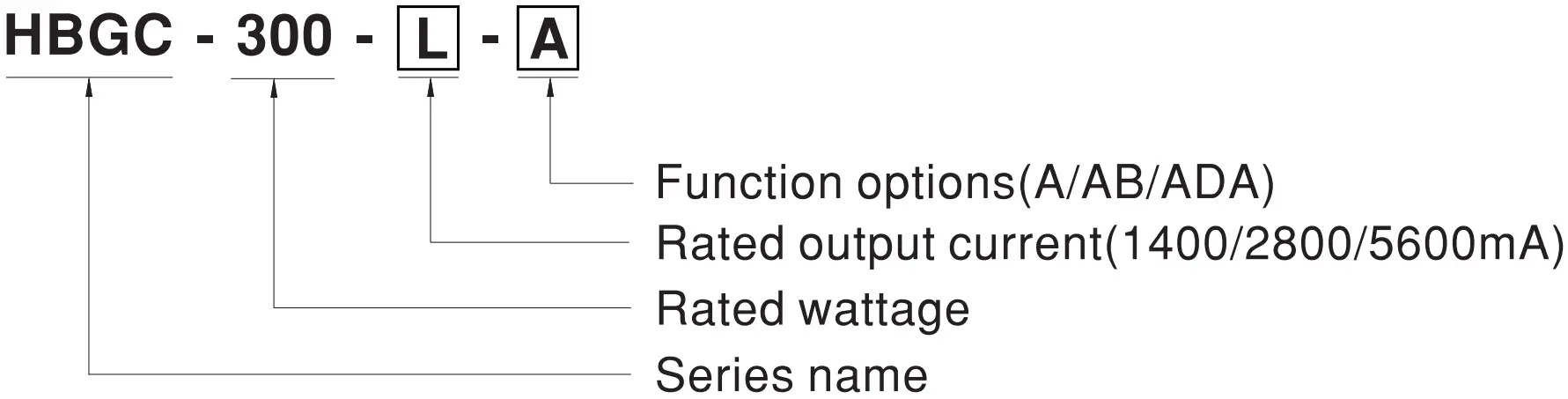

■ Model Encoding

Type	IP Level	Function	Note
A	IP67	output constant power adjustable via built-in potentiometer	In Stock
AB	IP67	output constant power adjustable via built-in potentiometer + 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance)	In Stock
ADA	IP67	DALI-2 control technology with lo Adjustable via build-in Potentiometer	In Stock

SPECIFICATION

MODEL		HBGC-300-L-□	HBGC-30044-□	HBGC-300-H-□
OUTPUT	DEFAULT CURRENT	1400mA	2800mA	5600mA
	RATED POWER	301.6W	301.6W	301.6W
	CONSTANT CURRENT REGION	116 ∼ 232V	58 ∼ 116V	29 ∼ 58V
	FULL POWER CURRENT RANGE	1300 ∼ 2170mA	2600 ∼ 4330mA	5200 ∼ 8670mA
	OPEN CIRCUIT VOLTAGE (max.)	240V	120V	62V
	CURRENT ADJ. RANGE	650 ∼ 2170mA	1300-4330mA	2600-8670mA
	CURRENT RIPPLE	5.0% max. @rated current
	CURRENT TOLERANCE	±5%
	SET UP TIME	500ms/230VAC, 500ms/115VAC
INPUT	VOLTAGE RANGE Noma	90 ∼ 305VAC 127VDC ∼ 431VDC (Please refer to ‘STATIC CHARACTERISTIC section)
	FREQUENCY RANGE	47 ∼ 63Hz
	POWER FACTOR (Typ.)	PF ≧ 0.97 /115VAC, PE≧ 0.95 /230VAC, PF≧ 0.92 / 27NAC at ful load ( Please refer to *Power Factor Characteristic” section)
	TOTAL HARMONIC DISTORTION	THD< 10% (@ load≧ 50% at 115VAC/230VAC ,©load≧ 75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (TH Dr section
	EFFICIENCY (Typ.)	95.%	1933%	193.%
	AC CURRENT (Typ.)	3A/ 115VAC 1.6A/ 230VAC 1.3A/ 277VAC
	INRUSH CURRENT (Typ.)	COLD START 45A(ividth=1300fts measured at 50% beak) at 230VAC; Per NEMA 410
	MAX. NO. of PSUs on 16A CIRCUIT BREAKER	2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.75mA/ 277VAC
	NO LOAD! STANDBY POWER CONSUMPTION	Standby power consumption <0.5W for AB /ADA-Type Blank/A-Type please refer to Note. 5
PROTECTION	SHORT CIRCUIT	Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	241 ∼ 275V	121 ∼ 145V	61 ∼ 78V
		Shut down output voltage, re-power on to recovery
	OVER TEMPERATURE	Tcase>80ºC ±5ºC ,derate power automatically by 6%/ºC max.
ERVIN:MUNI	WORKING TEMP.	Tcase=-40 ∼ +80 C(Please refer to ‘OUTPUT LOAD vs TEMPERATURE’ section)
	MAX. CASE TEMP.	Tcase= +80ºC
	WORKING HUMIDITY	20 ∼ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ∼+80ºC , 10 ∼ 95% RH non-condensing
	TEMP. COEFFICIENT	±0.03%/°C (0 ∼ 60ºC )
	VIBRATION	10 ∼ 500Hz, 5G 12min.1/cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	UL8750(typeHL”), CSA C22.2 No. 250.13-12; E NEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;GB19510.1 , GB19510.14; IP67 approved
	DALI STANDARDS	Compliance to I EC62386-101,102,207 for A DA Type only
	WITHSTAND VOLTAGE	I/P-O/P:3.75 KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG: 100 M Ohms / 500VDC / 25ºC/ 70% RH
	EMC EMISSION	Complance to BS EN/EN55015, BS EN/E N61000-3-2 Class C (@ load≧ 50%): BS EN/EN61000-3-3,EAC TP TC 020
	EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, fight industry level (surge immunity Line-Earth 6KV, Line-Line 4KV). EAC TP TC 020
OTHERS	MTBF	1772.9K hrs min. Telcordia SR-332 (Bellcore) ;175.4K hrs min. MIL-HDBK-217F (25ºC)

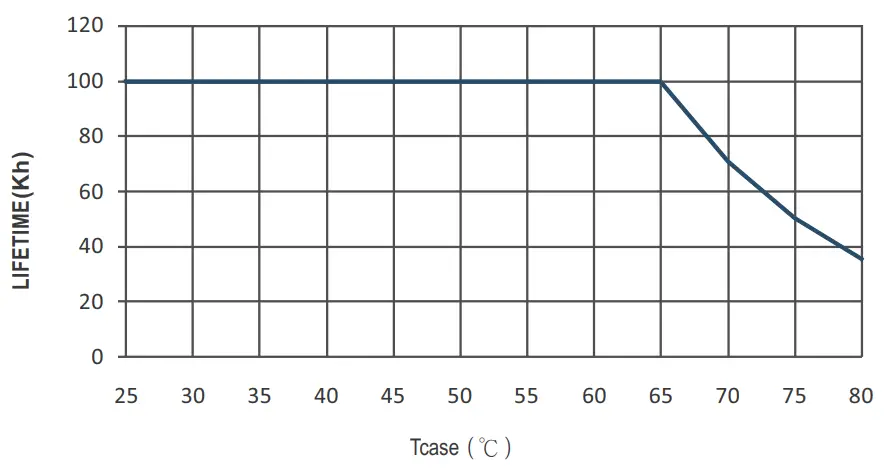

	LIFETIME Note.4	50000 hrs min.

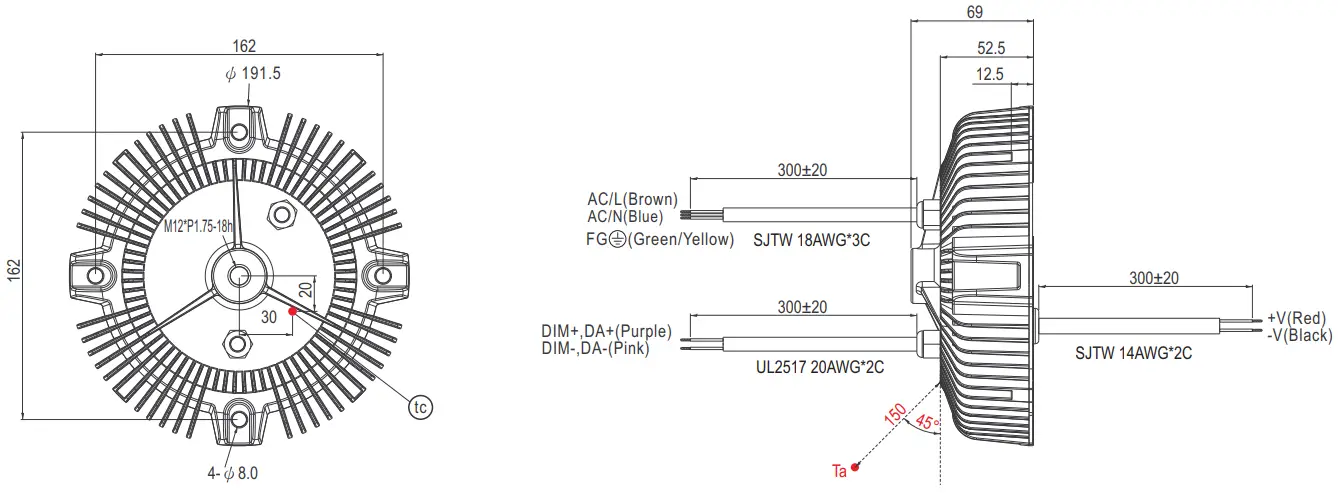

	DIMENSION	φ 191.5mm *69mm
	PACKING	2.2Kg;8pcs/19.8Kg/2.09CUFT
NOTE	1. All parameters NOT specia y mentioned are measured at 230VAC input, rated current and 25t of ambient temperature. 2. De-rating may be needed under low input voltages. Please refer to ‘STATIC CHARACTERISTIC sections for details. 3. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 4. This series meet the typical lib expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75C or less. 5. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED drive can only be used behind a switch without permanently connected b the mains. 6. Please refer to the warranty statement on MEAN WELL’s website at http://www.meanwell.com 7. The ambient temperature derating of 3.5’01000m with fanless models and of 5t/1000m with fan models for operating altitude higher than 2000m(6500+0. 8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://ww.meanwell.com/Upload/PDF/LED_EN.pdf ※ Product Liability Disclaimer : For detailed information, please refer to https://www.meanwelloom/serviceDisclaimeraspx

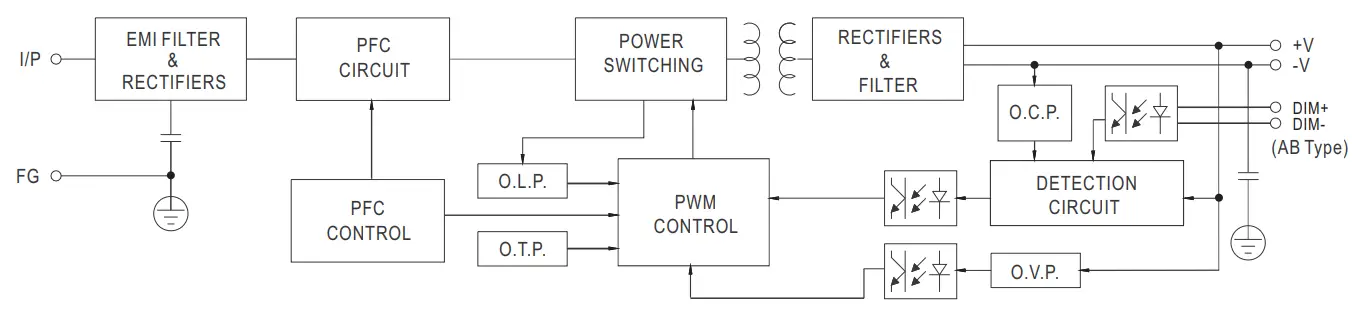

BLOCK DIAGRAM

PFC fosc : 45 ~ 50KHz
PWM fosc : 60 ~130KHz

■ DRIVING METHODS OF LED MODULE

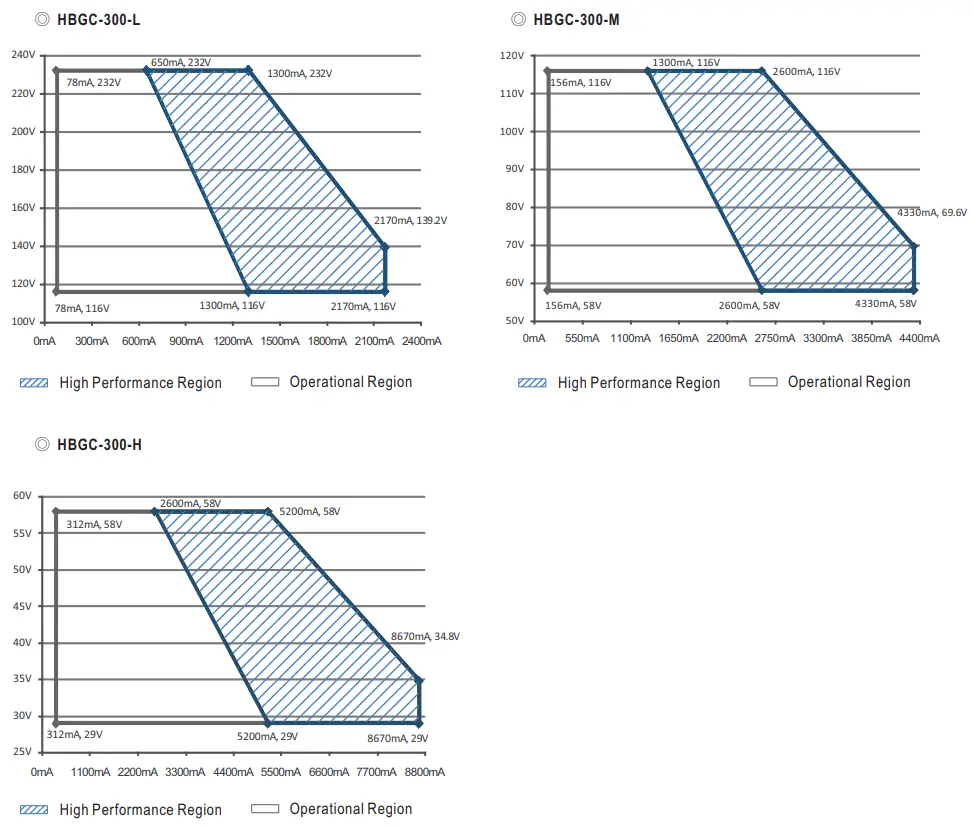

※ I-V Operating Area

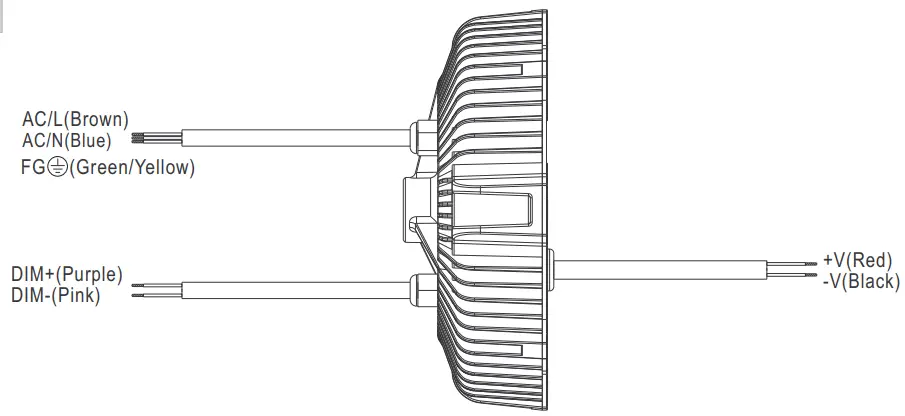

■ DIMMING OPERATION

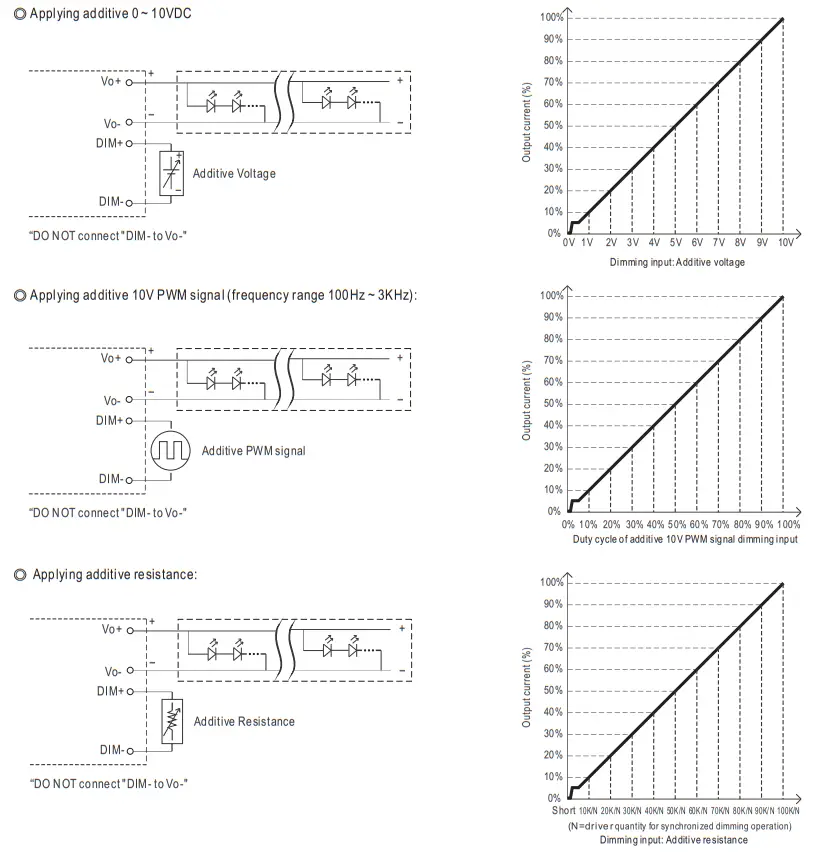

※ 3 in 1 dimming function (for AB-Type)

Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-: 0~ 10VDC, or 10V PWM signal or resistance.
Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
Dimming source current from power supply: 100uA (typ.)

Note:

Min. dimming level is about 8% and the output current is not defined when 0%< Iout<8%.
The output current could drop down to 0% when dimming input is about OkΩ or OVdc, or 10V PWM signal with 0% duty cycle.

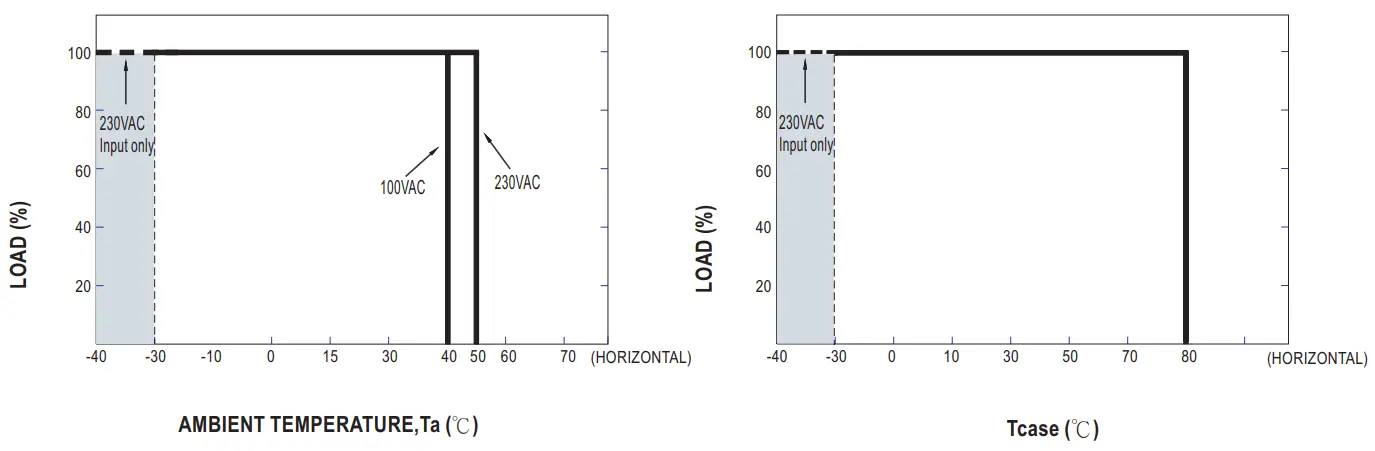

■ OUTPUT LOAD vs TEMPERATURE

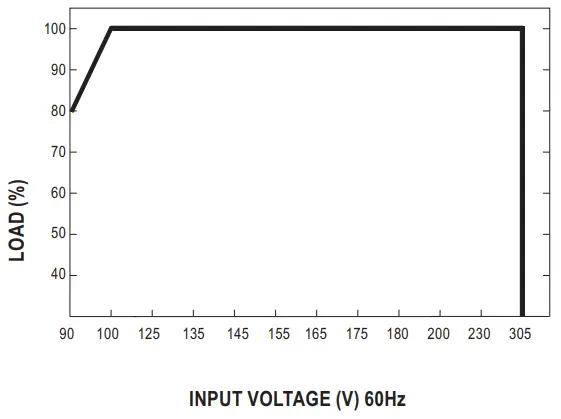

■ STATIC CHARACTERISTIC

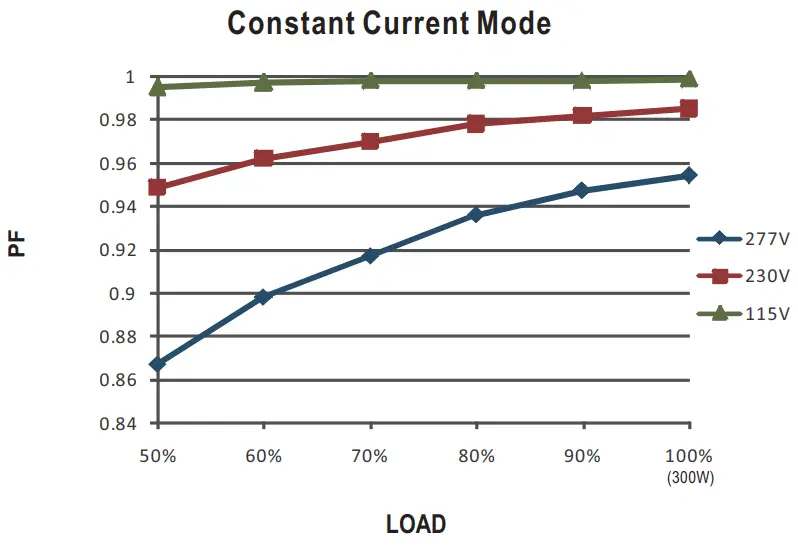

■ POWER FACTOR (PF) CHARACTERISTIC
※ Tease at 65°C

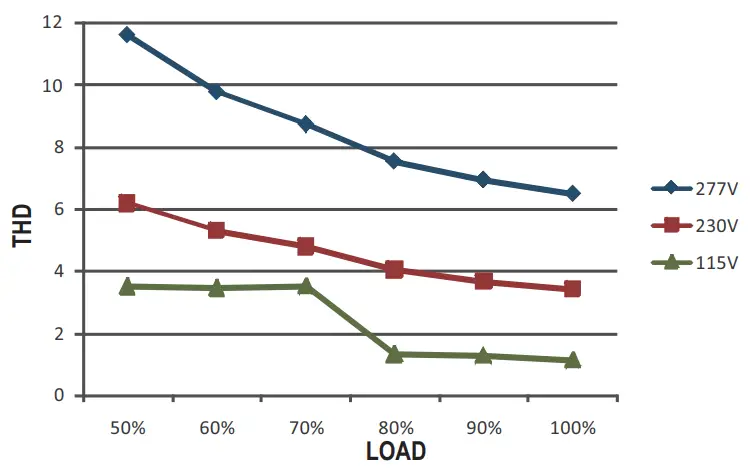

■ TOTAL HARMONIC DISTORTION (THD)
※ HBGC-300-L Model, Tease at 65°C

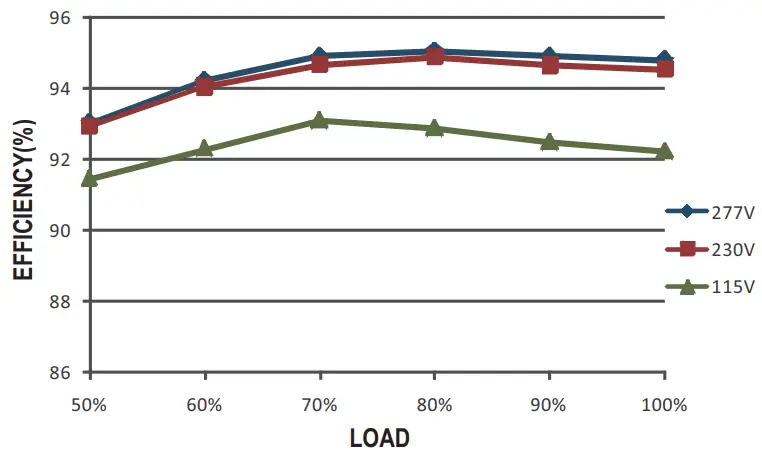

■ EFFICIENCY vs LOAD
HBGC-300 series possess superior working efficiency that up to 94.5% can be reached in field applications.
※ HBGC-300-L Model, Tcase at 65°C
