Mean Well Hlg-100h 100w Constant Voltage + Constant Current Led Driver Instruction Manual

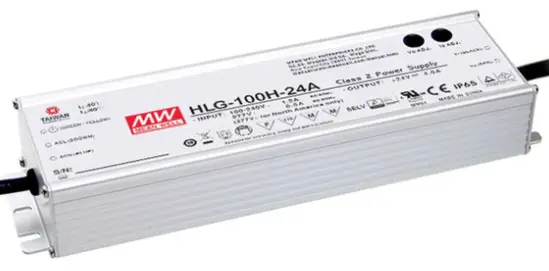

HLG-100H 100W Constant Voltage + Constant Current LED Driver
Instruction Manual

Features

• Constant Voltage + Constant Current mode output
• Metal housing with class I design
• Built-in active PFC function
• Class 2 power unit
• I P67/IP65 rating for indoor or outdoor installations
• Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
• Typical lifetime > 62000 hours
• 7 years warranty

Applications

• LED street lighting
• LED high-bay lighting
• Parking space lighting
• LED fishing lamp
• LED greenhouse lighting
• Type “HL” for use in Class 1 , Division 2 hazardous (Classified) location.

Description

HLG-10011 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-10011 operates from 90 305VAC and offers models with different rated voltage ranging between 20V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40°C – +80°C case temperature under free air convection. The design of metal housing and IP67/1P65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-10011 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

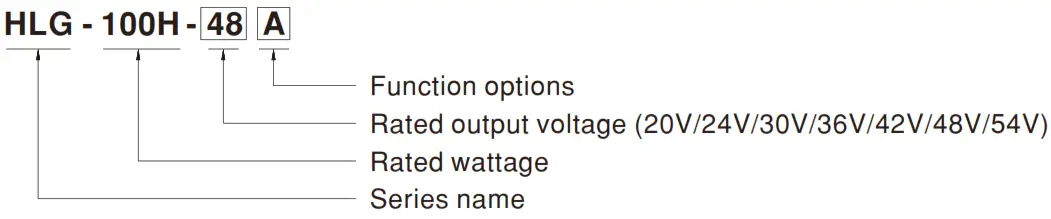

Model Encoding

SPECIFICATION

MODEL		HLG-100H-20	HLG-100H-24	HLG-100H-30		HLG-100H36		HLG-100H-42	HLG-100H-48		HLG-100H-54
OUTPUT	DC VOLTAGE	20V	24V	30V		36V		42V	48V		54V
	CONSTANT CURRENT REGION Note.4	10-20V	12 – 24V	15 -30V		18 – 36V		21 – 42V	24 -48V		27 – 54V
	RATED CURRENT	4.8A	4A	3.2A		2.65A		2.28A	2A		1.77A
	RATED POWER	96W	96W	96W		95.4W		95.76W	96W		95.58W
	RIPPLE & NOISE (max.) Noat.2	150mVp-p	150mVp-p	200mVp-p		200mVp-p		200mVp-p	200mVp-p		200mVp-p
	VOLTAGE ADJ. RANGE	Ad ustable for AJAB-Typ e on ty (via built-in potentiometer)
		17 -22V	22 – 27V	27 -33V		33 – 40V		38 – 46V	43 -53V		49 – 58V
	CURRENT ADJ. RANGE	Adjustable for AJAB-Type only (via built-in potentiometer)
		3 -4.8A	2.5 – 4A	2 -3.2A		1.65 – 2.65A		1.4 – 2.28A	1.25 – 2A		1.1 – 1.77A
	VOLTAGE TOLERANCE Note.3	±1.0%	±1.0%	±1.0%		±1.0%		±1.0%	±1.0%		11.%
	LINE REGULATION	±0.5%	±0.5%	11.%		±0.5%		11.%	11.%		±0.5%
	LOAD REGULATION	±0.5%	±0.5%	11.%		±0.5%		11.%	11.%		±1.5%
	SETUP, RISE TIME Note.6	1200 ms,50ms/115VAC 500ms,50ms/230VAC
	HOLD UP TIME (Typ.)	16ms / 115VAC, 230VAC
INPUT	VOLTAGE RANGE Nde.5	90 – 305VAC 127 – 431VDC (Please refer to ‘STATIC CHARACTERISTIC’ section)
	FREQUENCY RANGE	47 – 63Hz
	POWER FACTOR gyp.)	PFa0.98/115VAC, PFa 0.95/230VAC, PFa0.93/277VAC ©Cul load (Please refer to ‘POWER FACTOR (PF) CHARACTERISTIC’ section)
	TOTAL HARMONIC DISTORTION	THD< 20%(© load 60% /115VAC,230VAC; © load a75%/ 277VAC) (Please refer to ‘TOTAL HARMONIC DISTORTION (THD)’ section)
	EFFICIENCY (Typ.)	93%	193%	I 93%		1 93% 1		93% 193%			193%
	AC CURRENT (Typ.)	1.2A/ 115VAC 0.55A /230VAC 0.5A/277VAC
	INRUSH CURRENT gyp.)	COLD START 60A4twon=415psmeastred at 50% WO at 230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	4 units (circuit breaker of type B)/ 8 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.75mA/ 277VAC
PROTECTION	OVER CURRENT 95 – 106%
		Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	23 – 27V	1 28 – 34V		I 34 – 38V		1 41 – 46V	1 47 – 53V		I 54 – 63V	I 59 – 65V
		Shut down o/p voltage with auto-recovery or re-power on to recovery
	OVER TEMPERATURE	Shut down ofp voltage, recovers automatically after temperature goes down
ONNT EINFNE	WORKING TEMP.	Tca se = -40 – +80t (Please refer to “OUTPUT LOAD vs TEMPERATURE” section)
	MAX. CASE TEMP.	Tca se= +80t
	WORKING HUMIDITY	20 -95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 – +80t , 10 – 95% RH
	TEMP. COEFFICIENT	± 0.03%/C (0 – 60 t )
	VIBRATION	10 -500Hz, 56 12 multIcycle, period for 72 min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS Note.8	UL8750(type”1-112), CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/N ZS 61347-1(except for AB-type), AS/N ZS 61347-2-13(except for AB-type) independent; GB19510.1,GB19510.14,IP65 or IP67, J 61347-1, J 61347-2-13(except for B, AB and D-type), KC 61347-1,KC 61347-2-13(except for D-type),EAC TP TC 004 approved
	WITHSTAND VOLTAGE	UP-0/P:3.75KVAC UP-FG:2KVAC 0/P-FG:1.5KVAC
	ISOLATION RESISTANCE	UP-0/P, I/P-FG,O/P-FG:100M Ohms / 500VDC / 25t /70% RH
	EMC EMISSION Note.8	Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Pass C (© load 60%) ; BS EN/EN 61000-3-3, GB17743 and GB17625.1, EAC TP TC 020
	EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN 61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
OTHERS	MTBF	192.2K hrs min. MIL-HDBK-217F (25t)
	DIMENSION	220’68’38.8mm (L’WH)
	PACKING	1.12Kg; 12pcs/14.4Kg/0.8CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25°C of ambient temperature.
2. Ripple & noise are measured at 20 MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to “DRIVING METHODS OF LED MODULE”.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly e point (or TMP, per DLC), is about 80t or less.
10. Please refer to the warranty statement on MEAN WELL’s website at http://www.meanwell.com
11. The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP waterproof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

※  Product Liability Disclaimer : For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

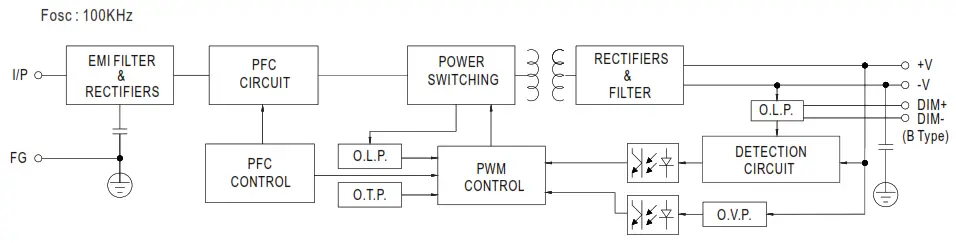

BLOCK DIAGRAM

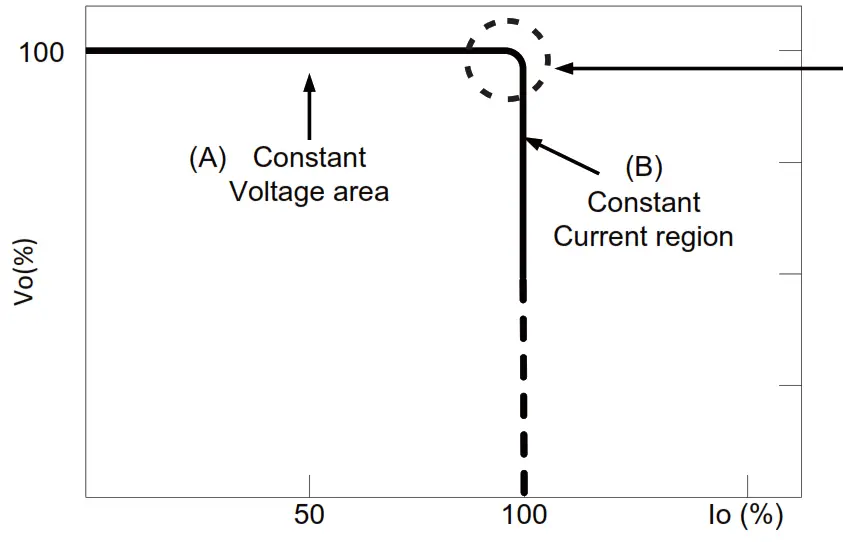

DRIVING METHODS OF LED MODULE

※ This series is able to work in either Constant Current mode (a direct drive way) or Constant Voltage mode (usually through additional DC/DC driver) to drive the LEDs.

Typical output current normalized by rated current (%)

In the constant current region, the highest voltage at the output of the driver depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.

DIMMING OPERATION

※ 3 in 1 dimming function (for B/AB-Type)

• Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-: 1 ~ 10VDC, or 10V PWM signal or resistance.
• Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
• Dimming source current from power supply: 1 0 A (typ.)

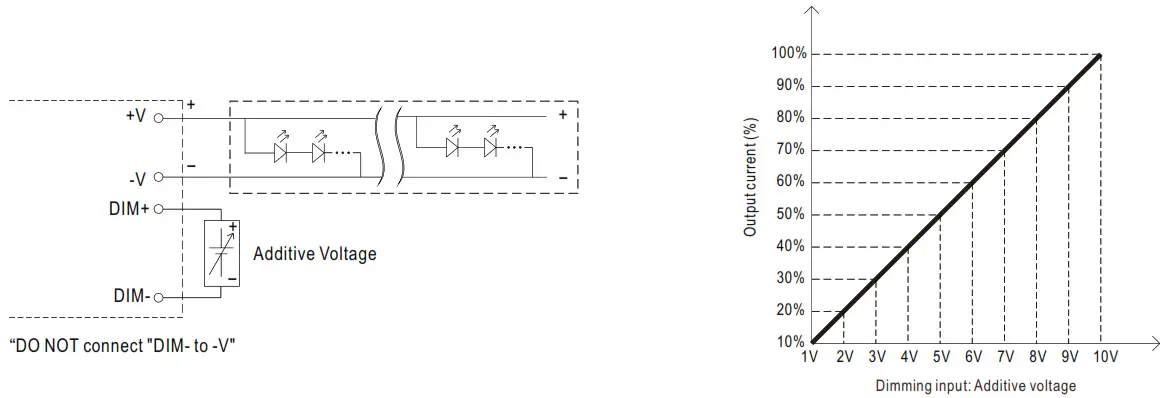

◎ Applying additive 1 ~ 10VDC

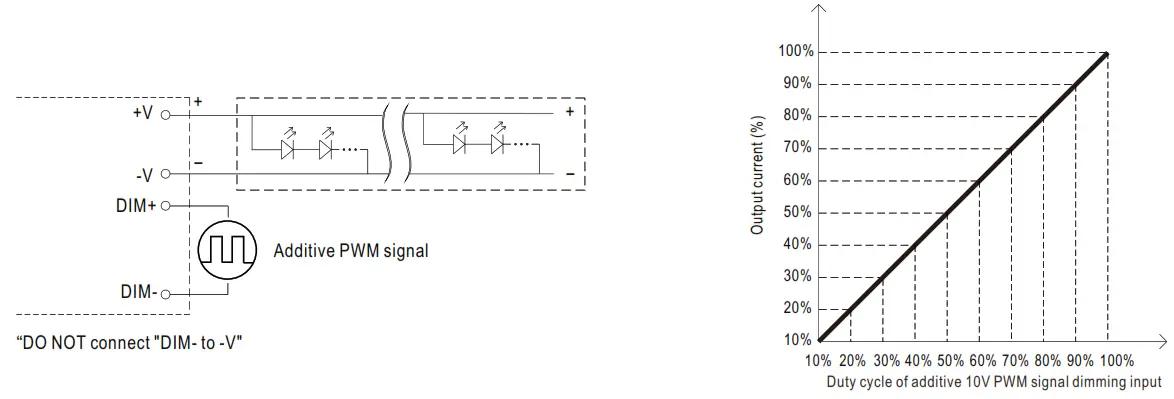

◎ Applying additive 10V PWM signal (frequency range 100Hz ~ 3KHz):

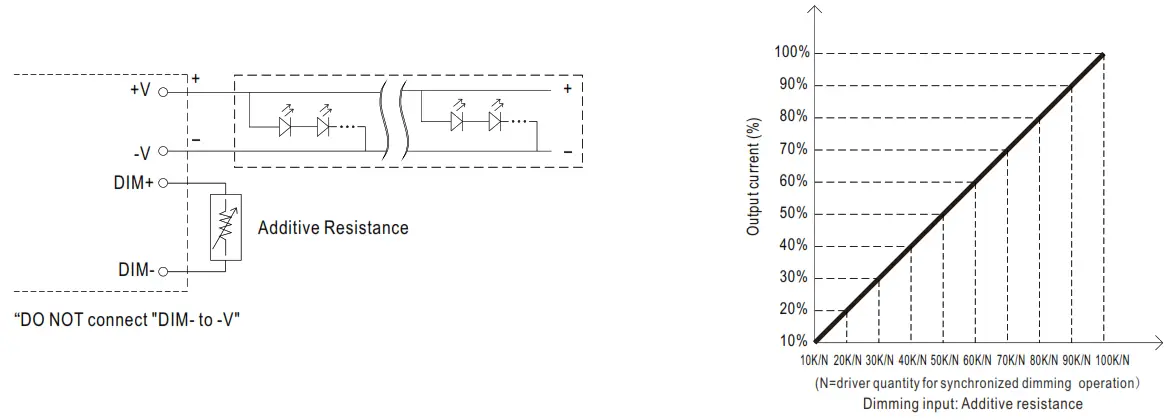

◎ Applying additive resistance:

Note: In the case of turning the lighting fixture down to 0% brightness, please refer to the configuration as follow, or please contact MEAN WELL for other options.

Using a switch and relay can turn ON/OFF the lighting fixture.

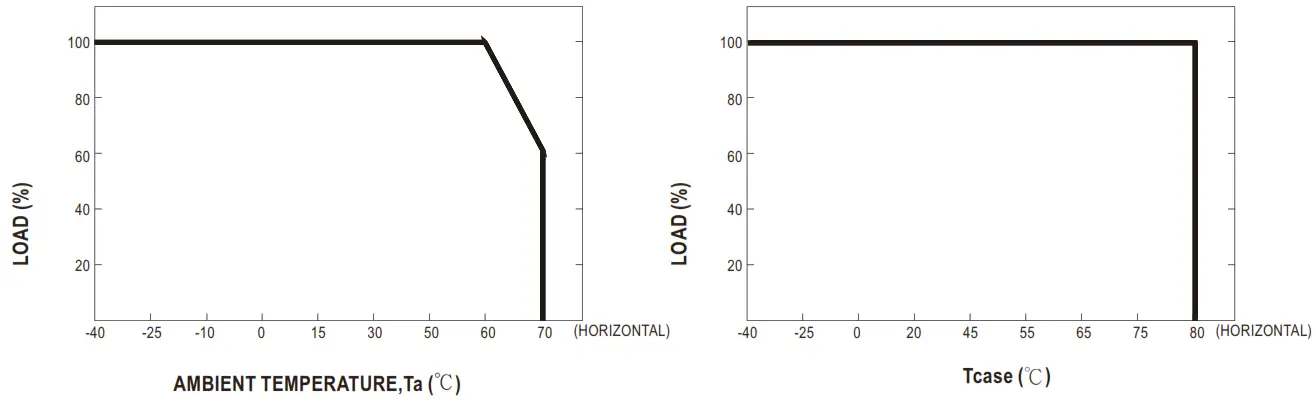

OUTPUT LOAD vs TEMPERATURE(Note.10)

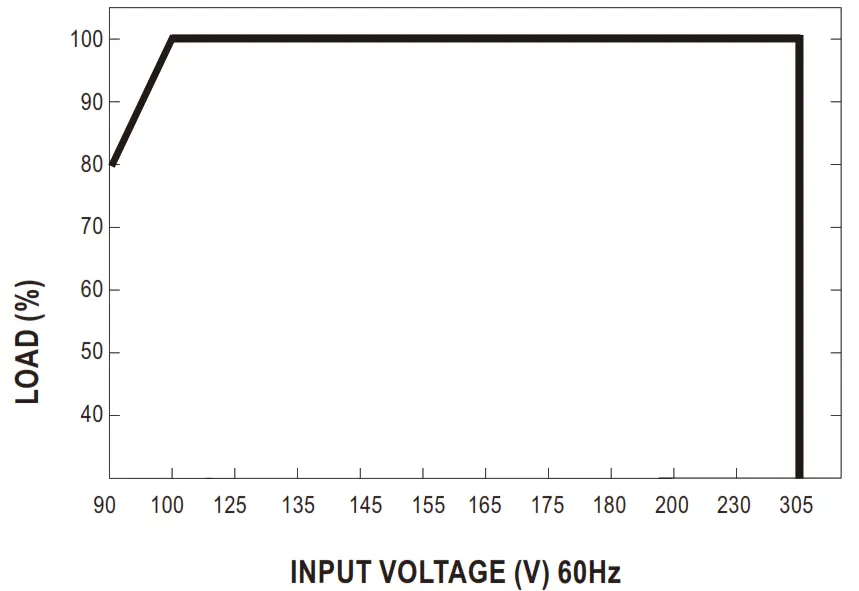

STATIC CHARACTERISTICS

※ De-rating is needed under low input voltage.

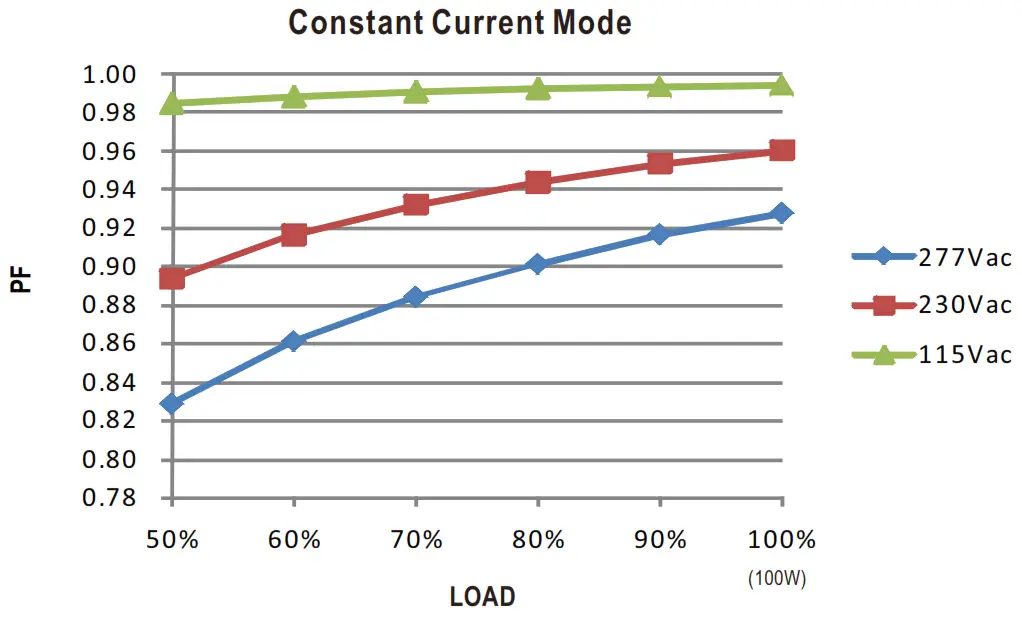

POWER FACTOR(PF) CHARACTERISTIC
※Tcase at 80℃

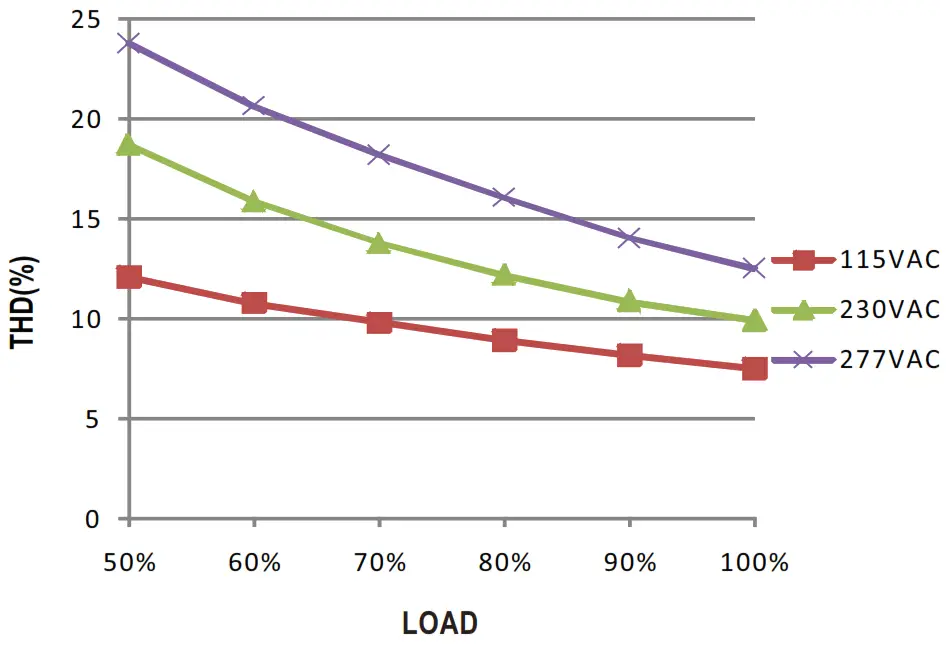

TOTAL HARMONIC DISTORTION (THD)
※ 48V Model, Tcase at 80℃

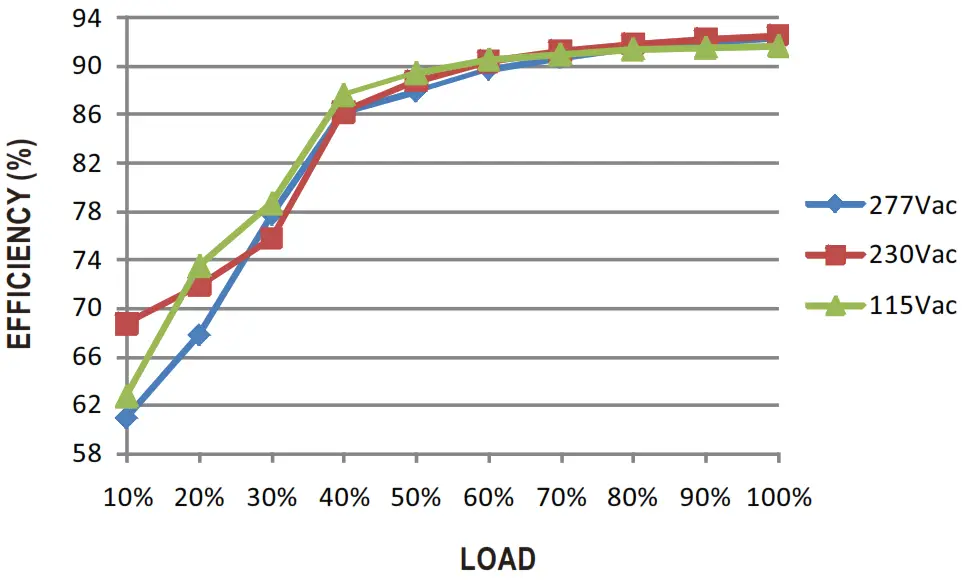

EFFICIENCY vs LOAD
HLG-100H series possess superior working efficiency that up to 93% can be reached in field applications.
※ 48V Model, Tcase at 80℃

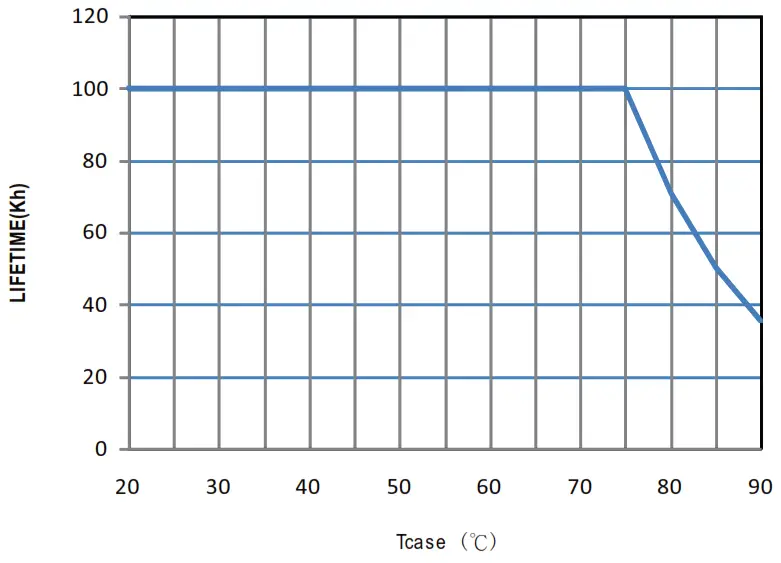

LIFE TIME

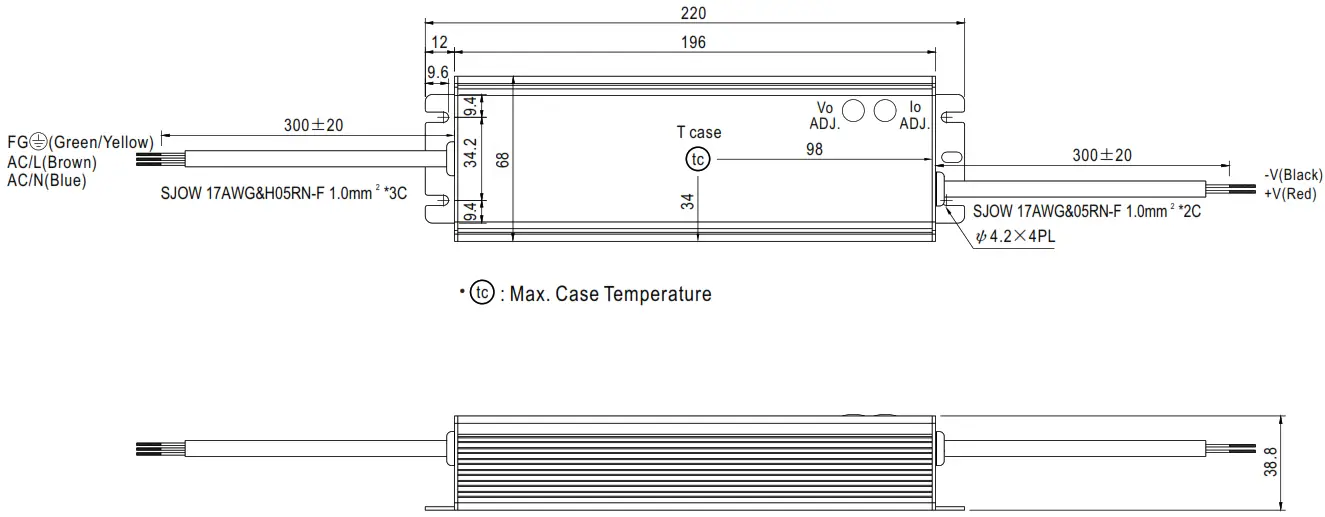

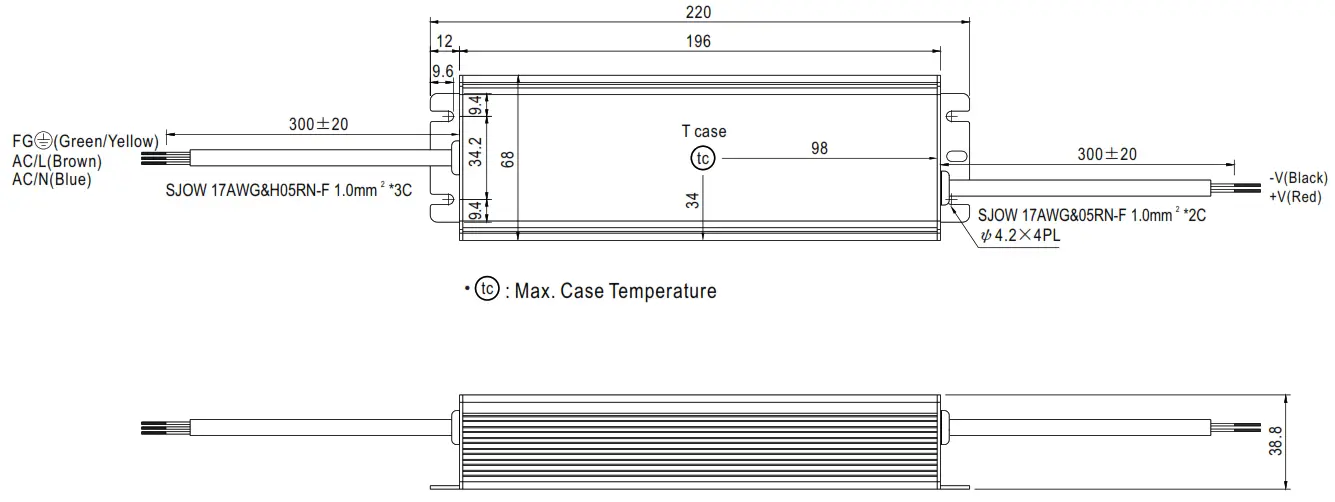

MECHANICAL SPECIFICATION
※Blank/D-Type

※A-Type

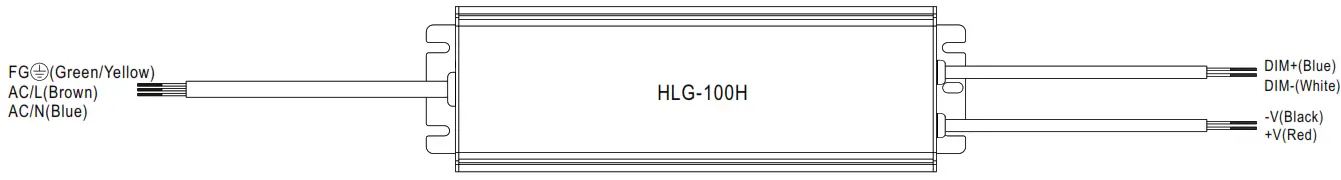

※B-Type

※AB-Type

WATERPROOF CONNECTION

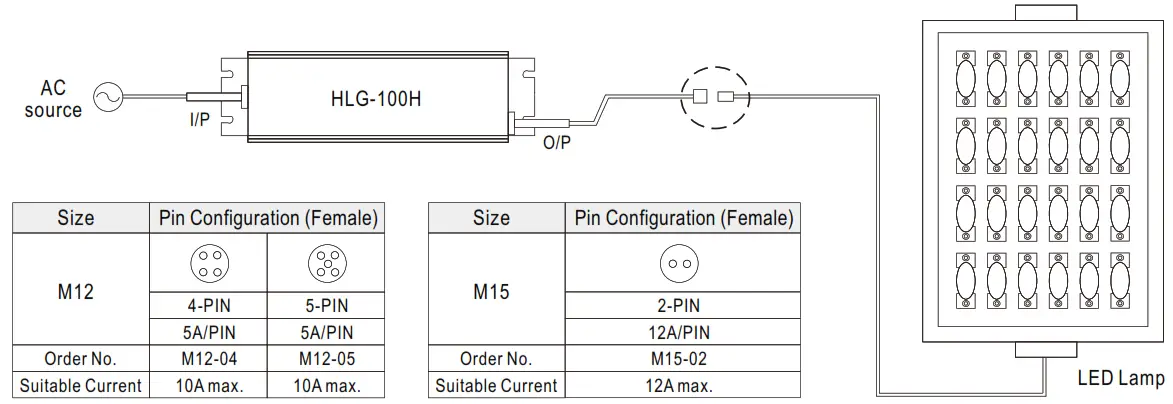

※ Waterproof connector
Waterproof connector can be assembled on the output cable of HLG-100H to operate in dry/wet/damp or outdoor environment.

※ Cable Joiner

◎ CJ04 cable joiner can be purchased independently for user’s own assembly. MEAN WELL order No. : CJ04-1, CJ04-2.

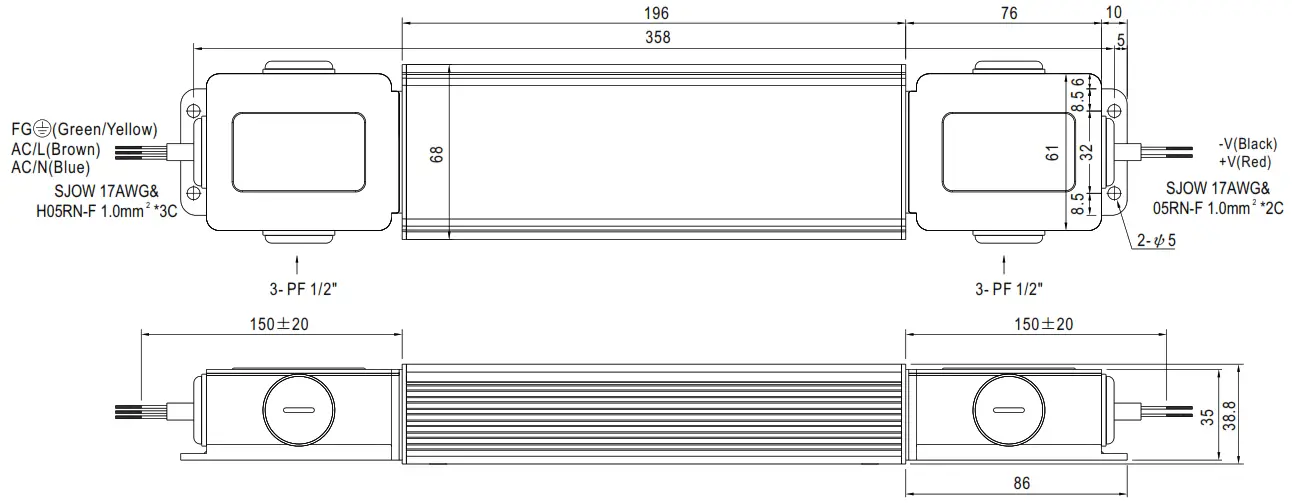

※ Junction Box Option

◎ Junction box option is available for A / Blank – Type . Please contact MEAW WELL for details.

INSTALLATION MANUAL
Please refer to: http://www.meanwell.com/manual.html

File Name: HLG-100H-SPEC
2021-08-26http://www.meanwell.com.cn/Upload/PDF/LED_EN.pdf
