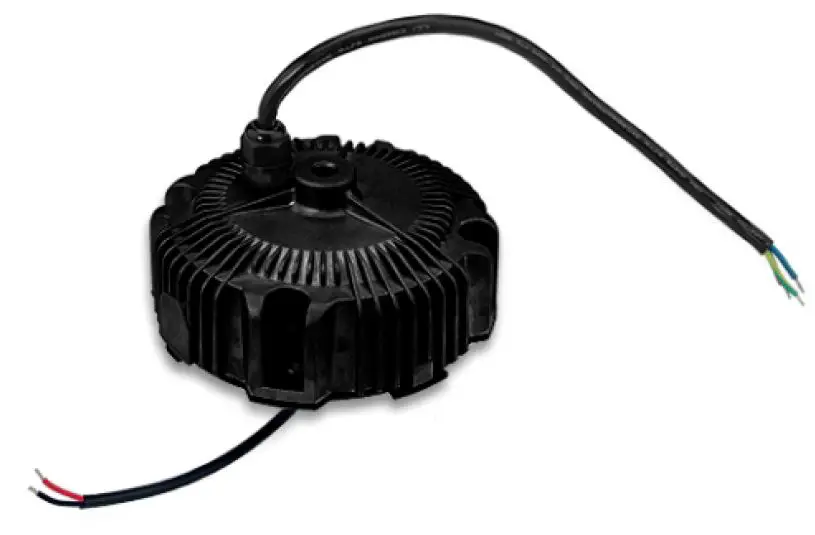

MEAN WELL HBG-200 Serie s 200W Constant Voltage + Constant Current LED Driver

Product Information

The HBG-200 series is a 200W Constant Voltage + Constant Current LED Driver designed for DA type only. It has an IP65 IP67 rating and supports DALI. The driver has a voltage range of 90 ~ 305VAC 127~417VDC and a frequency range of 47 ~ 63Hz. It has a power factor of PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load and a total harmonic distortion of THD< 20%(@load60%/115VC,230VAC; @load75%/277VAC). The driver is available in three models: HBG-200-36, HBG-200-48, and HBG-200-60 with DC voltages of 36V, 48V, and 60V respectively. The driver also has adjustable current ranges, load regulation, and line regulation.

Product Usage Instructions

To use the HBG-200 series LED Driver, follow the below instructions:

Ensure that the input voltage is within the voltage range of 90 ~ 305VAC 127~417VDC and frequency range of 47 ~ 63Hz.
Select the appropriate model based on the required DC voltage output: HBG-200-36 (36V), HBG-200-48 (48V), or HBG-200-60 (60V).
Connect the LED load to the driver’s output terminals.
Adjust the current range using the built-in potentiometer for A-Type and AB-Type as per the requirement.
Ensure that the maximum number of PSUs on 16A circuit breaker does not exceed 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC.

Features

Constant Voltage + Constant Current mode output
Circular metal housing with class I design
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations

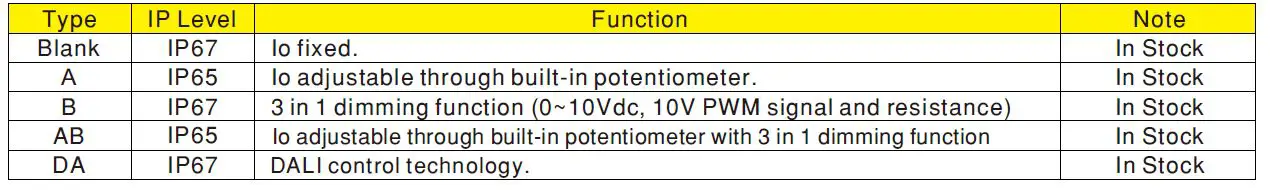

Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Description

HBG-200 series is a 200W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 36Vand 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40°C ~ +85°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-200 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Applications

LED high/low bay lighting
LED canopy lighting
LED stage lighting
LED spot lighting
Outdoor architectural lighting system
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

GTIN CODE
MW Search: https://www.meanwell.com/serviceGTIN.aspx

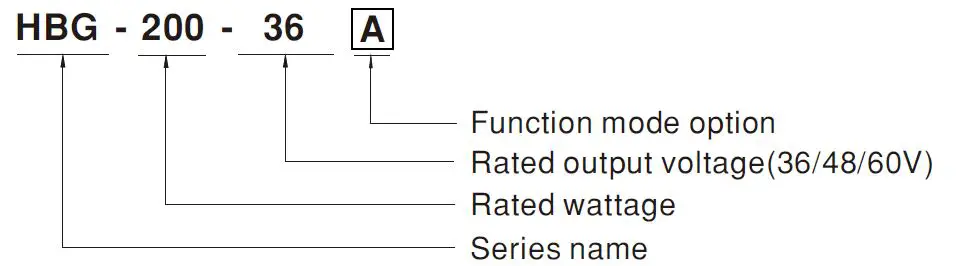

Model Encoding

SPECIFICATION

MODEL			HBG-200-36	HBG-200-48		HBG-200-60
OUTPUT	DC VOLTAGE		36V	48V		60V
	CONSTANT CURRENT REGION Note.2		21.6 ~ 36V	28.8 ~ 48V		36 ~ 60V
	RATED CURRENT		5.5A	4.1A		3.3A
	RATED POWER		198W	196.8W		198W
	RIPPLE & NOISE (max.) Note.3		250mVp-p	250mVp-p		350mVp-p
	CURRENT ADJ. RANGE		Adjustable for A-Type and AB-Type (via built-in potentiometer)
			3.3 ~ 5.5A	2.46 ~ 4.1A		1.98 ~ 3.3A
	VOLTAGE TOLERANCE Note.4		±2.0%
	LINE REGULATION		±0.5%
	LOAD REGULATION		±1.0%
	SETUP, RISE TIME	Note.6	2500ms,200ms /115VAC 500ms,200ms /230VAC
	HOLD UP TIME (Typ.)		12ms /115VAC, 230VAC
INPUT	VOLTAGE RANGE	Note.5	90 ~ 305VAC 127~417VDC (Please refer to “STATIC CHARACTERISTIC” section)
	FREQUENCY RANGE		47 ~ 63Hz
	POWER FACTOR		PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load (Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section)
	TOTAL HARMONIC DISTORTION		THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
	EFFICIENCY (Typ.)		92%	93%		93.5%
	AC CURRENT (Typ.)		1.9A / 115VAC 1A / 230VAC 0.9A / 277VAC
	INRUSH CURRENT (Typ.)		COLD START 85A(twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER		4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT		<0.75mA / 277VAC
	NO LOAD / STANDBY POWER CONSUMPTION		Standby power consumption <0.5W for B/AB/DA-Type Blank/A-Type please refer to Note.8
PROTECTION	OVER CURRENT		95~108%
			Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT		Hiccup mode or constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE		41 ~ 47V	54 ~ 62V		65 ~ 75V
			Shut down o/p voltage with auto-recovery or re-power on to recovery
	OVER TEMPERATURE		Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.		Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
	MAX. CASE TEMP.		Tcase=+85℃
	WORKING HUMIDITY		20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 ~ +80℃, 10 ~ 95% RH
	TEMP. COEFFICIENT		±0.03%/℃ (0 ~ 50℃)
	VIBRATION		10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS		UL8750(type”HL”),CSA C22.2 No.250.13-12,ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1; EAC TP TC 004,IP65 or IP67 approved
	DALI STANDARDS		Compliance to IEC62386-101, 102, 207 for DA type only
	WITHSTAND VOLTAGE		I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE		I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION		Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB17625.1, GB17743,EAC TP TC 020
	EMC IMMUNITY		Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV,Line-Line:2KV),EAC TP TC 020
OTHERS	MTBF		2042.7K hrs min. Telcordia SR-332 (Bellcore) ;207.4K hrs min.		MIL-HDBK-217F (25℃)
	DIMENSION		Refer to mechanical specification
	PACKING		1.53Kg; 8pcs/13.8Kg/1.61CUFT
NOTE	All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25 C of ambient temperature. Please refer to “DRIVING METHODS OF LED MODULE”. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0. 1uf & 47uf parallel capacitor. Tolerance: includes set up tolerance, line regulation and load regulation. De-rating may be needed under low input voltages. Please refer to the “STATIC CHARACTERISTIC” sections for details. The length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to an increase of the set up time. The driver is considered as a component that will be operated in combination with final equipment. Since MC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify MC Directive on the complete installation again. To fulfill the requirements of the latest Er regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains. This series meets the typical life expectancy of ›50,000 hours of operation when Tcase, particularly fo) point (or TMP, per DLC), is about 70°C or less. Please refer to the warranty statement on MEAN WELL’s website at http://www.meanwell.com The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitude higher than 2000m(6500ft) For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/serviceDisclaimer.aspx

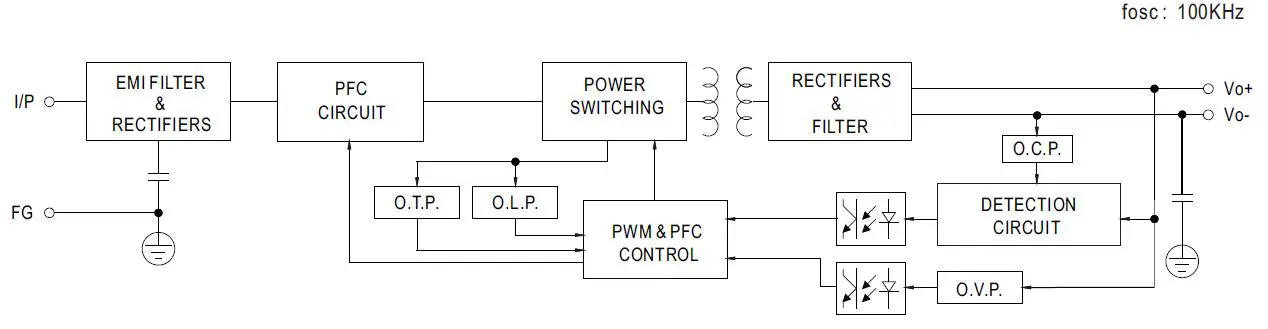

BLOCK DIAGRAM

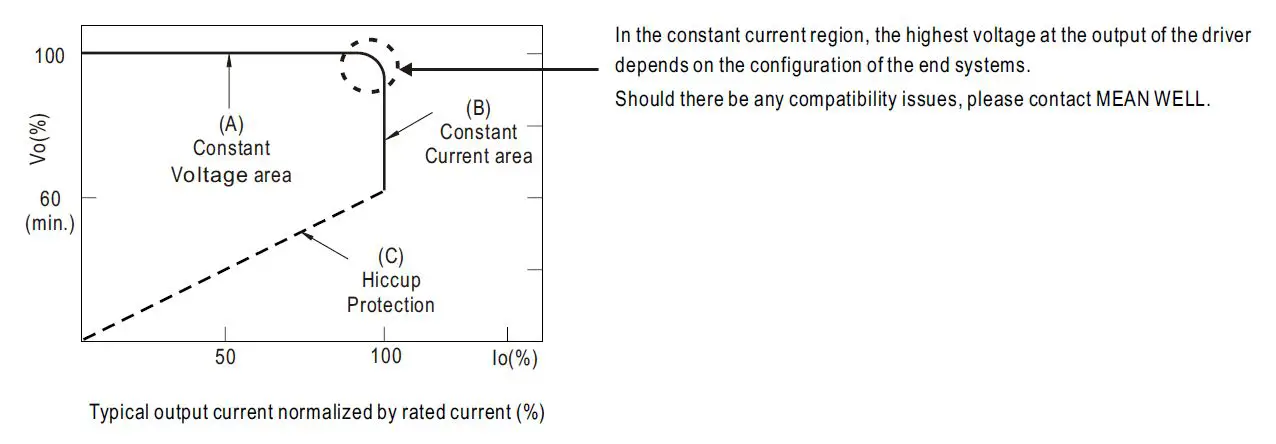

DRIVING METHODS OF LED MODULE

This series is able to work in either Constant Current mode (a direct drive way) or Constant Voltage mode (usually through additional DC/DC driver) to drive the LEDs

DIMMING OPERATION

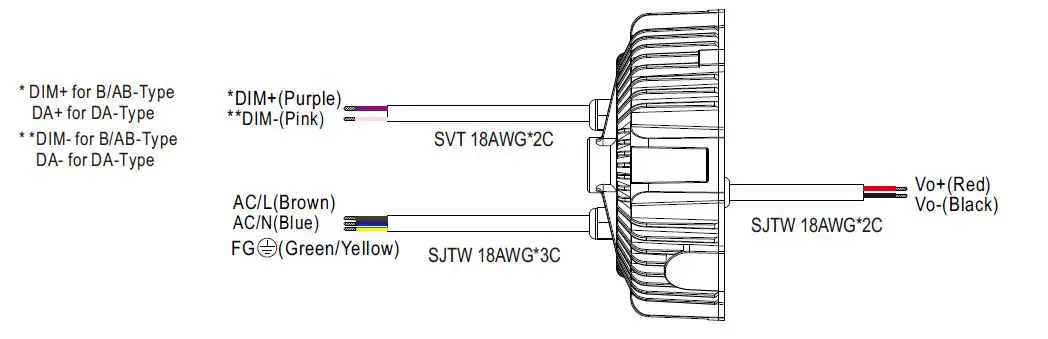

3 in 1 dimming function (for B/AB-Type)

Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-: 0 ~ 10VDC, or 10V PWM signal or resistance.
Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
Dimming source current from power supply: 100wA (typ.)

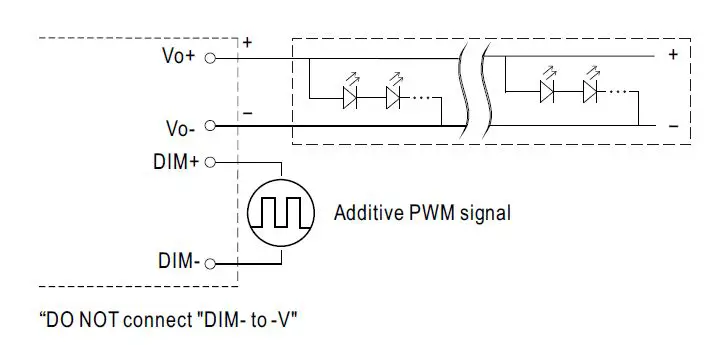

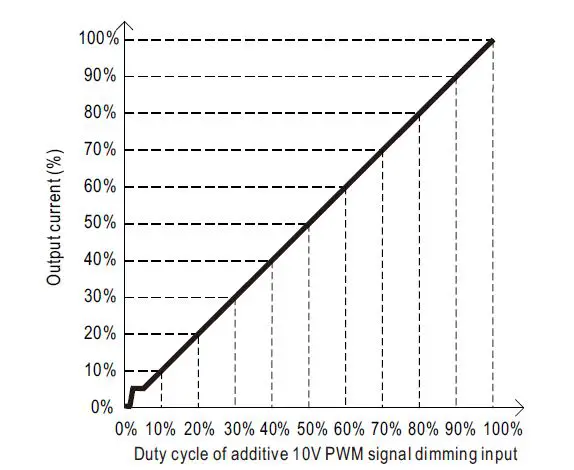

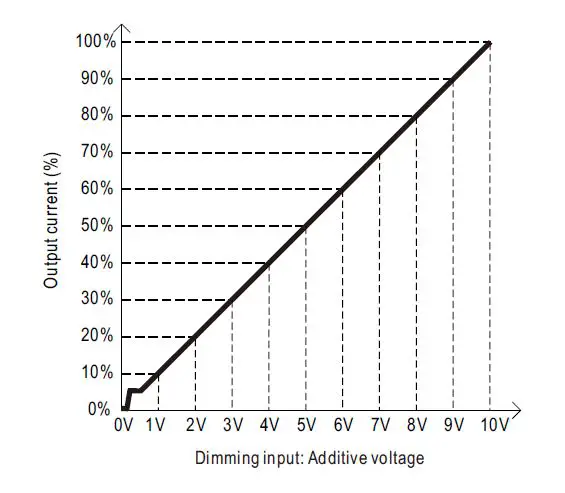

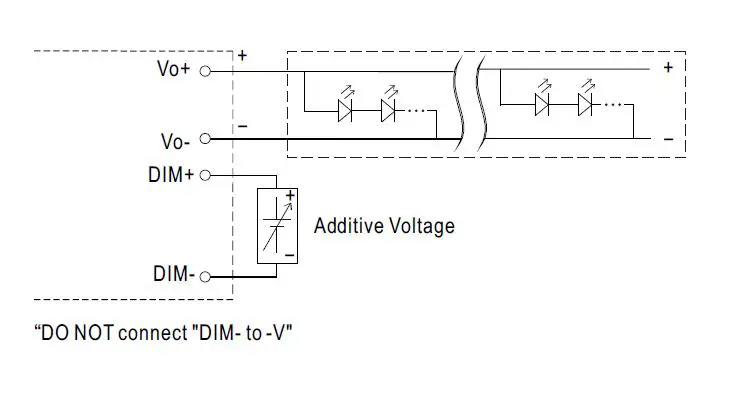

Applying additive 0 – 10VDCApplying additive 10V PWM signal (frequency range 100Hz ~ 3KHz):

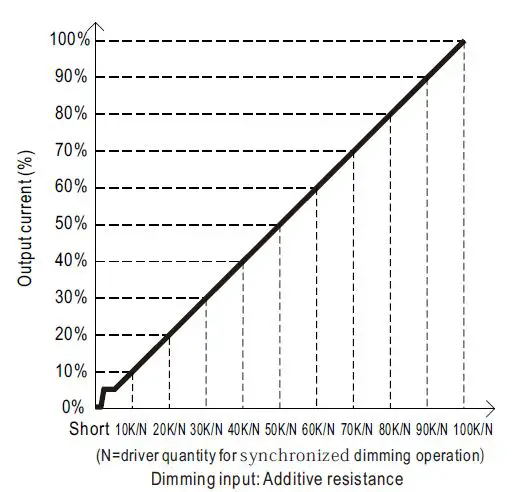

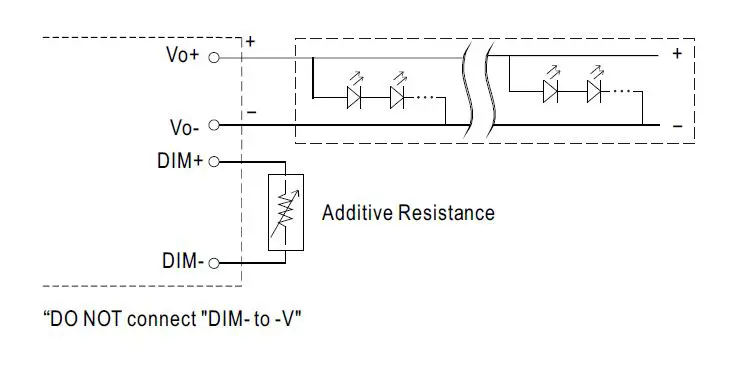

Applying additive resistance:

Note:

Min. dimming level is about 8% and the output current is not defined when 0%< lout<8%.
The output current could drop down to 0% when dimming input is about Ok & or 0Vdc, or 10V PWM signal with 0% duty cycle.

Note: In the case of turning the lighting fixture down to 0% brightness, please refer to the configuration as follow, or please contact MEAN WELL for other options.

Using a switch and relay can turn ON/OFF the lighting fixture.

DALI Interface (primary side; for DA-Type)

Apply DALI signal between DA+ and DA-.
DALI protocol comprises 16 groups and 64 addresses.
First step is fixed at 8% of output.

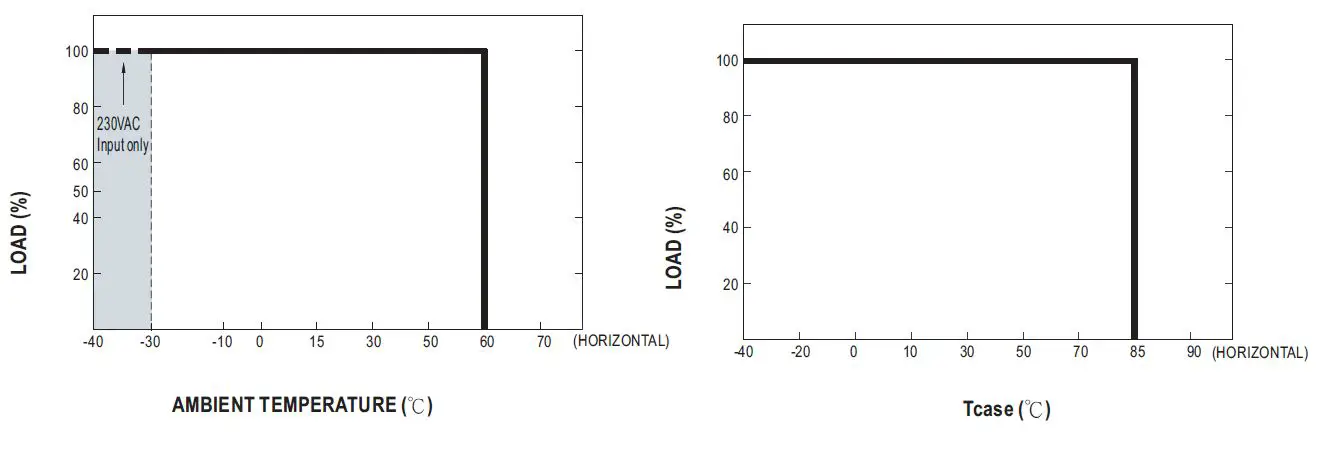

OUTPUT LOAD S TEMPERATURE(Note. 11)

STATIC CHARACTERISTIC

De-rating is needed under low input voltage.

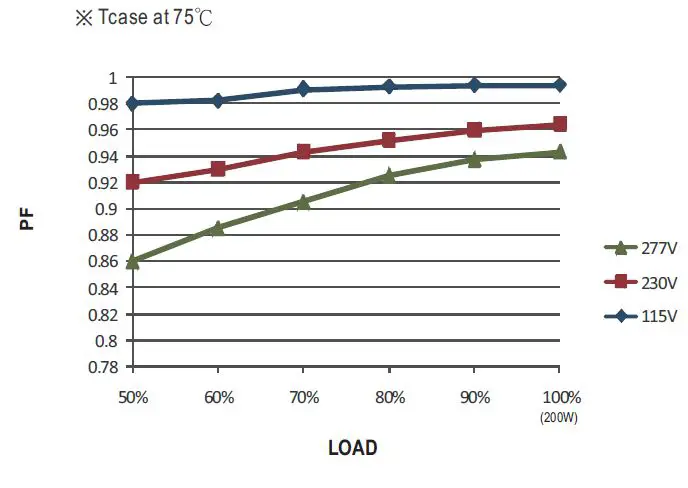

POWER FACTOR (P) CHARACTERISTIC

TOTAL HARMONIC DISTORTION (THD)

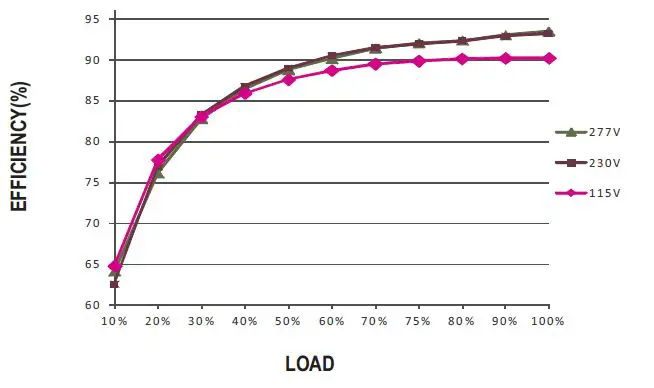

EFFICIENCY VS LOAD

HBG-200 series possess superior working efficiency that up to 93.5% can be reached in field applications. 48V Model, Tcase at 75 C

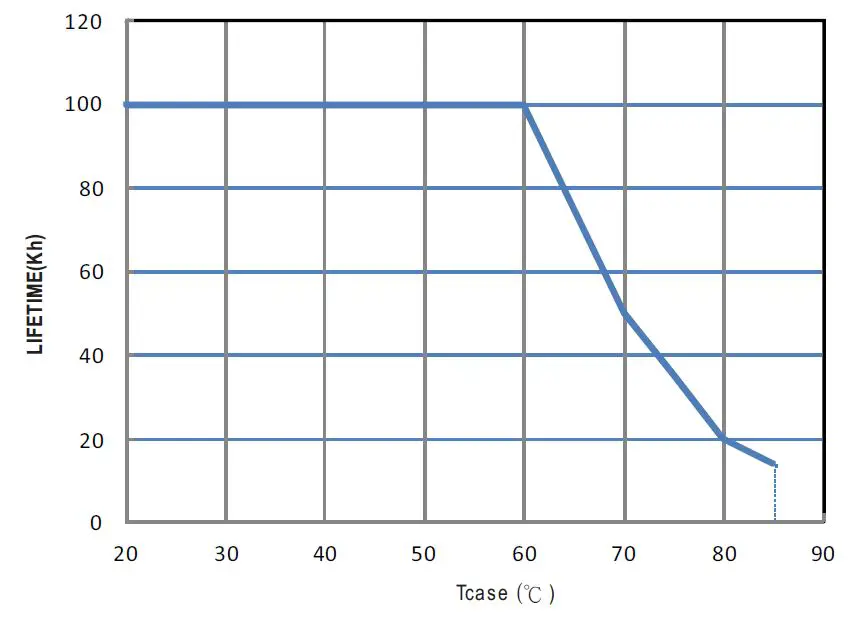

LIFETIME

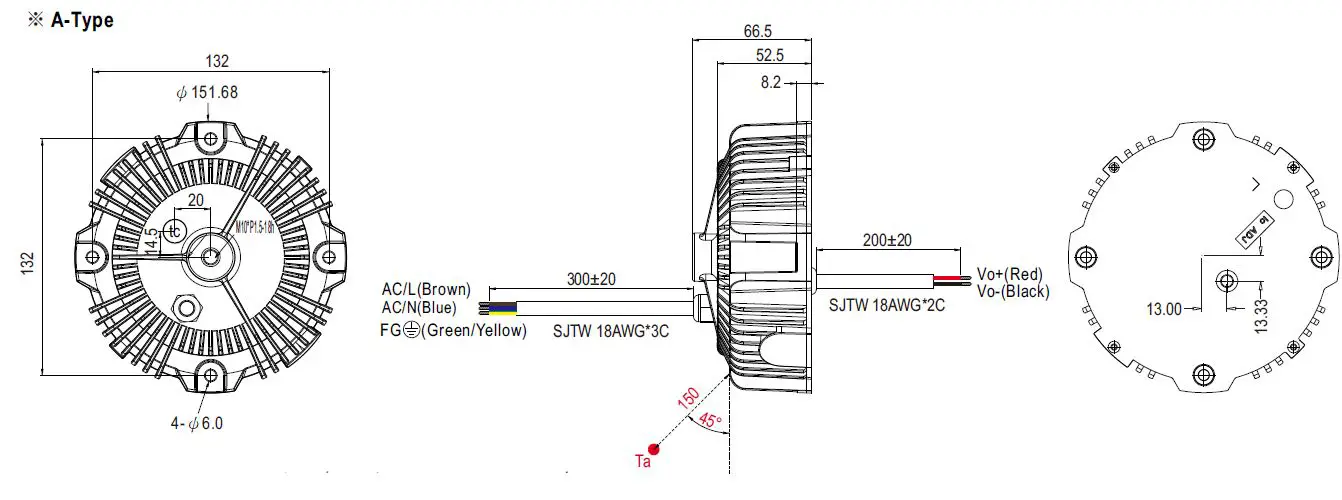

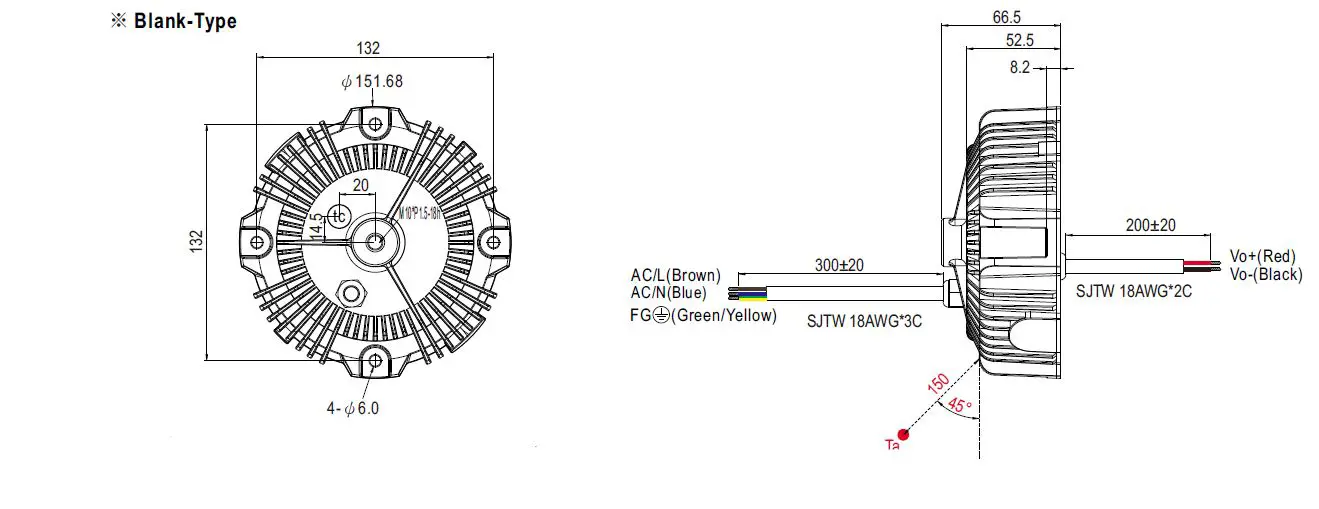

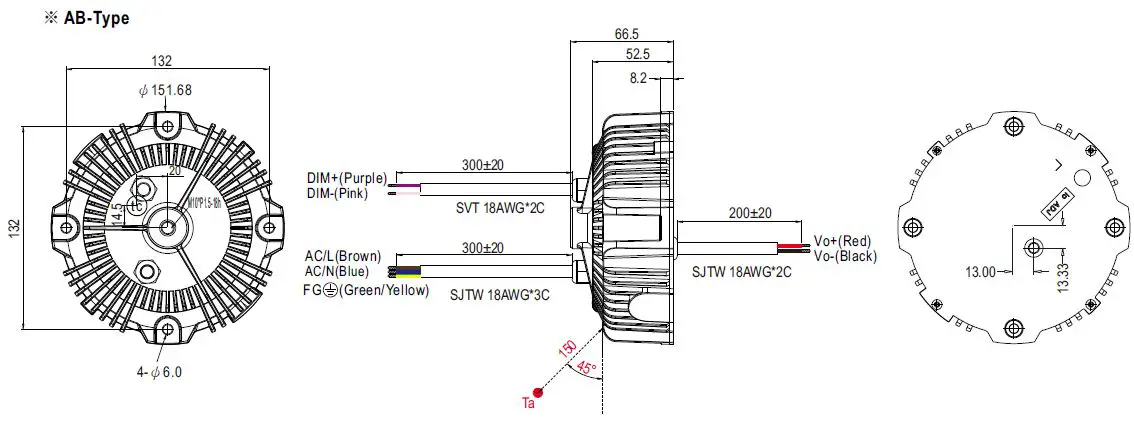

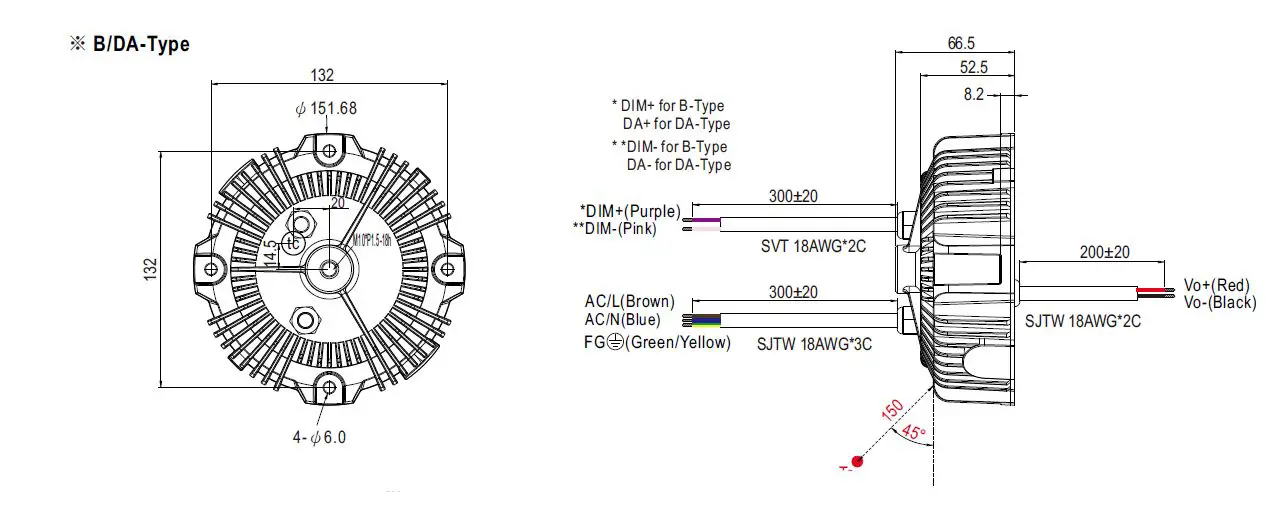

MECHANICAL SPECIFICATION

tc: Max. Case Temperature. (case temperature measured point)
Ta: Ambient Temperature measured point.

tc: Max. Case Temperature. (case temperature measured point)
Ta: Ambient Temperature measured point

tc: Max. Case Temperature. (case temperature measured point)
Ta: Ambient Temperature measured point

tc: Max. Case Temperature. (case temperature measured point)
Ta: Ambient Temperature measured point

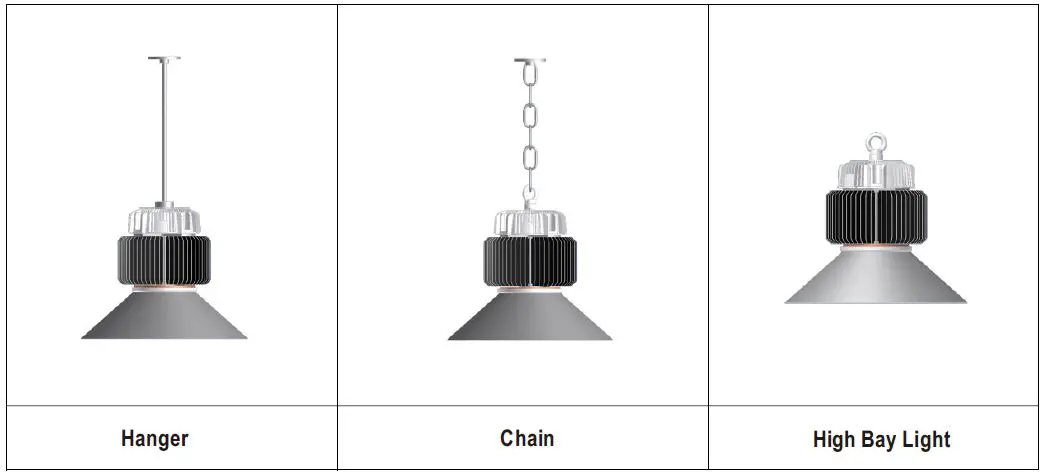

INSTALLATIONS

Caution

Please inspect the appearance of the driver if the package is damaged. There should not be any cracks.
Please do not drop or bump the driver.
All screws including the suspension screw should be paired with a spring washer and locked tight.
The entire luminaire, including the driver, should be limited to 10Kg or less.
The luminaire should be cautiously protected from damage due to shock throughout packaging and transportation.
Please thoroughly follow the preceding cautionary notes to prevent the luminaire from falling, leading to injuries.

INSTALLATION MANUAL

Please refer to : http://www.meanwell.com/manual.html
