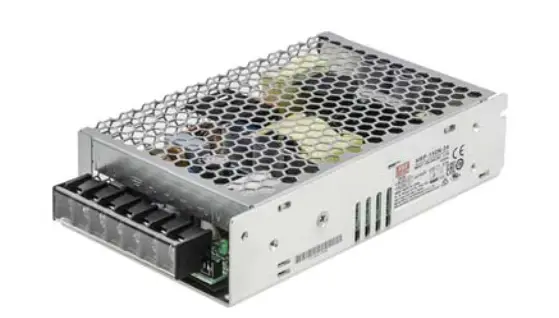

150W Single Output with PFC Function
HRP-150N series
Features
Features- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- 200% peak power capability
- High efficiency of up to 89%
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- 1U low profile 38 mm
- Built-in remote sense function
- 5 years warranty
Applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Diagnostic or biological facilities
- Test or measurement systems
- Telecommunication equipment
Description
HRP-150N is a 150W single-output type AC/DC power supply. This series operates for 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, working for a temperature up to 70’C without cover. Moreover, HRP-150N provides 200% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.

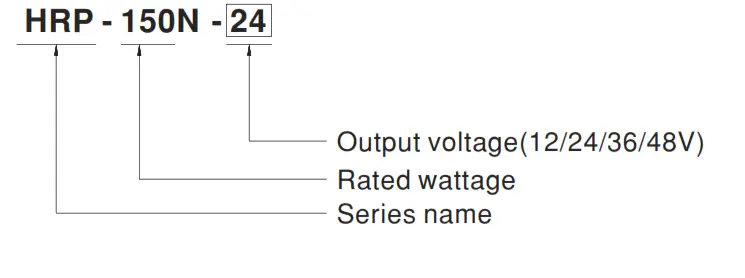

Model Encoding

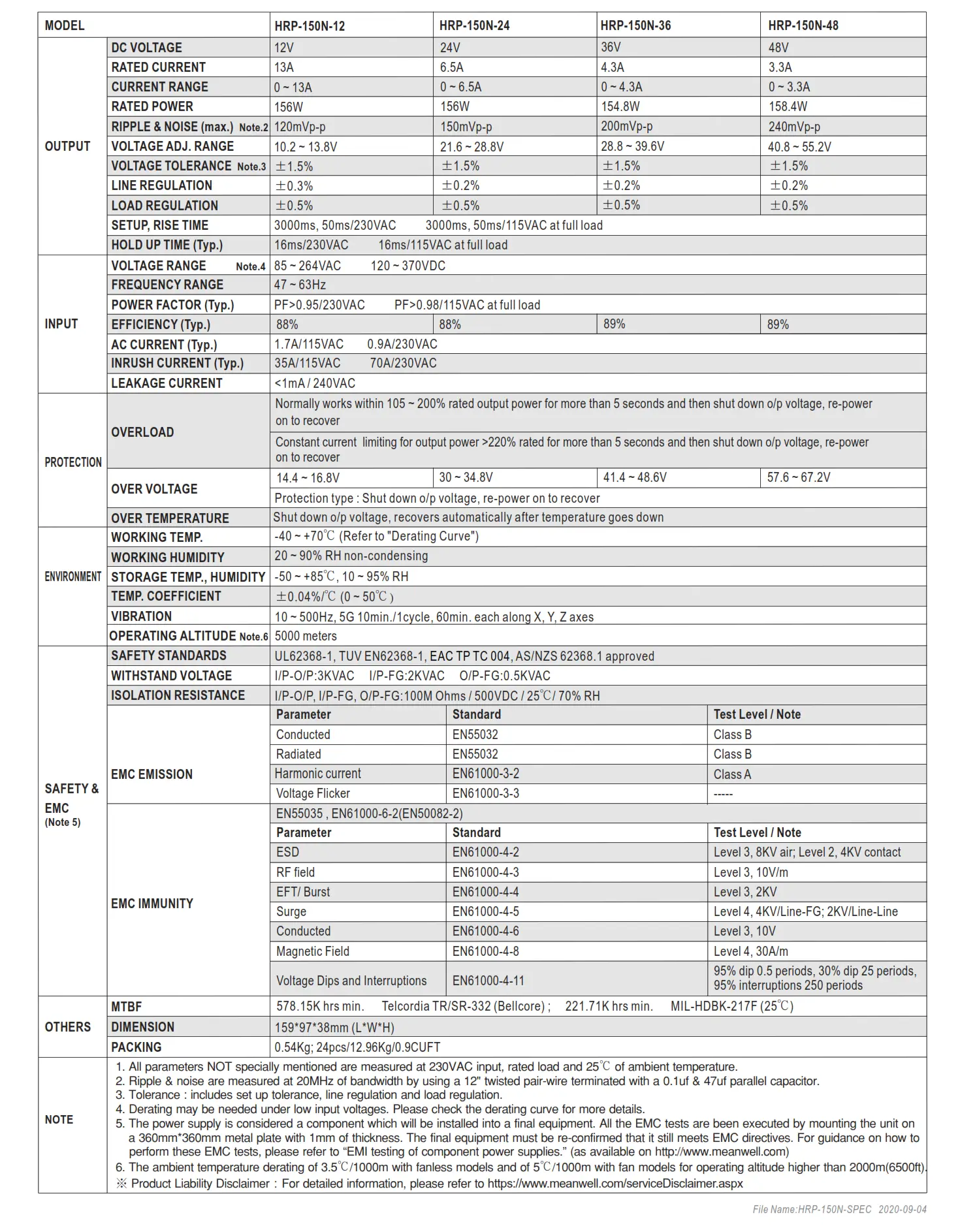

SPECIFICATION

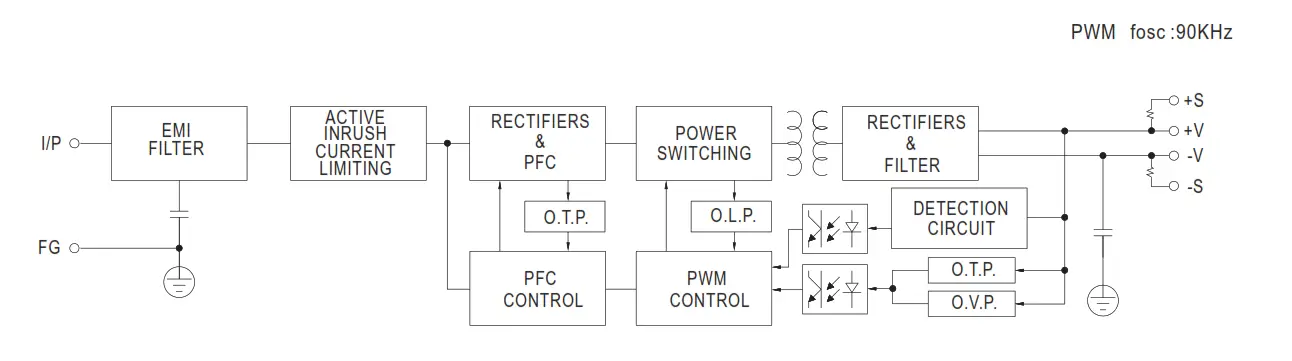

Block Diagram

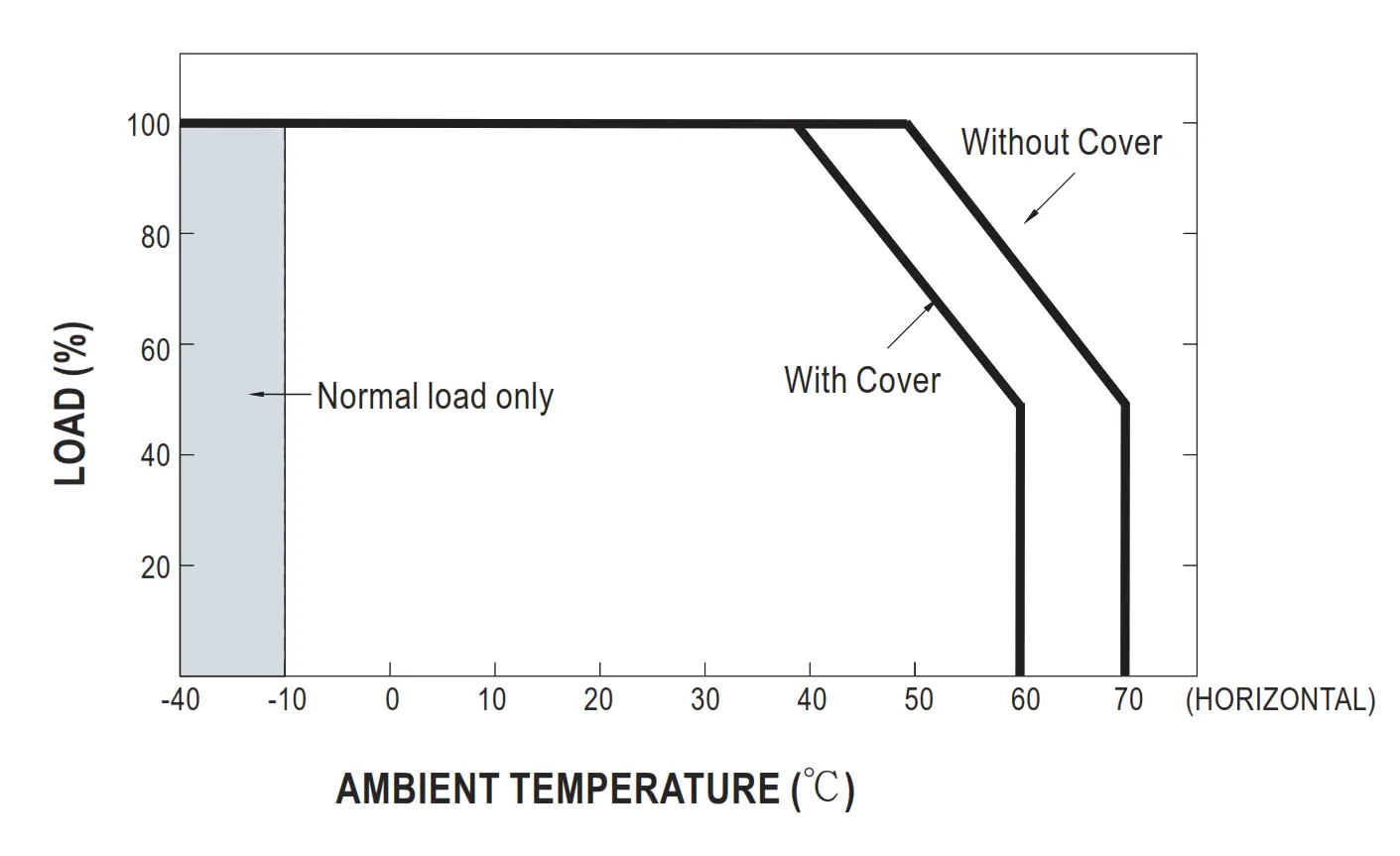

Derating Curve

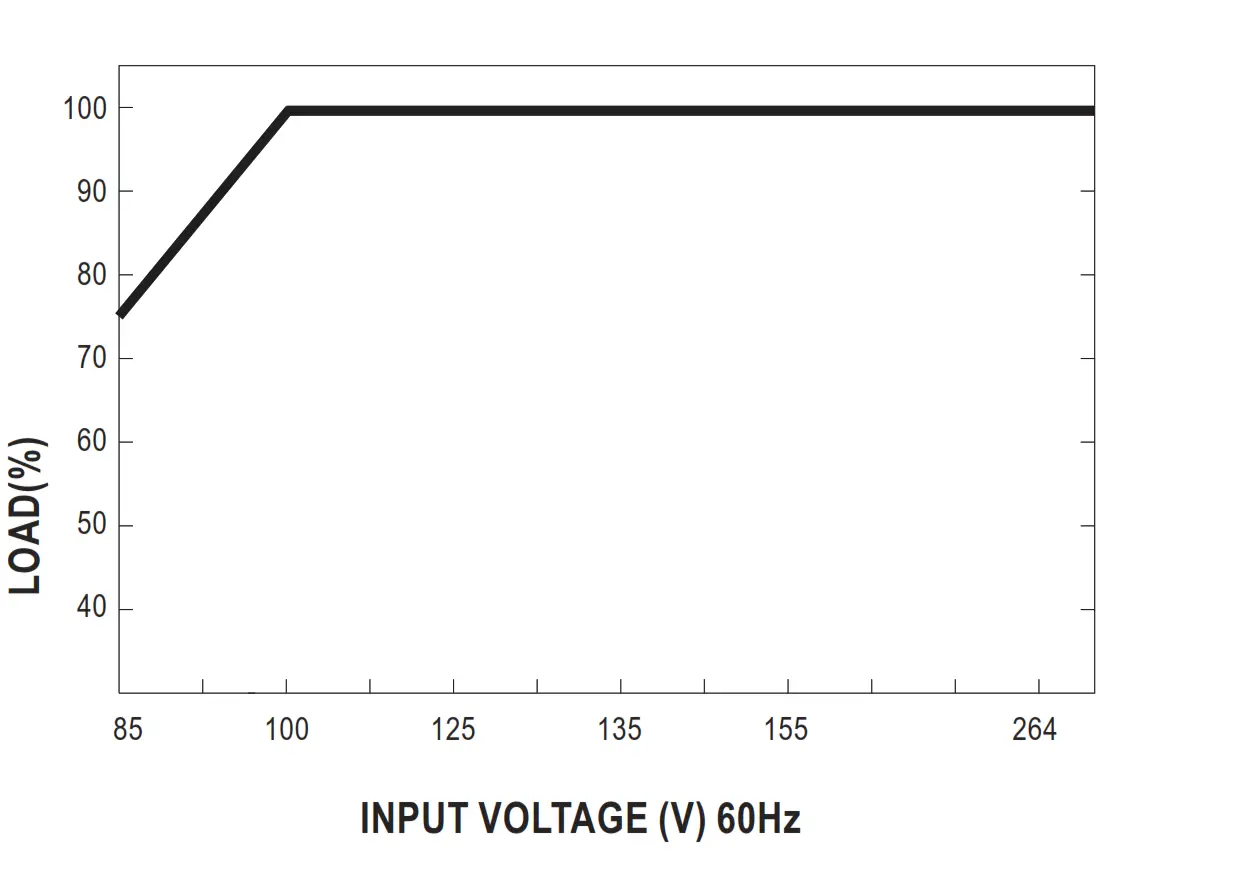

Output derating VS Input voltage:
Function Manual

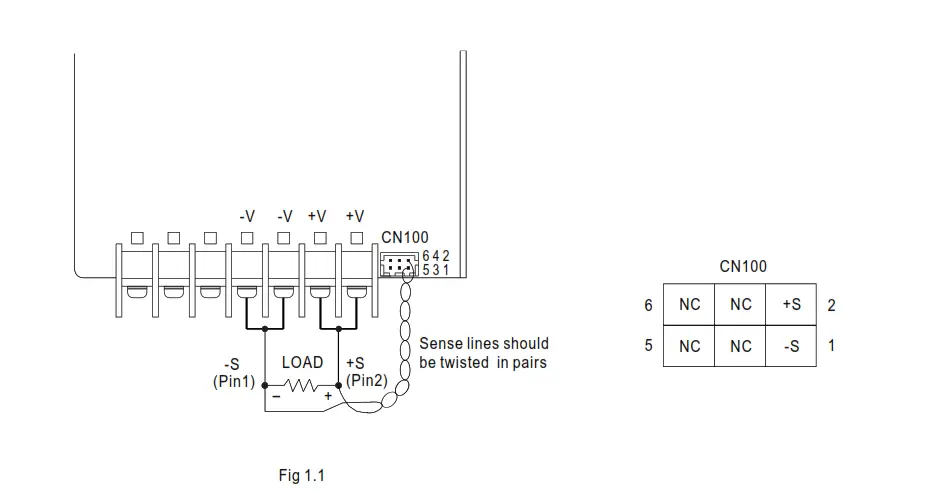

1. Remote sense
The remote sensing compensates for voltage drop on the load wiring up to 0.5V.

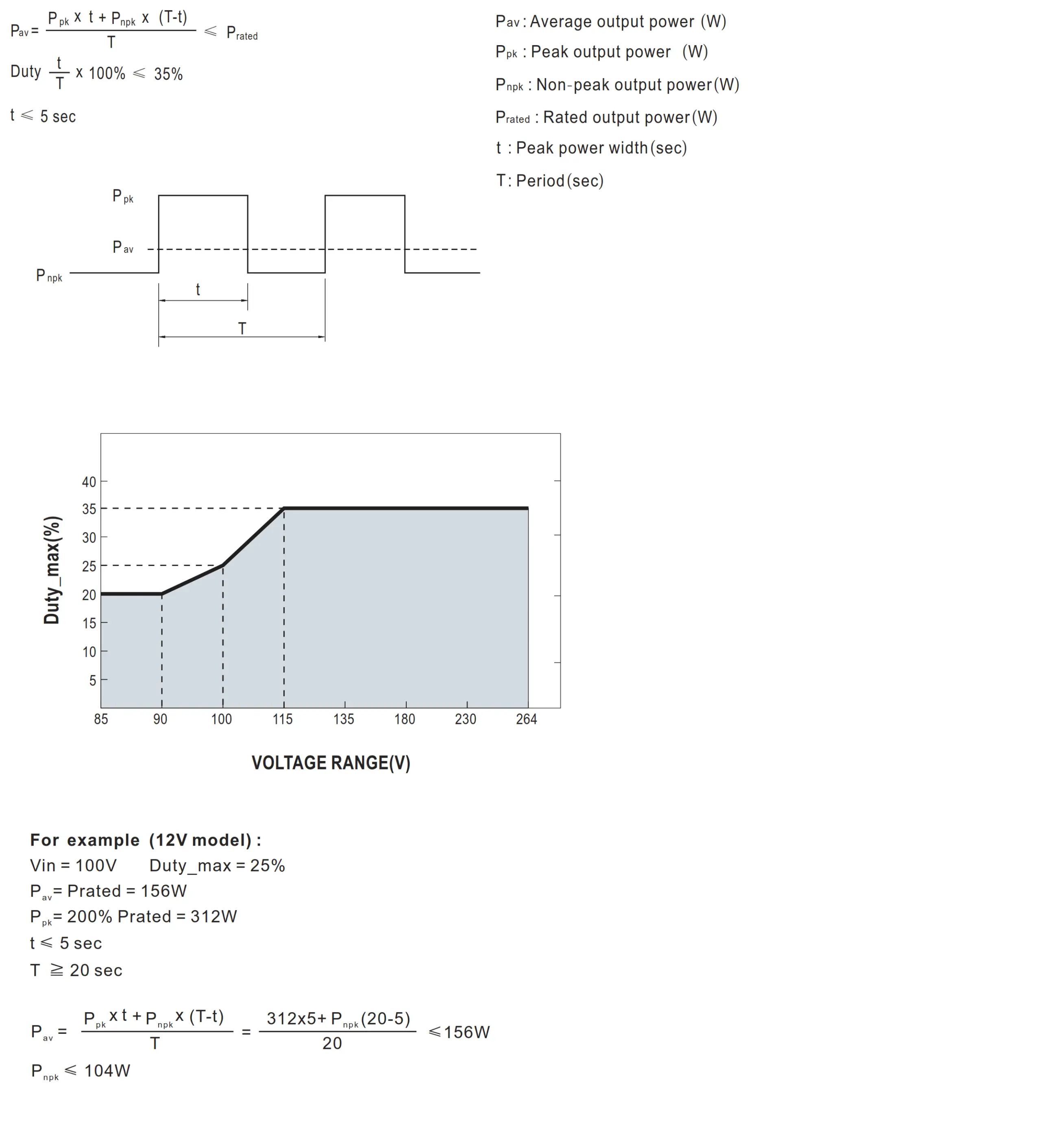

2.Peak Power
Mechanical Specification
Installation Manual
Please refer to: http://www.meanwell.com/manual.html
