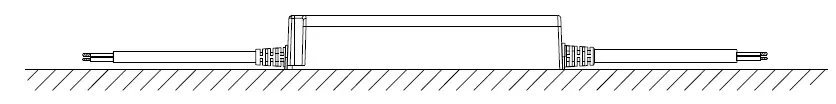

8 Recommend Mounting Direction

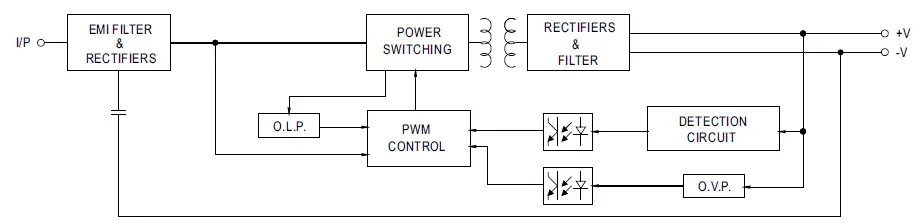

9 Block Diagram

10 Derating Curve

11 Static Characteristics

12 Documents / Resources

12.1 References

13 Related Posts

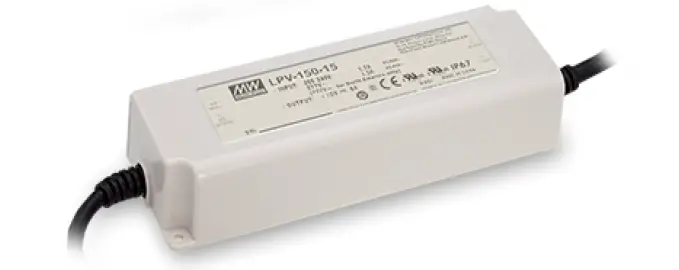

MW LPV-150 Series 150W Single Output Switching Power Supply

Features

Constant voltage design
90-132VAC input for LPVL-150 180-305VAC input for LPV-150
Fully encapsulated with IP67 level (Note.7)
Class II power unit, no FG
Protections: Short circuit/Overload/Over voltage/Over temperature
Fully isolated plastic case
Fanless design, cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Listed in UL Sign Component Manual (SAM)
Type “HL” for use in class I, Division 2 hazardous (Classified) location luminaires for LPVL-150
2 years warranty

Applications

Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices) (Note.10)

GTIN CODE

MW Search: https://www.meanwell.com/serviceGTIN.aspx

Description

LPV-150 and LPVL-150 are 150W single output power supplies that specifically and perfectly work for LED lighting and LED moving sign applications. As a class II power unit, these two series are housed with the UL 94V-0 rated flame retardant plastic enclosure. The IP67 design allows every model to fit the use at dry, damp and wet locations. Both series are constant voltage mode design that various models with 12V, 15V, 24V, 36V and 48V are offered for LPV-150 where as 12V and 24V are provided for LPVL-150.

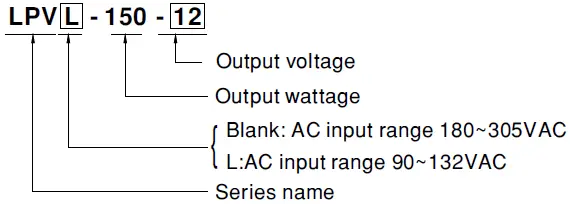

Model Encoding

Specifications

MODEL			LPV -150-12	LPV-150-15	LPV -150-24	LPV-150-36	LPV-150-48
OUTPUT	DC VOLTAGE		12V	15V	24V	36V	48V
	RATED CURRENT		10A	8A	6.3A	4.2A	3.2A
	CURRENT RANGE		0 ~ 10A	0 ~ 8A	0 ~ 6.3A	0 ~ 4.2A	0 ~ 3.2A
	RATED POWER		120W	120W	151.2W	151.2W	153.6W
	RIPPLE & NOISE (max.) Note.2		200mVp-p	200mVp-p	200mVp-p	200mVp-p	200mVp-p
	VOLTAGE TOLERANCE Note.3		±5.0%
	LINE REGULATION		±1.0%
	LOAD REGULATION		±2.0%
	SETUP, RISE TIME Note.6		LPV-150: 500ms, 50ms / 230VAC 500ms, 50ms / 277VAC; LPVL-150: 1500ms, 50ms / 115VAC
	HOLD UP TIME (Typ.)		LPV-150: 18ms/230VAC 20ms/277VAC at full load; LPVL-150: 10ms/115VAC at full load
INPUT	VOLTAGE RANGE Note.4		LPV-150: 180 ~ 305VAC 254 ~ 431VDC; LPVL-150: 90~132VAC
	FREQUENCY RANGE		47 ~ 63Hz
	EFFICIENCY (Typ.)		87%	88%	89%	89%	90%
	AC CURRENT		LPV-150: 1.7A/230VAC 1.5A/277VAC; LPVL-150: 3.0A/115VAC
	INRUSH CURRENT (Typ.)	Blank type	COLD START 60A(twidth=900μs measured at 50% Ipeak) at 230VAC
		L type	COLD START 75A(twidth=900μs measured at 50% Ipeak) at 115VAC
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	Blank type	2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
		L type	1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 115VAC
	LEAKAGE CURRENT		LPV-150: 0.25mA / 240VAC LPVL-150:0.25mA / 120VAC
PROTECTION	OVERLOAD		110 ~ 150% rated output power
			Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE		13.5 ~ 18V	17 ~ 25V	27 ~ 35V	40 ~ 49V	52 ~ 63V
			Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE		Shut down o/p voltage, recovers automatically after temperature goes down

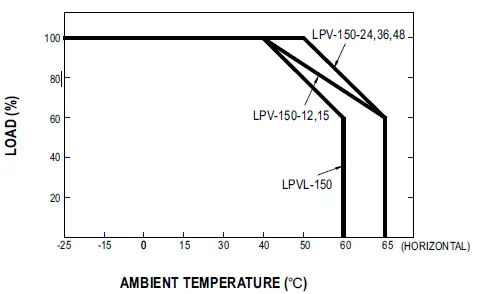

ENVIRONMENT	WORKING TEMP.		-25 ~ +65℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY		20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 ~ +80℃, 10 ~ 95% RH
	TEMP. COEFFICIENT		±0.03%/℃ (0 ~ 40℃ for LPV-150-12,15 and LPVL-150-12,24;0~50℃ for LPV-150-24,36,48)
	VIBRATION		10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	Blank type	UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-150-12,24 only),EAC TP TC 004, IP67, IEC62368-1, BS EN/EN62368-1 approved
		L type	UL8750(type”HL”),CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,IP67 approved
	WITHSTAND VOLTAGE		I/P-O/P:3KVAC
	ISOLATION RESISTANCE		I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Blank type	Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(≤80% load), BS EN/EN61000-3-3, EAC TP TC 020
		L type	Compliance to FCC part 15
	EMC IMMUNITY	Blank type	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020
		L type	Design refer to IEC61000-4-2,3,4,5,6,8,11; light industry level
OTHERS	MTBF		3361.2K hrs min. Telcordia SR-332 (Bellcore) ; 391.9Khrs min. MIL-HDBK-217F (25℃)

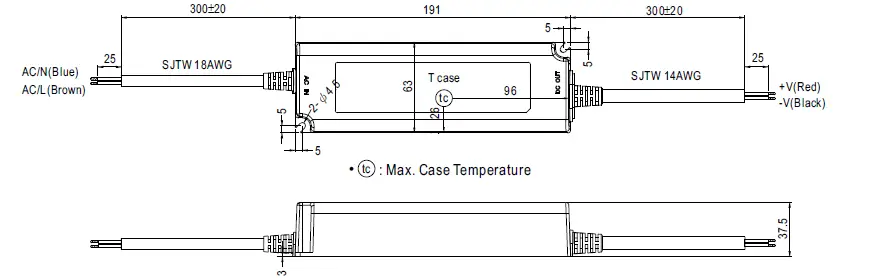

	DIMENSION		1916337.5mm (LWH)
	PACKING		LPV-150: 0.74Kg;20pcs/15.8Kg/0.95CUFT; LPVL-150: 0.85Kg;20pcs/17Kg/0.95CUFT
NOTE	All parameters NOT specially mentioned are measured at 230VAC(115VAC for LPVL) input, rated load and 25C of ambient temperature. Hipple & noise are measured at 20MHZ of bandwidth by using a 12 twIsted pair-wire terminated with a 0.1ut & 4/ut parallel capactor. Tolerance: includes set up tolerance, line regulation and load regulation. Derating may be needed under low input voltage. Please check the static characteristics for more details. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-quality EMC Directive on the complete installation again. Length of set up time is measured at first cold start. Turning ONOFF the power supply may lead to increase of the set up time. Suitable for indoor use or outdoor use without direct sunlight exposure. The ambient temperature derating of 3.5C/1000m with fanless models and of 5C/1000m with fan models for operating altitude higher than 2000m(6500t). For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDFILED_EN.pdf This product is not intended for LED lighting luminaire applications in the EU.(In the EU the LPFNPF/XLG series are recommended.) Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx
