systemair TFSR 315L TFSR Range Consists of Roof Fans Instructions
Description
- Swing-out
- Speed-controllable
- Easy to install
- Reliable

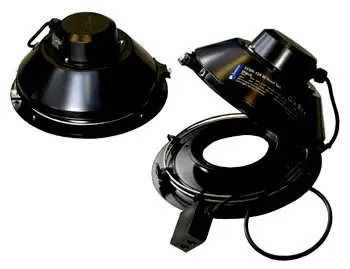

The TFSR range consists of roof fans with a circular base plate and are fitted with a single-inlet centrifugal fan with backward-curved blades and external rotor motors. The motors can be tilted outwards to facilitate inspection and service. They have integral on/off switch and are supplied with 1 m cable for fast connection to the mains e.g. via the connection box on the roof curb TOB or TOS.
These fans are suitable for exhaust-air ventilation systems, e.g. single and multiple dwellings, offices and day nurseries. To protect the motors from overheating, all motors have an integral thermal contact with automatic reset. The casings are manufactured from galvanized steel, with powder-coating in black colour. TFSR 125-160 are delivered with a Ø 160 spigot and TFSR 200-315 with a Ø 200. For cold climates we recommend that the fan runs continuously to avoid problems with ice.
Technical parameters
| Voltage | 230 | V |
| Frequency | 50 | Hz |
| Phase | 1 | ~ |
| Input power (P1) | 329 | W |
| Current | 1,43 | A |
| Max. airflow | 0,444 | m³/s |
| R.p.m. | 2401 | r.p.m. |
| Max. temperature of transported air | 42,2 | °C |
| Max. temperature of transported air when speed-controlled | 38 | °C |
| Sound pressure level at 10 m | 53 | dB(A) |
| Weight | 9,1 | kg |
| Insulation class | F | |
| Enclosure class, motor | IP44 | |
| Capacitor | 8 | µF |
Accessories
Electric accessories
RE 1,5 Speed control (5000)
REU 1.5 Speed control (5004)
REE 2 Speed control (5316)
REPT 6 Digital regulator (5698)
RT 0-30 Room Thermostat (5151)
CO2RT-R-D Transmitter (6993)
Presence detector/IR24-P (6995)
F251-16-60 Cookerhood transf (5931)
RETP 6 Temp/Pressure regulator (32293)
DTV200 (6261)
STL 3 Speed controller (84261)
MicroREX D21 Plus Time Switch (17822)
DTV500A (96807)
Accessories
LDC 200-600 Silencer (5194)
LDC 200-900 Silencer (5195)
RSK-200 Back draft damper (5602)
TOS 200-315 Roof curb Black (134464)
TOB 200-315 Roof curb Black (134461)

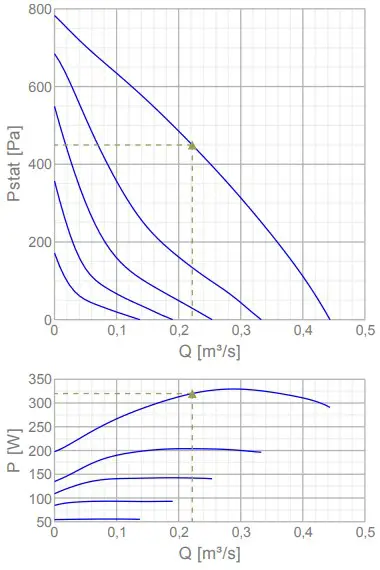

Diagrams
Diagrams
Max efficiency
| Hydraulic data | ||||||||||
 Working air flow | 0,222 | m³/s | ||||||||
| Working static pressure | 450 | Pa | ||||||||
| Power | 320 | W | ||||||||
| Speed | 2432 | r.p.m. | ||||||||
| Current | 1,39 | A | ||||||||
| SFP | 1,44 | W/(l/s) | ||||||||
| Voltage | 230 | V | ||||||||
| Sound power level | 63 | 125 | 250 | 500 | 1k | 2k | 4k | 8k | Tot | |
| Inlet | dB(A) | 51 | 70 | 68 | 75 | 71 | 67 | 63 | 54 | 78 |
| Outlet | dB(A) | 37 | 62 | 65 | 82 | 79 | 73 | 64 | 57 | 84 |

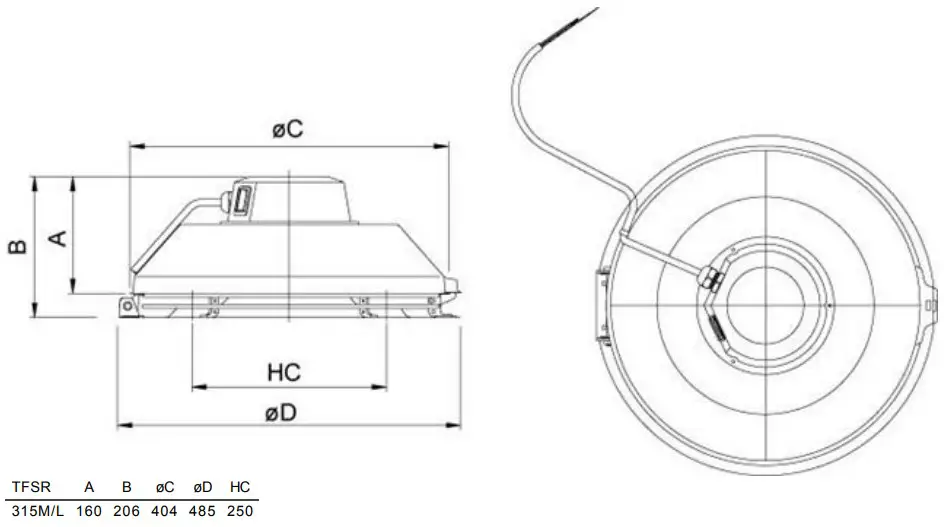

Dimensions
HC = Hole diameter for fixing, ø6×4
Wiring
Documentation
TFSR mounting instruction_205504 _A001.pdf (286,94kB) Certificate S-mark TFSK_R 1309486_EN.pdf (1,77MB)
202341_Fans_Instructions_CE_A010.pdf (1,83MB)
Specification text
Name: TFSR 315L BLACK** | Item no.: 19539
Document type: Product card | Document date: 2019-06-05 | Generated by: Online catalogue
