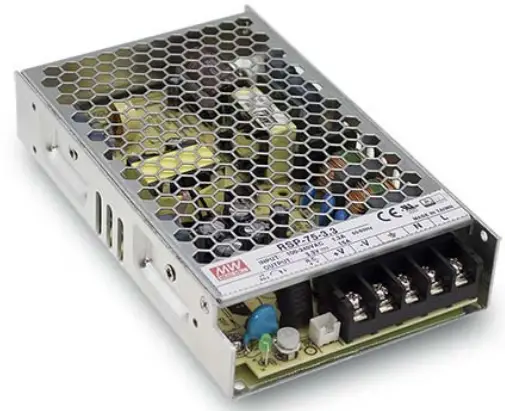

MEAN WELL RSP-75 Series 75W Single Output with PFC Function Power Supply
Dimension
- L: 159 mm, 6.26 inch
- W: 97 mm, 3.82 inch
- H: 3.82 mm, 1.18 inch
Features
- Universal AC input/ Full range
- Built-in active PFC function
- High efficiency up to 89%
- Cooling by free air convection
- Built-in remote ON-OFF control
- Protections: Short circuit/ Overload/ Over voltage / Over temperature
- LED indicator for power on
- 3 years warranty
Applications
- Factory control or automation apparatus
- Test and measurement instrument
- Laser related machine
- Burn-in facility
- RF application
Description
RSP-75 isa 75W single output enclosed type AC/DC power supply. This series operates for 85-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, working for the temperature up to 70C.

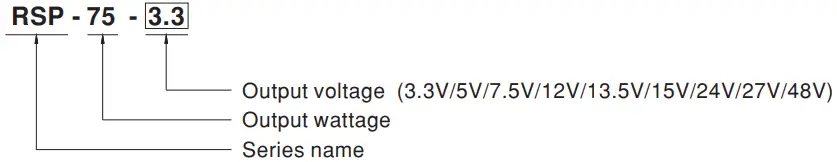

Model Encoding/Order Information

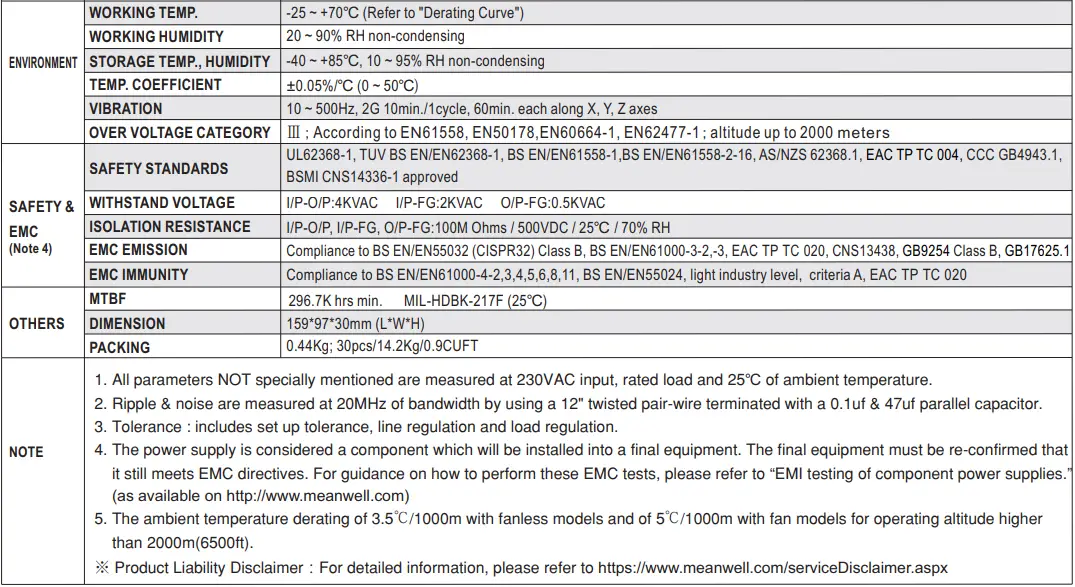

SPECIFICATION

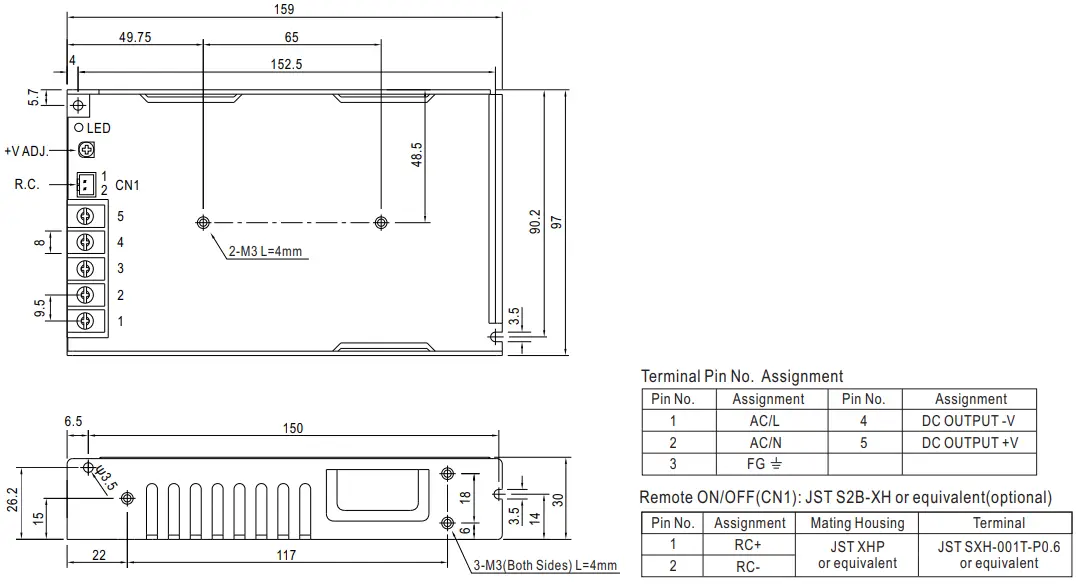

Mechanical Specification

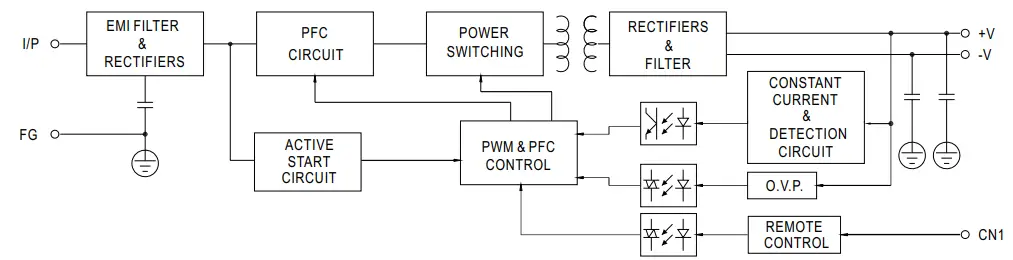

Block Diagram

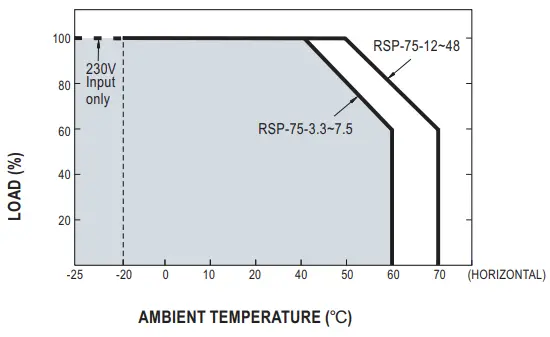

Derating Curve

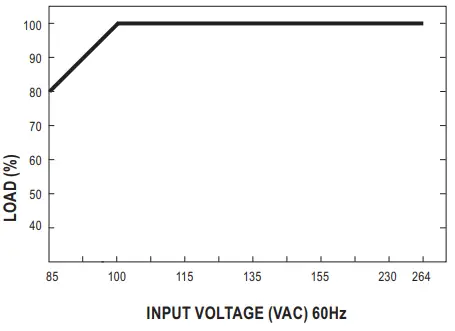

Output Derating VS Input Voltage
