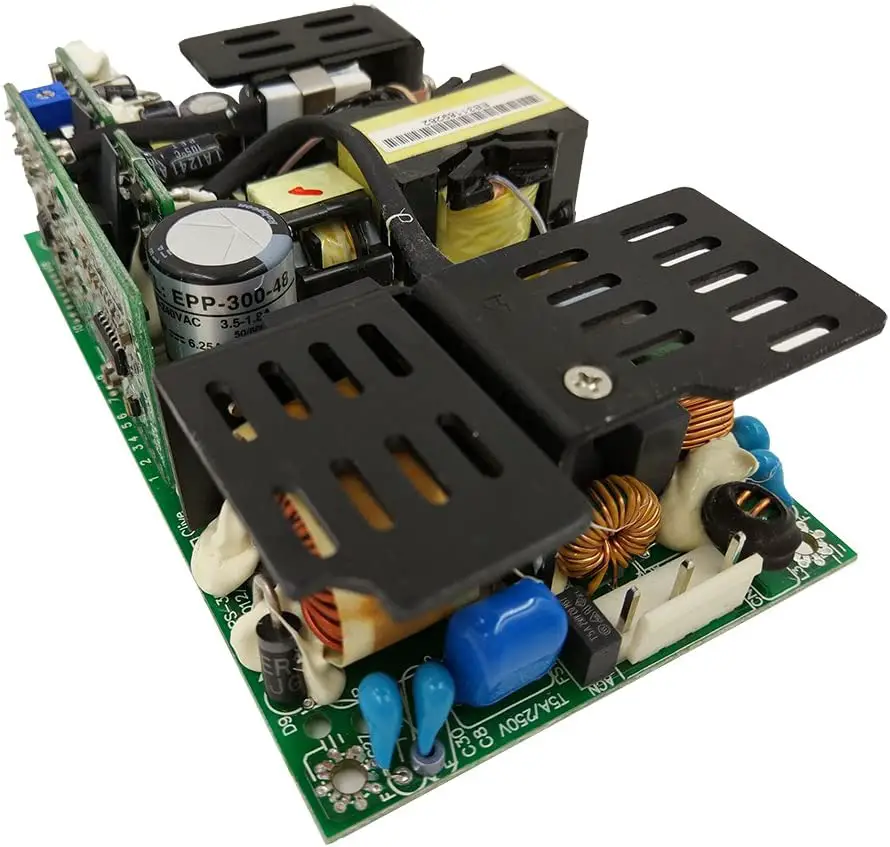

MEAN WELL EPP-300 series 300W Single Output with PFC Function User Manual

Contents hide

1 Features

2 SPECIFICATION

3 Mechanical Specification

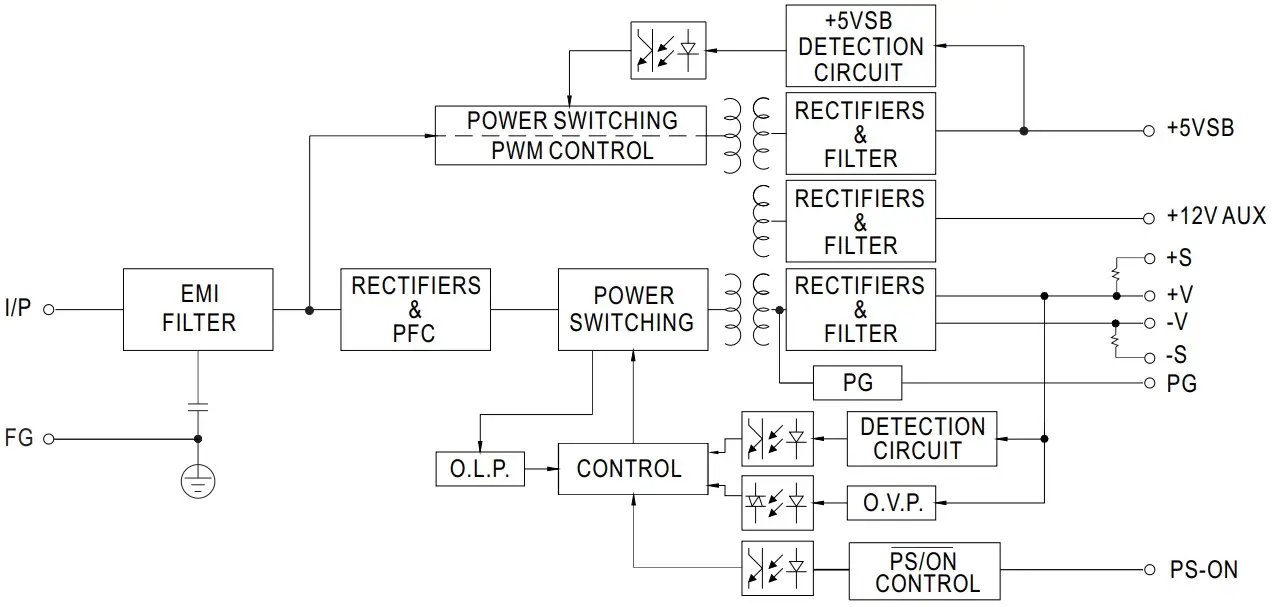

4 Block Diagram

5 Documents / Resources

5.1 References

6 Related Posts

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 93%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in 12V/0.5A auxiliary output
5″x3″ compact size
Free air convection for 200W and 300W with 20.5 CFM forced air
With power good and fail signal output
Built-in remote sense function
No load power consumption under 0.5W by PS-ON control
Standby 5V@1A with fan, @ 0.6A without fan
Operating altitude up to 5000 meters
3 years warranty

SPECIFICATION

MODEL		EPP-300-12	EPP-300-15	EPP-300-24	EPP-300-27	EPP-300-48
OUTPUT	DC VOLTAGE	12V	15V	24V	27V	48V
	RATED CURRENT (20.5CFM)	25A	20A	12.5A	11.12A	6.25A
	CURRENT RANGE (convection)	0 ~ 16.67A	0 ~ 13.33A	0 ~ 8.33A	0 ~ 7.4A	0 ~ 4.17A
	CURRENT RANGE (20.5CFM)	0 ~ 25A	0 ~ 20A	0 ~ 12.5A	0 ~ 11.12A	0 ~ 6.25A
	RATED POWER (convection)	200W	200W	199.9W	199.8W	200.2W
	RATED POWER (20.5CFM)	300W	300W	300W	300.24W	300W
	RIPPLE & NOISE (max.) Note.2	120mVp-p	120mVp-p	150mVp-p	200mVp-p	250mVp-p
	VOLTAGE ADJ. RANGE	Main output:11.4 ~ 12.6V	Main output:14.25 ~ 15.75V	Main output:22.8 ~ 25.2V	Main output:25.65 ~ 28.35V	Main output:45.6 ~ 50.4V
	VOLTAGE TOLERANCE Note.3	±3.0%	±3.0%	±2.0%	±2.0%	±2.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	2500ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load
	HOLD UP TIME (Typ.)	13ms/230VAC/115VAC at full load

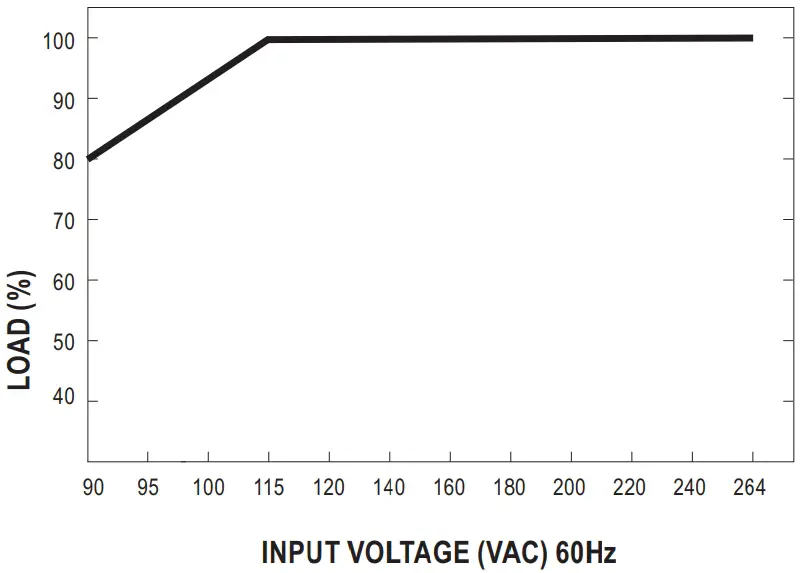

INPUT	VOLTAGE RANGE Note.5	90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.93/230VAC PF>0.98/115VAC at full load
	EFFICIENCY (Typ.)	90%	90%	92.5%	93%	93%
	AC CURRENT (Typ.)	3.5A/115VAC 1.8A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 40A/115VAC 80A/230VAC
	LEAKAGE CURRENT	<2mA/240VAC
PROTECTION	OVERLOAD	105 ~ 135% rated output power
	OVERLOAD	Protection type: Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	13.5 ~ 15V	16.2 ~ 18.5V	26 ~ 30V	29.5 ~ 33.5V	52 ~ 59.5V
	OVER VOLTAGE	Protection type: Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	110℃±5℃ (TSW1) detect on heatsink of power transistor
		115±5℃ (12V,15V),85±5℃ (24V,27V,48V) (TSW2) detect on heatsink of output diode
		Protection type: (TSW1)Shut down o/p voltage, recovers automatically after temperature goes down
		Protection type: (TSW2)Shut down o/p voltage, re-power on to recover
FUNCTION	5V STANDBY	5VSB : [email protected] without fan, 1A with fan 20.5CFM ; tolerance ± 2%, ripple : 150mVp-p(max.)
	AUXILIARY POWER (AUX)	[email protected] for driving a fan ; tolerance -15% ~ +10%
	PS-ON INPUT SIGNAL	Power on: PS-ON = “Hi” or ” > 2 ~ 5V” ; Power off: PS-ON = “Low” or ” < 0 ~ 0.5V”
	POWER GOOD / POWER FAIL	500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ; The TTL signal goes low at least 1ms before Vo below 90% of rated value

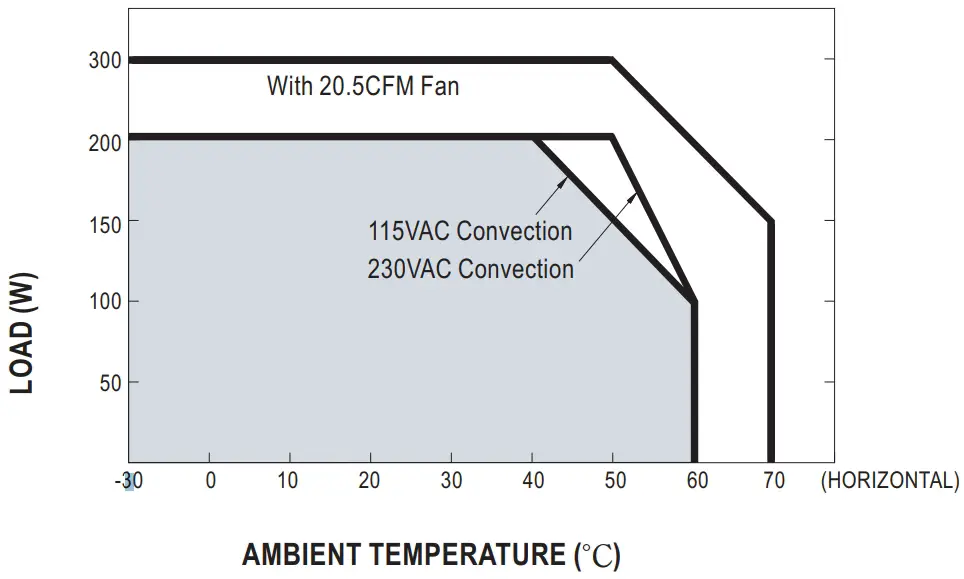

ENVIRONMENT	WORKING TEMP.	-30 ~ +70℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85℃ , 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 50℃ )
	OPERATING ALTITUDE Note.7	5000 meters
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Compliance to BS EN/EN55032 (CISPR32),Conduction Class B,Radiation Class B;BS EN/EN61000-3-2,3;EAC TP TC 020
	EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN60601-1-2, criteria A, EAC TP TC 020
OTHERS	MTBF	160Khrs min. MIL-HDBK-217F (25℃ )
	DIMENSION	12776.235mm (LWH)
	PACKING	0.37 Kg; 36pcs/14.3Kg/0.96CUFT;
NOTE	All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. Tolerance: includes set up tolerance, line regulation and load regulation. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com) Derating may be needed under low input voltages. Please check the derating curve for more details. Heat Sink HS1,HS2 can not be shorted. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

Mechanical Specification

Grounding required: The grounding of the system level unit has to connect with Pin No.5 on CN1 of EPP-300 so as to pass EMI

HS1,HS2 can not be shorted

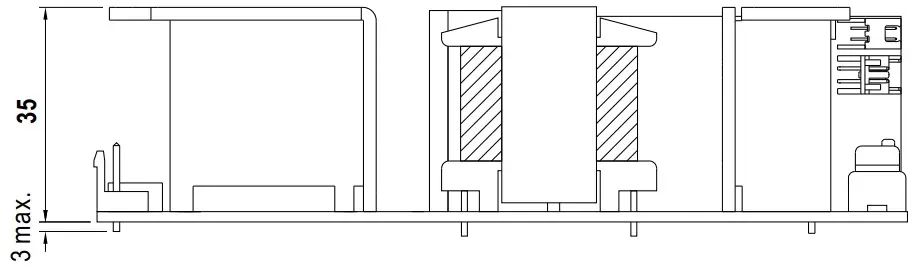

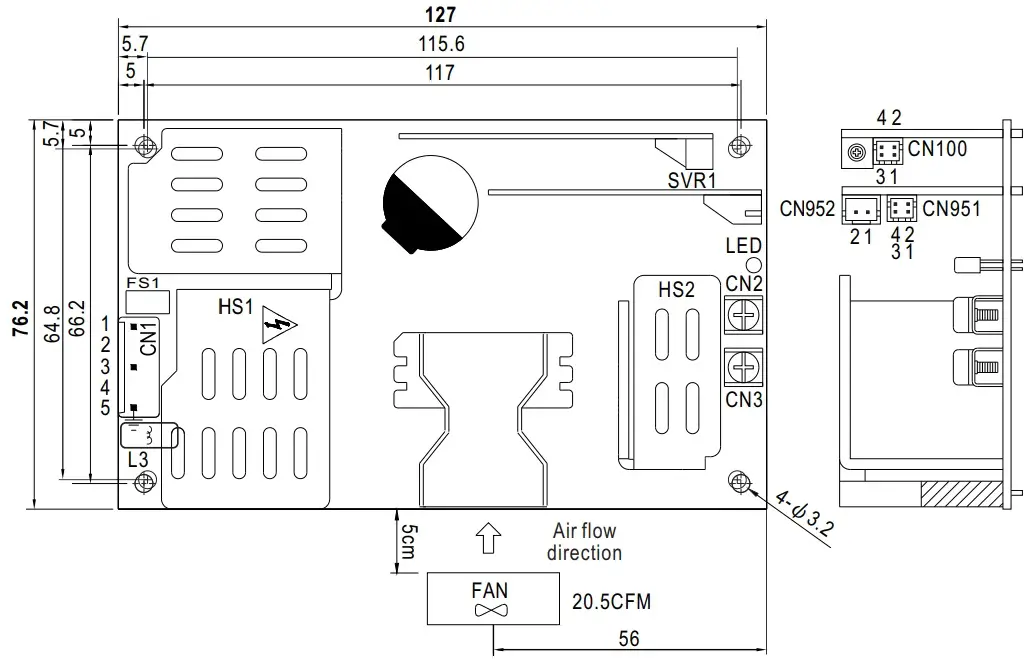

Unit: mm
AC Input Connector (CN1): JST B5P-VH or equivalent

Pin No.	Assignment	Mating Housing	Terminal
1	AC/N	JST VHR or equivalent	JST SVH-21T-P1.1 or equivalent
24,	No Pin
3	AC/L
5	FG

DC Output Connector (CN2,CN3)

Pin No.	Assignment	Output Terminals
CN2	-V	M3.5 Pan HD screw in 2 positions Torque to 8 lbs-in(90cNm)max.
CN3	+V

Function Connector(CN100):HRS DF11-4DP-2DS or equivalent

Pin No.	Status	Mating Housing	Terminal
1	-S	HRS DF11-4DS or equivalent	HRS DF11 **SC or equivalent
2	+S
3	DC COM
4	PG

Function Connector(CN951): HRS DF11-4DP-2DS or equivalent

Pin No.	Status	Mating Housing	Terminal
1	5VSB	HRS DF11-4DS or equivalent	HRS DF1**SC or equivalent
2,4	DC COM
3	PS-ON

FAN Connector(CN952): JST S2B-XH or equivalent

Pin No.	Assignment	Mating Housing	Terminal
1	DC COM	JST XHP or equivalent	JST SXH-001T-P0.6 or equivalent
2	+12V	JST XHP or equivalent	JST SXH-001T-P0.6 or equivalent
