MOTION DETECTOR
MODEL: SHE-B-250

SHE-B-250 Motion Detector

Smart Isolated PIR Sensor Switch Controller, with detachable sensor detector. With wide range operation input voltage from AC 100V to AC 240V. The controller will turn on the switch for output when it detects the motion of the human body. And turn off automatically after the adjustable delay without the detection of the motion of the human body.

Important information for the installation

The unit conforms to the directive 2004/108/EC for the electromagnetic compatibility and the low voltage directive 2006/951EC. The unit could only be used as the sensor switch controller, and is only suitable for indoor use. Protect the controller against humidity and excessive heat. Permissible operating temperature range -20 to +50°C. The loads connect to the Controller must strictly according to the Load Specification below. If the Sensor Controller is used for purposes other than originally intended or it is connected in the wrong way, no liability can be taken over for possible damages.

Installation Notes:

1. The sensor should be mounted 1-2m higher than floor. \The temperature violation and waving objects should be avoided within the detection area, this is important for distinguishing an effective detection. (ex. the air condition, steam, smoke and ect.)

InsIllation Instruction
For application inside the furniture

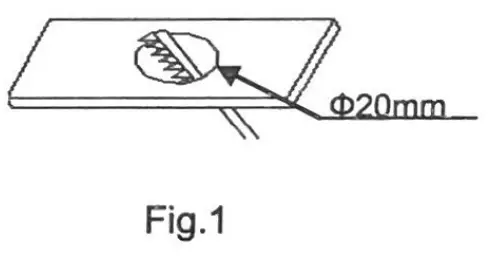

1.  Drill a hole of 020mm at desired position before installation. (See Fig. 1 )

2. Put the cable through the hole from the sticker side.
3. Fix the sensor to the right position, array the cables accordingly and make sure the length is enough to reach the controller.

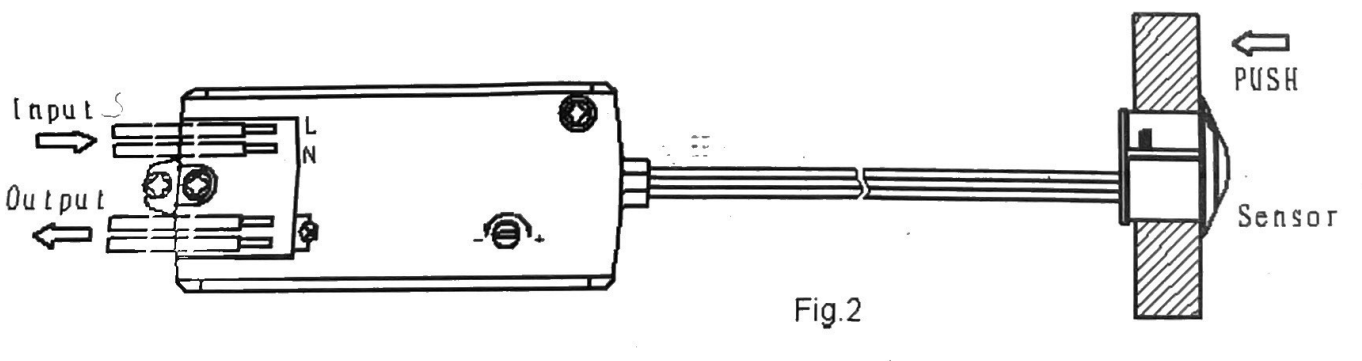

4. Fix the cables and the wired for signal, and adjust the angle of the sensor if necessary to adjust the effective detection area of the sensor. Then tighten it with hand push for the sensor. And connect the cables to the controller. (See Fig. 2)

5. Connect the input power cable and output cable to the lamp according to the label on the motion detector.
6. Switch on the power and wait for about 40 seconds, the detector will be ready for normal operation.
7. Set the required delay with a screwdriver. The delay can be set from 10 sec to 3 min. Regulate the potentiometer clockwise to increase the time, and anticlockwise to reduce the time (See Fig. 3).


Leyton Lighting

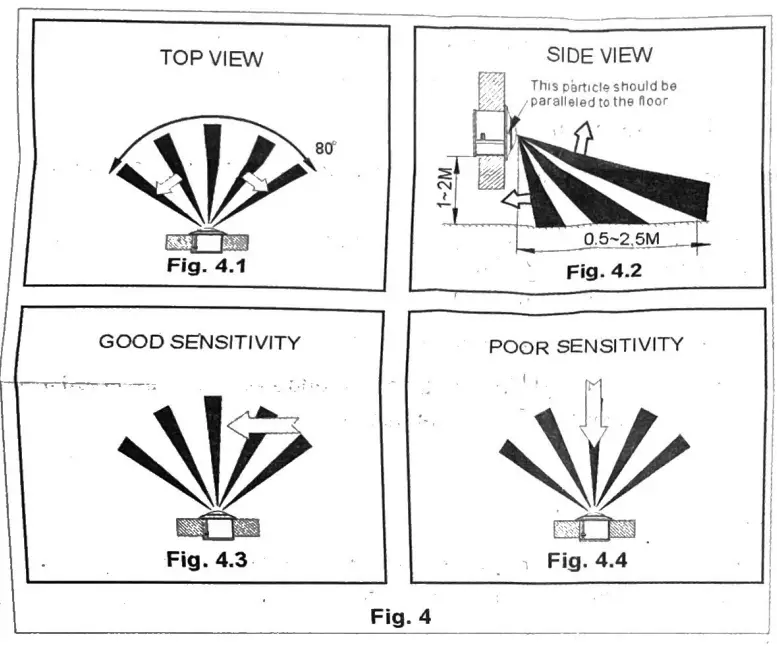

Detection area (See Fig. 4)

The detection area for the suspended installation:

1. The particle of the sensor should be paralleled to the floor.
2. Sensitivity: Highest
3. Fix position: 1-2m in height
4. The controller of detector should be fixed far away any waving abject.

 Specifications:

Input voltage: AC100V∼240V, 50/60Hz
Delay time: 1Osec∼3min
Max. Lighting load:

Sensor TO-ptional)	Dimension in mm(inch)	Hole opening 2 plameter(D)	Day Light Detection ‘	Light Sensitivity
Sensor 1 T/SLF5.1176.045		Φ20	YES	80-160 lux
Sensor 2 SLF 5.876.019			NO	NO
