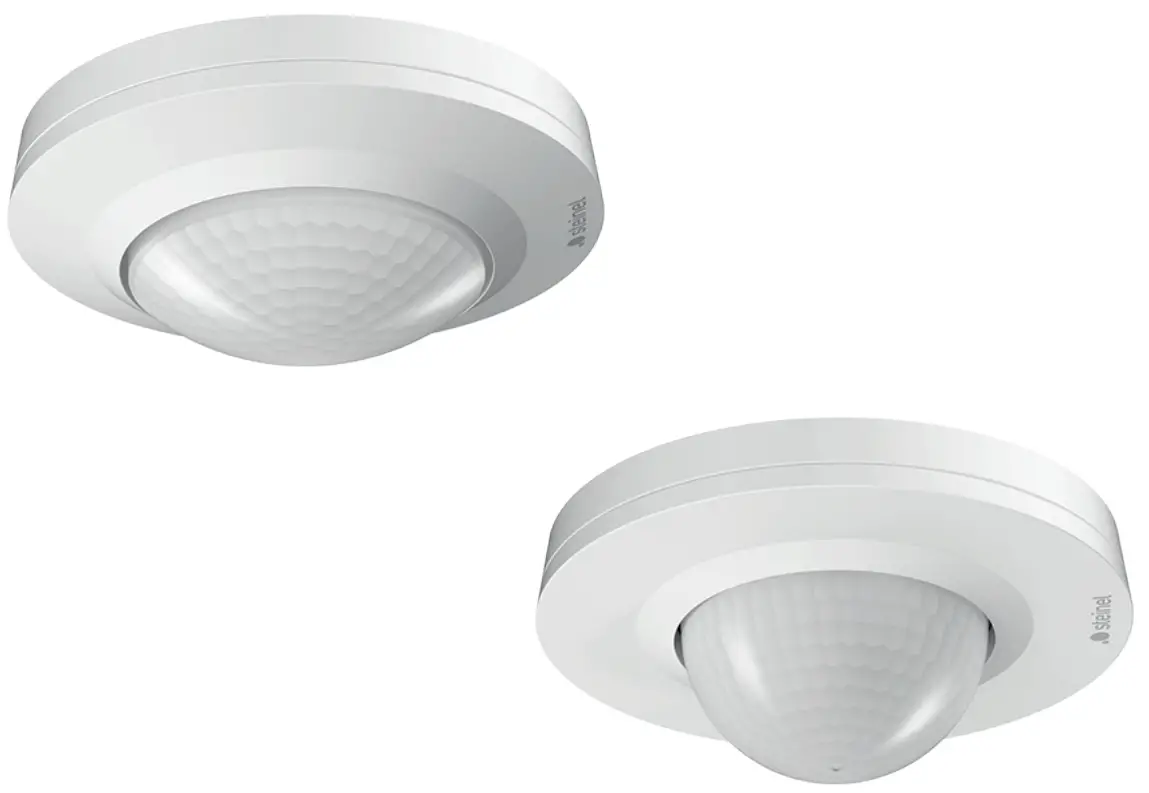

steinel MD IR, PD IR Serise Motion Detectors

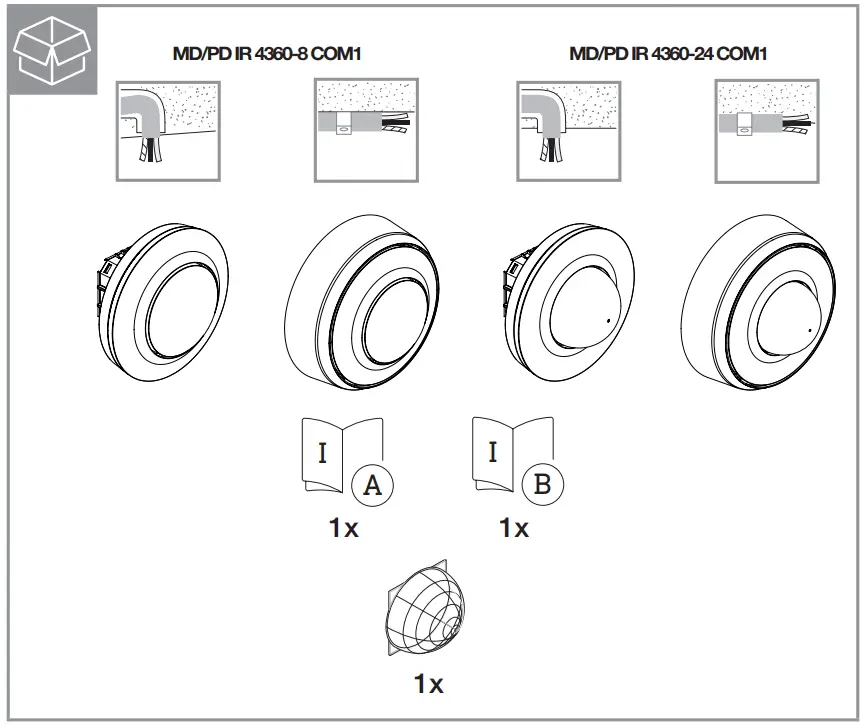

Package Content

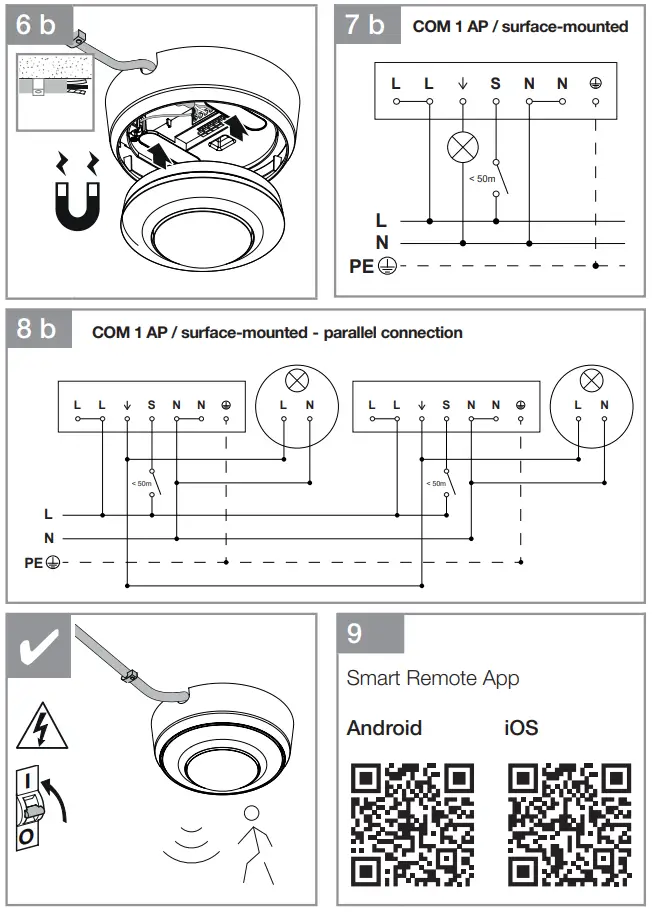

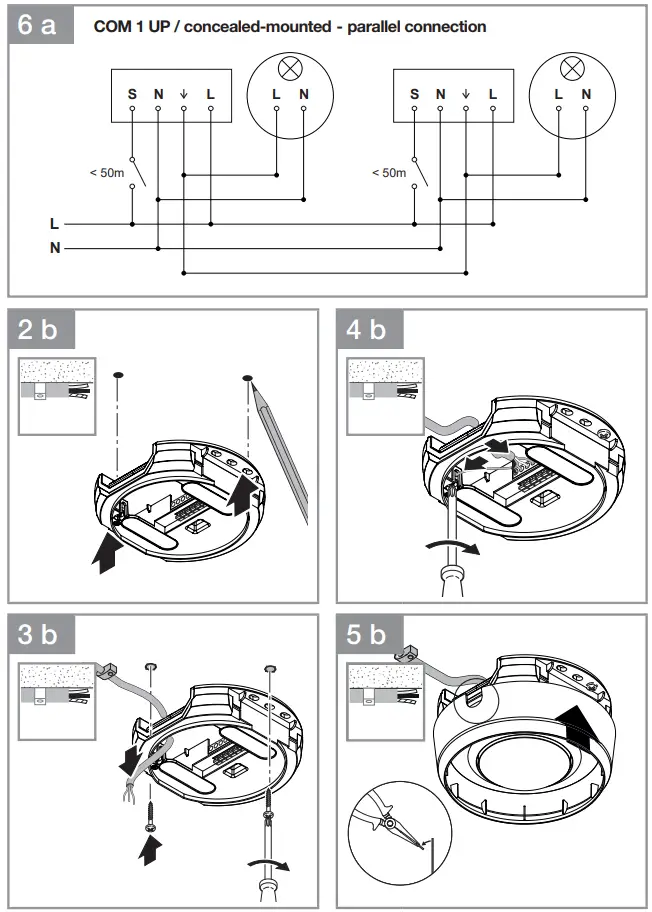

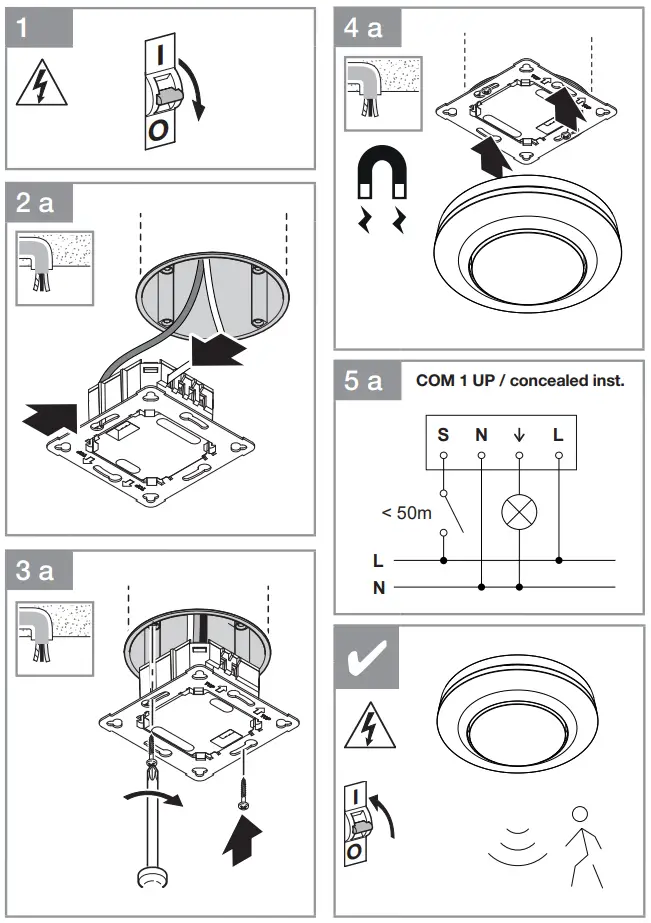

Installation Instruction
Technical Data
Dimensions (Ø x T) | MD IR 4360-8 COM1 | PD IR 4360-8 COM1 | MD IR 4360-24 COM | PD IR 4360-24 COM1 |
| concealed version: 109 x 70 mm | concealed version: 109 x 75 mm | |||
| surface-mounted version: 129 x 65 mm | surface-mounted version: 129 x 70 mm | |||
| ceiling version: 109 x 109 mm | ceiling version: 109 x 114 mm | |||
| Input voltage | 220-240-v/ 50/60 Hz | |||
| Power consumption • Stand-by | < 0,1 W < 0,1 W | |||
| Capacity, switching output 1 | Incandescent/halogen lamp LED-/EVG – Last / LED/ECG – load | 2000 W 500 W (max. 50 Stk, c < 176 µF) 500 W (max. 50 pcs, c < 176 µF) | ||
| Time setting | COM1 Relais 5 s – 60 min | |||
| Twilight setting | 2-1000 Lux / 2-1000 lux | |||
| Parallel connection via L` | 10 Stk. 10 pcs. | |||
| Reach (on 2.5 m height) | Tangential: ø 8.5 m Radial: ø 4.5 m | Tangential: ø 8.5 m Radial: ø 4.5 m Presence: ø 6 m | Tangential: ø 24.5 m Radial: ø 5.5 m | Tangential: ø24.5 m Radial: ø 5.5 m Presence: ø 7.5 m |
| Angle of coverage | 360° | |||
| Mounting height | 2,5 – 4 m Optimum mounting height: 2,8 m / 2.8 m | |||
| IP rating | P 54 surface-mounted version only) | |||
| Temperature range | 20 °C bis +50 °C -20 °C to +50 °C | |||
Customer Support
Service
Complete user manual
steinel.de/110093101.pdf
+49 5245-448-188
[email protected]
