PNI Safe House HS140
PIR motion detector
User manual

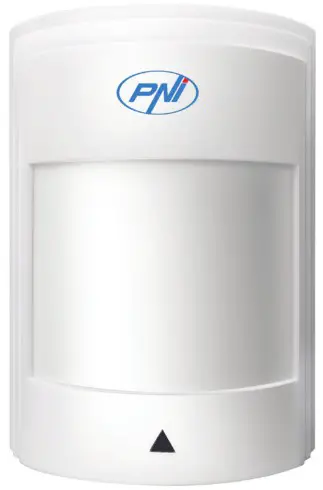

Wired PIR motion detector PNI Safe House HS140
The PNI Safe House HS140 wired motion detector is equipped with a wideangle passive infrared sensor, anti-EMI (electromagnetic interference) and anti-RFI (radio frequency interference) design and automatic temperature compensation function.
The detector can be added to a wired alarm system in residential or industrial applications.
Technical specifications
- Power supply: DC 9-16V
- LED indicator: Yes (On/Off via Jumper 1)
- Operating temperature: -26 ° C ~ + 80 ° C
- Detection distance: 12 m
- Alarm output: NO/NC
- Installation type: on the wall

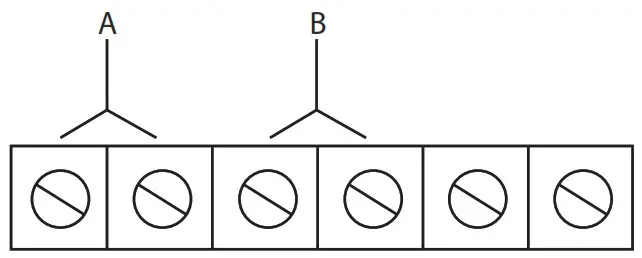

Connection diagram
A – Alarm relay
B – Power input 9V – 16V
EU Simplified Declaration of Conformity
SC ONLINESHOP SRL declares that Motion detector PNI Safe House HS140 complies with the Directive EMC 2014/30/EU. The full text of the EU declaration of conformity is available at the following Internet address: https://www.mypni.eu/products/8613/download/certifications
