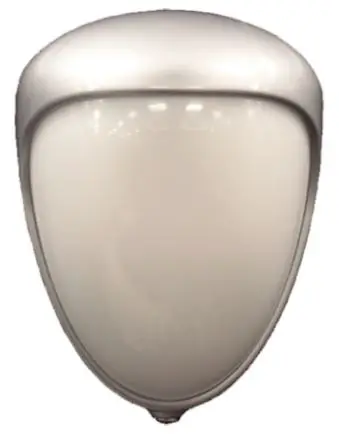

POTTER PIR-TECT 1 Dual PIR External Motion Detector
EXTERNAL MOTION DETECTOR
- Dual PIR Technology
- Controls cameras and other alarm warning devices
- Field programmable beam range (30ft, 65ft, 98ft)
- Aesthetically pleasing modern design
- Sliding curtains for masking
- High immunity to common false alarm triggers
- Flexible mounting height up to 20ft (10ft optimal)
- Dual tamper for rear and cover
- Internal adjustable pan (180 degree) & tilt (90 degree) electronics module
Stock number: 4100001
The PIR-TECT 1 motion detector is a highly versatile external motion detector. The PIR-TECT 1 simplifies project design by offering the ability to program a single unit as a short-range, mid-range, or long-range detector in the field. In addition, the flexible mounting height along with the adjustable pan and tilt module allow the view of a security camera and the PIR-TECT sensor to coincide, providing more accurate threat detection. Through the use of advanced signal processing, PIR-TECT 1 has exceptional resistance to false alarms which enhances detection and reduces unnecessary responses. The flexibility of the PIR-TECT external motion detectors are enhanced with the additional accessories.
| Model Number | Stock Number | Description |
| PIR-305 | 4100005 | Conduit adaptor ring |
| PIR-306 | 4100006 | Pole mount clamp |
| PIR-307 | 4100007 | Walk tester |

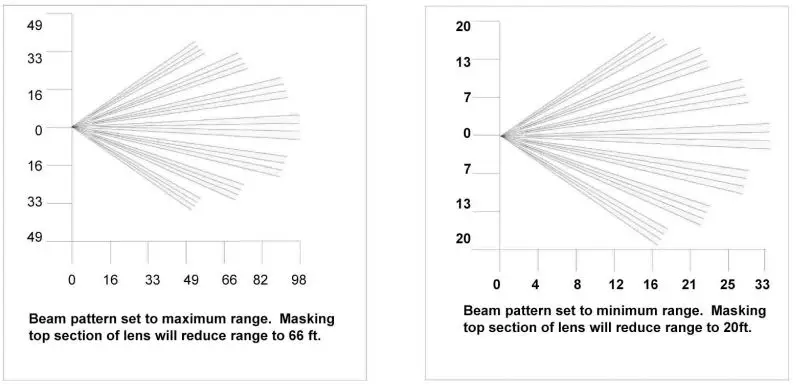

| Detection Area | Programmable between 33 and 98 ft |
| Coverage | 10-70 degrees detection angle, 98ft x 79ft coverage max |
| Adjustment | 180 degree pan and 90 degree tilt |
| Fresnel Lens | 28 zones for each pyro pair, which can be masked with the curtain sliders |
| Customized Optics | Double silicone shielded quad element eliminates 50,000 lux of white light |
| Outputs | Silent solid state magnetically immune |
| No.1 (N.O.) | Dry contact 24VAC/DC @ 50mA |
| No.2 (N.C.) | Dry contact 24VAC/DC @ 50mA |
| Power Input | 9 to 15 VDC |
| Current | 8mA (1 2V nominal) |
| Pulse Count | 1 – 2 |
| Temp. Compensation | Digital sensitivity adjustment |
| Control | Digital microprocessor – non volatile memory |
| Walk Test | Output test mode with LED indication |
| Operating Temp | -4°F to 131°F |
| Housing | High impact zinc alloy |
| Lens | High Density Polyethylene |
| Protection Rating | lP 55 |
| Dimensions | 5.71 x 4.72 x 4.52 inches |

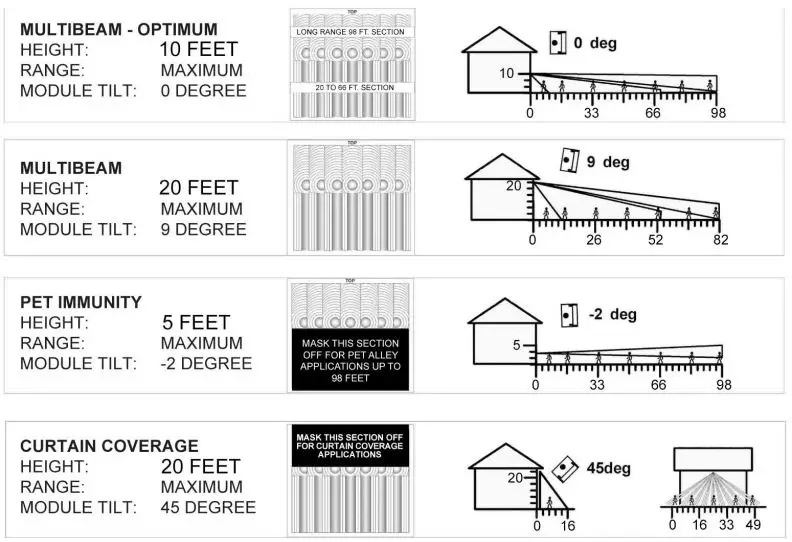

Mounting
