Furniture Fsdh-stpkt-5-dd Sliding Barn Door Hardware Kit Installation Guide

FURNITURE FSDH-STPKT-5-DD Sliding Barn Door Hardware Kit

MODEL No FSDH-STPKT:  5-DD

WHAT INBOX

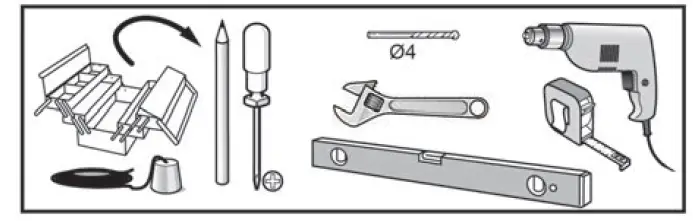

TOOLS REQUIRED

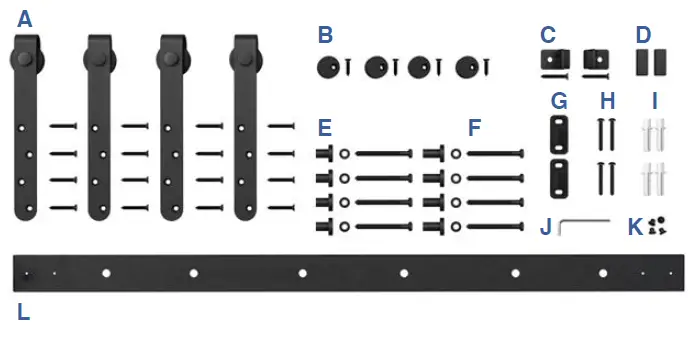

INCLUDED IN KIT

PLEASE NOTE: The installation manual is a suggested guideline. Adjustments may need to be made based on your specific application.
Architectural Products by Outwater assumes no liability for improper installation

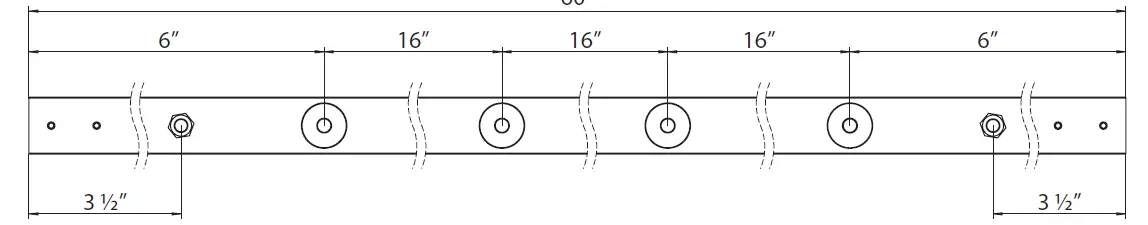

UNDERSTANDING YOUR RAIL

INSTALLATION

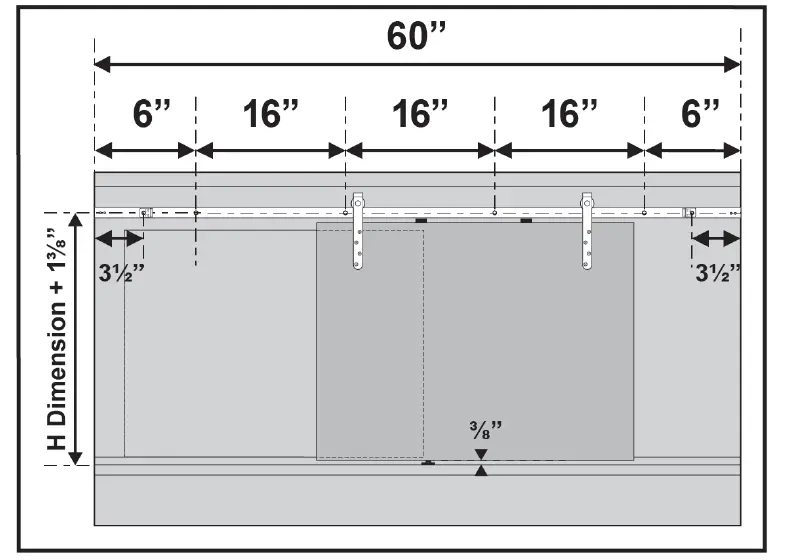

Using a pencil, mark the locations where you will drill holes as indicated

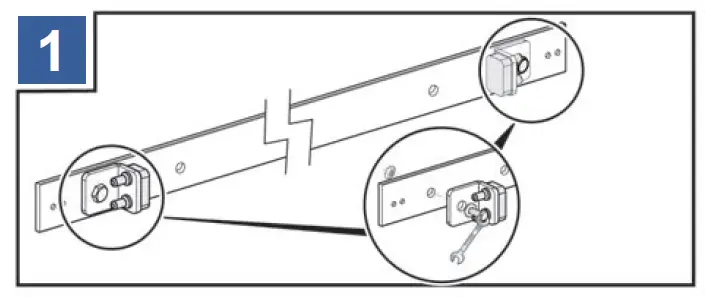

1. Before beginning installation, attach the door stops [C] to the rail [L].

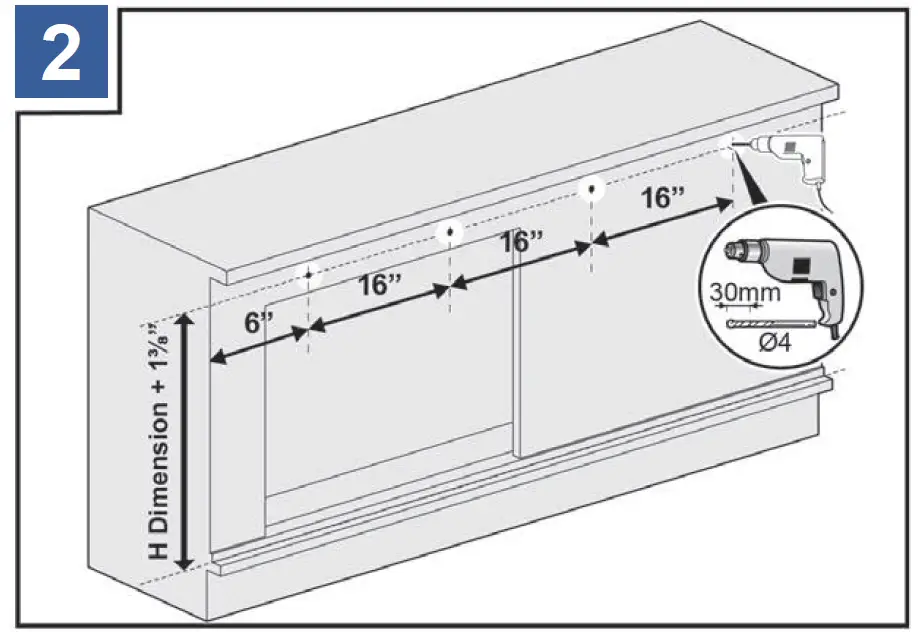

2. Using a power drill with a 4mm drill bit, drill holes as indicated

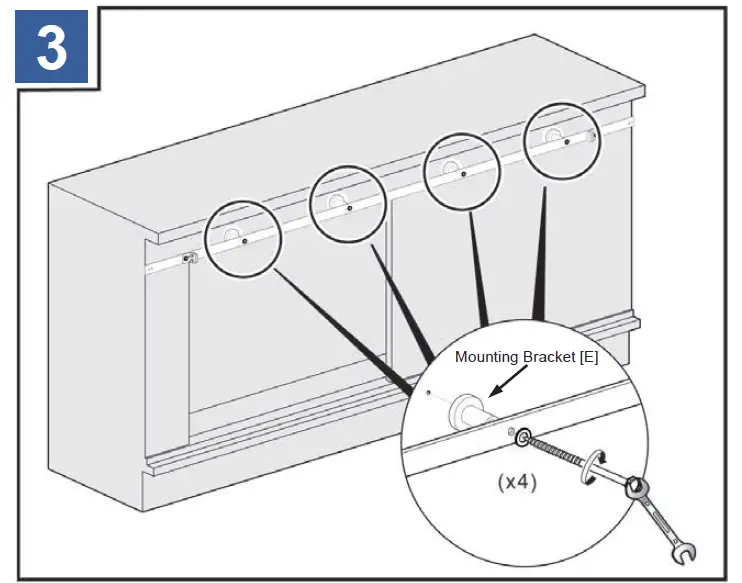

3. Install the rail, and mounting brackets [E].

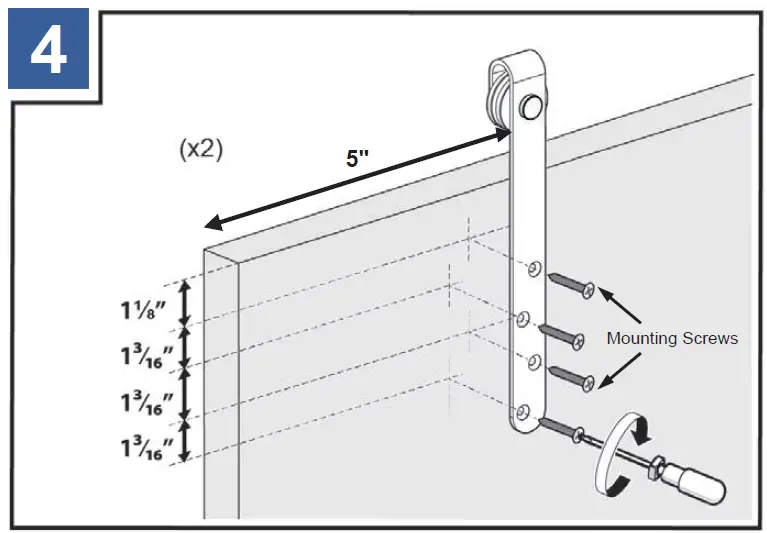

4. Drill holes into the doors as indicated. Attach the roller straps [A].
   It is suggested that the roller straps [A] be mounted 5″ from the edge of the doors to the neck of the roller straps.
   NOTE: Trimming the rail will alter the position of the roller hardware. Adjust accordingly
   FOR ¾” DOORS
   FOR 1″ DOORS

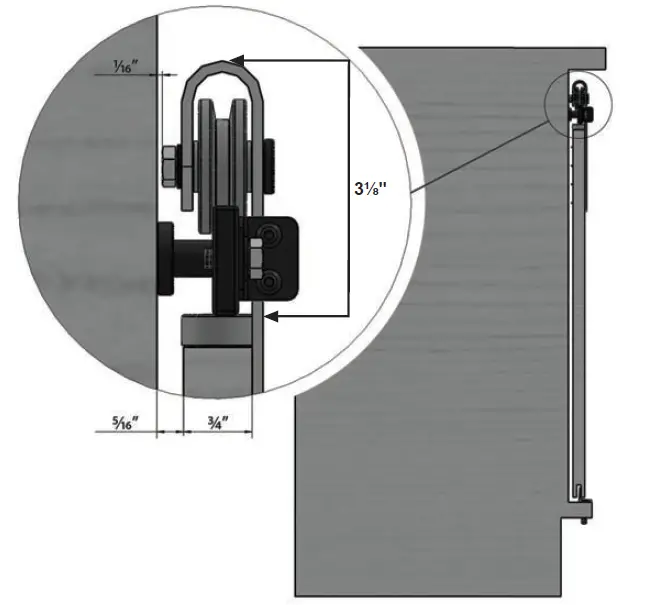

   Allow a minimum 3-1/8″ clearance above the doors.

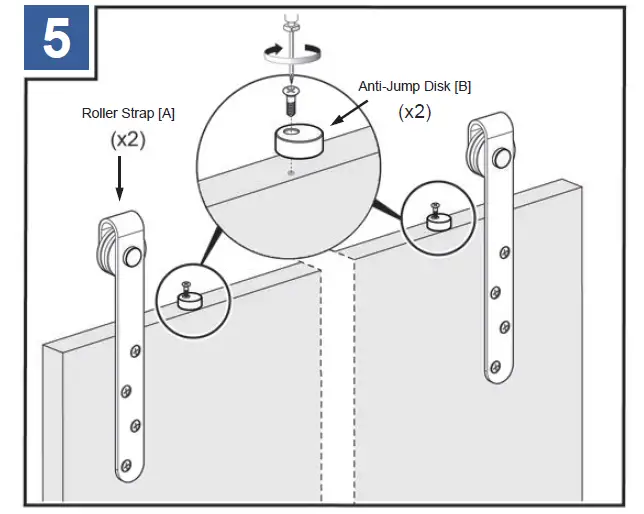

5. Attach the anti-jump disks [B] to the doors

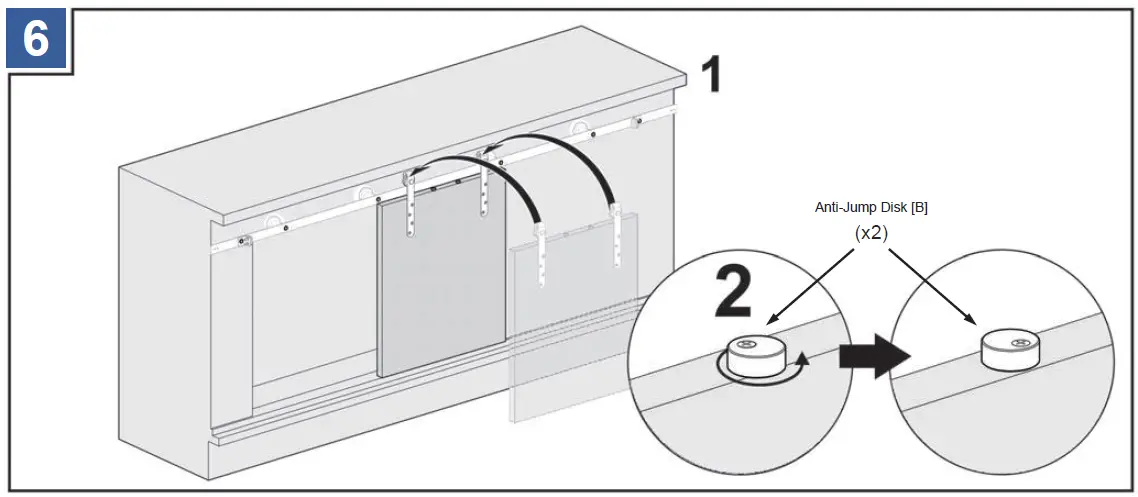

6. Attach the doors to the rail [L] and lock the anti-jump disks [B] into position. Doors should be routed beforehand if using the routed door guides [G].

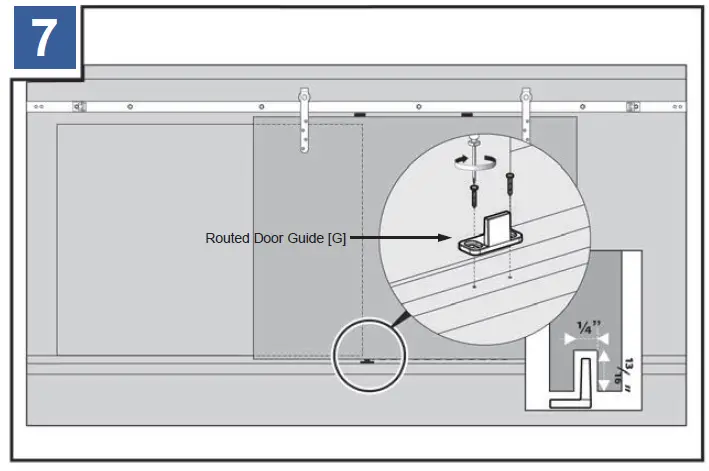

7. If using the routed door guides [G], install them at this time. Repeat steps 4-7 for additional door

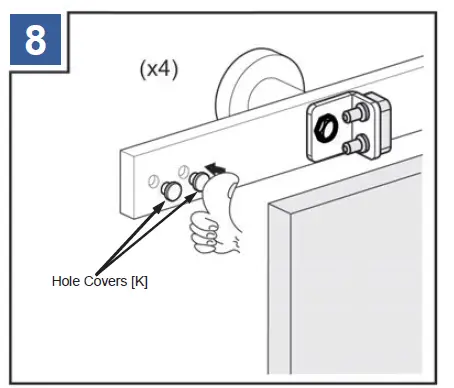

8. Use the hole covers [K] to give the rail a finished look.The rail can be trimmed if necessary using a band saw or hacksaw. Use blades suitable for iron or stainless steel depending on your rail.

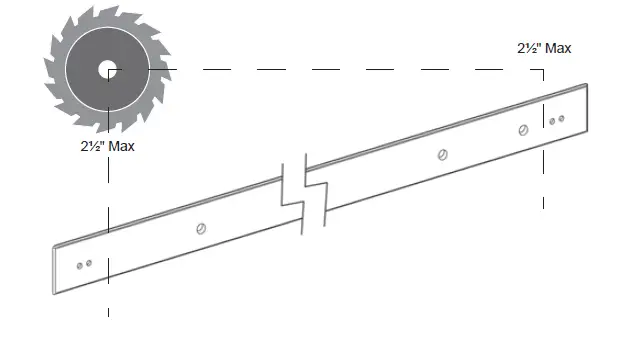

   NOTE: If you are trimming the rail, do so equally. Each rail can be trimmed equally up to 2½” on both sides. However; trimming will alter the position of the roller hardware. Adjust accordingly.

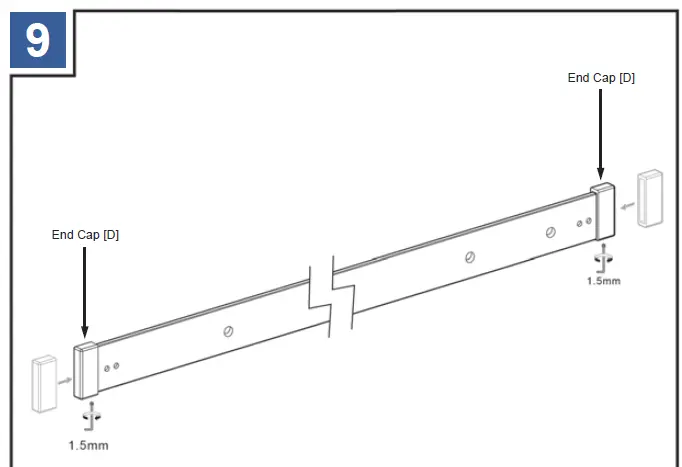

9. Once cut, add the end caps [D] to the ends of the rail and secure with a set screw.
