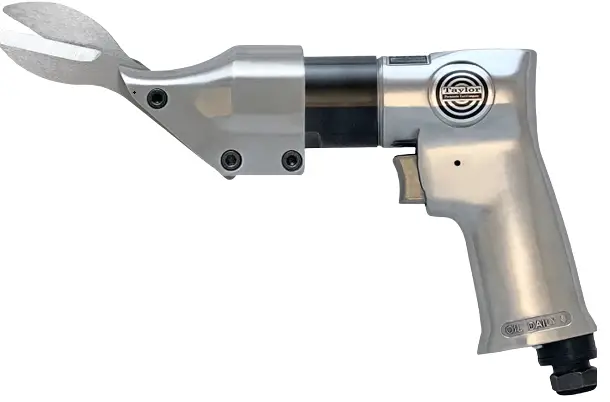

Taylor Pneumatic Tool Company T-7700SS Scissor Shear

Taylor-Pneumatic-Tool-Company-T-7700SS-Scissor-Shear-PRO

OILING INSTRUCTIONS

OIL AFTER EACH USE WITH 1/2 TEASPOON OF AIR TOOL OIL THROUGH THE AIR INLET. RUN FOR ONE SECOND TO COAT ALL INTERNAL PARTS.

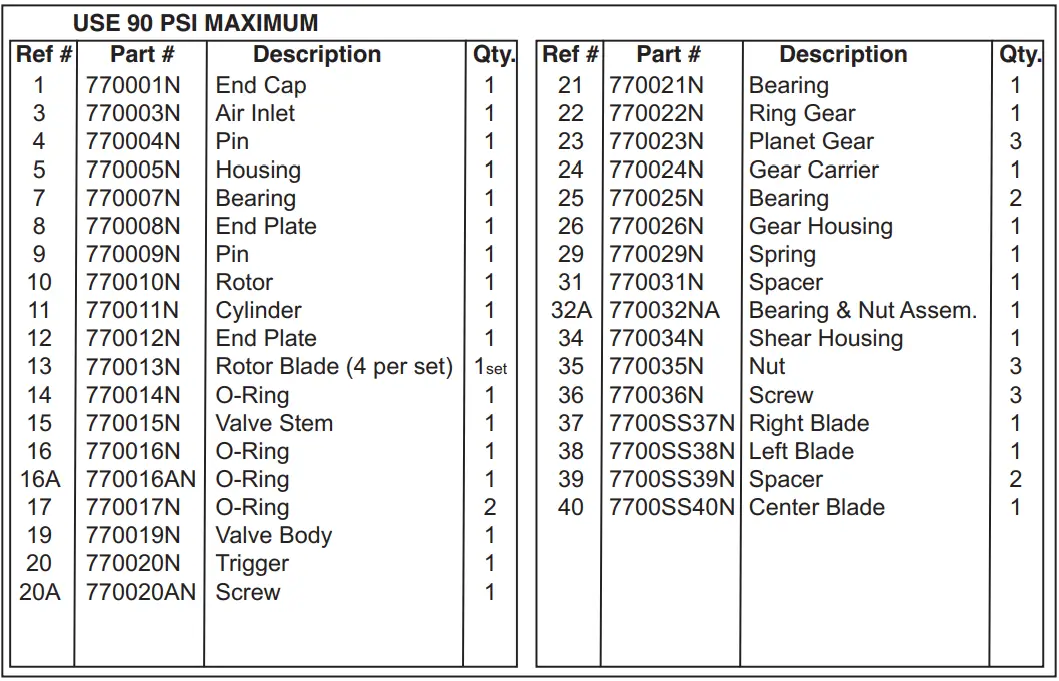

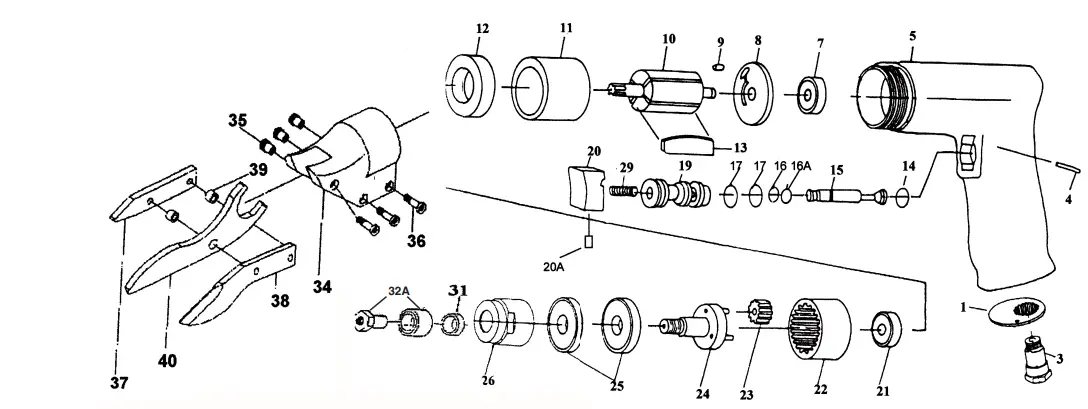

PARTS LIST

Taylor-Pneumatic-Tool-Company-T-7700SS-Scissor-Shear-1Taylor-Pneumatic-Tool-Company-T-7700SS-Scissor-Shear-2

505 N. Railroad Ave. 33435
P.O. Box 1117 33425
Boynton Beach, Florida
Ph. (561) 732-1111
Fax (561) 731-4412
Toll Free 800-805-8665

SEE OUR CATALOG at: www.taylorpneumatic.com
