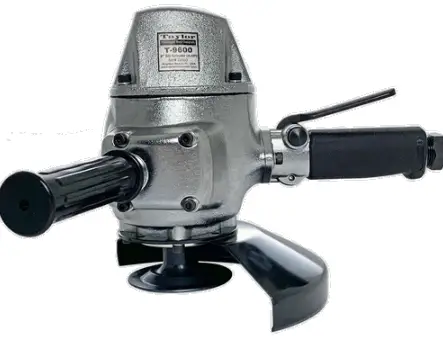

Taylor Pneumatic Tool Company T-9600C 6 Vertical Cup Grinder

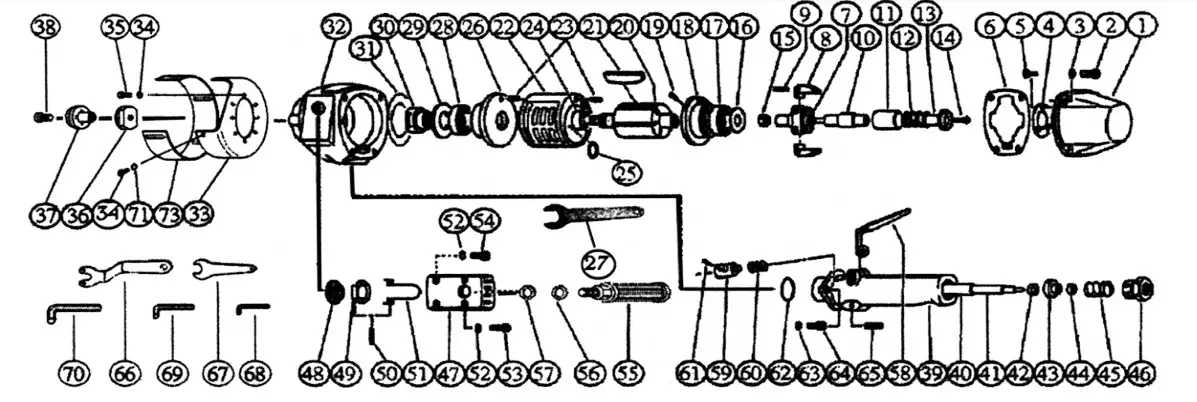

OVERVIEWS
| Ref # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 | Part # 960001 960002 960003 960004 960005 960006 960007 960008 960009 960010 960011 960012 960013 960014 960015 960016 960017 960018 960019 960020 960021 960022 960023 960024 960025 960026 9600C27 960028 960029 960030 960031 960032 9600C33 9600C34 9600C35 9600C36 | Description Housing Hex Bolt Spring Washer Washer Screw Packing Governor Cage Weight Roll Pin Shaft Valve Valve Spring Valve Spring Holder Screw U- Nut Cover Bearing Upper Plate Roll Pin Rotor Rotor Blade (Set of 5) Cylinder Roll Pin Adjusting Collar Adjusting Washer Lower Cylinder Plate Wrench 19MM Bearing Bearing Spacer Rotor Nut Adjusting Washer Housing Wheel Guard Spring Washer Hex Bolt Wheel Flange | Qty. 1 4 4 1 3 1 1 2 2 1 1 1 1 1 1 1 1 1 1 1 1set 1 2 1 1 1 1 1 1 1 1 1 1 8 4 1 |
| # 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 | 9600C37 9600C38 960039 960040 960041 960042 960043 960044 960045 960046 960047 960048 960049 960050 960051 960052 960053 960054 960055 960056 960057 960058 960059 960060 960061 960062 960063 960064 960065 9600C66 9600C67 9600C68 9600C69 9600C70 9600C71 960072 9600C73 | Description Wheel Flange Screw Throttle Valve Body Throttle Valve Rod Bushing Throttle Valve Rod Throttle Valve Throttle Valve Washer Sub Throttle Valve Throttle Valve Spring Inlet Bushing Exhaust Cover Exhaust Valve Muffler Plate Roll Pin Muffler Spring Spring Washer Hex Bolt Hex Bolt Dead Handle Spring Washer Washer Throttle Valve Lever Lock Key Lock Spring Bolt O-Ring Spring Washer Hex Bolt Pin Spanner Wrench Wrench 41MM Allen Wrench Allen Wrench Allen Wrench Washer Bolt Wheel Guard | . 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4 2 2 1 1 1 1 1 1 1 1 2 2 1 1 1 1 1 1 4 4 1 |
General instructions for type 27 Grinders
OILING INSTRUCTIONS: OIL AFTER EACH USE WITH 21 OORR32TTAEBALSESPPOOOONNSSOOFF AIRTOOL OIL THROUGH THE AIR INLET. RUN FOR ONE SECOND TO COAT ALL INTERNAL PARTS.
TYPE 27 GRINDERS – GENERAL INSTRUCTIONS
- ALWAYS DISCONNECT THE TOOL FROM AIR SOURCE WHEN CHANGING ACCESSORIES OR SERVICING THE TOOL
- USE SAFETY GLASSES, FULL FACE SHIELDS, HEARING PROTECTION AND GLOVES.
- STAY IN CONTROL OF THE GRINDER – DO NOT OVER REACH.
- ALWAYS REMOVE WRENCHES FROM THE TOOL AFTER SERVICING. WRENCHES LEFT ATTACHED MAY RESULT IN SERIOUS HARM TO THE OPERATOR.
- VIBRATION MAY BE HARMFUL TO YOUR ARMS AND HANDS. WEAR PROTECTION.
- INSPECT THE TOOL AND AIR SUPPLY ON A REGULAR BASIS.
- DO NOT REMOVE GUARDS OR SAFETY DEVICES. DO NOT MODIFY OR DEFEAT SAFETY DEVICES.
- DO NOT MAKE CONTACT WITH ELECTRICAL LINES.
- LEAVE TRIGGER OFF BEFORE CONNECTING THE TOOL TO THE AIR SUPPLY. AVOID ACCIDENTAL STARTS.
- WEAR THE PROPER CLOTHING. DO NOT WEAR JEWELRY, LOOSE CLOTHING, OR LONG HAIR AS IT CAN GET CAUGHT IN ROTATING PARTS. KEEP GLOVES AWAY FROM ROTATING PARTS.
- DO NOT WORK IN HAZARDOUS ATMOSPHERES WHERE SPARKS COULD IGNITE OR DETONATE FUMES.
- WATCH WHAT YOU ARE DOING. USE COMMON SENSE WHEN OPERATING PNEUMATIC TOOLS. DO NOT USE PNEUMATIC TOOLS WHEN TIRED OR UNDER THE INFLUENCE OF MEDICATION, ALCOHOL OR DRUGS. SERIOUS PERSONAL INJURY MAY RESULT FROM A MOMENTS INATTENTION.
- USE 90 PSI OF CLEAN AIR AT THE TOOL. USE 3/8″ HOSE OR LARGER WITH FITTINGS 9/32 MINIMUM I.D.
- ONLY USE CLEAN DRY COMPRESSED AIR. NEVER USE OXYGEN, CARBON DIOXIDE, COMBUSTIBLE GASES OR ANY OTHER BOTTLED GAS TO POWER THIS TOOL.
- SECURE YOUR WORK BEFORE STARTING – USE CLAMPS OR FIND A SUITABLE WAY TO MAINTAIN STABILITY.
- . STORE TOOLS IN A CLEAN DRY ENVIRONMENT.
- DO NOT USE DAMAGED TOOLS – MARK, AND RETURN FOR SERVICE.
- NEVER FORCE THE TOOL. LET THE TOOL DO THE WORK.
- STOP USE IMMEDIATELY IF TOOL IS MAKING AN UNUSUAL NOISE OR VIBRATION. HAVE TOOL CHECKED BY PROFESSIONAL TECHNICIAN.
- OPERATE AT RATED TOOL SPEED.
- ALWAYS USE A GRINDING WHEEL WITH A MAXIMUM SPEED RATING EQUAL TO OR GREATER THAN THE LABELED SPEED OF THE TOOL.
- USE ONLY REINFORCED TYPE 27 WHEELS 7″ OR 9″ IN DIAMETER .
- FOLLOW WHEEL MANUFACTURERS MOUNTING INSTRUCTIONS.
- DO NOT OPERATE WITHOUT THE WHEEL GUARD IN PLACE.
- WORK IN A WELL VENTILATED AREA AND USE APPROVED PERSONAL PROTECTIVE EQUIPMENT SUCH AS DUST MASKS, THAT ARE SPECIFICALLY DESIGNED TO FILTER OUT MICROSCOPIC PARTICLES. SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING AND OTHER CONSTRUCTION ACTIVITIES CONTAIN CHEMICALS KNOWN TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. SOME EXAMPLES OF THESE CHEMICALS ARE: CRYSTALLINE SILICA FROM BRICKS, CEMENT AND OTHER MASONARY
PRODUCTS, ARSENIC AND CHROMIUM FROM CHEMICALLY TREATED LUMBER AND LEAD FROM LEAD BASED PAINTS. YOUR RISK FROM EXPOSURE VARIES, DEPENDING ON HOW OFTEN YOU DO THIS TYPE OF WORK. TO REDUCE YOUR EXPOSURE TO THESE CHEMICALS WEAR PROTECTIVE MASKS AND CLOTHING. - KEEP CHILDREN, PETS AND BYSTANDERS AWAY WHILE OPERATING A PNEUMATIC TOOL. DISTRACTIONS CAN CAUSE YOU TO LOSE CONTROL. PROTECT OTHERS IN THE WORK AREA FROM DEBRIS SUCH AS METAL FILINGS AND SPARKS. PROVIDE BARRIERS OR SHIELDS AS NEEDED.
- LUBRICATION – THIS TOOL REQUIRES A HIGH SPEED GREASE TO LUBRICATE THE PINION GEARS. ADD GREASE THROUGH THE GREASE FITTINGS AS NEEDED, APPROXIMATELY EVERY 8 HOURS.
- THESE WARNINGS AND INSTRUCTIONS CAN NOT COVER ALL POSSIBLE CONDITIONS OR SITUATIONS. THE OPERATOR MUST UNDERSTAND THAT COMMON SENSE AND CAUTIONS ARE FACTORS WHICH CAN NOT BE BUILT INTO THE PRODUCT BUT MUST BE SUPPLIED BY THE OPERATOR.
Customer Service
505 N. Railroad Ave . 33435
P.O. Box 1117 33425
Boynton Beach, Florida
SEE OUR CATALOG
at
www.taylorpneumatic.com
PH. 561-732-1111
FAX 561-731-4412
Toll Free 800-805-8665
