T-9859R .9HP
1/4″ Angle Die Grinder
T-9859R 1-4 Inch Angle Die Grinder
OILING INSTRUCTIONS: OIL AFTER EACH USE WITH A FEW DROPS OF AIRTOOL OIL THROUGH THE AIR INLET. RUN FOR 1 SECOND TO COAT ALL INTERNAL PARTS
USE 90 PSI MAXIMUM

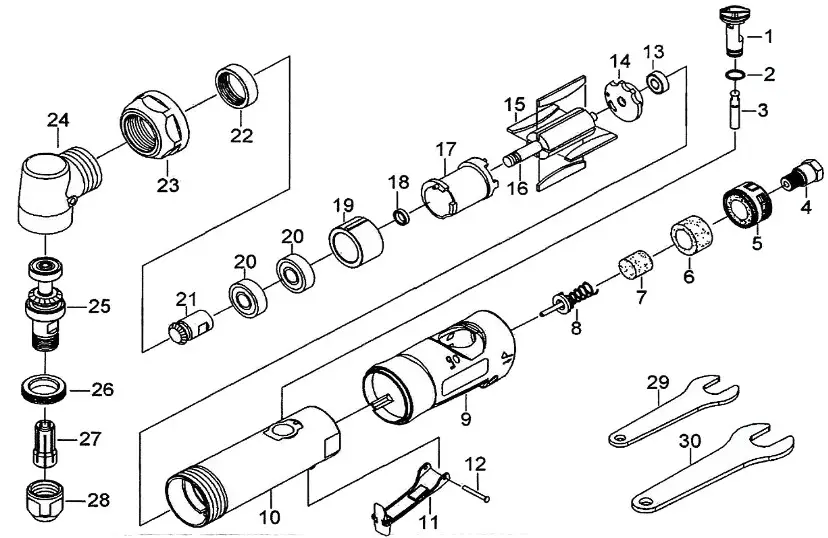

| Ref # | Part # | Description | Qty. |
| 1 | 9859R01 | Regulator Set | 1 |
| 2 | 9859R02 | Snap Ring | 1 |
| 3 | 9859R03 | Valve Stem Set | 1 |
| 4 | 9859R04 | Air Inlet | 1 |
| 5 | 9859R05 | Muffler Set | 1 |
| 6 | 9859R06 | Silencer | 1 |
| 7 | 9859R07 | Silencer | 1 |
| 8 | 9859R08 | Valve Set | 1 |
| 9 | 9859R09 | Protective Rubber | 1 |
| 10 | 9859R10 | Housing | 1 |
| 11 | 9859R11 | Safety Lever | 1 |
| 12 | 9859R12 | Spring Pin | 1 |
| 13 | 9859R13 | Bearing | 1 |
| 14 | 9859R14 | Rear Plate | 1 |
| 15 | 9859R15 | Rotor Blade (4) | 1 set |
| 16 | 9859R16 | Rotor | 1 |
| 17 | 9859R17 | Cylinder Set | 1 |
| 18 | 9859R18 | Bearing Spacer | 1 |
| 19 | 9859R19 | Front Plate | 1 |
| 20 | 9859R20 | Bearing | 2 |
| 21 | 9859R21 | Bevel Gear | 1 |
| 22 | 9859R22 | Nut | 1 |
| 23 | 9859R23 | Clamp Nut | 1 |
| 24 | 9859R24 | Angle Housing Set | 1 |
| 25 | 9859R25 | Shaft Set | 1 |
| 26 | 9859R26 | Clamp Nut | 1 |
| 27 | 9859R27 | Collet | 1 |
| 28 | 9859R28 | Collet Nut | 1 |
| 29 | 9859R29 | Spanner 14mm | 1 |
| 30 | 9859R30 | Spanner 19mm | 1 |
