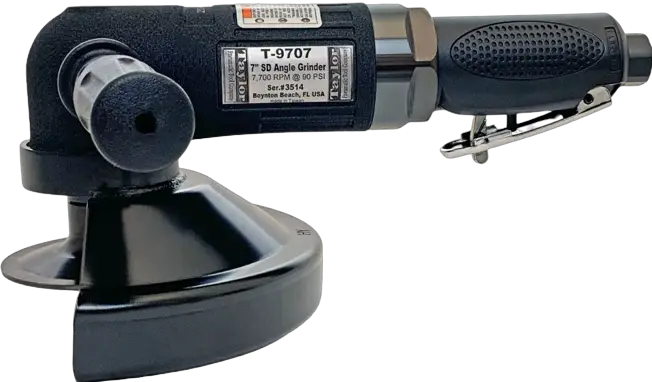

Taylor Pneumatic Tool Company T-9707 Heavy Duty Angle Grinder Instruction Manual
Instructions
OILING INSTRUCTIONS: OIL AFTER EACH USE WITH A FEW DROPS OF AIRTOOL OIL THROUGH THE AIR INLET. RUN FOR ONE SECOND TO COAT ALL INTERNAL PARTS
USE TYPE 27 WHEELS, Gloves, Eye Protection and Hearing Protection
See operating instructions for general instructions
USE 90 PSI MAXIMUM

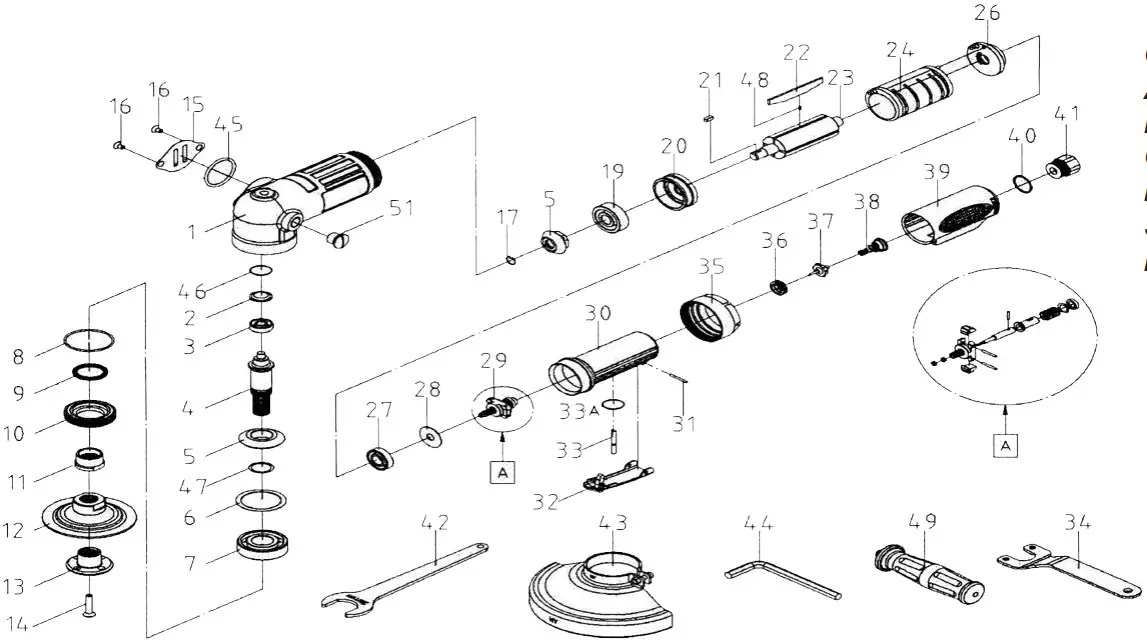

| Ref # | Part # | Description | Qty. |
| 1 | 970701 | Motor Housing | 1 |
| 2 | 970702 | Cover | 1 |
| 3 | 970703 | Bearing | 1 |
| 4 | 970704 | Spindle | 1 |
| 5 | 970705 | Gear Set | 1set |
| 6 | 970706 | Washer | 1 |
| 7 | 970707 | Bearing | 1 |
| 8 | 970708 | O-Ring | 1 |
| 9 | 970709 | Oil Seal | 1 |
| 10 | 970710 | Connecting Nut | 1 |
| 11 | 970711 | Screw | 1 |
| 12 | 970712 | Wheel Flange | 1 |
| 13 | 970713 | Nut | 1 |
| 14 | 970714 | Screw | 1 |
| 15 | 970715 | Exhaust Deflector | 1 |
| 16 | 970716 | Screw | 2 |
| 17 | 970717 | Retainer Ring | 1 |
| 19 | 970719 | Bearing | 1 |
| 20 | 970720 | Front End Plate | 1 |
| 21 | 970721 | Key | 1 |
| 22 | 970722 | Rotor Blade (4 per set) | 1set |
| 23 | 970723 | Rotor | 1 |
| 24 | 970724 | Cylinder | 1 |
| 26 | 970726 | Rear End Plate | 1 |
| 27 | 970727 | Bearing | 1 |
| Ref # | Part # | Description | Qty |
| 28 | 970728 | Washer | 1 |
| 29 | 970729 | Governor Assembly | 1 |
| 30 | 970730 | Handle | 1 |
| 31 | 970731 | Throttle Lever Pin | 1 |
| 32 | 970732 | Throttle Lever | 1 |
| 33 | 970733 | Valve Stem | 1 |
| 33A | 970733A | 0-Ring | 1 |
| 34 | 970734 | Wrench | 1 |
| 35 | 970735 | Connecting Nut | 1 |
| 36 | 970736 | Valve Seat | 1 |
| 37 | 970737 | Throttle Valve | 1 |
| 38 | 970738 | Spring | 1 |
| 39 | 970739 | Handle Grip | 1 |
| 40 | 970740 | Washer | 1 |
| 41 | 970741 | Air Inlet | 1 |
| 42 | 970742 | Wrench | 2 |
| 43 | 970743 | Guard | 1 |
| 44 | 970744 | Allen Wrench | 1 |
| 45 | 970745 | 0-Ring | 1 |
| 46 | 970746 | 0-Ring | 1 |
| 47 | 970747 | Washer | 1 |
| 48 | 970748 | Spring | 4 |
| 49 | 970749 | Handle | 1 |
| 51 | 970751 | Screw | 1 |
General instructions for type 27 Grinders
OILING INSTRUCTIONS:
OIL AFTER EACH USE WITH 2 OR 3 TABLESPOONS OF AIRTOOL OIL THROUGH THE AIR INLET. RUN FOR ONE SECOND TO COAT ALL INTERNAL PARTS.
TYPE 27 GRINDERS – GENERAL INSTRUCTIONS
- ALWAYS DISCONNECT THE TOOL FROM AIR SOURCE WHEN CHANGING ACCESSORIES OR SERVICING THE TOOL
- USE SAFETY GLASSES, FULL FACE SHIELDS, HEARING PROTECTION AND GLOVES.
- STAY IN CONTROL OF THE GRINDER – DO NOT OVER REACH.
- ALWAYS REMOVE WRENCHES FROM THE TOOL AFTER SERVICING. WRENCHES LEFT ATTACHED MAY RESULT IN SERIOUS HARM TO THE OPERATOR.
- VIBRATION MAY BE HARMFUL TO YOUR ARMS AND HANDS. WEAR PROTECTION.
- INSPECT THE TOOL AND AIR SUPPLY ON A REGULAR BASIS.
- DO NOT REMOVE GUARDS OR SAFETY DEVICES. DO NOT MODIFY OR DEFEAT SAFETY DEVICES.
- DO NOT MAKE CONTACT WITH ELECTRICAL LINES.
- LEAVE TRIGGER OFF BEFORE CONNECTING THE TOOL TO THE AIR SUPPLY. AVOID ACCIDENTAL STARTS.
- WEAR THE PROPER CLOTHING. DO NOT WEAR JEWELRY, LOOSE CLOTHING, OR LONG HAIR AS IT CAN GET CAUGHT IN ROTATING PARTS. KEEP GLOVES AWAY FROM ROTATING PARTS.
- DO NOT WORK IN HAZARDOUS ATMOSPHERES WHERE SPARKS COULD IGNITE OR DETONATE FUMES.
- WATCH WHAT YOU ARE DOING. USE COMMON SENSE WHEN OPERATING PNEUMATIC TOOLS. DO NOT USE PNEUMATIC TOOLS WHEN TIRED OR UNDER THE INFLUENCE OF MEDICATION, ALCOHOL OR DRUGS. SERIOUS PERSONAL INJURY MAY RESULT FROM A MOMENTS INATTENTION.
- USE 90 PSI OF CLEAN AIR AT THE TOOL. USE 3/8” HOSE OR LARGER WITH FITTINGS 9/32 MINIMUM I.D.
- ONLY USE CLEAN DRY COMPRESSED AIR. NEVER USE OXYGEN, CARBON DIOXIDE, COMBUSTIBLE GASES OR ANY OTHER BOTTLED GAS TO POWER THIS TOOL.
- SECURE YOUR WORK BEFORE STARTING – USE CLAMPS OR FIND A SUITABLE WAY TO MAINTAIN STABILITY.
- STORE TOOLS IN A CLEAN DRY ENVIRONMENT.
- DO NOT USE DAMAGED TOOLS – MARK, AND RETURN FOR SERVICE.
- NEVER FORCE THE TOOL. LET THE TOOL DO THE WORK.
- STOP USE IMMEDIATELY IF TOOL IS MAKING AN UNUSUAL NOISE OR VIBRATION. HAVE TOOL CHECKED BY PROFESSIONAL TECHNICIAN.
- OPERATE AT RATED TOOL SPEED.
- ALWAYS USE A GRINDING WHEEL WITH A MAXIMUM SPEED RATING EQUAL TO OR GREATER THAN THE LABELED SPEED OF THE TOOL.
- USE ONLY REINFORCED TYPE 27 WHEELS 7” OR 9” IN DIAMETER .
- FOLLOW WHEEL MANUFACTURERS MOUNTING INSTRUCTIONS.
- DO NOT OPERATE WITHOUT THE WHEEL GUARD IN PLACE.
- WORK IN A WELL VENTILATED AREA AND USE APPROVED PERSONAL PROTECTIVE EQUIPMENT SUCH AS DUST MASKS, THAT ARE SPECIFICALLY DESIGNED TO FILTER OUT MICROSCOPIC PARTICLES. SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING AND OTHER CONSTRUCTION ACTIVITIES CONTAIN CHEMICALS KNOWN TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. SOME EXAMPLES OF THESE CHEMICALS ARE: CRYSTALLINE SILICA FROM BRICKS, CEMENT AND OTHER MASONARYPRODUCTS, ARSENIC AND CHROMIUM FROM CHEMICALLY TREATED LUMBER AND LEAD FROM LEAD BASED PAINTS. YOUR RISK FROM EXPOSURE VARIES, DEPENDING ON HOW OFTEN YOU DO THIS TYPE OF WORK. TO REDUCE YOUR EXPOSURE TO THESE CHEMICALS WEAR PROTECTIVE MASKS AND CLOTHING.
- KEEP CHILDREN, PETS AND BYSTANDERS AWAYWHILE OPERATING A PNEUMATIC TOOL. DISTRACTIONS CAN CAUSE YOU TO LOSE CONTROL. PROTECT OTHERS IN THE WORK AREA FROM DEBRIS SUCH AS METAL FILINGS AND SPARKS. PROVIDE BARRIERS OR SHIELDS AS NEEDED.
- LUBRICATION – THIS TOOL REQUIRES A HIGH SPEED GREASE TO LUBRICATE THE PINION GEARS. ADD GREASE THROUGH THE GREASE FITTINGS AS NEEDED, APPROXIMATELY EVERY 8 HOURS.
- THESE WARNINGS AND INSTRUCTIONS CAN NOT COVER ALL POSSIBLE CONDITIONS OR SITUATIONS. THE OPERATOR MUST UNDERSTAND THAT COMMON SENSE AND CAUTIONS ARE FACTORS WHICH CAN NOT BE BUILT INTO THE PRODUCT BUT MUST BE SUPPLIED BY THE OPERATOR.
