Skil 9296-01 Angle Grinder Instruction Manual

Skil 9296-01 Angle Grinder Instruction Manual

SKIL-logo

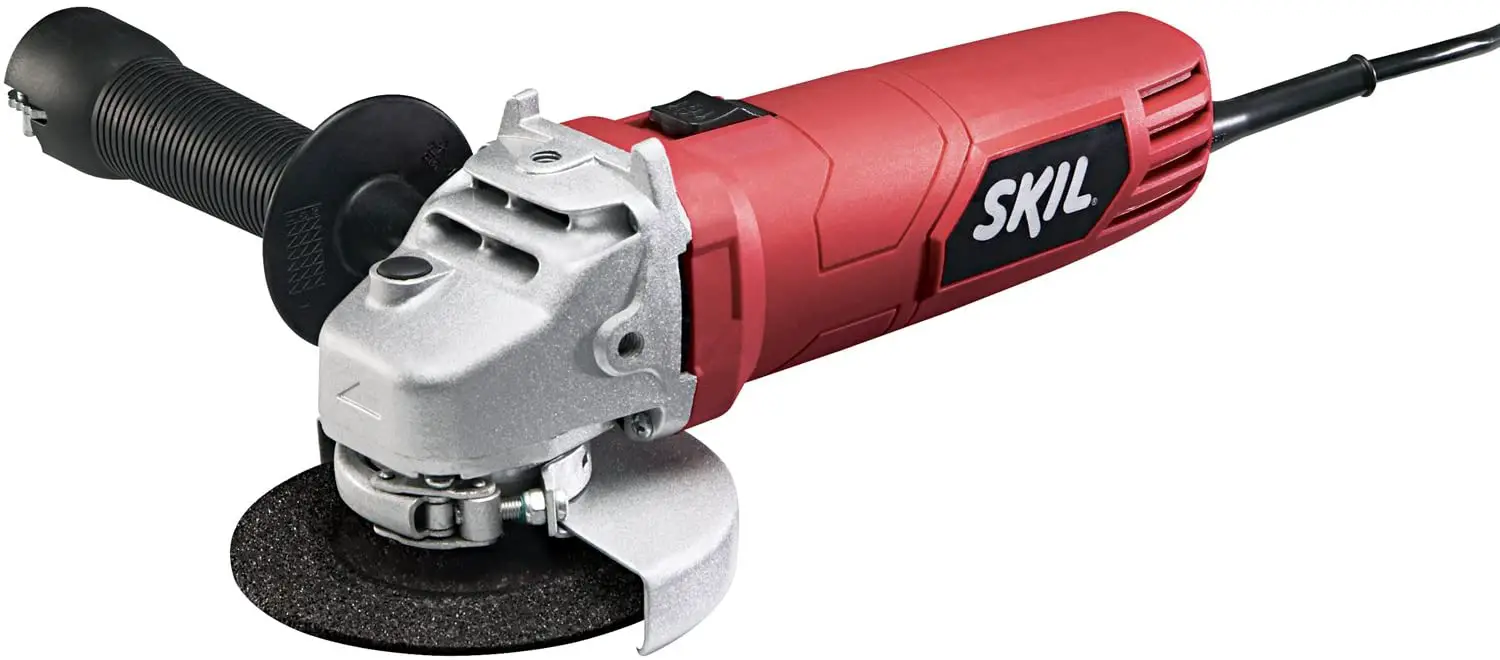

SKIL 9296-01 Angle Grinder

SKIL-9296-01-Angle-Grinder-

OVERVIEW

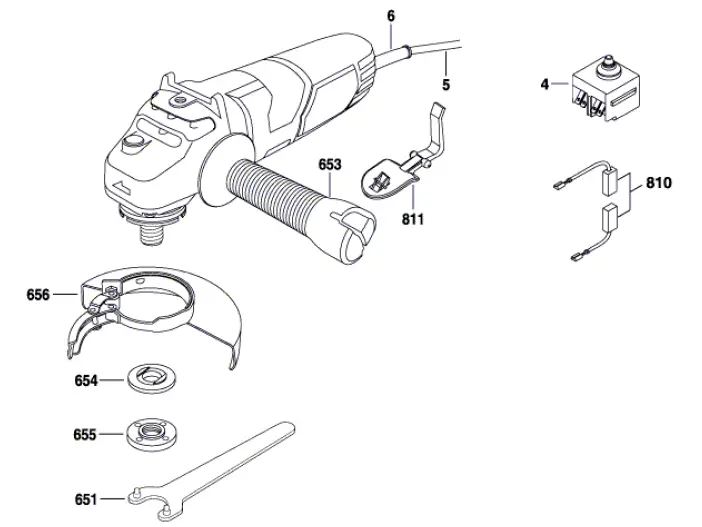

SKIL-9296-01-Angle-Grinder--fig-1

No.Product Model#Part NumberDescriptionQty
49296-014870696023Switch1
59296-014810237018Power supply cord1
69296-013130253092Cord guard1
6519296-015680258010Pin-type face-wrench1
6539296-013130253093Auxiliary handle1
6549296-013580000012Flange1
6559296-013580000013Flange1
6569296-013130253094Safety guard1
8109296-014960384010Carbon-brush set2
8119296-013130253095Trigger1

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
