TAYLOR T-9949R 4-Inch Angle Industrial Die Grinder
OILING INSTRUCTIONS
OIL AFTER EACH USE WITH A FEW DROPS OF AIR TOOL OIL THROUGH THE AIR INLET. RUN FOR 1 SECOND TO COAT ALL INTERNAL PARTS.
USE 90 PSI MAXIMUM

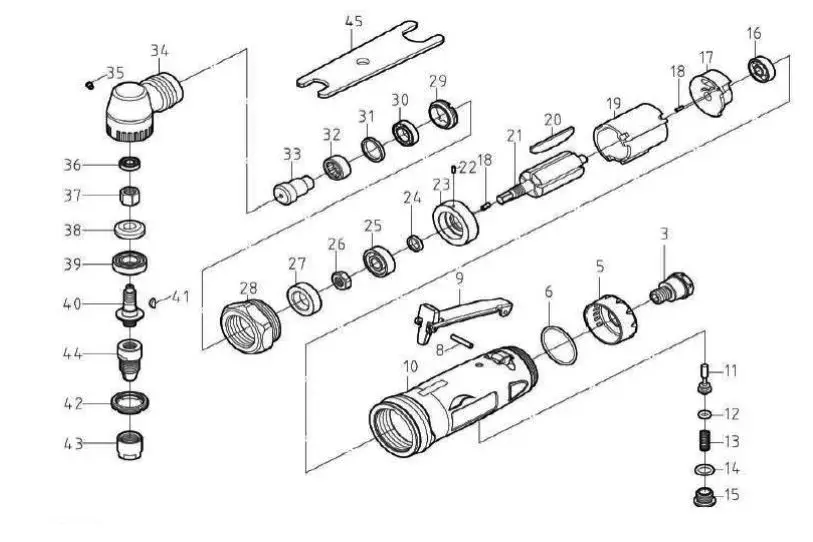

| REF # | PART # | DESCRIPTION | QTY | REF # | PART # | DESCRIPTION | QTY |
| 3 | 9947R03 | AIR INLET | 1 | 27 | 9949R27 | WASHER | 1 |
| 5 | 9947R05 | EXHAUST DEFLECTOR | 1 | 28 | 9949R28 | LOCK NUT | 1 |
| 6 | 9947R06 | O-RING | 1 | 29 | 9949R29 | CYLINDER SET SCREW | 1 |
| 8 | 9947R08 | SPRING PIN | 1 | 30 | 9949R30 | BALL BEARING | 1 |
| 9 | 9947R09 | LEVER | 1 | 31 | 9949R31 | WASHER | 1 |
| 10 | 9947R10 | HOUSING | 1 | 32 | 9949R32 | NEEDLE BEARING | 1 |
| 11 | 9947R11 | PIN VALVE ROD | 1 | 33 | 9949R33 | DRIVING GEAR SPINDLE | 1 |
| 12 | 9947R12 | O-RING | 1 | 34 | 9949R34 | ANGLE HOUSING | 1 |
| 13 | 9947R13 | SPRING | 1 | 35 | 9949R35 | OIL DROP | 1 |
| 14 | 9947R14 | O-RING | 1 | 36 | 9949R36 | BALL BEARING | 1 |
| 15 | 9947R15 | SCREW | 1 | 37 | 9949R37 | DOCK NUT | 1 |
| 16 | 9947R16 | BALL BEARING | 1 | 38 | 9949R38 | BEVEL GEAR | 1 |
| 17 | 9947R17 | REAR PLATE | 1 | 39 | 9949R39 | BALL BEARING | 1 |
| 18 | 9947R18 | SPRING PIN | 2 | 40 | 9949R40 | ANVIL | 1 |
| 19 | 9947R19 | CYLINDER | 1 | 41 | 9949R41 | KEY | 1 |
| 20 | 9947R20 | BLADE (5) | 1set | 42 | 9949R42 | CYLINDER SET SCREW | 1 |
| 21 | 9949R21 | ROTOR | 1 | 43 | 9949R43 | LOCK NUT | 1 |
| 22 | 9949R22 | PIN | 1 | 44 | 9949R44 | COLLET FOUNDATION | 1 |
| 23 | 9949R23 | FRONT PLATE | 1 | 45 | 9949R45 | WRENCH | 1 |
| 24 | 9949R24 | WASHER | 1 | ||||
| 25 | 9949R25 | BALL BEARING | 1 | ||||
| 26 | 9949R26 | LOCK NUT | 1 | ||||
