Taylor Pneumatic Tool Company T-7799l Super Duty Hi Torque Impact Wrench Instruction Manual

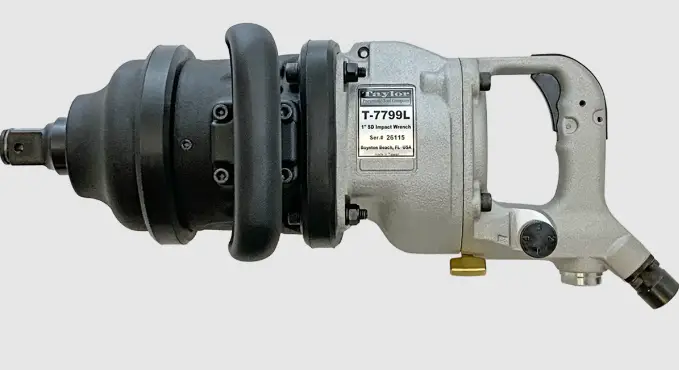

T-7799L Super Duty Hi Torque Impact Wrench

Product Information

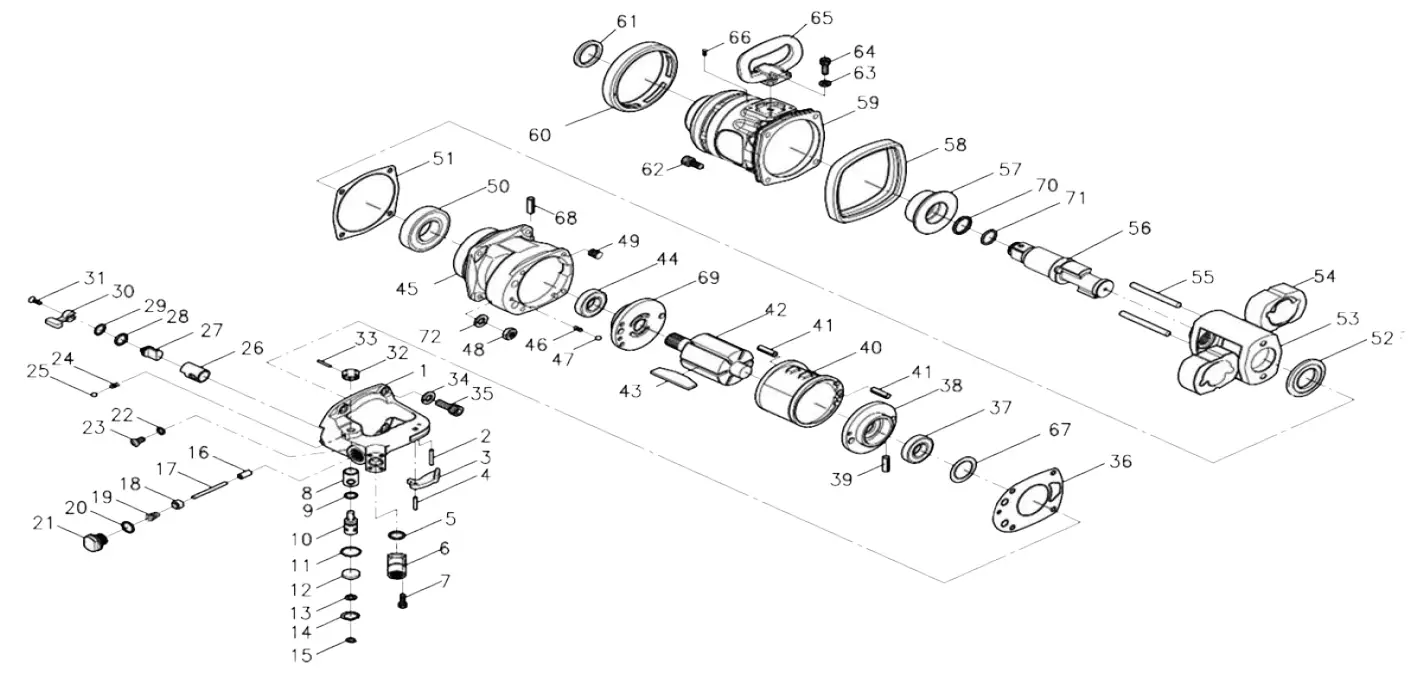

The T-7799L,L-6 1 Super Duty Hi Torque Impact Wrench is a powerful air-powered tool that can be used for heavy-duty applications. It is equipped with multiple internal parts including
a pin trigger, regulator valve, throttle valve, reverse valve, and anvil. The wrench has a maximum operating pressure of 90 PSI and comes with 71 different parts for maintenance and repair.

Product Usage Instructions

1. Before using the wrench, oil it with a few drops of air tool oil through the air inlet. Run it for one second to coat all internal parts.
2. Connect the wrench to an air compressor with a maximum pressure of 90 PSI.
3. Select the appropriate socket size for the job and attach it to the anvil.
4. Hold the wrench securely with both hands and pull the trigger to start it.
5. Position the socket over the nut or bolt to be tightened or loosened.
6. Apply pressure to the wrench and allow it to do the work.
7. Release the trigger once the nut or bolt is tightened or loosened to the desired level.
8. After use, disconnect the wrench from the air compressor and remove the socket from the anvil.
9. Clean and store the wrench in a dry place until its next use.

T-7799L,L-6 1” Super Duty Hi Torque Impact Wrench

OILING INSTRUCTIONS:
OIL AFTER EACH USE WITH A FEW DROPS OF AIR TOOL OIL THROUGH THE AIR INLET. RUN FOR ONE SECOND TO COAT
ALL INTERNAL PARTS

USE 90 PSI MAXIMUM

General Instructions Impact Wrenches

PLEASE READ AND FOLLOW ALL WARNINGS
An impact wrench is an amazing time saving machine. If its strengths and weaknesses are taken into consideration it can be used for years of trouble free service. Always use 90 PSI Maximum AT THE TOOL. Using higher air pressures can prematurely wear parts and strain parts not designed for the higher pressure. In most instances, within the first five seconds of use, an impact wrench develops its maximum torque. If a fastener is still not moving try penetrating oil or a larger impact wrench. Always use impact sockets. Always oil your ail tools before storing. Put a few spoonful’s of airtool oil in the air inlet and run the tool for a second or two to coat internal parts

OILING INSTRUCTIONS:
OIL AFTER EACH USE WITH 2 OR 3 TABLESPOONS OF AIRTOOL OIL THROUGH THE AIR INLET RUN FOR ONE SECOND TO COAT ALL INTERNAL PARTS. 1/4″ TO 1/2″ IMPACTS USAULY USE 30 WT NON DETERGENT OIL IN THE HAMMER CASE. WRENCHES 34″ TO 1-1/2″ USUALLY USE GREASE IN THE HAMMER CASE.

IMPACT WRENCHES – GENERAL INSTRUCTIONS

1. ALWAYS DISCONNECT THE TOOL FROM AIR SOURCE WHEN CHANGING ACCESSORIES OR SERVICING THE TOOL.
2. CHECK ALL FASTENERS DAILY BOLTS MUST BE KEPT TIGHT TO MAINTAIN SAFETYAND TOP TOOL OPERATING VPERFOR- MANCE.
3. STAY IN CONTROL OF THE IMPACT WRENCH
4. ALWAY USE IMPACT SOCKETS – STANDARD SOCKETS MAY BE BRITTLE AND BREAK CAUSING DAMAGE TO THE OPERATOR OR THE TOOL.
5. VIBRATION MAY BE HARMFUL TO YOUR ARMS AND HANDS. WEAR PROTECTION.
6. INSPECT THE TOOL AND AIR SUPPLY AND AIR HOSE ON A REGULAR BASIS.
7. DO NOT MAKE CONTACT WITH ELECTRICAL LINES.
8. LEAVE TRIGGER OFF BEFORE CONNECTING THE TOOL TQ THEAR SUPPLY. AVOID ACCIDENTAL STARTS.
9. WEAR THE PROPER CLOTHING. DO NOT WEAR JEWELRY, LOOSE CLOTHING, OR LONG HAIR AS IT CAN GET CAUGHT IN RO- TATING PARTS. KEEP GLOVES AWAY FROM ROTATING PARTS.
10. DO NOT WORK IN HAZARDOUS ATMOSPHERES WHERE SPARKS COULD IGNITE OR DETONATE FUMES.
11. WATCH WHAT YOU ARE DOING. USE COMMON SENSE WHEN OPERATING PNEUMATIC TOOLS DO NOT USE PNEUMATIC TOOLS WHEN TIRED OR UNDER THE INFLUENCE OF MEDICATION, ALCOHOL OR DRUGS. SERIOUS PERSONAL INJURY MAY RE- SULT FROM A MOMENTS INATTENTION.
12. USE 90 PSI AT THE TOOL. USE 3/8″, 1/2″ or 3/4″ HOSE OR LARGER WITH FITTINGS 9/32 MINIMUM LD. AS SPECIFIED
13. DO NOT WORK IN HAZARDOUS ATMOSPHERES WHERE SPARKS COULD IGNITE OR DETONATE FUMES.
14. WATCH WHAT YOU ARE DOING. USE COMMON SENSE WHEN OPERATING PNEUMATIC TOOLS. DO NOT USE PNEUMATIC TOOLS WHEN TIRED OR UNDER THE INFLUENCE OF MEDICATION, ALCOHOL OR DRUGS SERIOUS PERSONAL INJURY MAY RE- SULT FROM A MOMENTS INATTENTION.
15. USE 90 PSI AT THE TOOL. USE 3/8″, 1/2″ or 3/4″ HOSE OR LARGER WITH FITTINGS 9/32 MINIMUM I.D. AS SPECIFIED
16. ONLY USE CLEAN DRY COMPRESSED AIR. NEVER USE OXYGEN, CARBON DIOXIDE, COMBUSTIBLE GASES OR ANY OTHER BOTTLED GAS TO POWER THIS TOOL.
17. STORE TOOLS IN A CLEAN DRY ENVIRONMENT
18. DO NOT USE DAMAGED TOOLS – MARK, AND RETURN DAMAGED TOOLS FOR SERVICE.
19. NEVER FORCE THE TOOL. LET THE TOOL DO THE WORK.
20. STOP USE IMMEDIATELY IF TOOL IS MAKING AN UNUSUAL NOISE OR VIBRATION. HAVE TOOL CHECKED BY PROFESSIONAL TECHNICIAN.
21. KEEP CHILDREN, PETS AND BYSTANDERS AWAY WHILE OPERATING A PNEUMATIC TOOL. DISTRACTIONS CAN CAUSE YOU TO LOSE CONTROL.
22. THESE WARNINGS AND INSTRUCTIONS CAN NOT COVER ALL POSSIBLE CONDITIONS OR SITUATIONS. THE OPERATOR MUST UNDERSTAND THAT COMMON SENSE AND CAUTIONS ARE FACTORS WHICH CAN NOT BE BUILT INTO THE PRODUCT BUT MUST BE SUPPLIED BY THE OPERATOR.

ADDITIONAL INFORMATION IS AVAILABLE FROM:
AMERICAN NATIONAL STANDARDS INSTITUTE
11 WEST 42ND ST.
NEW YORK, NY 10036

REQUEST A COPY OF ANSI 8186.1 SAFETY CODE FOR PORTABLE AIR TOOLS.

LIMITED LIFETIME WARRANTY
products of Taylor Pneumatic are warranted to be free from defects in material and workmanship for the life of the tool. This warranty applies to the original purchaser only. This warranty does not cover tools that have been abused, misused, modified, not properly lubricated or to normal wear and tear Taylor Pneumatic Will at its option repair or replace the defective product free of charge except for shipping. Taylor Pneumatics sole liability and your exclusive remedy under this warranty is limited to the repair or replacement of the defective product. There are no other warranties expressed or implied and Taylor Pneumatic shall not be liable for incidental, consequential, or special damages, expenses or costs excepts described above. WARRANTY VOID IF TOOL IS DISASSEMBLED. Returm tools to Taylor Pneumatic. Be sure to include your name, address, proof of purchase and description of the suspected defect.

This warranty applies to the basic tool. It does not apply to wear and tear on accessories or consumables such as drill chucks, backing pads for sanders, punch and dies for nibblers, spray gun cups or accessories from a kit.

Address: 505 N. Railroad Ave. 33435 P.O. Box 1117 33424 Boynton Beach, Florida
FOR WARRANTY INFORMATION & WARRANTY REGISTRATION VISIT: www.taylorpneumatic.com
1022TPTC /all rights reserved /COPYRIGHT 2022 / final
Ph. (561) 732-1111
Fax (561) 731-4412
Toll Free 800-805-8665
