T-6799L & T-6799L-6
1” SUPER DUTY IMPACT WRENCH
OILING INSTRUCTIONS:
OIL AFTER EACH USE WITH A FEW DROPS OF AIR TOOL OIL THROUGH THE AIR INLET. RUN FOR 1 SECOND TO COAT ALL INTERNAL PARTS.
USE 90 PSI MAXIMUM

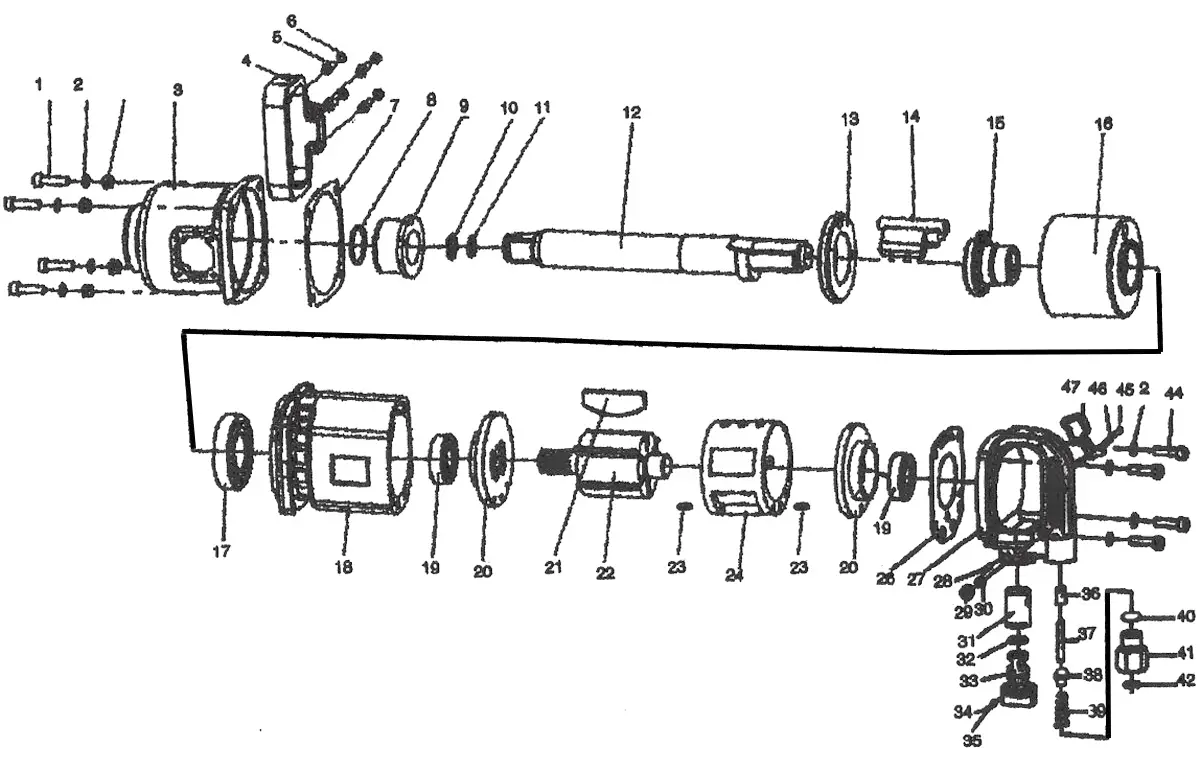

| REF # | PART # | DESCRIPTION | QTY | REF # | PART # | DESCRIPTION | QTY |
| 1 | 6799L01 | CAP SCREW | 4 | 24 | 6799L24 | CYLINDER | 1 |
| 2 | 6799L02 | SPRING WASHER | 8 | 25 | 6799L25 | PIN | 1 |
| 3 | 6799L03 | HAMMER CASE | 1 | 26 | 6799L26 | REAR COVER GASKET | 1 |
| 4 | 6799L04 | D HANDLE | 1 | 27 | 6799L27A | HANDLE ASSEMBLY | 1 |
| 5 | 6799L05 | HEX SCREW | 4 | 28 | 6799L28 | PIN | 1 |
| 6 | 6799L06 | SPRING WASHER | 4 | 29 | 6799L29 | HEX SCREW | 1 |
| 7 | 6799L07 | HAMMER CASE GASKET | 1 | 30 | 6799L30 | O-RING | 1 |
| 8 | 6799L08 | O-RING | 1 | 31 | 6799L31 | VALVE BUSHING | 1 |
| 9 | 6799L09 | BUSHING | 1 | 32 | 6799L32 | O-RING | 1 |
| 10 | 6799L10 | SOCKET RETAINING RING | 1 | 33 | 6799L33 | FORWARD AND REVERSE VALVE | 1 |
| 11 | 6799L11 | O-RING | 1 | 34 | 6799L34 | BALL | 1 |
| 12 | 6799L12 | ANVIL LONG | 1 | 35 | 6799L35 | SPRING | 1 |
| 12A | 6799L12A | ANVIL SHORT (NOT SHOWN) | 1 | 36 | 6799L36 | THROTTLE BUSHING | 1 |
| 13 | 6799L13 | HAMMER BUSHING | 1 | 37 | 6799L37 | THROTTLE VALVE PIN | 1 |
| 14 | 6799L14 | HAMMER | 1 | 38 | 6799L38 | THROTTLE VALVE | 1 |
| 15 | 6799L15 | CAM | 1 | 39 | 6799L39 | INLET SPRING | 1 |
| 16 | 6799L16 | HAMMER CAGE | 1 | 40 | 6799L40 | O-RING | 1 |
| 17 | 6799L17 | BEARING | 1 | 41 | 6799L41 | AIR INLET | 1 |
| 18 | 6799L18 | HOUSING | 1 | 42 | 6799L42 | AIR INLET SCREEN | 1 |
| 19 | 6799L19 | BEARING | 2 | 44 | 6799L44 | HEX SCREW | 4 |
| 20 | 6799L20 | END PLATE | 2 | 45 | 6799L45 | PIN | 1 |
| 21 | 6799L21 | ROTOR BLADES (SET OF 6) | 1set | 46 | 6799L46 | PIN | 1 |
| 22 | 6799L22 | ROTOR | 1 | 47 | 6799L47 | TRIGGER | 1 |
| 23 | 6799L23 | PIN | 2 |
