T-7796LAN 1” Super Duty
T-7796LAN-6 Impact Wrench
OILING INSTRUCTIONS: OIL AFTER EACH USE WITH A FEW DROPS OF AIR TOOL OIL THROUGH THE AIR INLET. RUN FOR ONE SECOND TO COAT ALL INTERNAL PARTS.
USE 90 PSI MAXIMUM

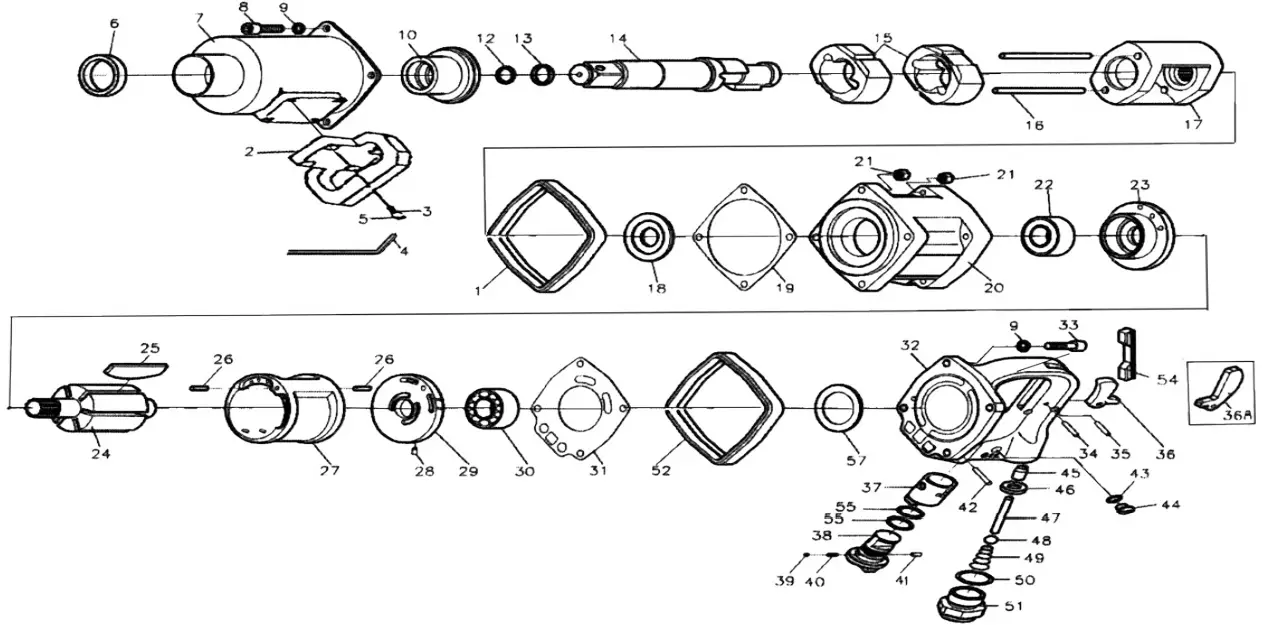

| Ref # | Part # | Description | Qty. |
| 1 | 7796LA01A | Rubber Protector | |
| 2 | 7796LA02A | Handle | 1 |
| 3 | 7796LA03A | Washer | 1 |
| 4 | 7796LA04A | Hex Wrench | 4 |
| 5 | 7796LA05A | Cap Screw | 1 |
| 6 | 7796LA06 | Oil Seal | 4 |
| 7 | 7796LA07A | Hammer Case | 1 |
| 8 | 7796LA08 | Cap Screw | 1 |
| 9 | 7796LA09 | Washer | 4 |
| 10 | 7796LA10 | Bushing | 8 |
| 12 | 7796LA12 | O-Ring | 1 |
| 13 | 7796LA13 | Anvil Collar | 1 |
| 14 | 7796AN14 | 2” Anvil | 1 |
| 14L | 7796AN14L | 8” Anvil | 1 |
| 15 | 7796AN15 | Hammer | 1 |
| 16 | 7796LA16 | Hammer Pin | 2 |
| 17 | 7796AN17 | Hammer Cage | 2 |
| 18 | 7796LA18 | Washer | 1 |
| 19 | 7796LA19C | Gasket | 1 |
| 20 | 7796LA20 | Motor Housing | 1 |
| 21 | 7796LA21 | Lock Nut | 1 |
| 22 | 7796LA22C | Bearing | 8 |
| 23 | 7796LA23 | Front End Plate | 1 |
| 24 | 7796LA24 | Rotor | 1 |
| 25 | 7796LA25 | Rotor Blades (set of 6) | 1 |
| 26 | 7796LA26 | Spring Pin | 1 set |
| 27 | 7796LA27 | Cylinder | 2 |
| 28 | 7796LA28 | Spring Pin | 1 |
| 29 | 7796LA29 | Rear End Plate | 1 |
| 30 | 7796LA30B | Bearing | 1 |
| 31 | 7796LA31B | Rear Gasket | 1 |
| 32 | 7796LA32 | Handle and Bushing | 1 |
| 33 | 7796LA33 | Cap Screw | 4 |
| 34 | 7796LA34 | Spring Pin | 1 |
| 35 | 7796LA35 | Pin | 1 |
| 36 | 7796LA36B | Trigger (inside) | 1 |
| 36A | 7796LA36A | Trigger (outside – Optional) | |
| 37 | 7796LA37 | Reverse Valve Bushing (w/#32) | 1 |
| 38 | 7796LA38 | Regulator | 1 |
| 39 | 7796LA39 | Steel Ball | 1 |
| 40 | 7796LA40 | Spring | 1 |
| 41 | 7796LA41 | Spring Pin | 1 |
| 42 | 7796LA42 | Spring Pin | 1 |
| 43 | 7796LA43 | O-Ring | 1 |
| 44 | 7796LA44 | Screw | 1 |
| 45 | 7796LA45 | Valve Bushing | 1 |
| 46 | 7796LA46 | Bushing | 1 |
| 47 | 7796LA47 | Valve Stem | 1 |
| 48 | 7796LA48 | Steel Ball | 1 |
| 49 | 7796LA49 | Spring | 1 |
| 50 | 7796LA50 | O-Ring | 1 |
| 51 | 7796LA51 | Air Inlet (1/2” NPT) | 1 |
| 52 | 7796LA52 | Housing Band | 1 |
| 54 | 7796LA54 | Rubber Protector | 1 |
| 55 | 7796LA55 | O-Ring | 2 |
| 57 | 7796LAN57 | Gasket | 1 |
General Instructions Impact Wrenches
PLEASE READ AND FOLLOW ALL WARNINGS An impact wrench is an amazing time-saving machine. If its strengths and weaknesses are taken into consideration it can be used for years of trouble-free service. Always use 90 PSI Maximum AT THE TOOL. Using higher air pressure can prematurely wear parts and strain parts not designed for the higher pressure. In most instances, within the first five seconds of use, an impact wrench develops its maximum torque. If a fastener is still not moving try penetrating oil or a larger impact wrench. Always use impact sockets. Always oil your air tools before storing them. Put a few spoonfuls of air tool oil in the air inlet and run the tool for a second or two to coat internal parts.
OILING INSTRUCTIONS:
OIL AFTER EACH USE WITH 2 OR 3 TABLESPOONS OF AIR TOOL OIL THROUGH THE AIR INLET. RUN FOR ONE SECOND TO COAT ALL INTERNAL PARTS.1/4″ TO 1/2″ IMPACTS USUALLY USE 30 WE NON DETERGENT OIL IN THE HAMMER CASE. WRENCHES 3/4″ TO 1-1/2″ USUALLY USE GREASE IN THE HAMMER CASE
IMPACT WRENCHES – GENERAL INSTRUCTIONS
- ALWAYS DISCONNECT THE TOOL FROM AIR SOURCE WHEN CHANGING ACCESSORIES OR SERVICING THE TOOL.
- CHECK ALL FASTENERS DAILY. BOLTS MUST BE KEPT TIGHT TO MAINTAIN SAFETY AND TOP TOOL OPERATING VPERFOR-MANCE.
- STAY IN CONTROL OF THE IMPACT WRENCH
- ALWAYS USE IMPACT SOCKETS – STANDARD SOCKETS MAY BE BRITTLE AND BREAK CAUSING DAMAGE TO THE OPERATOR OR THE TOOL.
- VIBRATION MAY BE HARMFUL TO YOUR ARMS AND HANDS. WEAR PROTECTION.
- INSPECT THE TOOL AND AIR SUPPLY AND AIR HOSE ON A REGULAR BASIS.
- DO NOT MAKE CONTACT WITH ELECTRICAL LINES.
- LEAVE THE TRIGGER OFF BEFORE CONNECTING THE TOOL TO THE AIR SUPPLY. AVOID ACCIDENTAL STARTS.
- WEAR THE PROPER CLOTHING. DO NOT WEAR JEWELRY. LOOSE CLOTHING, OR LONG HAIR AS IT CAN GET CAUGHT IN ROTATING PARTS. KEEP GLOVES AWAY FROM ROTATING PARTS.
- DO NOT WORK IN HAZARDOUS ATMOSPHERES WHERE SPARKS COULD IGNITE OR DETONATE FUMES.
- WATCH WHAT YOU ARE DOING. USE COMMON SENSE WHEN OPERATING PNEUMATIC TOOLS. DO NOT USE PNEUMATIC TOOLS WHEN TIRED OR UNDER THE INFLUENCE OF MEDICATION, ALCOHOL, OR DRUGS. SERIOUS PERSONAL INJURY MAY RESULT FROM A MOMENT OF INATTENTION.
- USE 90 PSI AT THE TOOL. USE 3/8″, 1/2″ or 3/4″ HOSE OR LARGER WITH FITTINGS 9/32 MINIMUM I.D. AS SPECIFIED
- DO NOT WORK IN HAZARDOUS ATMOSPHERES WHERE SPARKS COULD IGNITE OR DETONATE FUMES.
- WATCH WHAT YOU ARE DOING. USE COMMON SENSE WHEN OPERATING PNEUMATIC TOOLS. DO NOT USE PNEUMATIC TOOLS WHEN TIRED OR UNDER THE INFLUENCE OF MEDICATION. ALCOHOL OR DRUGS. SERIOUS PERSONAL INJURY MAY RE-SULT FROM A MOMENT OF INATTENTION. IS. USE 90 PSI AT THE TOOL.
- USE 3/8″, 1/2″ or 3/4″ HOSE OR LARGER WITH FITTINGS 9/32 MINIMUM I.D. AS SPECIFIED
- ONLY USE CLEAN DRY COMPRESSED AIR. NEVER USE OXYGEN, CARBON DIOXIDE, COMBUSTIBLE GASES, OR ANY OTHER BOTTLED GAS TO POWER THIS TOOL.
- STORE TOOLS IN A CLEAN DRY ENVIRONMENT
- DO NOT USE DAMAGED TOOLS – MARK, AND RETURN DAMAGED TOOLS FOR SERVICE.
- NEVER FORCE THE TOOL. LET THE TOOL DO THE WORK.
- STOP USE IMMEDIATELY IF TOOL IS MAKING AN UNUSUAL NOISE OR VIBRATION. HAVE THE TOOL CHECKED BY A PROFESSIONAL TECHNICIAN?
- KEEP CHILDREN, PETS, AND BYSTANDERS AWAY WHILE OPERATING A PNEUMATIC TOOL. DISTRACTIONS CAN CAUSE YOU TO LOSE CONTROL..
- THESE WARNINGS AND INSTRUCTIONS CAN NOT COVER ALL POSSIBLE CONDITIONS OR SITUATIONS. THE OPERATOR MUST UNDERSTAND THAT COMMON SENSE AND CAUTION ARE FACTORS THAT CAN NOT BE BUILT INTO THE PRODUCT BUT MUST BE SUPPLIED BY THE OPERATOR.
ADDITIONAL INFORMATION IS AVAILABLE FROM: AMERICAN NATIONAL STANDARDS INSTITUTE 11 WEST 42ND ST. NEW YORK, NY 10036
REQUEST A COPY OF ANSI 8186.1 SAFETY CODE FOR PORTABLE AIR TOOLS.
LIMITED LIFETIME WARRANTY
Most products of Taylor Pneumatic are warranted to be free from defects in material and workmanship for the life of the tool. This warranty applies to the original purchaser only. This warranty does not cover tools that have been abused, misused, modified, not properly lubricated, or to normal wear and tear. Taylor Pneumatic will at its option repair or replace the defective product free of charge except for shipping. Taylor Pneumatic’s sole liability and your exclusive remedy under this warranty are limited to the repair or replacement of the defective product. There are no other warranties expressed or implied and Taylor Pneumatic shall not be liable for incidental, consequential, or special damages, expenses or costs except as described above.
WARRANTY VOID IF TOOL IS DISASSEMBLED. Return tools to Taylor Pneumatic. Be sure to include your name, address, proof of purchase, and description of the suspected defect.
This warranty applies to the basic tool. It does not apply to wear and tear on accessories or consumables such as drill chucks, backing pads for sanders, punch and dies for nib-blers, spray gun cups or accessories from a kit.
505 N. Railroad Ave. 33435
P.O. Box 1117 33425
Boynton Beach, Florida
FOR WARRANTY INFORMATION
AND REGISTRATION VISIT
www.taylorpneumatic.com
06/2022 tall rights reserved /COPYRIGHT 2022 / final
Ph. (561) 732-1111
Fax (561) 731-4412
Toll Free 800-805-8665
TaylorPneumatic.com – Taylor Pneumatic Tool Company
