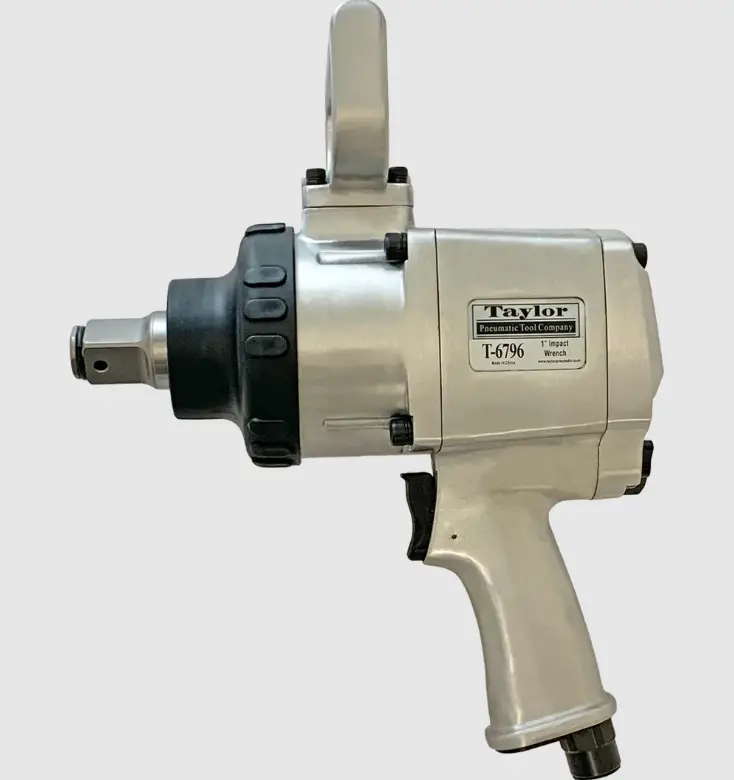

Taylor T-6796-6 1 Inch Super Duty Impact Wrench
OILING INSTRUCTIONS:
OIL AFTER EACH USE WITH A FEW DROPS OF AIRTOOL OIL THROUGH THE AIR INLET. RUN FOR 1 SECOND TO COAT ALL INTERNAL PARTS.
USE 90 PSI MAXIMUM
| REF # | PART # | DESCRIPTION | QTY | REF # | PART # | DESCRIPTION | QTY | |
| 1 | 679601 | O-RING | 1 | 24 | 679624 | REAR END PLATE | 1 | |
| 2 | 679602 | HAMMER CASE | 1 | 25 | 679625 | END PLATE PIN | 1 | |
| 3 | 679603 | SPRING WASHER | 4 | 26 | 679626 | REAR BEARING | 1 | |
| 4 | 679604 | SCREW | 4 | 27 | 679627 | BACK COVER GASKET | 1 | |
| 5 | 679605 | HANDLE | 1 | 28 | 679628 | BACK COVER | 1 | |
| 6 | 679606 | BUSHING | 1 | 29 | 679629 | SPRING WASHER | 1 | |
| 7 | 679607 | RETAINER RING | 1 | 30 | 679630 | SCREW | 1 | |
| 8 | 679608 | O-RING | 1 | 31 | 679631 | REVERSE VALVE BUSHING | 1 | |
| 9 | 679609 | ANVIL (SHORT) | 1 | 32 | 679632 | REVERSE VALVE | 1 | |
| 9A | 679609A | ANVIL (LONG | 1 | 33 | 679633 | SCREW | 1 | |
| 10 | 679610 | HAMMER CAGE LINING | 1 | 34 | 679634 | O-RING | 1 | |
| 11 | 679611 | HAMMER | 1 | 35 | 679635 | STEEL BALL | 1 | |
| 12 | 679612 | CAM | 1 | 36 | 679636 | SPRING | 1 | |
| 13 | 679613 | HAMMER CAGE | 1 | 37 | 679637 | REVERSE KNOB | 1 | |
| 13A | 679613A | WASHER | 1 | 38 | 679638 | TRIGGER | 1 | |
| 14 | 679614 | SCREW | 4 | 39 | 679639 | TRIGGER PIN | 1 | |
| 15 | 679615 | SPRING WASHER | 8 | 40 | 679640 | BUSHING | 1 | |
| 16 | 679616 | HAMMER CASE GASKET | 1 | 41 | 679641 | SPRING PIN | 1 | |
| 17 | 679617 | HOUSING | 1 | 42 | 679642 | THROTTLE VALVE SEAT | 1 | |
| 18 | 679618 | FRONT BEARING | 1 | 43 | 679643 | VALVE STEM | 1 | |
| 19 | 679619 | FRONT END PLATE | 1 | 44 | 679644 | SPRING | 1 | |
| 20 | 679620 | LOCK PIN | 2 | 45 | 679645 | EXHAUST COVER | 1 | |
| 21 | 679621 | CYLINDER | 1 | 46 | 679646 | FILTER | 1 | |
| 22 | 679622 | ROTOR | 1 | 47 | 679647 | AIR INLET | 1 | |
| 23 | 679623 | ROTOR BLADE (6 PER SET) | 1set |
