T-8801REX Extended
4” Reversible Angle
Cutoff Tool
Instruction Manual
T-8801REX Extended 4 Inch Reversible Angle Cutoff Tool
OILING INSTRUCTIONS: OIL AFTER EACH USE WITH A FEW DROPS OF AIRTOOL OIL THROUGH THE AIR INLET. RUN FOR ONE SECOND TO COAT ALL INTERNAL PARTS.
USE 90 PSI MAXIMUM

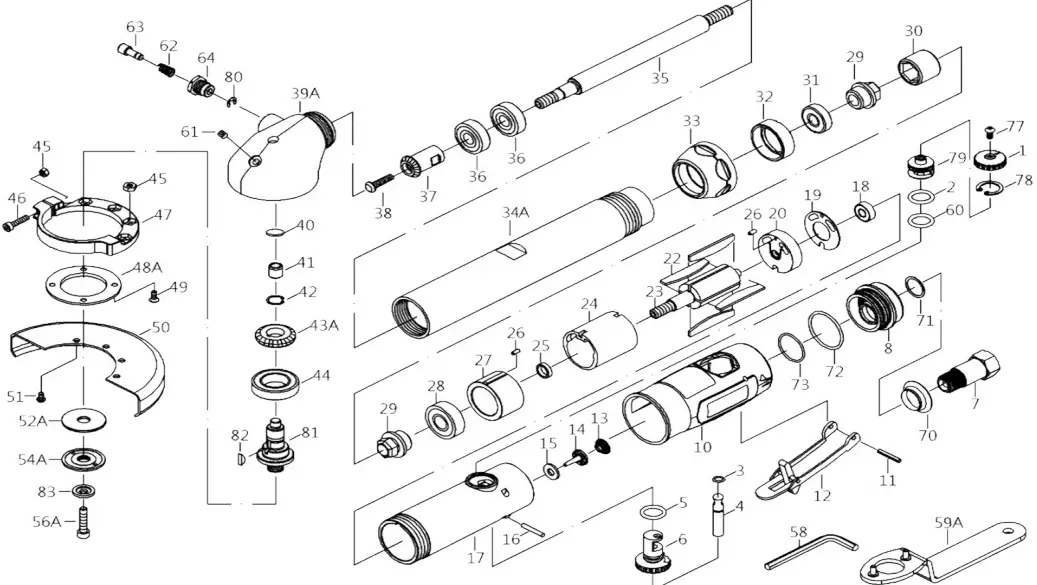

| Ref # | Part # | Description | Qty. |
| 1 | 8801REX01 | FWD/REV Knob | 1 |
| 2 | 8801REX02 | O-Ring | 1 |
| 3 | 8801REX03 | O-Ring | 1 |
| 4 | 8801REX04 | Valve Stem | 1 |
| 5 | 8801REX05 | O-Ring | 1 |
| 6 | 8801REX06 | Regulator | 1 |
| 7 | 8801REX07 | Air Inlet | 1 |
| 8 | 8801REX08 | Muffler | 1 |
| 10 | 8801REX10 | Cover | 1 |
| 11 | 8801REX11 | Pin | 1 |
| 12 | 8801REX12 | Lever | 1 |
| 13 | 8801REX13 | Spring | 1 |
| 14 | 8801REX14 | Valve | 1 |
| 15 | 8801REX15 | Valve Seat | 1 |
| 16 | 8801REX16 | Pin | 1 |
| 17 | 8801REX17 | Housing | 1 |
| 18 | 8801REX18 | Bearing | 1 |
| 19 | 8801REX19 | Gasket | 1 |
| 20 | 8801REX20 | Rear End Plate | 1 |
| 22 | 8801REX22 | Rotor Blade (4 per set) | 1set |
| 23 | 8801REX23 | Rotor | 1 |
| 24 | 8801REX24 | Cylinder | 1 |
| 25 | 8801REX25 | Spacer | 1 |
| 26 | 8801REX26 | Pin | 2 |
| 27 | 8801REX27 | Front End Plate | 1 |
| 28 | 8801REX28 | Bearing | 1 |
| 29 | 8801REX29 | Nut | 1 |
| 30 | 8801REX30 | Coupling | 1 |
| 31 | 8801REX31 | Bearing | 1 |
| 32 | 8801REX32 | Nut | 1 |
| 33 | 8801REX33 | Clamp Nut | 1 |
| 34A | 8801REX34A | Extension Tube | 1 |
| 35 | 8801REX35 | Drive Shaft | 1 |
| 36 | 8801REX36 | Bearing | 2 |
| 37 | 8801REX37 | Gear | 1 |
| 38 | 8801REX38 | Screw | 1 |
| 39A | 8801REX39A | Angle Housing | 1 |
| 40 | 8801REX40 | Cap | 1 |
| 41 | 8801REX41 | Bearing | 1 |
| 42 | 8801REX42 | Snap Ring | 1 |
| 43A | 8801REX43A | Arbor Gear | 1 |
| 44 | 8801REX44 | Bearing | 1 |
| 45 | 8801REX45 | Nut | 5 |
| 46 | 8801REX46 | Screw | 1 |
| 47 | 8801REX47 | Clamp | 1 |
| 48A | 8801REX48A | Ring | 1 |
| 49 | 8801REX49 | Screw | 4 |
| 50 | 8801REX50 | Guard | 1 |
| 51 | 8801REX51 | Screw | 4 |
| 52A | 8801REX52A | Washer | 1 |
| 54A | 8801REX54A | Washer | 1 |
| 55 | 8801REX55 | Nut | 1 |
| 56A | 8801REX56A | Screw | 1 |
| 58 | 8801REX58 | Allen Wrench (4mm) | 1 |
| 59A | 8801REX59A | Spanner Wrench | 1 |
| 60 | 8801REX60 | O-Ring | 1 |
| 61 | 8801REX61 | Grease Fitting | 1 |
| 62 | 8801REX62 | Spring | 1 |
| 63 | 8801REX63 | Pin | 1 |
| 64 | 8801REX64 | Nut | 1 |
| 70 | 8801REX70 | Muffler | 1 |
| 71 | 8801REX71 | Washer | 1 |
| 72 | 8801REX72 | O-Ring | 1 |
| 73 | 8801REX73 | O-Ring | 1 |
| 77 | 8801REX77 | Screw | 1 |
| 78 | 8801REX78 | Snap Ring | 1 |
| 79 | 8801REX79 | FWD/REV Valve | 1 |
| 80 | 8801REX80 | Snap Ring | 1 |
| 81 | 8801REX81 | Spindle | 1 |
| 82 | 8801REX82 | Key | 1 |
| 83 | 8801REX83 9801341 8801REX85 | Washer 4″Cutoff Wheel (not shown) Side Handle (optional) | 1 1 1 |
