Taylor Pneumatic Tool Company T-8801R 4 Inch Reversible Angle Cutoff Tool Instruction Manual
OILING INSTRUCTIONS:
OIL AFTER EACH USE WITH A FEW DROPS OF AIRTOOL OIL THROUGH THE AIR INLET. RUN FOR ONE SECOND TO COAT ALL INTERNAL PARTS.
Always use the #55 nut to secure the wheel to the tool. The #56 screw (M5-12) must also be used because the tool is reversible
USE 90 PSI MAXIMUM

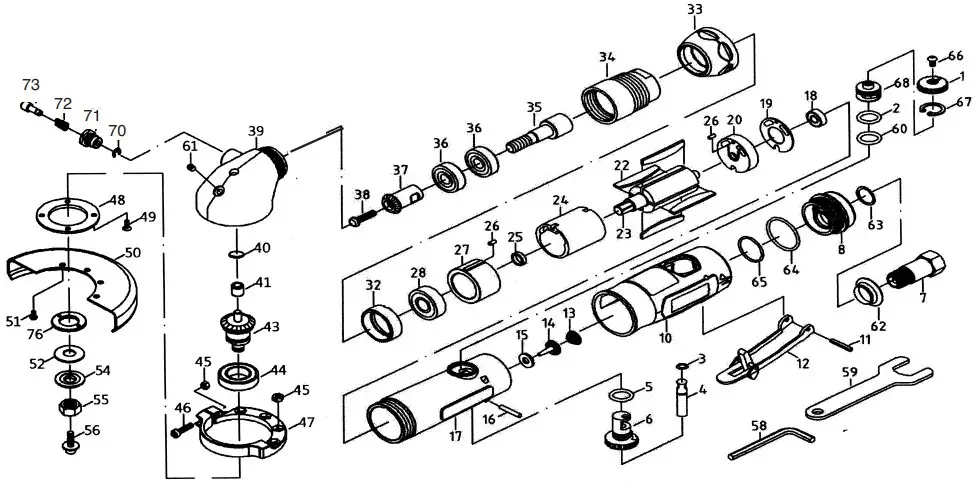

| Ref # | Part # | Description | Qty. |
| 1 | 8801R01 | Fwd/Rev Knob | 1 |
| 2 | 8801R02 | O-Ring | 1 |
| 3 | 8801R03 | O-Ring | 1 |
| 4 | 8801R04 | Valve Stem | 1 |
| 5 | 8801R05 | O-Ring | 1 |
| 6 | 8801R06 | Regulator | 1 |
| 7 | 8801R07 | Air Inlet | 1 |
| 8 | 8801R08 | Muffler | 1 |
| 10 | 8801R10 | Cover | 1 |
| 11 | 8801R11 | Pin | 1 |
| 12 | 8801R12 | Lever | 1 |
| 13 | 8801R13 | Spring | 1 |
| 14 | 8801R14 | Valve | 1 |
| 15 | 8801R15 | Valve Seat | 1 |
| 16 | 8801R16 | Pin | 1 |
| 17 | 8801R17 | Housing | 1 |
| 18 | 8801R18 | Bearing | 1 |
| 19 | 8801R19 | Gasket | 1 |
| 20 | 8801R20 | Rear End Plate | 1 |
| 22 | 8801R22 | Rotor Blade (4 per set) | 1set |
| 23 | 8801R23 | Rotor | 1 |
| 24 | 8801R24 | Cylinder | 1 |
| 25 | 8801R25 | Spacer | 1 |
| 26 | 8801R26 | Pin | 2 |
| 27 | 8801R27 | Front End Plate | 1 |
| 28 | 8801R28 | Bearing | 1 |
| 32 | 8801R32 | Nut | 1 |
| 33 | 8801R33 | Clamp Nut | 1 |
| 34 | 8801R34 | Front Housing | 1 |
| 35 | 8801R35 | Drive Shaft | 1 |
| 36 | 8801R36 | Bearing | 2 |
| 37 | 8801R37 | Gear | 1 |
| 38 | 8801R38 | Screw | 1 |
| 39 | 8801R39N | Angle Housing | 1 |
| 40 | 8801R40 | Shield | 1 |
| 41 | 8801R41 | Bearing | 1 |
| 43 | 8801R43 | Arbor Gear | 1 |
| 44 | 8801R44 | Bearing | 1 |
| 45 | 8801R45 | Nut | 5 |
| 46 | 8801R46 | Screw | 1 |
| 47 | 8801R47 | Clamp | 1 |
| 48 | 8801R48 | Ring | 1 |
| 49 | 8801R49 | Screw | 4 |
| 50 | 8801R50 | Guard | 1 |
| 51 | 8801R51 | Screw | 1 |
| 52 | 8801R52 | Washer | 1 |
| 54 | 8801R54 | Washer | 1 |
| 55 | 8801R55 | Nut | 1 |
| 56 | 8801R56 | Screw | 1 |
| 58 | 8801R58 | Allen Wrench (4mm) | 1 |
| 59 | 8801R59 | Open End Wrench (17mm) | 1 |
| 60 | 8801R60 | O-Ring | 1 |
| 61 | 8801R61 | Grease Fitting | 1 |
| 62 | 8801R62 | Muffle | 1 |
| 63 | 8801R63 | Washer | 1 |
| 64 | 8801R64 | O-Ring | 1 |
| 65 | 8801R65 | O-Ring | 1 |
| 66 | 8801R66 | Screw | 1 |
| 67 | 8801R67 | Snap Ring | 1 |
| 68 | 8801R68 | FWD/REV Valve | 1 |
| 69 | 8801R69 | Nut | 1 |
| 70 | 8801R70 | Snap Ring | 1 |
| 71 | 8801R71 | p Ring N | 1 |
| 72 | 8801R72 | Spring | 1 |
| 73 | 8801R73 | Pin | 1 |
| 74 | 9801341 | 4″Cutoff Wheel (not shown) | 1 |
