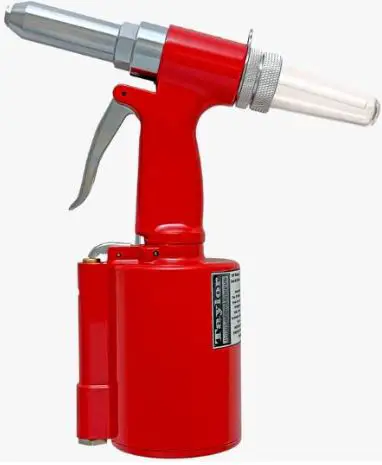

Taylor Pneumatic Tool Company T-7892N 14 Heavy Duty Riveter

OILING INSTRUCTIONS

• OIL AFTER EACH USE WITH A FEW DROPS OF AIR TOOL OIL THROUGH THE AIR INLET.
• RUN FOR ONE SECOND.
• COAT ALL INTERNAL PARTS.

OPERATING INSTRUCTIONS FOR THE T-7892N RIVET TOOL RED

1. Maintain fluid levels use 30 wt. non-detergent oil. Mount tool in vice with bottom cap #35 up. Remove #35 with wrench #55.
2. Remove entire piston part #29, 31, 32, 33 as an assembly, by grasping #33 with a pair of pliers and pulling straight up.
3. After the piston is removed, fill with 30 weight non detergent oil to 1/2 below #40 nut no oil should be in the #39 cylinder.
4. Lightly grease #31 and#34.
5. Replace piston and #35 cap, and remove tool from the vice.
6. Now the tool is ready for use.
7. The total amount of oil should be about 2-1/2 tablespoons.
8. A few drops of 30 wt oil or air tool oil through the air inlet every 10 to 15 minutes is recommended if no air line oiler is in place.
9. Adjusting the stroke.
10. Remove #02 by using #55 wrench.
11. For maximum stroke, loosen nut #08 and thread the nut all the way onto #17 piston.
12. Then loosen #03 and #07 and thread them all the way to #08.
13. Hold #08 with a wrench and tighten #3.
14. For a shorter stroke, adjust #08 so that it is away from the shoulder of #17 by two or more threads, depending on how short you want the stroke to be.
15. Always use the correct size nosepiece for the rivet you are using.
16. It is a good idea to use a silicone oil such as WD-40 to lubricate the jaws(#04) when pulling quantities of rivets, as there may be a build up of metal particles that could cause mandrels to stick in the jaws.
17. Air pressure the maximum pressure should be 90 PSI.
18. A higher pressure could cause damage to your tool. Using the lowest pressure possible for your application will extend the life of your tool dramatically.
19. As with all tools, make sure that all parts are tight from time to time, as vibration from use may loosen components.
20. Mandrels – The T-7892N comes complete with the #22 mandrel catcher.
21. Once a rivet has been popped and the next rivet is mounted in the nosepiece, the last mandrel will slide into the #22. To remove mandrels, turn the tool upside down and they will fall out of the slot in #22, or remove #22 completely and empty.

USE 90 PSI MAXIMUM
