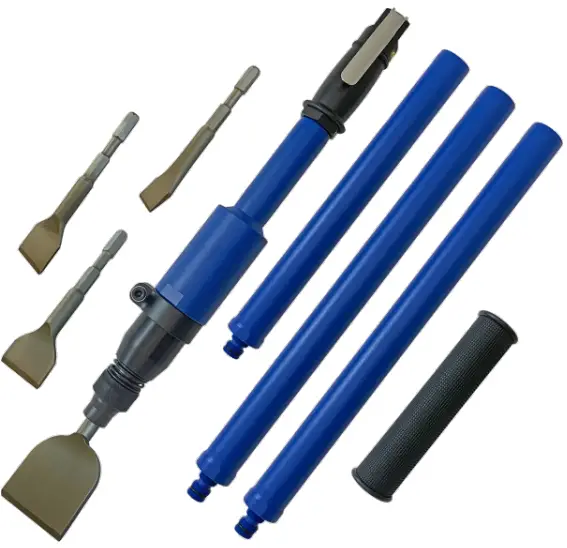

Taylor Pneumatic Tool Company T-7603 Long Reach Scraper
Part Description
| USE 90 PSI MAXIMUM | |||
| Ref # | Part # | Description | Qty. |
| 1 | 760301 | Valve Cap | 1 |
| 2 | 760302 | O-Ring | 1 |
| 3 | 760303 | Valve Spring | 1 |
| 4 | 760304 | Valve Stem | 1 |
| 5 | 760305 | O-Ring | 1 |
| 5A | 760305A | O-Ring | 1 |
| 6 | 760306 | Valve Body | 1 |
| 7 | 760307 | Throttle Lever | 1 |
| 8 | 760308 | Roll Pin | 1 |
| 9 | 760309 | Piston | 1 |
| 10 | 760310 | Cylinder | 1 |
| 11 | 760311 | O-Ring | 1 |
| 12 | 760312 | O-Ring | |
| 13 | 760313 | Spring | 1 |
| 14 | 760314 | Cover Assembly | 1 |
| 14 14-1 | 760314-1 | Screw | 31 |
| 15 | 760315 | Center Tube | 1 |
| 15A | 760315A | O-Ring | 1 |
| 16 | 760316 | Handle Tube | 1 |
| Extension Bars * T-7603 comes with 2 760319’s. Each are 23.5” long ** T-7603K comes with 2 760319-2’s. Each are 19.5” plus 1 760319-1 that is 12” long | |||
| 17 | 760317 | Handle Grip | 1 |
| 18 | 760318 | Locknut | 1 |
| 19* | 760319 | Extension Bar 23.5” | 2 |
| 19-1** | 760319-1 | Extension Bar 12” | 1 |
| 19-2** | 760319-2 | Extension Bar 19.5” | 2 |
| 19A | 760319A | O-Ring (2 per ext bar) | 2 |
| 20 | 760320 | Handle Grip | 1 |
| 21 | 760321 | Chisel Cover | 1 |
| 22 | 760322 | 5/16” Ball | 2 |
| 23 | 760323 | Snap Ring | 1 |
| 24 | 760324 | Chisel Holder | 1 |
| 25 | 760325 | Bolt | 1 |
| 25A | 760325A | Lock Washer | 1 |
| 26 | T-760326 | 4” Chisel | 1 |
| 26A | T-760326A | 1-1/2” Chisel (w/7603K) | 1 |
| 26B | T-760326B | 2” Chisel (w/7603K) | 1 |
| 26C | T-760326C | 2-3/4” Chisel (w/7603K) | 1 |
| 27 | 760327 | Cylinder Cover | 1 |
| 28 | 760328 | O-Ring | 1 |
| 29 | 760329 | Allen Wrench (6mm) | 1 |
| 30 | 760330 | Allen Wrench (2.5mm) | 1 |
