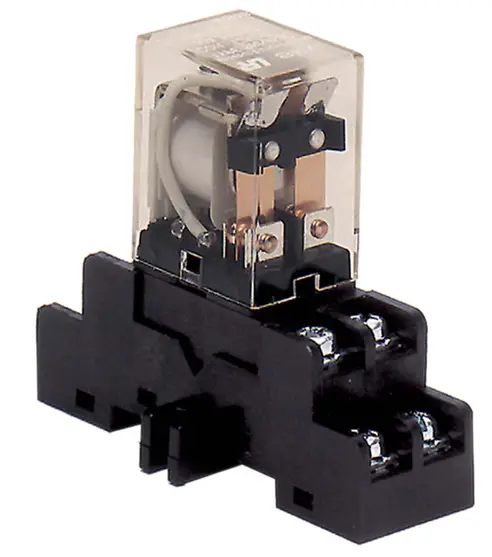

RAC24 Relay and Base Module
Installation GuideRAC24 Relay and Base Module
Installation Guide

Specifications:

• UL and cUL Recognized.
• CE – European Conformity.
• 24VAC operation.
• Current draw: 45mA.
• 10A/220VAC or 28VAC DPDT contacts
• DIN Rail mountable.

Dimensions (W x D x H): 3.125″ x 1.375″ x 2.375″ (79.4mm x 35mm x 86mm).

Installation Instructions:

1. Mount RAC24 in the desired location.
2. Plug-in relay into the base.

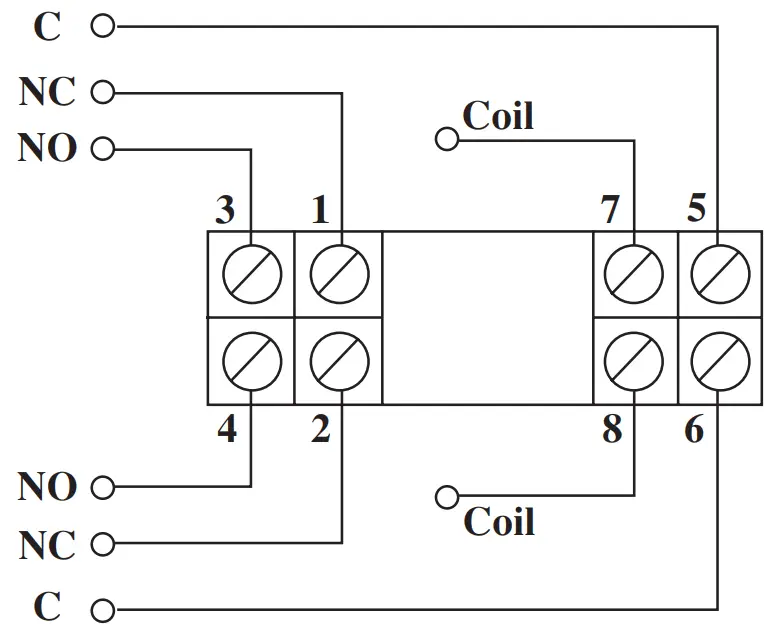

3. The relay will activate upon applying 24VAC to the terminals marked [7] and [8].
4. Use output contacts to make and break load circuits.


Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.

­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­140 58th Street, Brooklyn, New York 11220 USA
phone: 718-567-8181
fax: 718-567-9056
website: www.altronix.com
e-mail: [email protected]
Lifetime Warranty

IIRAC24 – Rev. 011812
