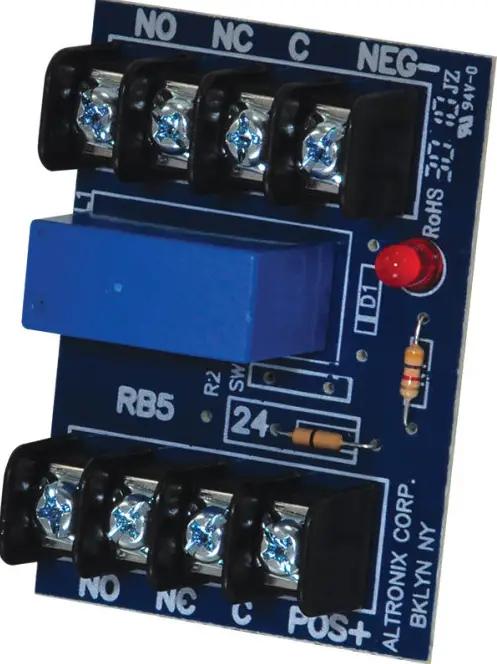

Altronix RB524 24 VDC Relay Module
Specifications
- 24VDC operation.
- Current draws: 40mA.
- 5A/220VAC or 28VDC DPDT contacts.
- Snap track mountable (order part # ST1).
- Dimensions (L x W x H): 2.75” x 2” x 1”(69.9mm x 50.8mm x 25.4mm)
Dry Contacts

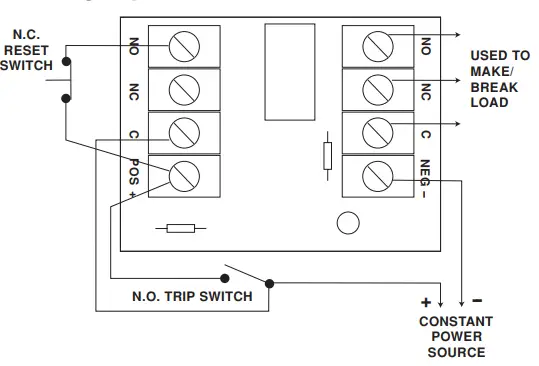

Polarity Reversal Latching Dry Contacts
Latching Dry Contacts
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice. –––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA |
phone: 718-567-8181 |
fax: 718-567-9056
website: www.altronix.com |
e-mail: [email protected] |
Lifetime Warranty
IIRB524 – Rev. 081004
