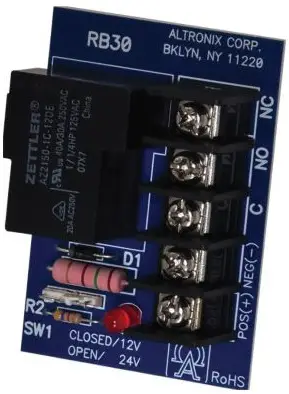

Altronix RB30 Ultra Sensitive Relay Module Instruction Manual

Specifications

• 12VDC or 24VDC operation.
• Current draw: 95mA.
• 30A/28VDC, 120VAC or 277VAC SPDT contacts.
• UL Recognized relay.

Board Dimensions (W x L x H):
2” x 2.75” x 0.75” (50.8mm x 69.9mm x 19.1mm)

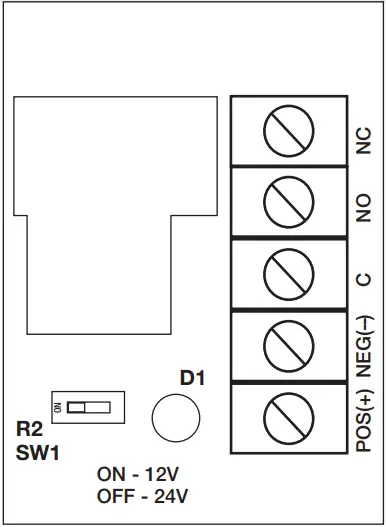

Operation

1. Mount the RB30 in desired location/enclosure.
2. Set switch to select 12VDC or 24VDC operation.
   ON for 12VDC, OFF for 24VDC.
3. Upon proper voltage application (12 or 24) to terminals marked [POS (+) and NEG (–)] relay will actuate and red LED will be lit.
4. Use output contacts to make and break load circuits.

Altronix is not responsible for any typographical errors.

Support

140 58th Street, Brooklyn, New York 11220 USA
phone: 718-567-8181
fax: 718-567-9056
website: www.altronix.com
e-mail: [email protected]
Lifetime Warranty
IIRB30 – Rev. 051600
