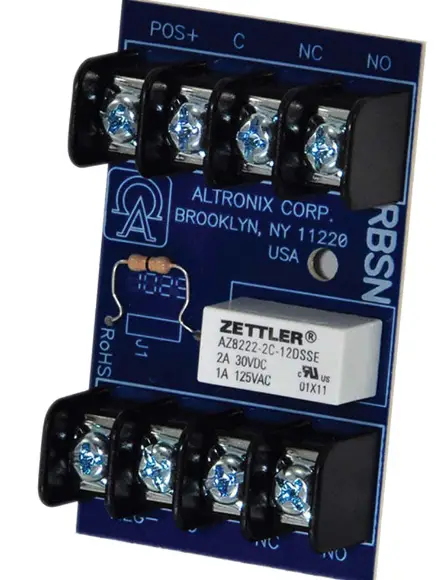

Altronix RBSN Relay Module
Specifications
- 12VDC or 24VDC selectable operation.
- Current draw 15mA.
- Factory set for 12VDC; cut jumper J1 for 24VDC operation.
- 1A/120VAC or 2A/28VDC DPDT contacts
- Snap track mountable (order part # ST1).
- Board dimensions (W x L x H): 2” x 2.75” x 1” (50.1mm x 69.9mm x 25.5mm)
Dry Contacts

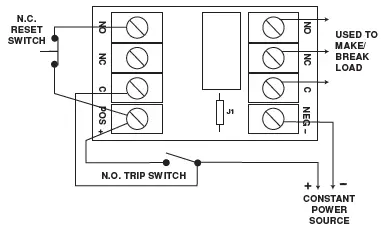

Latching Dry Contacts

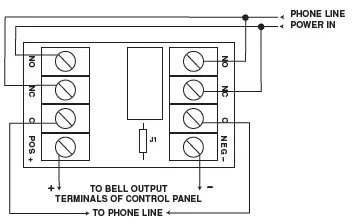

Polarity Reversal

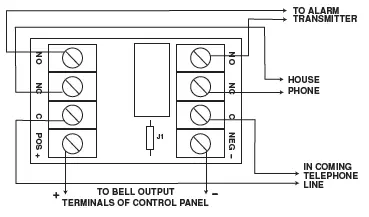

Line Seizure
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
