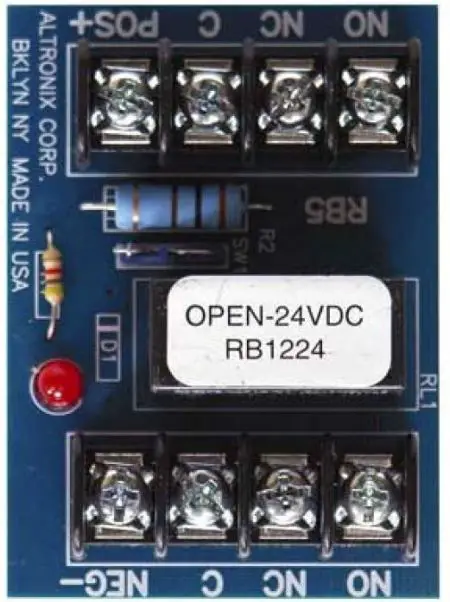

Altronix RB1224 Relay Module
Specifications
- 12VDC or 24VDC selectable operation.

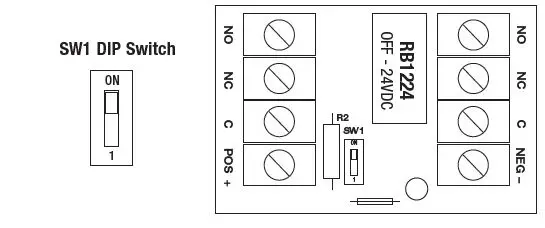

- Turn SW1 OFF for 24VDC operation.
Turn SW1 ON for 12VDC operation. - Current draws: 75mA.
- 5A/220VAC or 28VDC DPDT contacts.
- Snap track mountable (order part # ST1).
Board dimensions (approximate): 2.75”L x 2”W x 1”H
INSTRUCTION
Dry Contacts

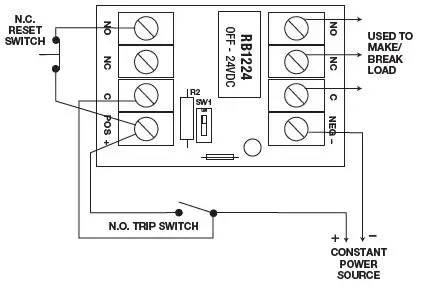

Latching Dry Contacts

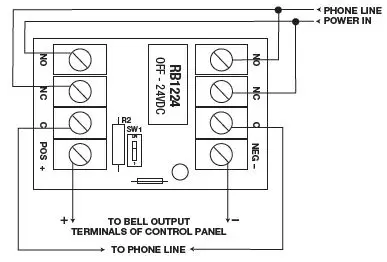

Polarity Reversal

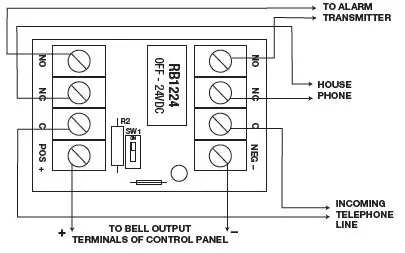

Line Seizure
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: [email protected] | Lifetime Warranty
IIRB1224 – Rev. 121205
