Altronix RBOC7 Open Collector Multiple Relay Module
Installation Instructions
- Mount unit in the desired location/enclosure.

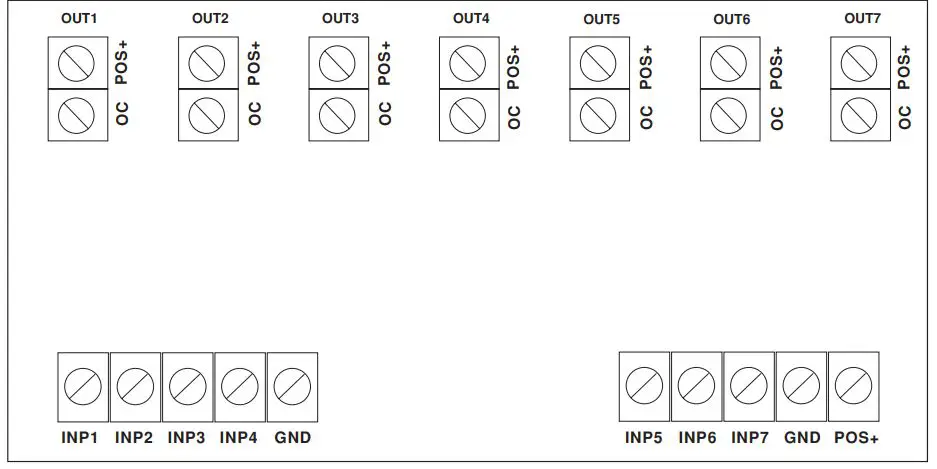

- Connect positive trip outputs to the desired trigger inputs. INP1 to INP7 activate outputs on positive trip signal of 3VDC to 24VDC @ 2mA.
- Open collector outputs are marked “OC”.
Open collector output specs:
- Sink current: 100mA.
- Maximum output voltage: 50VDC
Specifications
Input Voltage:
- 12VDC or 24VDC operation.
- Seven (7) independent (3VDC to 24VDC @ 2mA minimum) positive inputs.
Outputs:
- Seven (7) open collector outputs capable of sinking 100mA each.
- Board Dimensions: (L x W x H approx.): 6.5” x 3.25” x 1” (165.1mm x 82.6mm x 25.4mm).
Warranty
Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: [email protected] | Lifetime Warranty
