HC005S/BT
Installation and Instruction Manual
Built-in Microwave Motion Sensor with 5.0 SIG Mesh
ON/OFF CONTROL
1. Technical Specifications
| Operation frequency | 2.4 GHz – 2.483 GHz |
| Transmission power | 4 dBm |
| Range (Typical indoor) | 10~30m |
| Protocol | Bluetooth 5.0 SIG Mesh |
| Stand-by power | 220~240VAC 50/60Hz |
| Operating voltage | <1W |
| Load ratings | 300VA(capacitive),400W(resistive) |
| Warming-up | 20s |
| Sensor principle | High Frequency (microwave) |
| Detection range (Max.)* | Max installation height: 6m Max detection range ：10m (diameter) |
| Detection angle | 30°~150° |
| Operation temperature | Ta:-20 |
| Case temperature(MAX.) | Ta:-20 C~+50 |
| IP rating | IP2O |
| EMC standard (EMC) | EN55015, EN61000, EN61547 |
| Safety standard (LVD) | EN60669-1/-2-1 AS/NZS60669-1/-2-1 |
| RED | EN300328, EN301489-1/-17,EN62479, |
| Certification | Semko,CB, CE , EMC, RED, RCM,UKCA |
2. Download the App
Free App for set-up and commissioning
https://apps.apple.com/cn/app/koolmesh/id1483721878
https://play.google.com/store/apps/details?id=com.koolmesh.sig

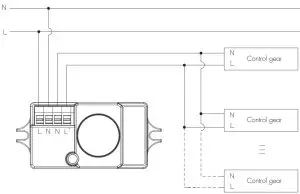

3. Installation

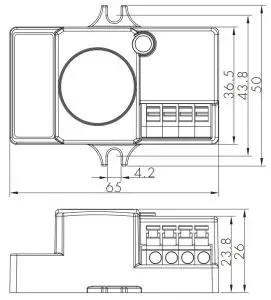

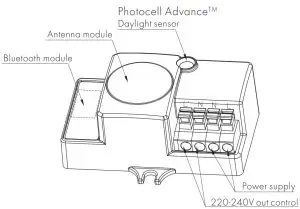

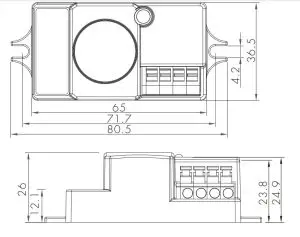

Mechanical Structure & Dimensions

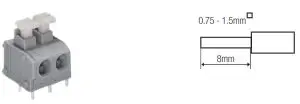

To make or release the wire from the terminal, use a screwdriver to push down the button.
Optional accessory: Reinforced Bluetooth antenna
For some special applications, customers may need a larger Bluetooth transmission for both smartphones to device and device to device. Thanks to the reinforced Bluetooth antenna, with it being added to the sensor, the transmission distance(smartphone to device) enlarges to 20m, the distance of the device to device is around 50m.

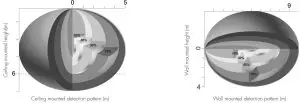

4. Detection Pattern
5. Additional Information / Documents
1. For full explanation of Hytronik Photocell AdvanceTM technology, please kindly refer to www.hytronik.com/download ->knowledge ->Introduction of Photocell Advance
2. To learn more about detailed product features/functions, please refer to www.hytronik.com/download ->knowledge ->Introduction of App Scenes and Product Functions
3. Regarding precautions for Bluetooth product installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Bluetooth Products – Precautions for Product Installation and Opera4. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors – Precautions for Product Installation and Opera5. Data sheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/bluetooth technology ->Bluetooth Sensors6. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
