HYTRONIK HC005S/BT Built In Microwave Motion Sensor with 5.0 SIG Mesh
Technical Specifications
| Operationfrequency | 2.4GHz – 2.483 GHz |
| Transmission power | 4dBm |
| Range (Typical indoor) | 10~30m |
| Protocol |  5.0 SIG Mesh |
| Operating voltage | 220~240VAC 50/60Hz |
| Stand-by power | <1W |
| Load ratings | 300VA(capacitive),400W(resistive) |
| Warming-up | 20s |
| Sensor principle | High Frequency (microwave) |
| Detection range (Max.)* | Max installation height: 6m Max detection range: 1Om (diameter |
| Detection angle | 30°~150° |
| Operation temperature | Ta:-20°C- +50°C |
| Case temperature(MAX.) | Tc:+75° |
| IP rating | IP20 |
| EMC standard (EMC) | EN5501,5EN61000, EN61547 |
| Safety standard (LVD) | EN60669-1/-2-1 AS/NZS60669-1/-2-1 |
| RED | EN30032,8EN301489-1/-17,EN62479, |
| Certification | Semko,CB, CE, EMC, RED,RCM,UKCA |
Download the App
Free App for set-up and commissioning
 | |
 |   |
| Smartphone app for both iOS & Android platform | |
 |  |

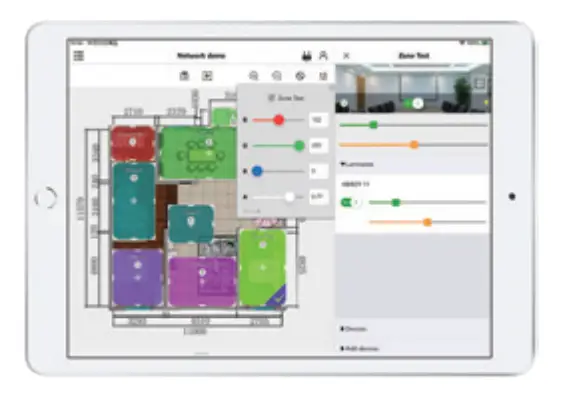

| Koolmesh Pro app for iPad | |
 |  |
| Web app/platform: www.iot.koolmesh.com | |

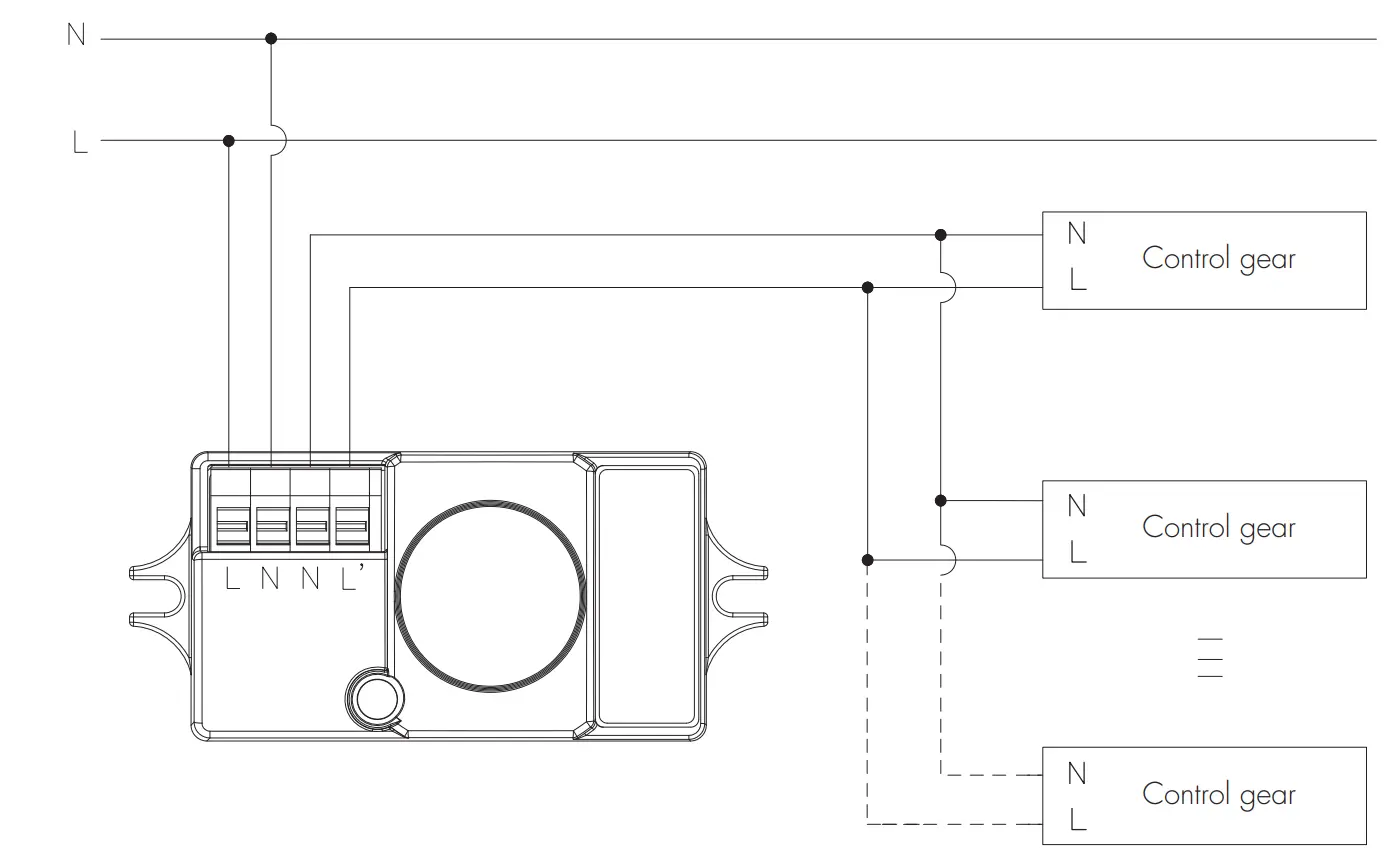

Installation

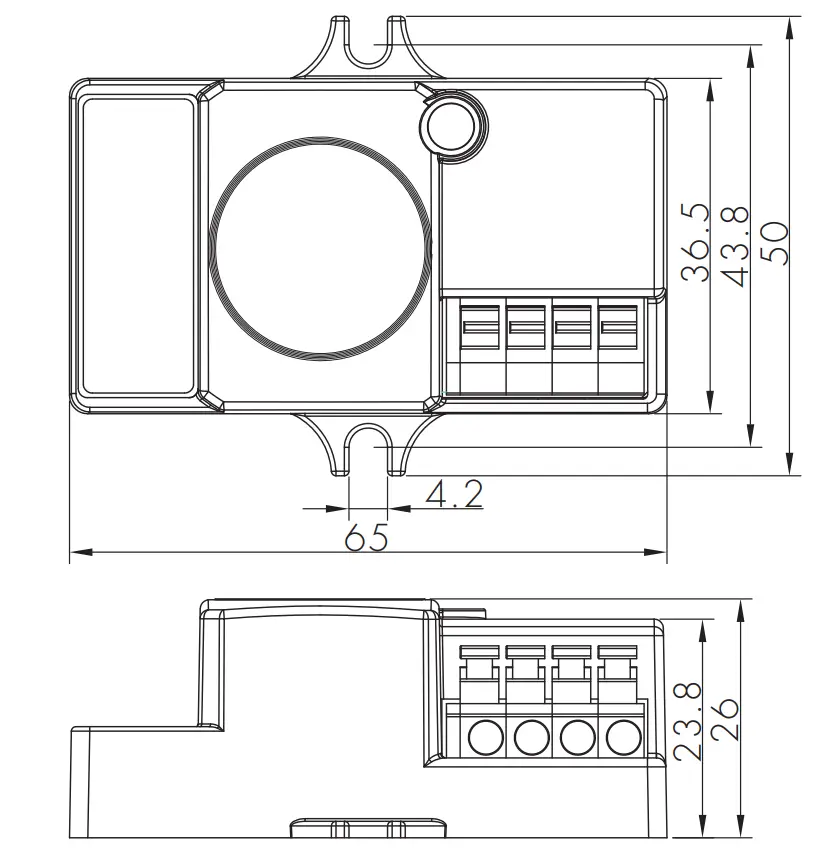

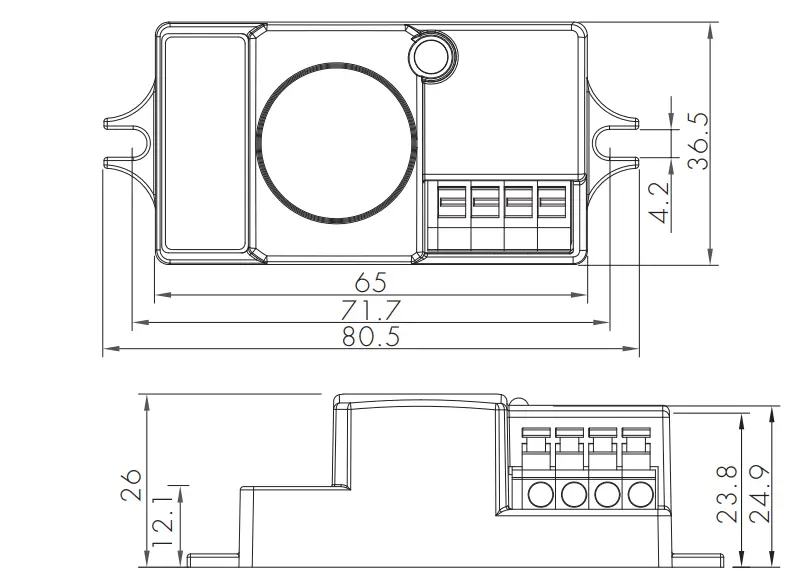

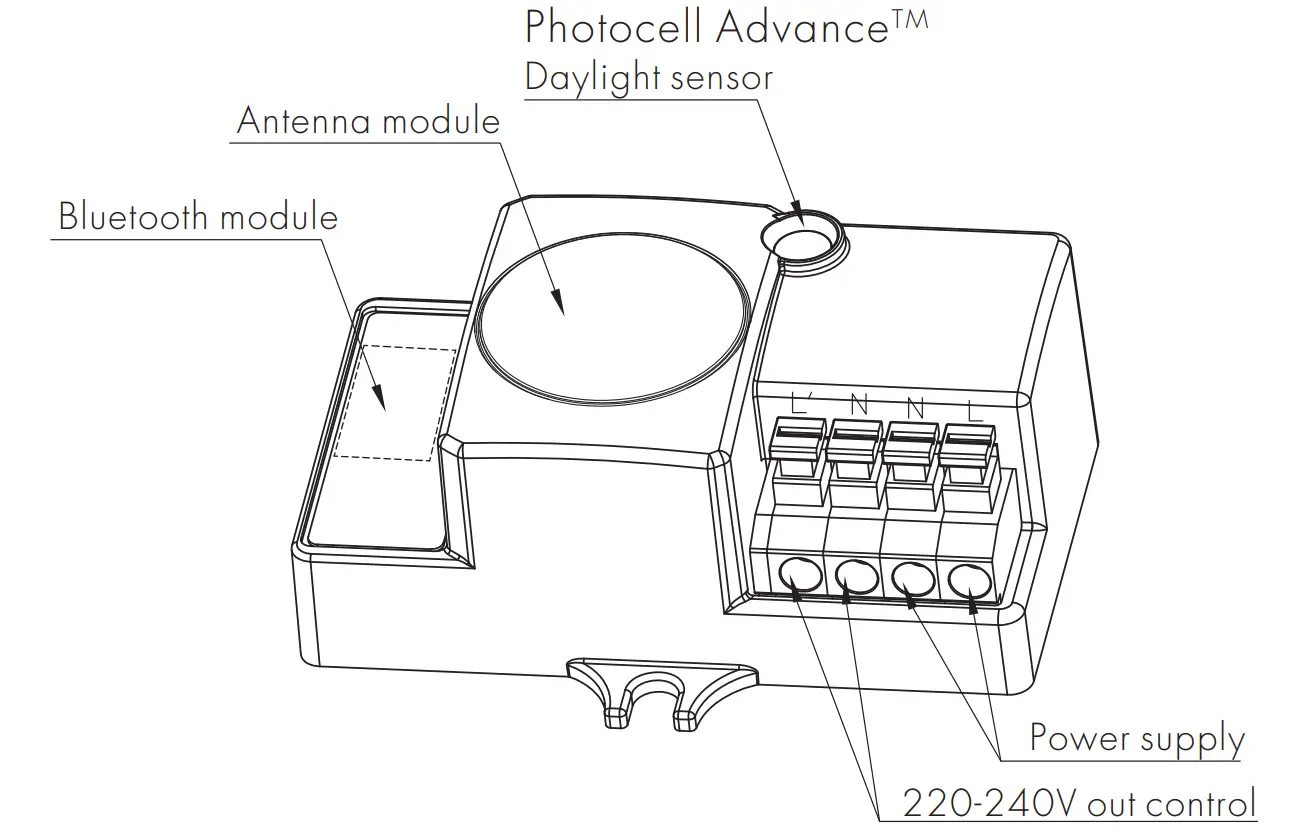

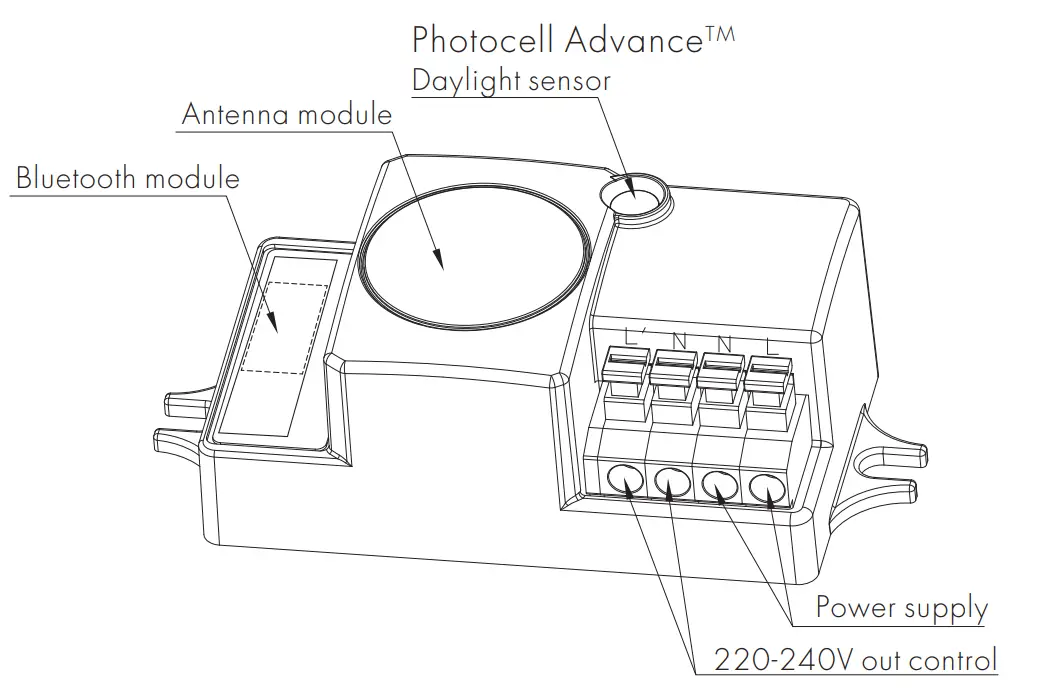

Mechanical Structure & Dimensions

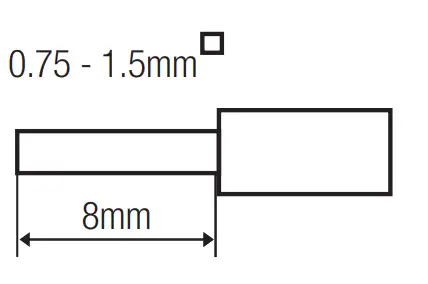

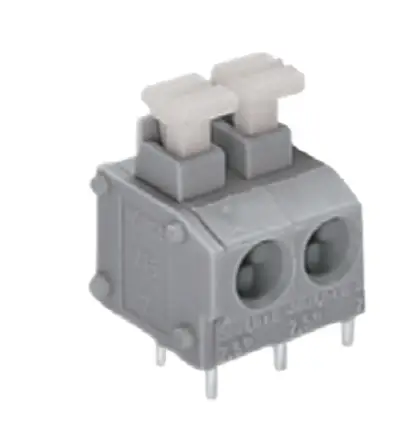

Wire Preparation
To make or release the wire from the terminal, use a screwdriver to push down the button.

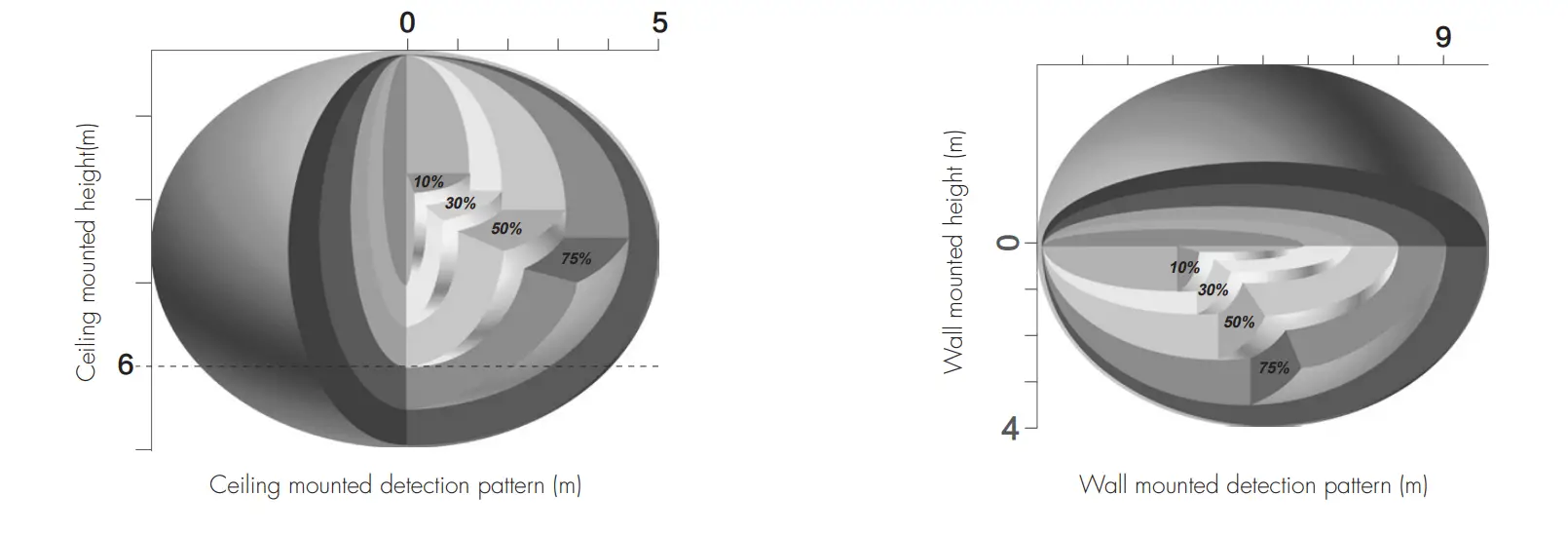

Detection Pattern
Additional Information / Documents
- For full explanation of Hytronik Photocell AdvanceTM technology, please kindly refer to www.hytronik.com/download ->knowledge ->Introduction of Photocell Advance
- To learn more about detailed product features/functions, please refer to www.hytronik.com/download ->knowledge ->Introduction of App Scenes and Product Functions
- Regarding precautions for Bluetooth product installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Bluetooth Products – Precautions for Product Installation and Operation
- Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors – Precautions for Product Installation and Operation
- Data sheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/bluetooth technology ->Bluetooth Sensors
- Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download >knowledge ->Hytronik Standard Guarantee Policy
