DALI PIR Motion Sensor with
® 5.0 SIG Mesh
HCD049/BT（High-bay）
DALI/DALI-2 Bolt-on/Batten-fit PIR Sensor
Product Description
HCD049/BT is a Bluetooth DALI/DALI-2 high-bay PIR motion sensor, with capability of up to 15m installation height. HCD049/BT has a daylight sensor built-in, and is specifically designed for mounting onto a batten style luminaire. It is also designed for professional lighting manufactures who would like to incorporate wireless control into their luminaires. HCD049/BT is suitable for any typical indoor applications such as office, classroom, car park, warehouse and other commercial/industrial areas. With Bluetooth wireless mesh networking, it makes communication much easier without any hardwiring, which eventually adds values to luminaires and saves costs for projects. Meanwhile, simple device setup and commissioning can be done via
app.
App Features
 | Quick setup mode & advanced setup mode |
 | Web app/platform for project deployment & data analysis |
 | Koolmesh Pro app on iPad for on-site conguration |
 | Floorplan feature to simplify project planning |
 | coming soon |
 | One-key device replacement |
 | Device social relations check |
 | Staircase function (primary & secondary) |
 | Remote control via gateway support HBGW01 |
 | Heat map |
 | Dynamic daylight harvest auto-adaptation |
 | Grouping luminaires via mesh network |
 | Scenes |
 | Dusk/Dawn photocell (Twilight function) |
 | Tri-level control |
 | Daylight harvest |
 | Circadian rhythm (Human centric lighting) |
 | Detailed motion sensor settings |
 | Schedule |
 | Astro timer (sunrise and sunset) |
 | Power-on status (memory against power loss) |
 | Offline commissioning |
 | Bulk commissioning (copy and paste settings) |
 | Different permission levels via authority management |
 | Network sharing via QR code or keycode |

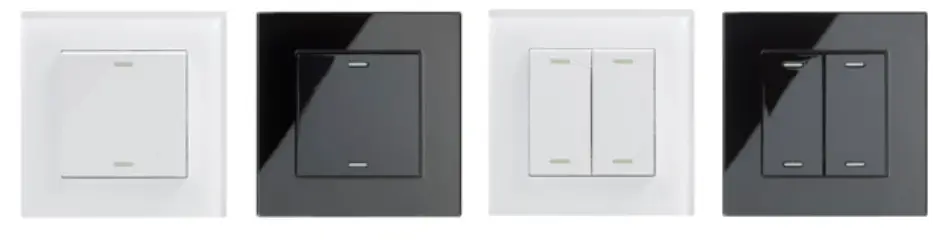

 | Compatible with EnOcean BLE switches |
 | Interoperability with Hytronik Bluetooth product portfolio |
 | Internet-of-Things (IoT) featured |
 | Device firmware update over-the-air (OTA) |
 | Continuous development in progress… |
Hardware Features
 | 30mA DALI Broadcast output |
 | IP65 |
 | Fixing washers accessory |
 | High-bay (up to 15m height) |
 | 5-year warranty, designed for long lifetime up to 50,000 hours |
5.0 SIG mesh
 |  |
| https://apps.apple.com/cn/app/koolmesh/id1483721878 | https://play.google.com/store/apps/details?id=com.koolmesh.sig |
Smartphone app for both iOS & Android platform
https://apps.apple.com/cn/app/koolmesh/id1570378349
Koolmesh Pro app for iPad

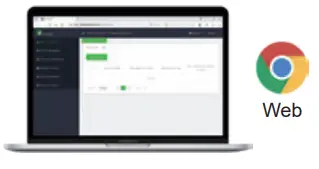

Web app/platform: www.iot.koolmesh.com
Technical Specifications
| Bluetooth Transceiver | |
| Operation frequency | 2.4 GHz – 2.483 GHz |
| Transmission power | 4 dBm |
| Range (Typical indoor) | 10~30m |
| Protocol | 5.0 SIG Mesh |
| Input & Output Characteristics | |
| Stand-by power | 220 ~ 240VAC 50/60Hz |
| Operating voltage | <1W |
| Output | 30mA, 12VDC (max. 15 devices) |
| Warming-up | 30s |
| Environment | |
| Operation temperature | Ta: -20° C ~ +50° C |
| IP rating | IP65 |
Sensor Data
| Sensor principle | PIR detection |
| Detection range* | Max installation height：15m (forklift) 12m (single person) Max detection range： 16m (diameter) |
| Detection angle | 360° |
* The detection range is heavily influenced by sensor placement (angle) and different walking paces. It may be reduced under certain conditions.
Safety & EMC
| EMC standard (EMC) | EN55015, EN61547 EN61000-3-2/-3-3 |
| Safety standard (LVD) | EN61347-1, EN61347-2-11 |
| RED | EN300328, EN301489-1 EN301489-17 |
| Certification | ENEC, CE , EMC, LVD, RCM |

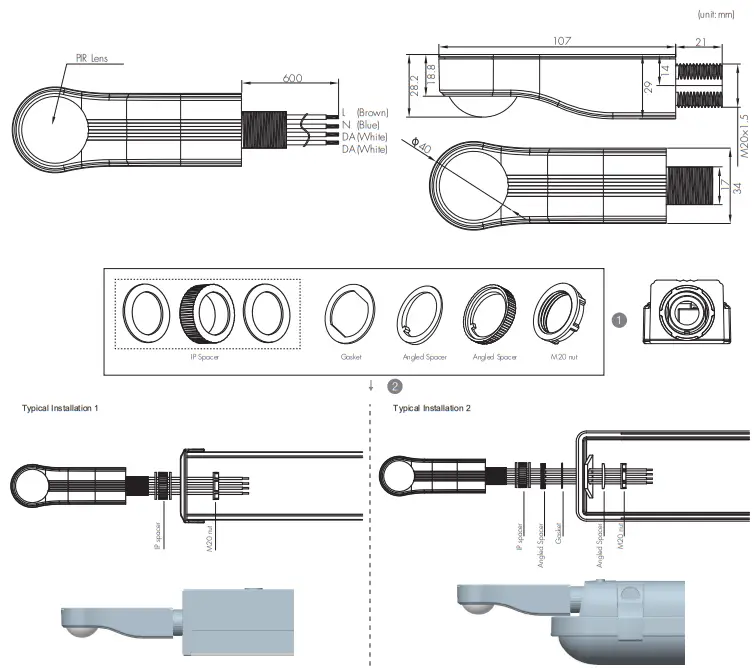

Mechanical Structure & Dimensions

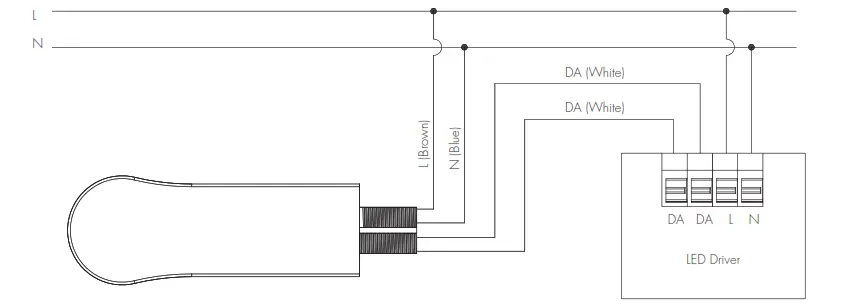

Wiring Diagram

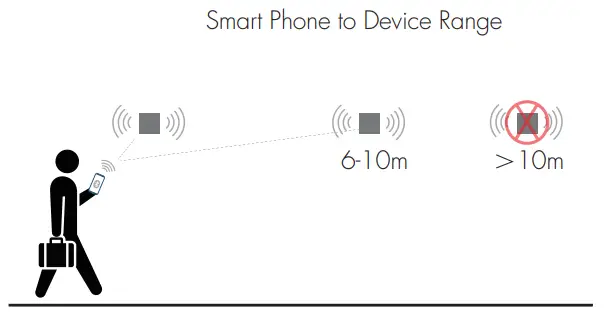

Placement Guide and Typical Range
The smart device with the App installed will have a typical range of 10m, but varies from device to device. During commissioning, the installer will need to be in range of the devices when searching for devices to add to the network.
Once the devices have been added to the network via the App, the devices will start communicating within the wireless mesh. This means that once the network is complete, all devices are accessible from the smart device when in a 20m range of a single point.

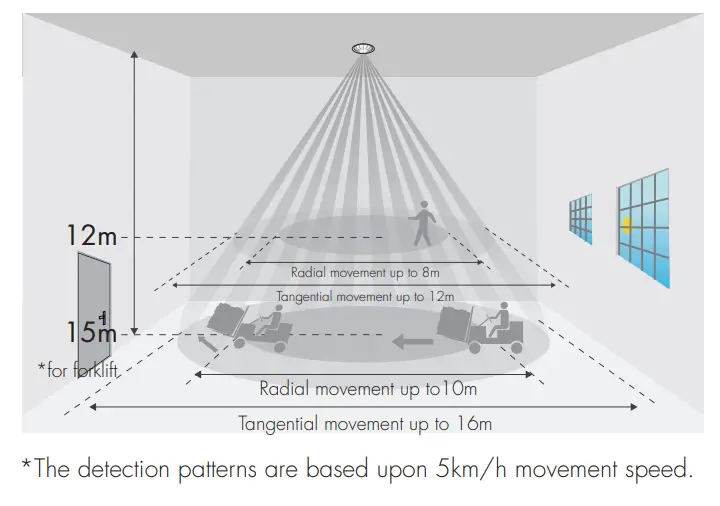

Detection Pattern
Additional Information / Documents
1. To learn more about detailed product features/functions, please refer to www.hytronik.com/download ->knowledge ->Introduction of App Scenes and Product Functions
2. Regarding precautions for Bluetooth product installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Bluetooth Products – Precautions for Product Installation and Operation
3. Regarding precautions for PIR sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors – Precautions for Product Installation and Operation
4. Data sheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/bluetooth technology ->Bluetooth Sensors
5. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
Subject to change without notice.
Edition: 11 Jun. 2021 Ver. A0
