HYTRONIK HC008S Daylight Sensors Microwave Motion
Overview
Daylight Sensors

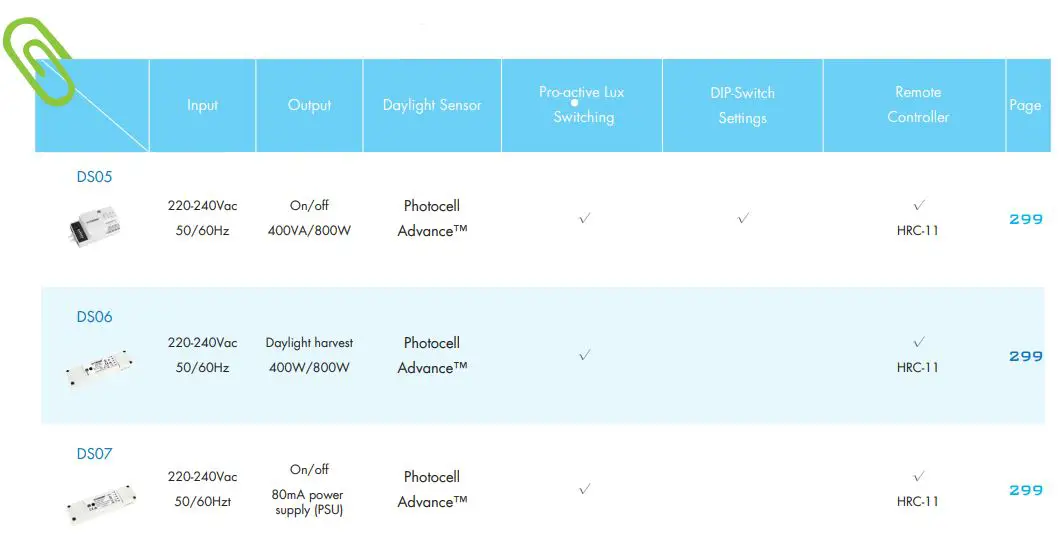

Full Product Specifications

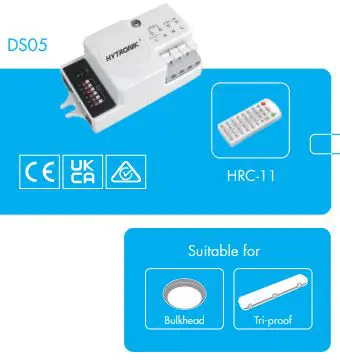

DS05
- Input: 220-240VAC, 50/60Hz
- Output (Max Loading): 400VA capacitive / 800W resistive
- Warming-up period: 20s
- Ta: -20°C ~ +60°C; Tc: +80°C
- On/Off control with relay output
- Daylight sensor: Photocell Advance™
- Pro-active Lux Switching technology
- Daylight settings via DIP switches handset HRC-11

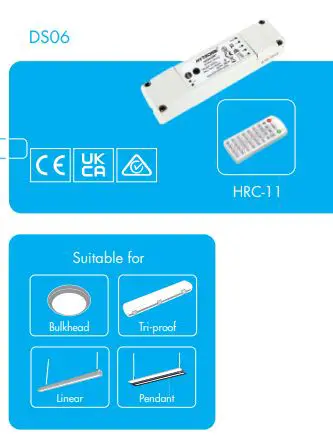

DS06
- Input: 220-240VAC, 50/60Hz
- Output (Max Loading): 400VA capacitive / 800W resistive
- Warming-up period: 20s
- Ta: -20°C ~ +60°C; Tc: +80°C
- 1-10V control with relay output
- Daylight harvest
- Daylight sensor: Photocell Advance™
- Pro-active Lux Switching technology
- Switch-Dim (PUSH) terminal
- Sensor settings via handset HRC-11
- Optional accessory: end-caps on both end

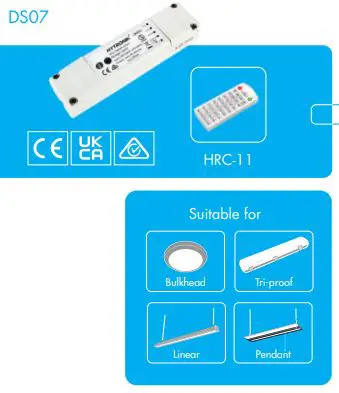

DS07
- Input: 220-240VAC, 50/60Hz
- Output (Max Loading): 80mA
- Warming-up period: 20s
- Ta: -20°C ~ +60°C; Tc: +80°C
- DALI broadcast output
- Daylight harvest
- Daylight sensor: Photocell Advance™ (*See pg. 14-17)
- Pro-active Lux Switching technology (*See pg. 16)
- Switch-Dim (PUSH) terminal
- Sensor settings via handset HRC-11
- Optional accessory: end-caps on both end
