Submittal
3.0 Ton
Convertible Air Handler A4AH4P36A1B30CMarch 2022
AA44AAHH44PP3366AA11BB–SSUUBB–11DD–EENN

Contents hide

1 Outline Drawing

2 Product Specifications

3 Minimum Airflow CFM

4 Fixed Orifice Superheat Charging Table

5 Performance and Electrical Data

6 Features and Benefits

7 Documents / Resources

7.1 References

8 Related Posts

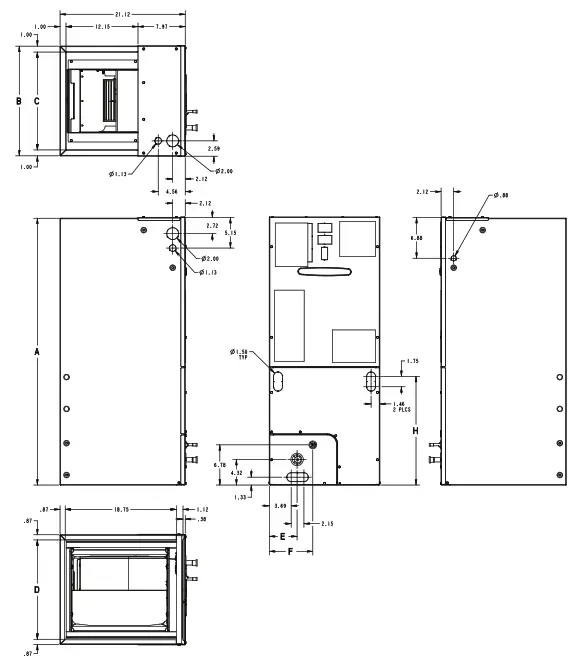

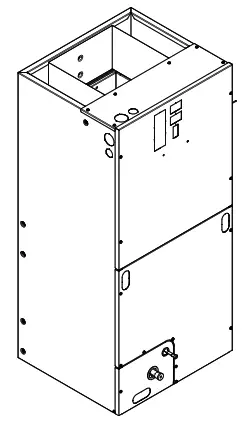

Outline Drawing

MINIMUM UNIT CLEARANCE TABLE
	SERVICE CLEARANCE (RECOMMENDED)
SIDES	2″
FRONT	21″
BACK	0″
INLET DUCT	1″
OUTLET DUCT	N/A

NOTE: THIS UNIT IS APPROVED FOR INSTALLATION CLEARANCES TO COMBUSTIBLE MATERIAL AS STATED ON THE UNIT RATING NAMEPLATE

PRODUCT DIMENSIONS
Air Handler Model	A	B	C	D	E	F	H	Flow Control	Gas Line Braze
A4AH4P36	45.02	18.50	16.50	16.75	4.68	7.33	18.34	TXV	3/4
All dimensions are in inches

Product Specifications

MODEL	A4AH4P36A1B30C
RATED VOLTS/PH/HZ	208-230/1/60
RATINGS(a)	See O.D. Specifications
INDOOR COIL — Type	Plate Fin
Rows — F.P.I.	3 – 14
Face Area (sq. ft.)	4.37
Tube Size (in.)	3/8
Refrigerant Control	TXV
Drain Conn. Size (in.)(b)	3/4 NPT
DUCT CONNECTIONS	See Outline Drawing
INDOOR FAN — Type	Centrifugal
Diameter-Width (In.)	11 X 8
No. Used	1
Drive – No. Speeds	Direct – 3
CFM vs. in. w.g.	See Fan Performance Table
No. Motors — H.P.	1 – 1/3
Motor Speed R.P.M.	825
Volts/Ph/Hz	208-230/1/60
F.L. Amps	2.0
FILTER
Filter Furnished? (c)	No
REFRIGERANT	R-410A
Ref. Line Connections	Brazed
Coupling or Conn. Size — in. Gas	3/4

Coupling or Conn. Size — in. Liq.	3/8
DIMENSIONS	H x W x D
Crated (In.)	46 x 21 x 24
Uncrated	45-1/8 x 18-1/2 x 21-1/8
WEIGHT
Shipping (Lbs.) / Net (Lbs.)	116/110

(a) These Air Handlers are A.H.R.I certified with various Split System Air Conditioners and Heat Pumps (AHRI STANDARD 210/240). Refer to the Split System Outdoor Unit Product Data Guides for performance data.
(b) 3/4” Male Plastic Pipe (Ref: ASTM 1785–76)
(c) Remote filter required.

Minimum Airflow CFM

A4AH4P36A1B30C
Heater	Minimum Heat Speed Tap
	With Heat Pump	Without Heat Pump
BAYHTR1504BRK, BAYHTR1504LUG, BAYHTR1505BRK, BAYHTR1505LUG	Low	Low
BAYHTR1508BRK, BAYHTR1508LUG, BAYHTR1510BRK, BAYHTR1510LUG, BAYHTR3510LUG	Low	Low
BAYHTR1517BRK	Med	Low
BAYHTR3517LUG	High	Low

Fixed Orifice Superheat Charging Table

	Indoor Wet Bulb Temp (F)
Outdoor Dry Bulb Temperature (F)		50	51	52	53	54	55	56	57	58	59	60	61	62	63	64	65	66	67	68	69	70	71	72	73	74	75	76	77	78
	55	7	9	10	11	12	14	15	17	18	20	21	23	24	26	27	29	30
	60	5	7	8	9	10	12	13	15	16	18	19	21	22	24	25	27	28	30	31
	65			4	6	8	10	11	13	14	16	17	18	19	21	22	24	25	27	28	27	31
	70					5	7	8	10	11	13	14	16	17	18	19	21	22	24	25	27	28	30	31
	75							5	6	7	9	10	12	14	16	18	19	21	22	24	26	28	29	31	32
	80									4	6	7	9	10	11	12	14	16	18	19	21	23	25	26	28	29	31	33
	85											4	6	7	9	10	13	14	16	18	20	21	23	24	26	28	29	30	31	32
	90													4	6	8	10	11	13	14	16	18	20	22	24	25	27	28	30	31
	95															4	6	8	10	13	14	16	18	20	22	23	25	26	28	29
	100																	6	8	10	12	13	16	18	20	21	23	25	27	29
	105																	4	6	7	9	11	13	15	18	20	22	24	26	28
	110																			4	7	9	11	13	16	18	21	23	26	28
	115																					6	9	12	14	16	19	21	24	26
Using a digital psychrometer, measure the return air wet-bulb temperature at the unit just before the coil. Also measure the outdoor dry-bulb temperature. Use these temperatures to locate the target superheat on the charging table. Do not attempt to charge the system if these conditions fall outside of this charging table. ADD refrigerant to DECREASE total superheat. REMOVE refrigerant to INCREASE total superheat. Always allow 10 to 15 minutes of operation after any refrigerant or air flow change prior to determining the final superheat.

Heater Pressure Drop Table A4AH4 Air Handler Models

Airflow CFM	Number of Racks				Heater Racks
	1	2	3	4	Heater Model	No. of Racks
	Air Pressure Drop — Inches W.G.				BAYHTR1504	1
1800	0.02	0.04	0.06	0.14	BAYHTR1505	1
1700	0.02	0.04	0.06	0.14	BAYHTR1508	2
1600	0.02	0.04	0.06	0.13	BAYHTR1510	2
1500	0.02	0.04	0.06	0.12	BAYHTR3510	3
1400	0.02	0.04	0.06	0.12	BAYHTR1517	3
1300	0.02	0.04	0.05	0.11	BAYHTR3517	3
1200	0.01	0.04	0.05	0.10	BAYHTR1523	4
1100	0.01	0.03	0.05	0.09	BAYHTR1525	4
1000	0.01	0.03	0.04	0.09
900	0.01	0.03	0.04	0.08
800	0.01	0.03
700	0.01	0.02
600	0.01	0.02

Performance and Electrical Data

See Product Data or Air Handler nameplate for approved combinations of Air Handlers and Heaters.
Heater model numbers may have additional suffix digits.

Table 1. Air Flow Performance

A4AH4P36A1B30C
EXTERNAL STATIC (in w.g)	AIRFLOW
EXTERNAL STATIC (in w.g)	Speed Taps — 230 VOLTS			Speed Taps — 208 VOLTS
	High	Med	Low †	High	Med	Low †
0.1	1391	1305	1059	1338	1146	902
0.2	1305	1231	1029	1257	1098	868
0.3	1203	1138	970	1159	1027	817
0.4	1083	1027	884	1044	935	753
0.5	948	899	769	913	823	664
0.6	795	752	626	766	692
0.7	626	587		603	542
1. Values are with wet coil, no filter, and no heaters 2.CFM Correction for dry coil = Add 3% 3.† = Factory setting

Table 2. Electrical Data

A4AH4P36A1B30C
Heater Model No.	No. of Circuits/ Phases	240 Volt					208 Volt
		Capacity		Heater Amps per Circuit	Minimum Circuit Ampacity	Maximum Overload Protection	Capacity		Heater Amps per Circuit	Minimum Circuit Ampacity	Maximum Overload Protection
		kW	BTUH	Heater Amps per Circuit	Minimum Circuit Ampacity	Maximum Overload Protection	kW	BTUH	Heater Amps per Circuit	Minimum Circuit Ampacity	Maximum Overload Protection
No Heater				2.0 *	3	15			2.0 *	3	15
BAYHTR1504BRK BAYHTR1504LUG	1/1	3.84	13100	16.0	23	25	2.88	9800	13.8	20	20
BAYHTR1505BRK BAYHTR1505LUG	1/1	4.8	16400	20.0	28	30	3.6	12300	17.3	24	25
BAYHTR1508BRK BAYHTR1508LUG	1/1	7.68	26200	32.0	43	45	5.76	19700	27.7	37	40
BAYHTR1510BRK BAYHTR1510LUG	1/1	9.6	32800	40.0	53	60	7.2	24600	34.6	46	50
BAYHTR1517BRK- Circuit 1 (a)	2/1	9.6	32800	40.0	53	60	7.2	24600	34.6	46	50
BAYHTR1517BRK- Circuit 2	2/1	4.8	16400	20.0	25	25	3.6	12300	17.3	22	25
BAYHTR3510LUG	1/3	9.6	32800	23.1	31	35	7.2	24600	20.0	27	30
BAYHTR3517LUG	1/3	14.4	49200	34.6	45	50	10.8	36900	30.0	40	40
BAYHTR1517BRK with single circuit power source kit BAYSPEKT201A	1/1	4.4	49200	60.0		90	0.8	36900	51.9	73	80
* = Motor Amps

(a) MCA and MOP for circuit 1 contain the motor amps

Features and Benefits

Galvanized metal cabinet with captured foil face insulation
2% or less air leakage
R-4.2 Insulating Value
Multi-Position UP/Down Flow, Horizontal Left /Right
ALL Aluminum Coil
Electric Heaters with polarized plug connections (sold as an accessory)
R-410A Thermal Expansion Valve
ECM Motor ((33..55 –– 55 TToonn MMooddeellss ))
Low Voltage Pigtail Connections
Draw Through Design
Horizontal Drain pan
Single Color
Fused 24V Power
5-year warranty
Optional extended warranty available

Important: Condensate management kit is required for all 5-ton air handler models installed in downflow applications.

About Trane and American Standard Heating and Air Conditioning Trane and American Standard create comfortable, energy-efficient indoor environments for residential applications. For more information, please visit www.trane.com or www.americanstandardair.com.

The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without notice.
We are committed to using environmentally conscious print practices.
A4AH4P36A1B-SUB-1D-EN 09 Mar 2022 Supersedes A4AH4P36A1B-SUB-1C-EN (September 2020) ©2022
