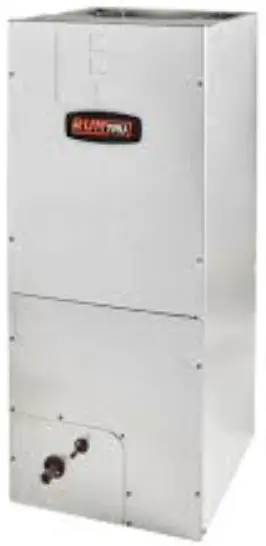

RUNTRU A4AH5E31A1B30A 2.5 Ton Convertible Air Handler Owner’s Manual

Contents hide

1 Outline Drawing

2 Product Specifications

3 Heater Pressure Drop Table

4 Performance and Electrical Data

5 Features and Benefits

6 Documents / Resources

6.1 References

7 Related Posts

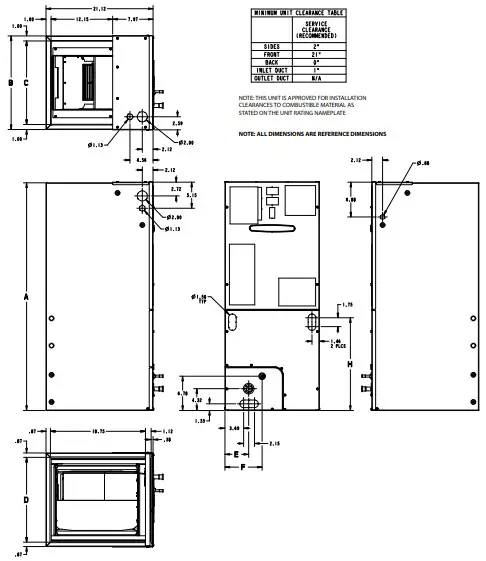

Outline Drawing

PRODUCT DIMENSIONS
Air Handler Model	A	B	C	D	E	F	H	Flow Control	Gas Line Braze
A4AH5E31A1B	46.77	18.50	16.50	16.75	4.68	7.33	20.09	TXV	3/4
All dimensions are in inches

Product Specifications

MODEL	A4AH5E31A1B30A
RATED VOLTS/PH/HZ	208-230/1/60
RATINGS(a)	See O.D. Specifications
INDOOR COIL — Type	Plate Fin
Rows — F.P.I.	4 – 14
Face Area (sq. ft.)	3.44
Tube Size (in.)	3/8
Refrigerant Control	TXV
Drain Conn. Size (in.)(b)	3/4 NPT
DUCT CONNECTIONS	See Outline Drawing
INDOOR FAN — Type	Centrifugal
Diameter-Width (In.)	11 X 8
No. Used	1
Drive – No. Speeds	Direct – 5
CFM vs. in. w.g.	See Fan Performance Table
No. Motors — H.P.	1 – 1/3
Motor Speed R.P.M.	1050
Volts/Ph/Hz	208-230/1/60
F.L. Amps	2.8
FILTER
Filter Furnished? (c)	No
REFRIGERANT	R-410A
Ref. Line Connections	Brazed
Coupling or Conn. Size — in. Gas	3/4
Coupling or Conn. Size — in. Liq.	3/8
DIMENSIONS	H x W x D
Crated (In.)	48-1/4 x 22-1/2 x 25-1/2
Uncrated	46-3/4 x 18-1/2 x 21-1/8
WEIGHT
Shipping (Lbs.) / Net (Lbs.)	145/138

(a) These Air Handlers are A.H.R.I certified with various Split System Air Conditioners and Heat Pumps (AHRI STANDARD 210/240). Refer to the Split System Outdoor Unit Product Data Guides for performance data.
(b) 3/4” Male Plastic Pipe (Ref: ASTM 1785–76)
(c) Remote filter required.

Minimum Airflow CFM

A4AH5E31A1B30A
Heater	Minimum Heat Speed Tap
	With Heat Pump	Without Heat Pump
BAYHTR1504BRK, BAYHTR1504LUG, BAYHTR1505BRK, BAYHTR1505LUG	Low	Low
BAYHTR1508BRK, BAYHTR1508LUG, BAYHTR1510BRK, BAYHTR1510LUG	Med-High	Med-Low
BAYHTR1517BRK, BAYHTR3517LUG, BAYHTR3510LUG	High	Med

Heater Pressure Drop Table

Airflow CFM	Number of Racks				Heater Racks
	1	2	3	4	Heater Model	No. of Racks
	Air Pressure Drop — Inches W.G.				BAYHTR1504	1
1800	0.02	0.04	0.06	0.14	BAYHTR1505	1
1700	0.02	0.04	0.06	0.14	BAYHTR1508	2
1600	0.02	0.04	0.06	0.13	BAYHTR1510	2
1500	0.02	0.04	0.06	0.12	BAYHTR1517	3
1400	0.02	0.04	0.06	0.12	BAYHTR3510	3
1300	0.02	0.04	0.05	0.11	BAYHTR3517	3
1200	0.01	0.04	0.05	0.10	BAYHTR3515	3
1100	0.01	0.03	0.05	0.09	BAYHTR1523	4
1000	0.01	0.03	0.04	0.09	BAYHTR1525	4
900	0.01	0.03	0.04	0.08
800	0.01	0.03
700	0.01	0.02
600	0.01	0.02

Performance and Electrical Data

See Product Data or Air Handler nameplate for approved combinations of Air Handlers and Heaters.
Heater model numbers may have additional suffix digits.

Table 1. Air Flow Performance

A4AH5E31A1B30A
EXTERNAL STATIC(in w.g)	AIRFLOW
EXTERNAL STATIC(in w.g)	Speed Taps: 208 – 230 VOLTS
	High	Med-High	Med †	Med-Low	Low
0.1	1192	1127	1070	995	940
0.2	1148	1079	1021	943	885
0.3	1103	1031	971	890	828
0.4	1057	980	919	834	767
0.5	1009	929	865	775	702
0.6	961	875	810	714	635
0.7	911	820	753	651	564
Values are with wet coil, no filter, and no heaters CFM Correction for dry coil = Add 3% † = Factory Setting Low = Tap 1, Med-Low = Tap 2, Med = Tap 3, Med-High= Tap 4, High = Tap 5

Table 2. Electrical Data

A4AH5E31A1B30A
Heater Model No.	No. of Circuits/ Phases	240 Volt					208 Volt
		Capacity		Heater Amps per Circuit	Minimum Circuit Ampacity	Maximum Overload Protection	Capacity		Heater Amps per Circuit	Minimum Circuit Ampacity	Maximum Overload Protection
		kW	BTUH	Heater Amps per Circuit	Minimum Circuit Ampacity	Maximum Overload Protection	kW	BTUH	Heater Amps per Circuit	Minimum Circuit Ampacity	Maximum Overload Protection
No Heater				2.8 *	4	15			2.8 *	4	15
BAYHTR1504BRK BAYHTR1504LUG	1/1	3.8	13100	16.0	24	25	2.9	9800	13.8	21	25
BAYHTR1505BRK BAYHTR1505LUG	1/1	4.8	16400	20.0	29	30	3.6	12300	17.3	25	25
BAYHTR1508BRK BAYHTR1508LUG	1/1	7.7	26200	32.0	44	45	5.8	19700	27.7	38	40
BAYHTR1510BRK BAYHTR1510LUG	1/1	9.6	32800	40.0	54	60	7.2	24600	34.6	47	50
BAYHTR1517BRK-Circuit 1 (a)	2/1	9.6	32800	40.0	54	60	7.2	24600	34.6	47	50
BAYHTR1517BRK-Circuit 2	2/1	4.8	16400	20.0	25	25	3.6	12300	17.3	22	25
BAYHTR3510LUG	1/3	9.6	32800	23.1	32	35	7.2	24600	20.0	28	30
BAYHTR3517LUG	1/3	14.4	49100	34.6	46	50	10.8	36900	30.0	41	45
BAYHTR1517BRKwith single circuit power source kit BAYSPEKT201A	1/1	14.4	49100	60.0	83	90	10.8	36900	51.9	73	80
* = Motor Amps

(a) MCA and MOP for circuit 1 contains the motor amps.

Features and Benefits

Galvanized metal cabinet with captured foil face insulation
2% or less air leakage
R-4.2 Insulating Value
Multi-Position UP/Down Flow, Horizontal Left /Right
ALL Aluminum Coil
Electric Heaters with polarized plug connections (sold as accessory)
R-410A Thermal Expansion Valve
ECM Motor (3.5 – 5 Ton Models )
Low Voltage Pigtail Connections
Draw Through Design
Horizontal Drain pan
Single Color
Fused 24V Power
5 year warranty
Optional extended warranty available

Important: Condensate management kit is required for all 5 ton air handler models installed in downflow applications.

About Trane and American Standard Heating and Air Conditioning
Trane and American Standard create comfortable, energy efficient indoor environments for residential applications. For more information, please visit www.trane.com or www.americanstandardair.com.

The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.

A4AH5E31A1B-SUB-1A-EN 06 Sep 2022
Supersedes (New)
