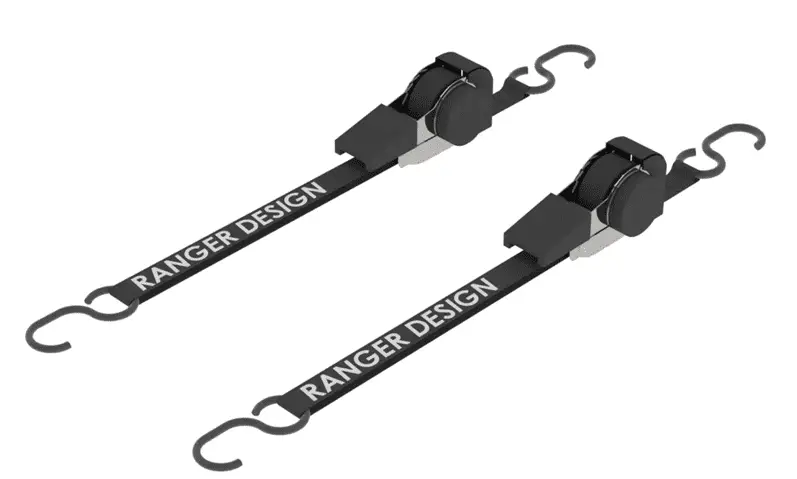

RANGER DESIGN 16-U0010 Cargo Strap
SAFETY INSTRUCTIONS
Before the installation, carefully read the supplied installation guide to avoid possible injuries and damages resulting from incorrect installation. Always keep the installation guide in an accessible location at all times for reference during installation.
WARNING

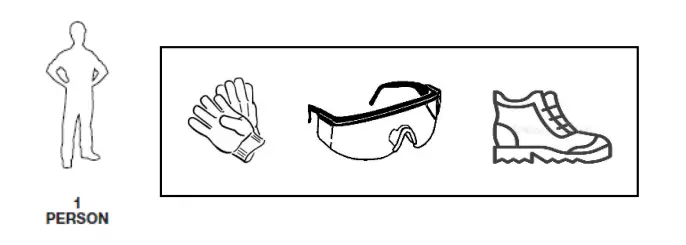

- Only a qualified person/s should install this product.
- This product requires 1 person to install it.
- Always use safety gloves, glasses, and shoes.
CAUTION
- Follow all vehicle manufacturer instructions before attempting any installation.
PREPARATION

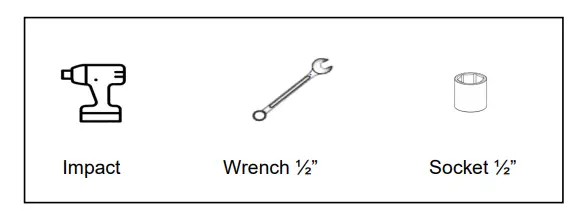

Tools Needed
BILL OF MATERIALS
| Item No. | Description | Qty. |

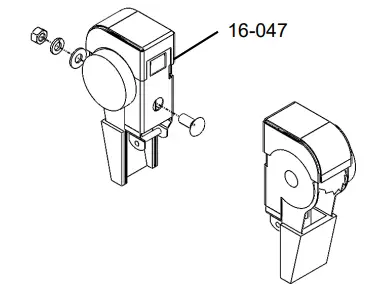

| 16-047 | Cargo Strap | 2 |
| 96-0014 | Hardware Kit | 1 |
Hardware Kit 96-0014

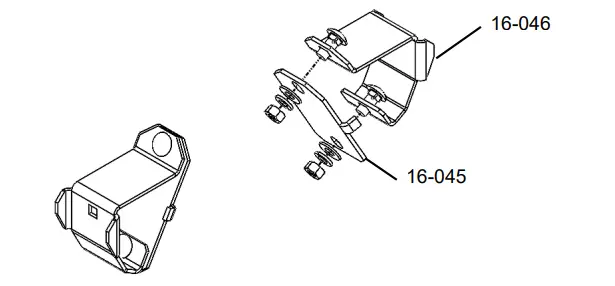

16-U0015 – Cargo +
| Item No. | Description | Qty. |
| 16-045 | Cargo+ Bracket Base | 2 |
| 16-046 | Cargo+ Bracket Top | 2 |
| 96-0015 | Hardware Kit | 1 |
Hardware Kit 96-0015
| Item No. | Description | Qty. |
| 90-491 | Carriage Bolt 5/16”-18×1” SS | 4 |
| 98-117 | Flat Washer 5/16” SS | 4 |
| 94-105 | Hex Nut 5/16 SS | 4 |
| 98-123 | Lock Washer 5/16” SS | 4 |
ASSEMBLY
STEP 1 Cargo Rack

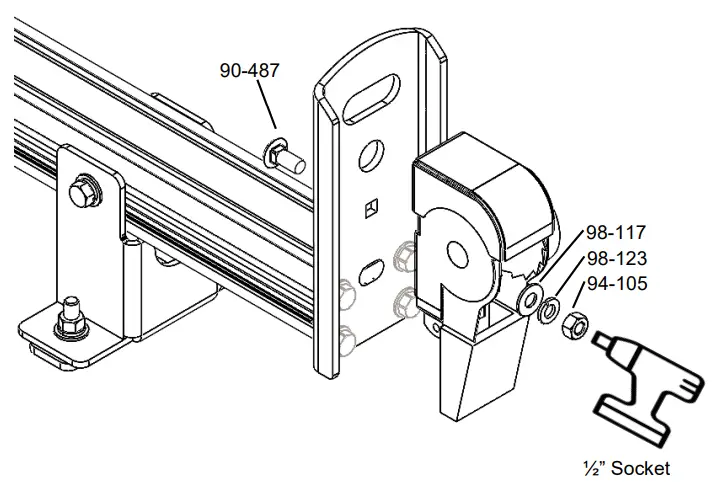

STEP 2 Cargo Rack
Tools:
- Impact
- Socket ½”
- 2x
- Torque to 11 lb-ft
- 5/16-18X3/4” Carriage Bolt
- 5/16 Flat Washer
- 5/16 Lock Washer
- 5/16 Hex Nut

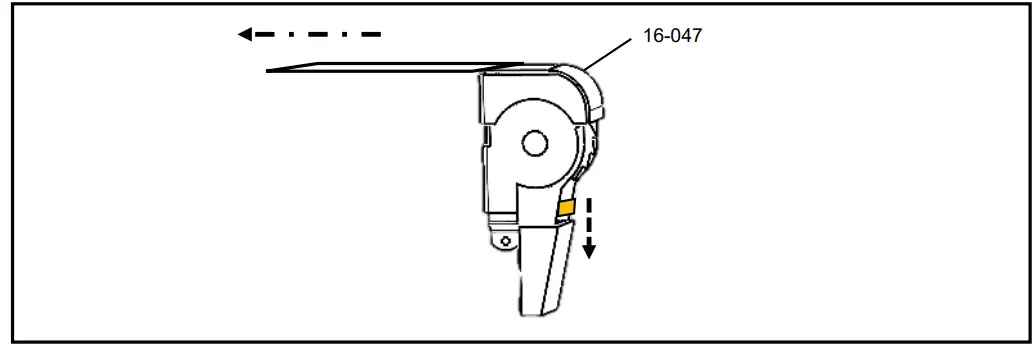

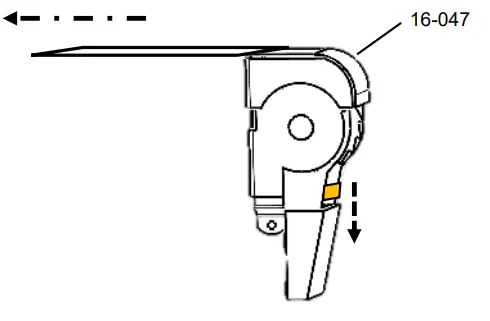

- STEP 3 Strap Operation
- STEP 1 Cargo+
- STEP 2 Cargo+
- Tools:
- Impact
- Socket ½”
- 2x
- Torque to
- 11 lb-ft
- 5/16-18X3/4” Carriage Bolt
- 5/16 Flat Washer
- 5/16 Lock Washer
- 5/16 Hex Nut

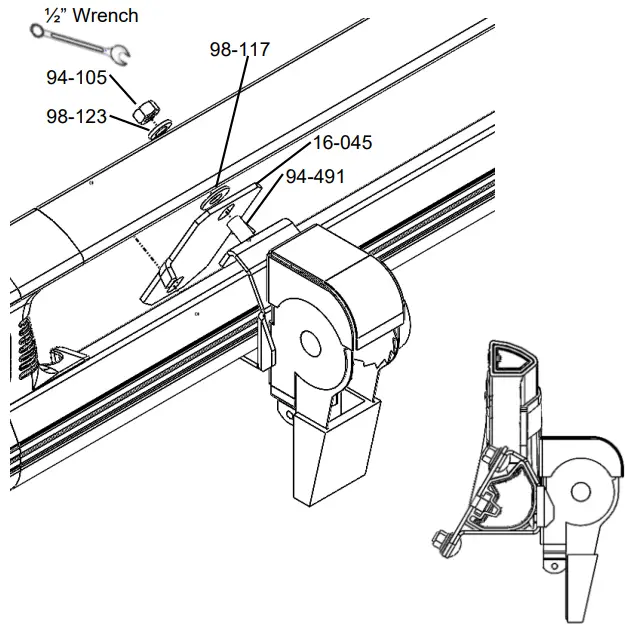

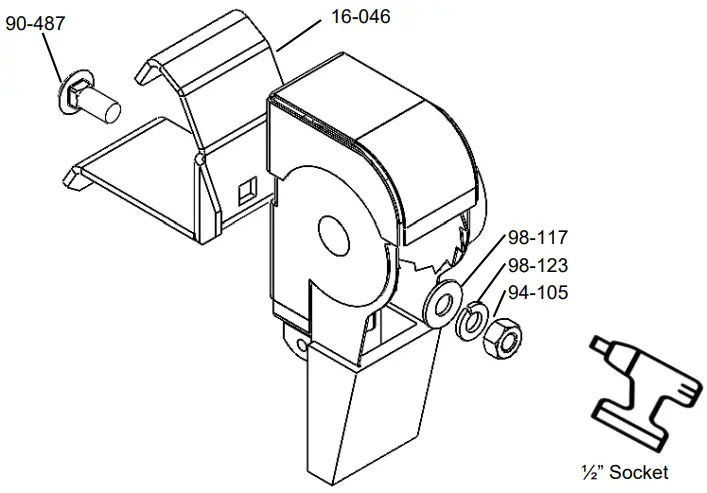

- STEP 3 Cargo+
Tools:
- ½” Wrench
- 4x
- Torque to
- 11 lb-ft
- 5/16-18X1” Carriage Bolt
- 5/16 Flat Washer
- 5/16 Lock Washer
- 5/16 Hex Nut

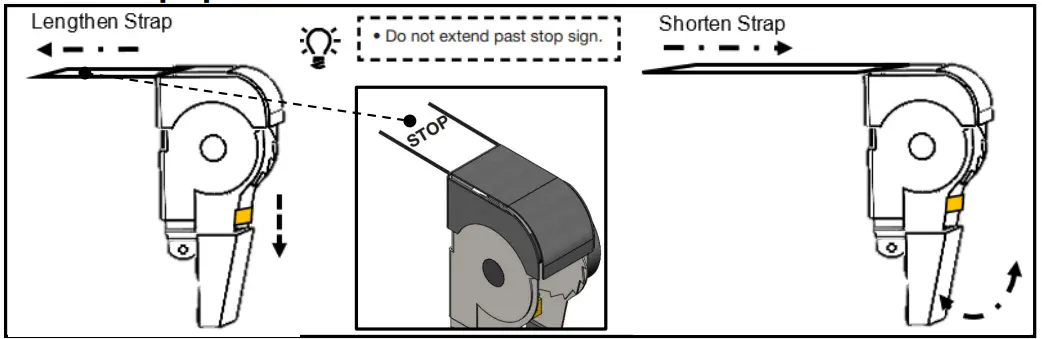

- STEP 4 Strap Operation
- “You have successfully installed your Cargo Strap, thank you for doing business with us.”
- For any feedback or suggestions, you may have, please contact: [email protected]

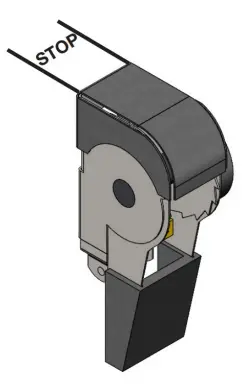

- Do not extend past the stop sign.
- For technical support, contact us at 1-800-565-5321
- 16-U0010 Installation Guide | REV.A1
