Laurel Mountain 6032wta064 60 X 32 Inch Drop-in Acrylic Air Bath User Manual

Withams
60” x 32” Drop-In
Acrylic Air Bath
User Manual

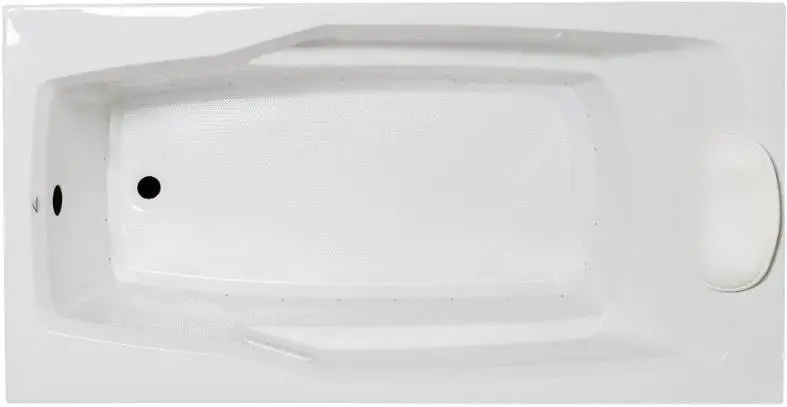

6032WTA064 60 x 32 Inch Drop-In Acrylic Air Bath

Model Number
6032WTA064
Drop-In Air Bath in White

Features

• 20 high output later air jets
• Color-matched trim
• 12.0 Amp variable speed blower
• Pillow included
• Constructed of high-gloss durable acrylic
• Automatic purge cycle with timer
• Heaters available – LM305
• Mood light available – LM522
• Pre-leveled base for easy installation
• Made in the USA

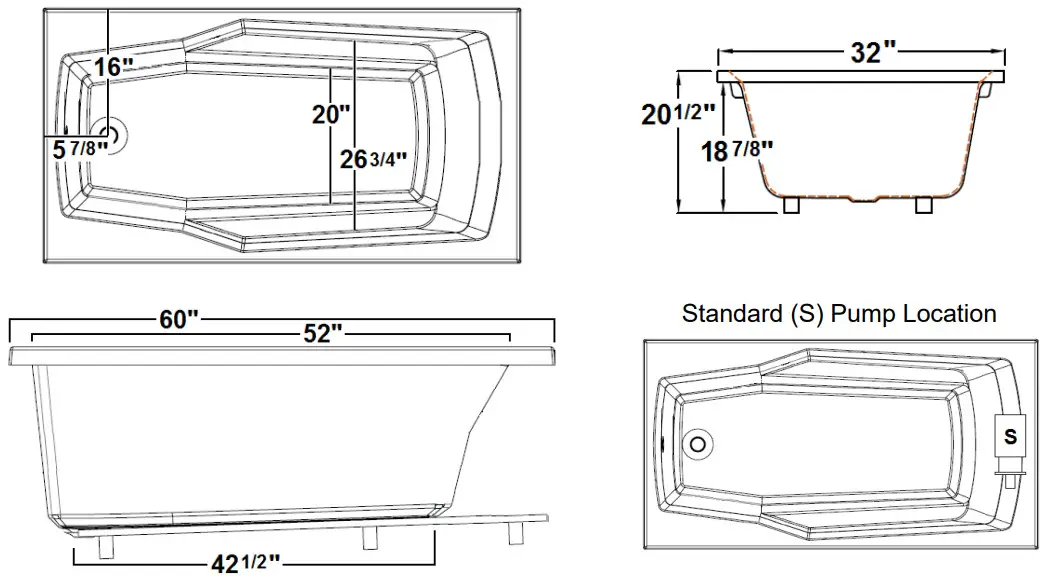

*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation

Technical Information

• Cut-Out Dimensions: 58” x 30”
• Weight: 133 lbs.
• Water Depth to Overflow: 12 1/8”.
• Water Capacity: 50 gal.
• Sump Dimension: 42 1/2” x 20”

Electrical Requirements.

• Standard Blower: 12.0 Amps
• (Optional) LM305 Heater: 12.5 Amps
• Dedicated GFCI’s required for each option

AVAILABLE OPTIONS & UPGRADES

For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at
800-930-0050.

Therapeutic

Accessories

Design / Construction

INSTALLATION

Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.

Laurel Mountain Customer Service: 1-800-930-0050
