Model Number 4270LTA064
Drop-In Air Bath in White
Features
- 28 high output lateral air jets
- 10.5 Amp blower / heater
- Variable speed blower with automatic purge
- Includes Wave & Pulse modes
- Constructed of high-gloss durable acrylic
- Deep bathing well with textured slip resistant bottom
- Limited lifetime warranty
- Made in the USA

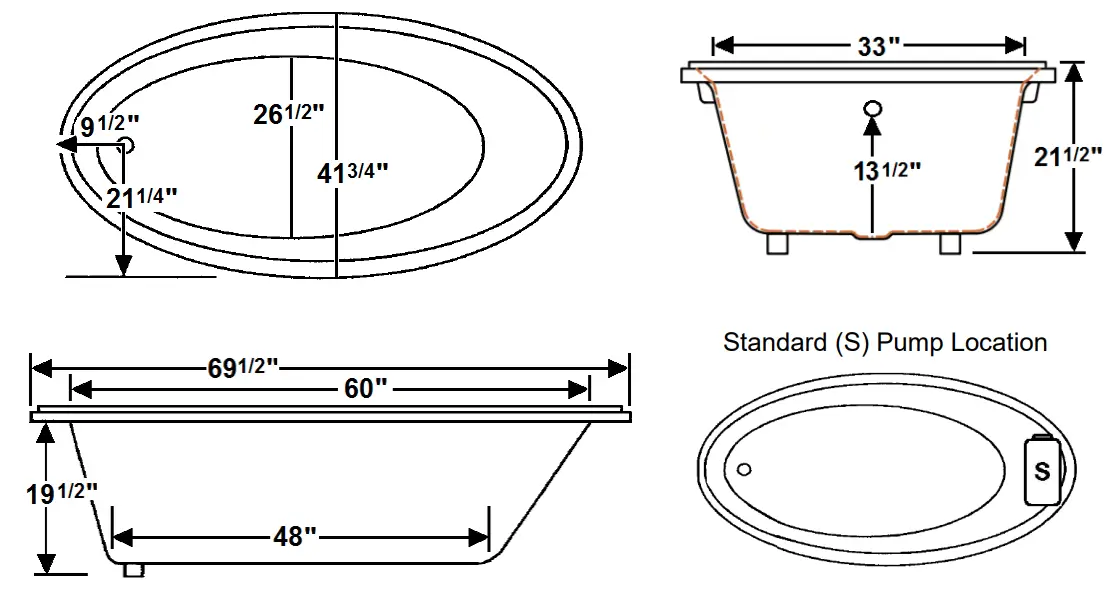

*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation
Technical Information
- Weight: 115 lbs.
- Water Depth to Overflow: 13 1/2”
- Water Capacity: 65 gal.
- Sump Dimension: 48” x 29”
Electrical Requirements.
- Standard Blower: 12.0 Amps
- (Optional) LM305 Heater: 12.5 Amps (120V)
- Dedicated GFCI’s required for each options
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930- 0050.
Therapeutic
HEATERS
LM305 Inline Heater
LM301 Warm Comfort Radiant Heat
OTHER THERAPIES (select one)
LM522 Chromatherapy Mood Light
LM525 Wāv Music. Vibe. Lights
Accessories
| LM200 Chrome LM210 White | DEEP SOAK DRAINS LM201 Brushed Nickel LM211 Biscuit | LM202 Bronze |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
