GALAXY
66” x 42” Drop-In
Acrylic Air Bath
User Manual
6642GTA064 66 Inch x 42 Inch Drop-In Acrylic Air Bath
Model Number
6642GTA064
Drop-in Air Bath in White
Features
- 20 high output lateral air jets
- 12.0 Amp variable speed blower
- Pillow included
- Constructed of high-gloss durable acrylic
- Automatic purge cycle with timer
- Heaters available – LM305
- Mood light available – LM522
- Pre-leveled base for easy installation
- Can be installed as an undermount
- Made in the USA

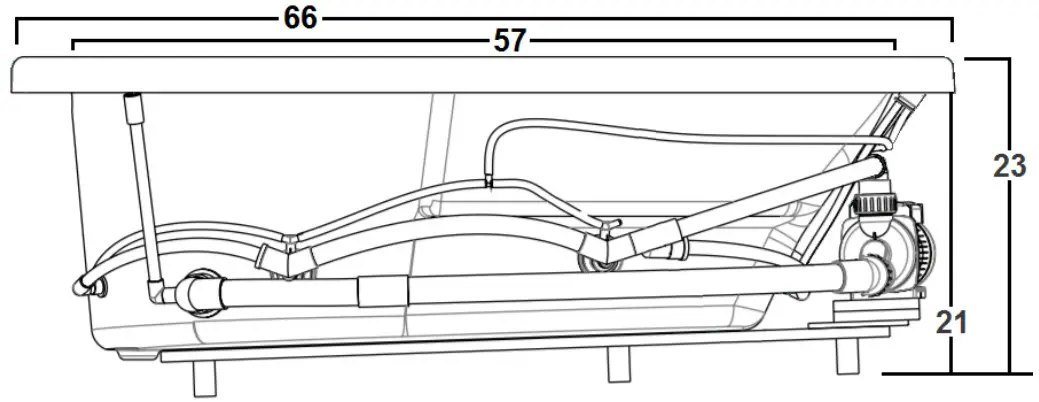

*Dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation

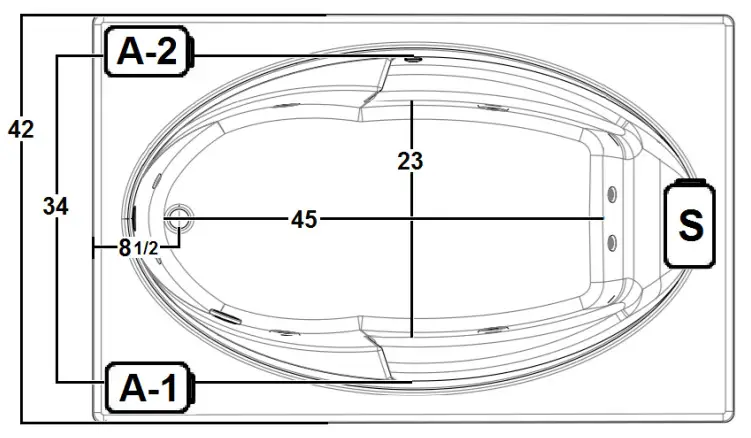

Standard (S) Pump Location and Alternate (A-1 & A-2) Pump locations.
Technical Information
- Weight: 143 lbs.
- Water Depth to Overflow: 16 3/4”
- Water Operating Level: NA
- Water Capacity: 62 gal.
- Sump Dimension: 45” x 23”
Electrical Requirements.
- Standard Blower: 12 Amps
- (Optional) LM305 Heater: 12.5 Amps
- Dedicated GFCI’s required for each option
* Cut-Out Dimensions: Use the outer dimensions shown above and come in 1” on all sides.
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at
800-930-0050.
Therapeutic
| LM305 Inline Heater | LM522 Chromatherapy Mood Light |
| LM301 Radiant Heat | LM525 Wāv Music. Vibe. Lights |
Accessories
| CABLE OPERATED DRAINS | ||
| LM200 Chrome | LM210 White | LM201 Brushed Nickel |
| LM211 Biscuit | LM202 Bronze | |
Design / Construction
| LM542 Plastic Flange | LM545 A-1 Pump Loc | LM546 A-2 Pump Loc |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
