EVERSON 1
60” x 42” Drop-In
Acrylic Air Bath

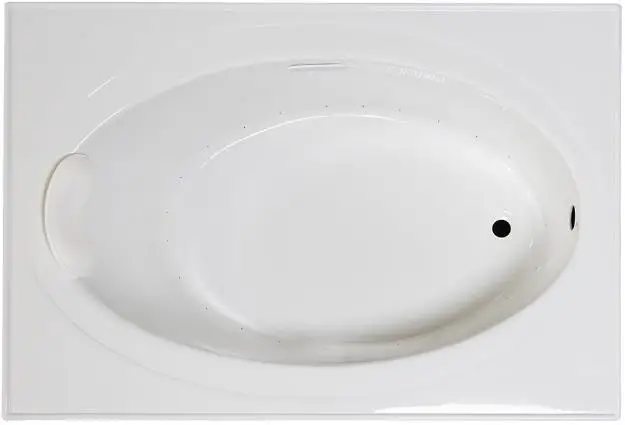

4260ETA064 EVERSON 1 60 Inch x 42 Inch Drop-In Acrylic Air Bath
Model Number
4260ETA064
Drop-In Air Bath in White
Features
- 20 high output later air jets
- Color-matched trim
- 12 Amp variable speed blower
- Pillow included
- Constructed of high-gloss durable acrylic
- Automatic purge cycle with timer
- Heaters available – LM305
- Mood light available – LM522
- Pre-leveled base for easy installation
- Made in the USA
*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation
Technical Information
- Cut-Out Dimensions: 57” x 39 1/4”
- Weight: 140 lbs.
- Water Depth to Overflow: 11 3/4”
- Water Operating Level: NA
- Water Capacity: 72 gal.
- Sump Dimension: 39” x 25”
Electrical Requirements.
- Standard Blower: 12 Amps
- (Optional) LM305 Heater: 12.5 Amps
- Dedicated GFCI’s required for each option
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
| LM305 Inline Heater LM301 Radiant Heat | LM522 Chromatherapy Mood Lights LM525 Wāv Music. Vibe. Lights |
Accessories
8” GRAB BARS
- LM230 White
- LM231 Biscuit
CABLE OPERATED DRAINS
| LM200 Chrome LM201 Brushed Nickel LM202 Bronze | LM210 White LM211 Biscuit |
Design / Construction
| LM542 Plastic Flange | LM545 A-1 Pump Loc | LM546 A-2 Pump Loc |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
