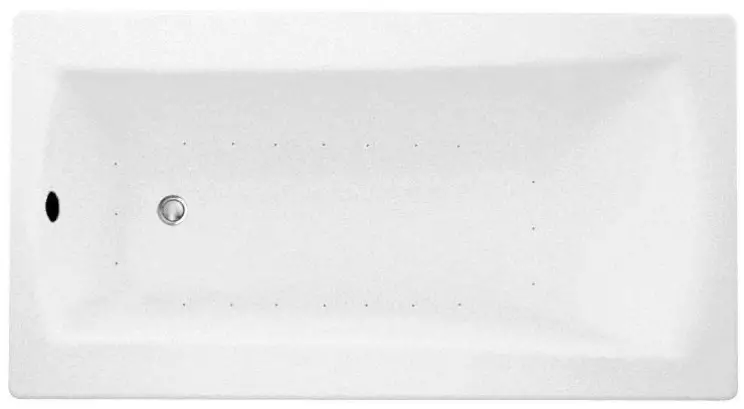

Laurel Mountain BOSTON 2 72 x 32 Inch Drop-In Acrylic Air Bath
Laurel Mountain BOSTON 2 72 x 32 Inch Drop-In Acrylic Air Bath

Features

  • 20-24 high output lateral air jets
  • 10.5 Amp blower / heater
  • Variable speed blower with automatic purge
  • Includes Wave & Pulse modes
  • Includes Chromatherapy
  • Constructed of high-gloss durable acrylic
  • Deep bathing well
  • Transitional / Modern design
  • Limited lifetime warranty
  • Made in the USA

DIMENSIONS

*All dimensions are +/- 1/2” and subject to change without notice*
DIMENSIONS

Technical Information

  • Weight: 212 lbs.
  • Water Depth to Overflow: 16 1/4”
  • Water Capacity: 80 gal.
  • Sump Dimension: 56 1/4” x 21 5/8″

Electrical Requirements

  • Standard Blower: 10.5 Amps (120V)
  • Dedicated GFCI required

AVAILABLE OPTIONS & UPGRADES

For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.

Therapeutic

  • LM301 Radiant Heat
    LM525 Wāv Music. Vibe. Lights

Accessories

CABLE OPERATED DRAINS

LM200 ChromeLM210 WhiteLM231 Biscuit
LM201 Brushed NickelLM211 BiscuitLM202 Bronze

INSTALLATION

Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
