6036MA064 60 Inch x 36 Inch Drop-In Acrylic Air Bath
User Manual
Model Number
6036MA064
Drop-In Air Bath in White
6036MA064 60 Inch x 36 Inch Drop-In Acrylic Air Bath
MONETA 1
60” x 36” Drop-In
Acrylic Air Bath
Features
- 24 high output lateral air jets
- 10.5 Amp blower / heater
- Variable speed blower with automatic purge
- Includes Wave & Pulse modes
- Includes Chromatherapy
- Constructed of high-gloss durable acrylic
- Deep bathing well with textured slip resistant bottom
- Transitional / Modern design
- Limited lifetime warranty
- Made in the USA

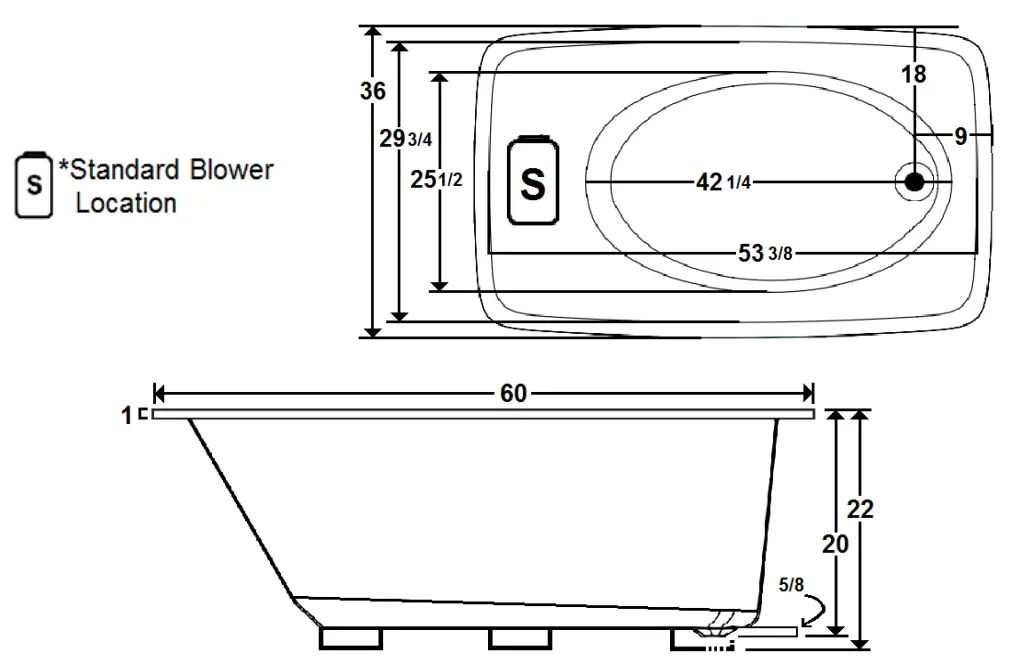

*All dimensions are +/- 1/2” and subject to change without notice*
Technical Information
- Weight: 158 lbs.
- Water Depth to Overflow: 16 1/4”
- Water Capacity: 75 gal.
- Sump Dimension: 42 1/4” x 25 1/2”
Electrical Requirements
- Standard Blower: 10.5 Amps (120V)
- Dedicated GFCI required
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
LM301………………. Radiant Heat
LM525 …………….Wāv Music. Vibe. Lights
Accessories
| LM200 Chrome LM201 Brushed Nickel | CABLE OPERATED DRAINS LM210 White LM211 Biscuit | LM231 Biscuit LM202 Bronze |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain
Customer Service: 1-800-930-0050
