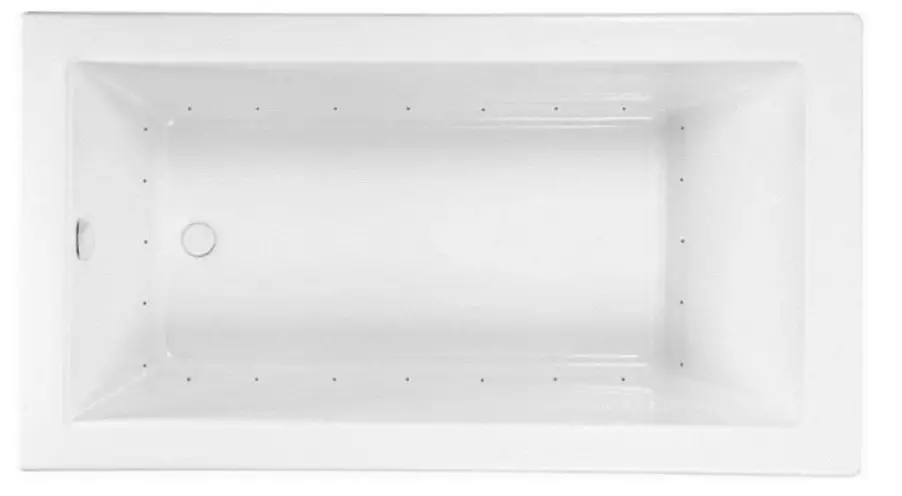

Laurel Mountain 6632PA528 PARKER 3 66 Inch x 32 Inch Drop-In Acrylic Air Bath
Features
- 20 high output lateral air jets
- 10.5 Amp blower / heater
- Variable speed blower with automatic purge
- Includes Wave & Pulse modes
- Includes Chroma therapy
- Constructed of high-gloss durable acrylic
- Deep bathing well
- Transitional / Modern design
- Limited lifetime warranty
- Can be installed as an undermount
- Made in the USA

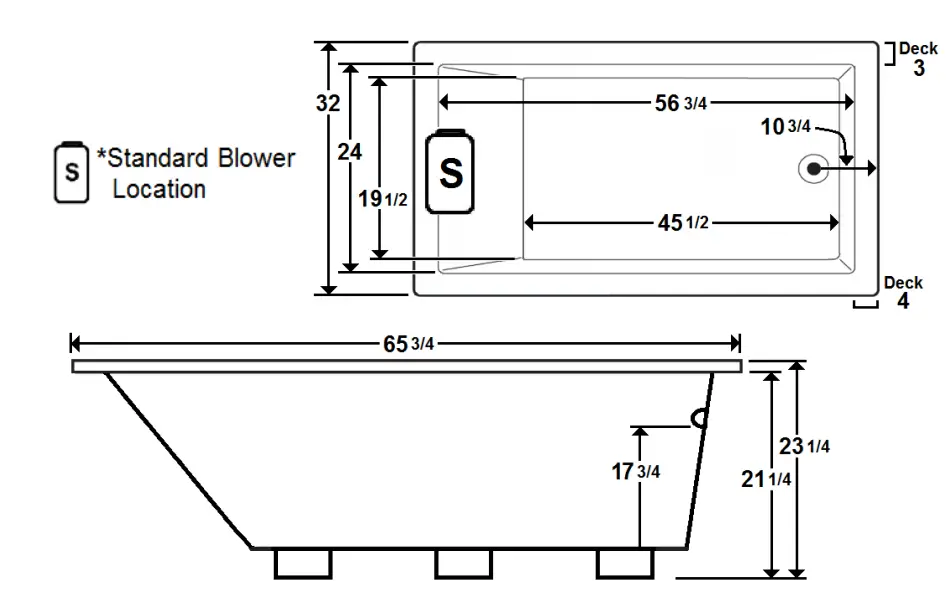

*All dimensions are +/- 1/2” and subject to change without notice*
Technical Information
- Weight: 186 lbs.
- Water Depth to Overflow: 17 3/4”
- Water Capacity: 79 gal.
- Sump Dimension: 45 1/2” x 19 1/2
Electrical Requirements
- Standard Blower: 10.5 Amps (120V)
- Dedicated GFCI required
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go
to www.lowes.com. Enter the model number of the option into the search bar at the top right of the
page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
| LM301 Radiant Heat | LM525 Wāv Music. Vibe. Lights |
Accessories
| CABLE OPERATED DRAINS | ||
| LM200 Chrome LM201 Brushed Nickel | LM210 White LM211 Biscuit | LM231 Biscuit LM202 Bronze |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at
www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on
“Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
