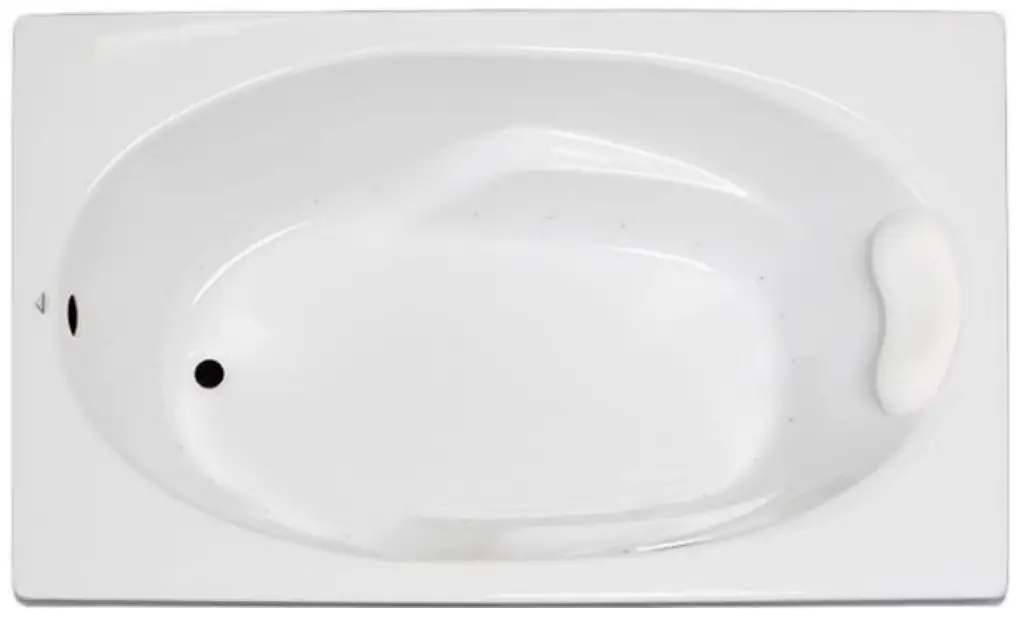

6036FTA064 FABER 60 Inch x 36 Inch Drop-In Acrylic Air Bath
Instruction Manual
Features
- 20 high output later air jets
- 12 Amp variable speed blower
- Pillow included
- Constructed of high-gloss durable acrylic• Automatic purge cycle with timer
- Radiant Heat & Heater available
- Mood lights & Music system available
- Pre-leveled base for easy installation
- Made in the USA

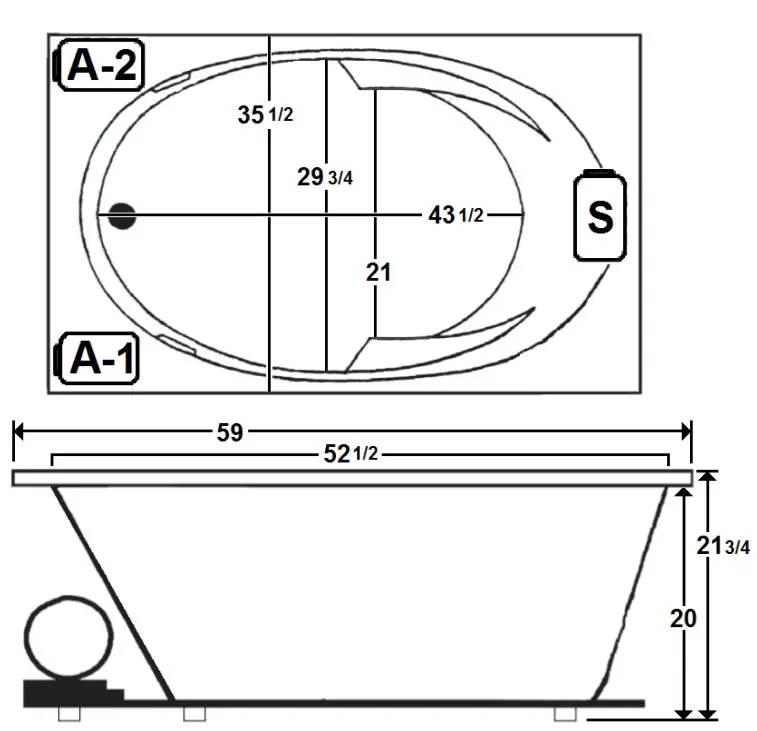

*Dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation
Standard (S) Pump Location and Alternate (A-1 & A-2) Pump locations.
Technical Information
- Weight: 166 lbs.
- Water Depth to Overflow: 14 3/8”
- Water Operating Level: 58 gal.
- Water Capacity: 63 gal.
- Sump Dimension: 43 1/2” x 29 3/4”
Electrical Requirements.
- Standard Blower: 12 Amps
- (Optional) LM305 Heater: 12.5 Amps
- Dedicated GFCI’s required for each option
*Cut-Out Dimensions: Use the outer dimensions shown above and come in 1” on all sides.
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
| LM305 Inline Heater | LM522 Chromatherapy Mood Light |
| LM301 Radiant Heat | LM525 Wāv Music. Vibe. Lights |
Accessories
| CABLE OPERATED DRAINS | ||
| 8” GRAB BARS | LM200 Chrome | LM210 White |
| LM230 White | LM201 Brushed Nickel | LM211 Biscuit |
| LM231 Biscuit | LM202 Bronze | |
Design / Construction
| LM542 Plastic Flange | LM545 A-1 Pump Loc | LM546 A-2 Pump Loc |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
