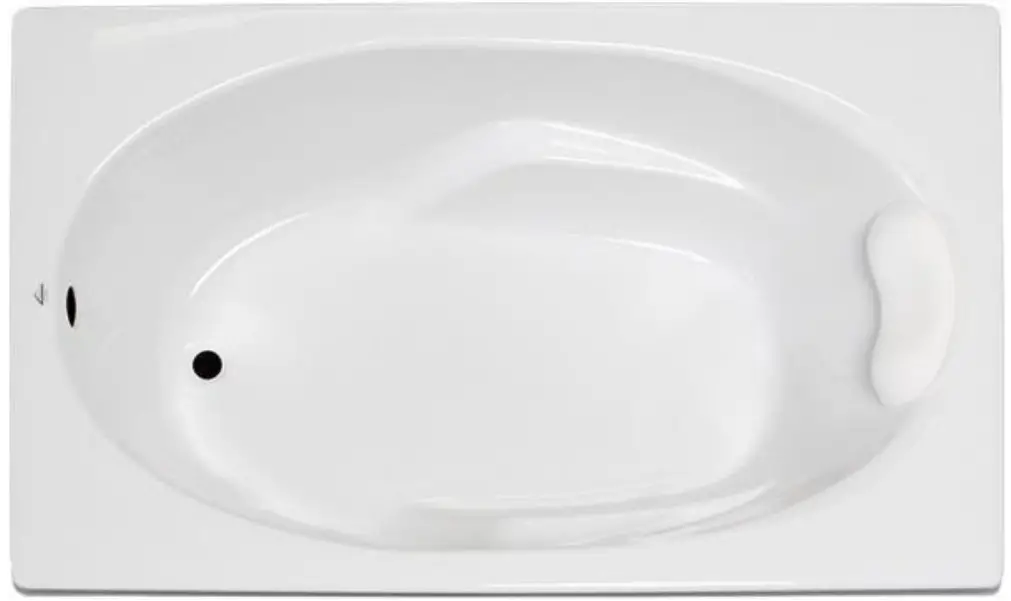

6036FT064 60 Inch x 36 Inch Drop-In Acrylic Soaking Tub
Instruction Manual
Features
- Constructed of high-gloss durable acrylic
- Pillow included
- Pre-leveled base for easy installation
- Textured floor
- Heater available – LM305
- Mood light available – LM522
- Made in the USA

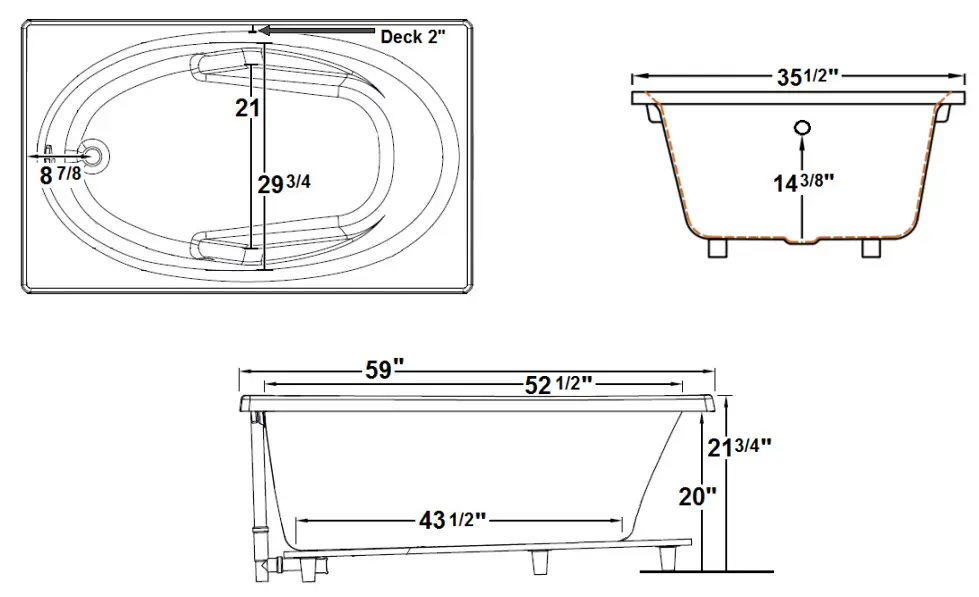

*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation
Technical Information
- Cut-Out Dimensions: 57” x 33 1/2”
- Weight: 116 lbs.
- Water Depth to Overflow: 14 3/8”
- Water Capacity: 63 gal.
- Sump Dimension: 43 1/2” x 21”
Electrical Requirements.
- (Optional) LM305 Heater: 12.5 Amps
- Dedicated GFCI’s required for each option
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
| LM305 Inline Heater | LM522 Chromatherapy |
| LM301 Radiant Heat | LM525 Music. Lights. Vibe |
Accessories
CABLE OPERATED DRAINS
| LM200 Chrome | LM210 White | 8” GRAB BARS |
| LM201 Brushed Nickel | LM211 Biscuit | LM230 White |
| LM202 Bronze | LM231 Biscuit |
Design / Construction
LM542 Plastic Flange
LM545 A-1 Pump Loc
LM546 A-2 Pump Loc
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
